Skid Plate Installation Order: What to Put On First
You finally ordered a full set of skid plates. They're sitting in the garage, ready to go. Then you look up from under your truck and realize — there's more than one plate, they overlap each other, and nobody told you which one to bolt on first. Knowing how to install skid plates in the right sequence is the difference between a 45-minute job and a frustrating two-hour ordeal.
Getting the skid plate install order wrong is more common than you think. Forum threads across TacomaWorld, Bronco6G, and 4Runner6G are full of people who bolted on the front plate first — and then couldn't reach the rear plate's mounting bolts without removing everything and starting over. One bolt hole blocked. Wasted afternoon. Frustration guaranteed.
This guide gives you the definitive installation order, explains exactly why it matters, and walks you through each plate step by step. No guesswork. Just the right sequence — the first time.
Already wondering if you even need skid plates? Check out our guide: Do You Need A Skid Plate?
⚡ Key Takeaways
- Always install skid plates rear to front — back plates go on first.
- Standard order: Transfer Case → Transmission → Engine/Front skid plate.
- Front plates overlap and block access to the rear plates' bolts — that's why order matters.
- Dry-fit everything before tightening a single bolt.
- Fuel tank and differential skids are independent — install them at any point.
📋 Table of Contents
🔧 Why Skid Plate Installation Order Actually Matters
Most people assume skid plates are independent pieces — bolt on one, bolt on the next, done. But on most trucks and SUVs, the plates in a multi-plate system overlap each other. The front edge of the rear plate tucks under the rear edge of the front plate (or vice versa). That's by design — it creates a seamless barrier with no exposed gaps for rocks to punch through.
Here's the problem: when plates overlap, the outer plate covers up the inner plate's mounting bolts. If you put the outer plate on first, you physically cannot reach the inner plate's fasteners anymore. You have to remove the outer plate, install the inner one, then reinstall the outer plate. Double the work for zero benefit.
This happens more than you'd think. On 4Runner and Tacoma forums, dozens of users report installing the front (engine) skid first, then discovering the transfer case plate's forward mounting bolts are completely blocked. The fix is simple — just know the order before you start. That's what this guide is for.
⚠️ Real-World Example: A user on Bronco6G went to reinstall two OEM skid plates after an oil change. He didn't pay attention to which came off first. After reinstalling them in the wrong order, the bolt in the middle created a standoff because the bump on the rear plate didn't seat correctly against the front plate. Fifteen minutes of confusion — because nobody wrote down the correct sequence.

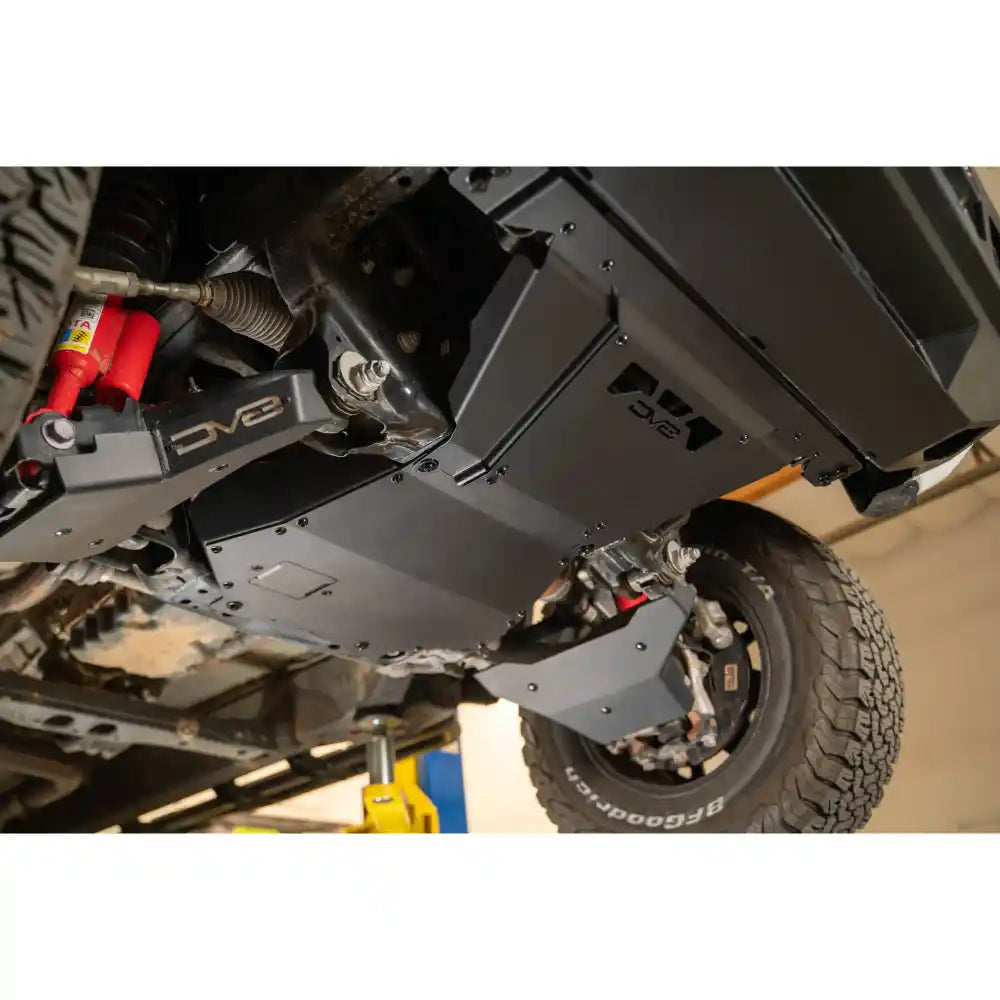

🛻 The Skid Plate System Under Your Truck
Before you crawl under the vehicle, it helps to know what you're working with. A typical multi-plate underbody protection setup includes:
| Plate | Location | What It Protects |
|---|---|---|
| Engine / Front Skid | Front of vehicle, under engine bay | Oil pan, engine block, radiator |
| Transmission Skid | Mid-vehicle, just behind engine skid | Transmission housing, driveshaft |
| Transfer Case Skid | Mid-rear, behind transmission | Transfer case (4WD component) |
| Fuel Tank Skid | Rear undercarriage | Fuel tank from puncture or heat |
| Differential Skid | Front or rear axle | Differential housing, axle seals |
Not every truck needs all five. But if you're running a skid plate kit with multiple plates, the installation order becomes critical. The three plates that interact with each other — and must be installed in the correct sequence — are the transfer case, transmission, and engine skids.
To understand which skid plates make the most sense for your rig and trail style, the Off-Road Skid Plates Buyer's Guide is a great starting point.
🎯 The Golden Rule: Always Install Rear to Front
Here it is — the rule that makes everything else make sense:
Install the rearmost plate first. Work your way forward. The front plate always goes on last.
Think of it like roofing shingles — each one overlaps the one below it. You work from the bottom up (or in this case, from the rear forward) so that every plate's edge is covered by the plate in front of it. That's how the undercarriage stays protected end-to-end, and that's how the bolt holes stay accessible as you install each piece.
1
Transfer Case Skid
Rearmost plate. Install first — nothing blocks its bolts.
2
Transmission Skid
Middle plate. Overlaps the transfer case at the rear edge.
3
Engine / Front Skid
Last plate on. Covers the transmission skid's front bolts.
⚙️ Step 1: Transfer Case Skid Plate Goes On First
The transfer case skid is the rearmost plate in most multi-plate systems. It typically has 4 mounting points — all of them fully accessible when nothing else is installed. This makes it the natural starting point.
Position it under the transfer case, align it with the mounting holes, and hand-thread all bolts before tightening any of them. Leave them finger-tight for now — you'll snug everything down once all plates are positioned.
🤔 Transfer Case vs. Transmission Skid — What's the Difference?
This trips up a lot of people. The transfer case is the 4WD component that splits power between the front and rear axles. It sits behind the transmission. Some dealers and manufacturers use "transfer case skid" and "transmission skid" interchangeably — they're not the same part. When in doubt, check your vehicle-specific fitment guide or the part number from the manufacturer.
This trips up a lot of people. The transfer case is the 4WD component that splits power between the front and rear axles. It sits behind the transmission. Some dealers and manufacturers use "transfer case skid" and "transmission skid" interchangeably — they're not the same part. When in doubt, check your vehicle-specific fitment guide or the part number from the manufacturer.
Ready to shop? Browse our Transfer Case Protection collection for bolt-on options that fit your rig.
🔩 Step 2: Transmission Skid Plate Installs Next
With the transfer case skid loosely in place, the transmission skid goes on second. It sits immediately in front of the transfer case plate, and on most platforms its rear edge will overlap — or tuck under — the forward edge of the transfer case skid.
This overlap is intentional. It closes the gap between the two plates so rocks and debris can't get through. But it also means: if you install the transmission skid first, the front bolts of the transfer case skid may be blocked when you try to add it later. Installing rear-to-front prevents this entirely.
Again — don't fully tighten yet. Get the plate into position, hand-thread all bolts, and confirm the overlap with the transfer case skid looks correct before snugging anything down.
See our full selection of Transmission Protection skid plates — steel and aluminum options available.
🏁 Step 3: Engine / Front Skid Plate Goes On Last
Engine skid plate installation is the final step — and the most critical one to get right. This plate (also called the front skid or bash plate) is the biggest in the system. It covers your oil pan, engine block, and often the radiator lower section. Because it's the widest and longest piece, it's also the one most likely to block access to everything behind it if installed out of order.
Slide it into position, align it with its mounting holes, and hand-thread all fasteners. At this point, you should have all three main plates loosely in place. Now do your final alignment check: confirm the overlaps look right, check that there are no gaps between plates, and verify drain plug access (important for oil changes — you don't want to pull a plate every time).
Once everything looks good, tighten to the manufacturer's spec. Most aftermarket skid plate brands recommend 25–27 ft-lbs. Always use a torque wrench — overtightening can strip threads in aluminum mounting points.
Browse our Engine Skid Plates collection — from lightweight aluminum to heavy-duty steel options. Not sure which material is right for you? Our Steel Skid Plates: Which Thickness You Actually Need guide breaks it all down.
💡 The Dry-Fit Rule: Before torquing any bolt, dry-fit all plates in their correct positions simultaneously. This is how forum veterans catch fitment issues before they become headaches. You may need to loosen one plate's front bolts slightly to get the next plate to seat correctly — that's normal. Do all adjustments while everything is loose, then tighten in sequence from rear to front.
🛢️ What About Fuel Tank and Differential Skid Plates?
Good news: these two plates are typically independent of the main three-plate sequence.
The fuel tank skid plate mounts at the rear of the undercarriage — completely separate from the engine/transmission/transfer case plates. It doesn't share bolt holes with anything in the main sequence, so you can install it before or after the main plates without issue. Most people install it first or last — either works.
The differential skid plate attaches to the front axle housing (and sometimes the rear). Again, it's separate from the main belly plate sequence. Install it whenever it's convenient — it won't interfere with your rear-to-front installation order.
If you're building a complete underbody armor setup, check out our Underbody Protection collection — or explore Skid Plates: The Complete Guide for everything from plate types to material comparisons.
🧠 Pro Tips Before You Start Your Skid Plate Install
1. Lift the vehicle properly
You need safe, stable access to the undercarriage. Use a floor jack and jack stands at factory lift points. Ramps work too, but four-post lifts or stands give you the most room to maneuver large plates.
2. Remove existing underbody guards first
Factory splash shields and plastic belly pans need to come off before aftermarket skid plates go on. Keep the hardware — some installations reuse OEM mounting points.
3. Dry fit before you tighten anything
This is the single most important tip. Get all plates loosely in position before tightening any bolts. Plates that seem to fit individually sometimes need micro-adjustments once they're all in together.
4. Tighten rear to front, then re-check
Once all plates are positioned and aligned, tighten the rearmost plate first, then work forward. After everything is torqued, give each plate a firm shake to confirm nothing is loose or rattling.
5. Verify oil change access before you finish
Crawl under and confirm you can reach your drain plug and oil filter with the skid plates installed. Some plates have access panels or are designed to be partially loosened for service — know this before you're under the truck on a cold morning.
Want to add rock sliders to your undercarriage armor setup too? Check out Rock Sliders, Skid Plates & More: Must-Have Gear for Off-Roaders for ideas on building a complete protection system.
❓ Skid Plate Installation FAQ
Yes. Most factory "skid plates" are thin plastic splash shields — not real protection. Remove them before installing aftermarket plates. Some aftermarket systems reuse OEM mounting points, so keep the factory hardware handy.
In most cases, you'll need to loosen or remove the front (engine) skid to access the rear plate's mounting bolts. You don't always have to remove it completely — loosening the front mounting bolts slightly can give you enough flex to slide the rear plate into position. But removing it entirely is the cleanest approach.
No — but the confusion is real. The transmission is the gearbox; the transfer case is the separate 4WD component behind it. Some manufacturers and even dealers use the terms interchangeably, especially on Toyota platforms. Always verify the part number and vehicle fitment before ordering.
Always follow the manufacturer's spec first. Most aftermarket brands (RCI, Rival, BudBuilt, etc.) specify 25–27 ft-lbs for their hardware. OEM Toyota skid plate specs are typically 27 ft-lbs. Use a torque wrench — overtightening aluminum mounting points is a common and costly mistake.
Technically possible on trucks with high ground clearance, but not recommended. You need to maneuver large, heavy metal plates into precise positions — that's very difficult flat on your back. Use ramps at minimum, floor jack and stands for anything other than a single small plate.
It depends on the plate design. Many aftermarket skid plates have access panels or drain plug holes built in. Others require you to partially loosen the front mounting bolts to swing the plate down slightly. Check your specific plate's instructions — and test access before your first post-install oil change.
You can run a single plate — most people start with the engine/front skid since it protects the most critical components. Adding plates over time is fine, just remember you may need to remove the front skid to install rear plates later. It's more efficient to install the full system at once if your budget allows.
Light blue Loctite (medium-strength) is a good idea on mounting bolts that won't need frequent removal. Avoid permanent (red) Loctite — you'll need to remove plates for oil changes and inspections. Always check bolts for tightness after the first hard off-road run.
Ready to protect your undercarriage? ExtrailAuto carries steel and aluminum skid plates for Toyota, Ford, Jeep, Subaru, and more.
Shop All Skid Plates →✅ Your Skid Plate Install Checklist
- Remove factory splash shields and plastic belly pans
- Gather tools: floor jack, jack stands, socket set, torque wrench
- Dry-fit all plates before tightening anything
- Install transfer case skid first (rearmost plate)
- Install transmission skid second
- Install engine / front skid last
- Tighten rear to front, torque to manufacturer spec
- Verify oil drain plug and filter are accessible
- Check all bolts after first off-road trip
