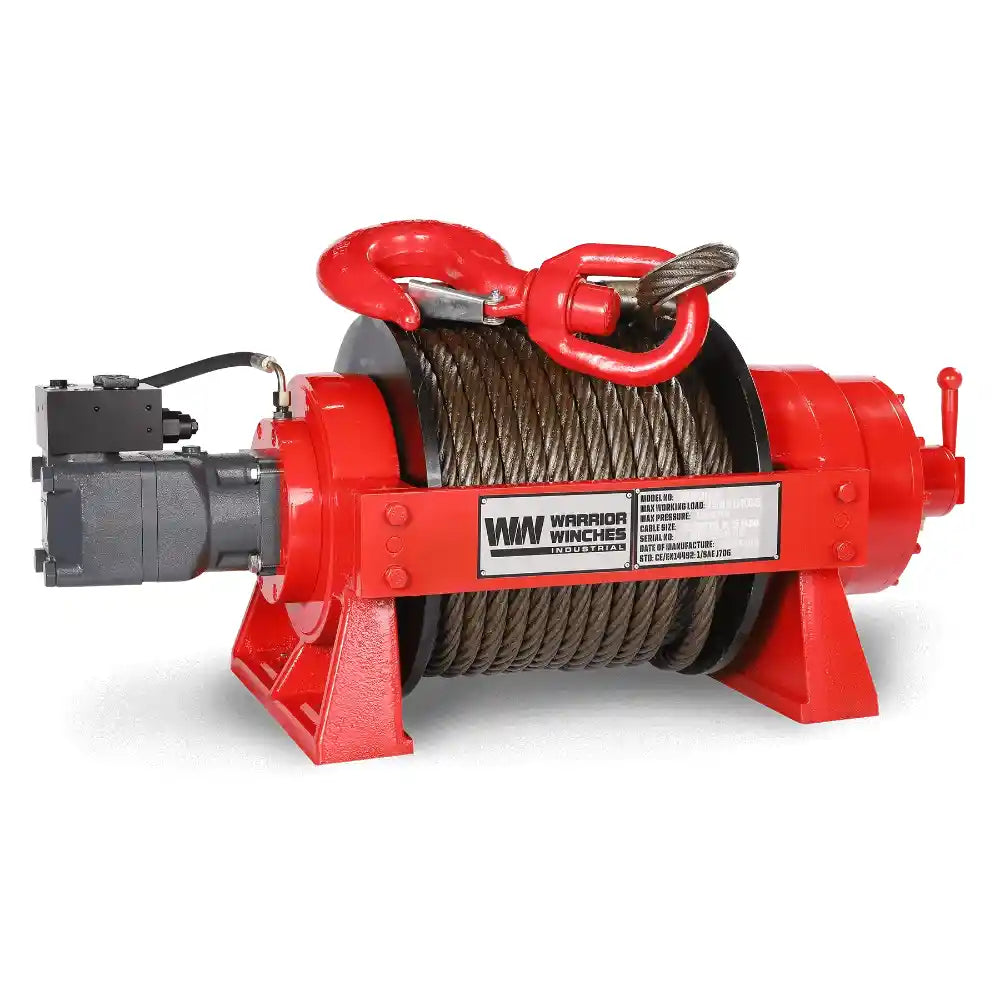

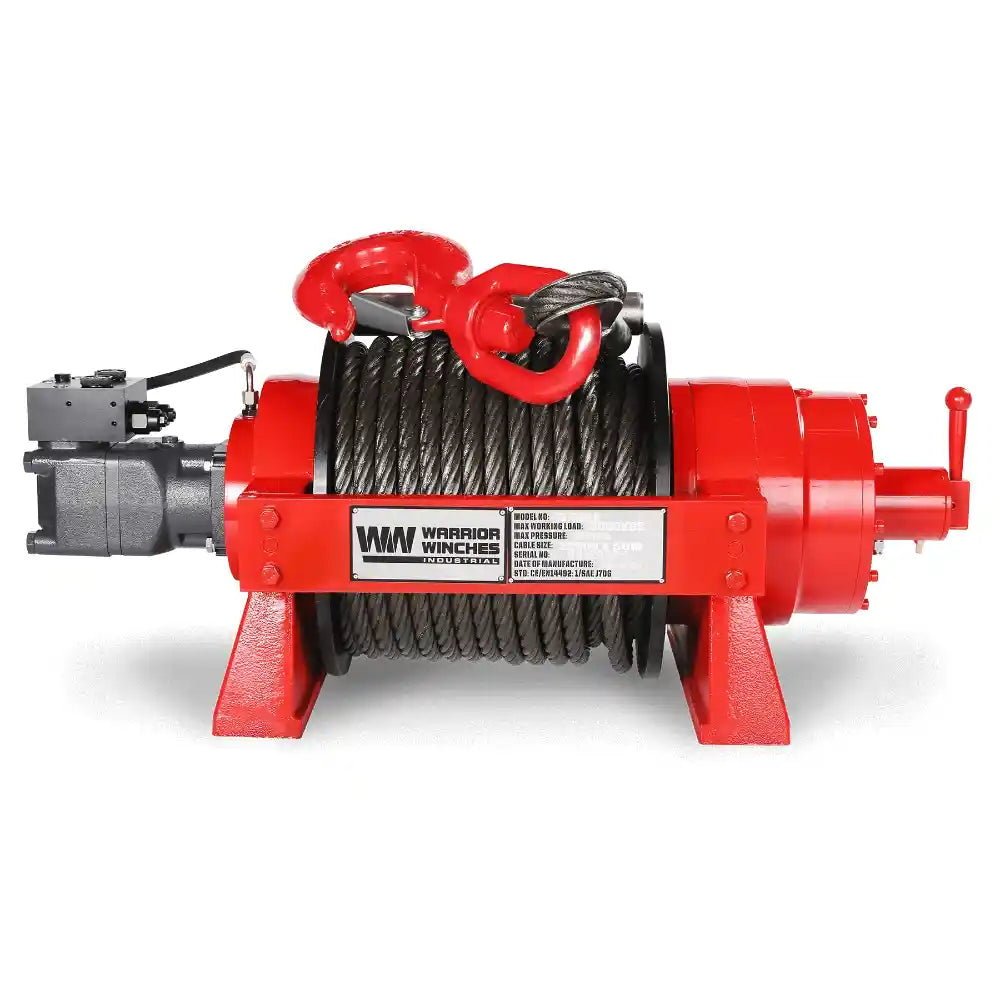

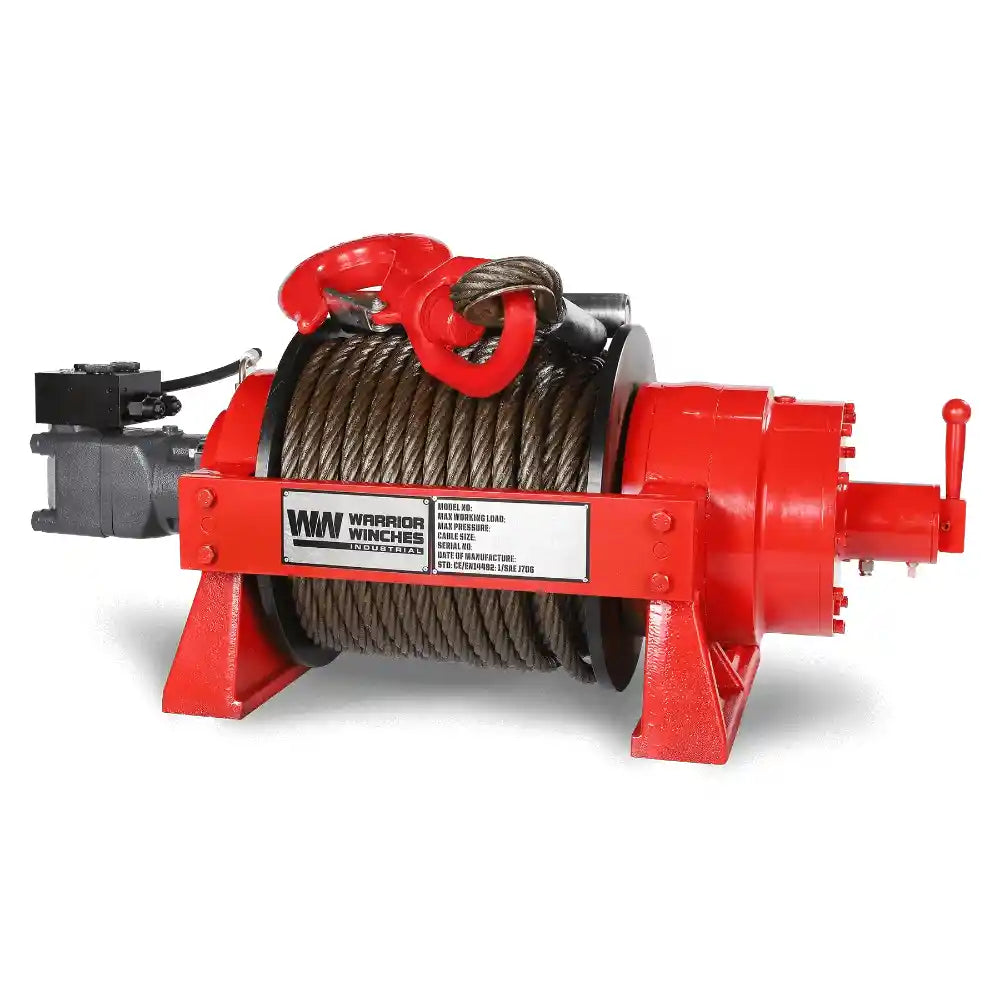

Advanced Features for Superior Performance

  • Heavy-Duty Planetary Gearing & High-Torque Motor: Equipped with a powerful Hydraulic Sauer Danfoss OMS 245 motor and 40.6:1 planetary gearing, the JR15 ensures efficient torque transfer and reliable, consistent performance for even the most demanding heavy-duty tasks.
  • Multi-Disc Friction Brake & Balance Valve: The integrated wet-type hydraulic multi-disc friction brake alongside a balance valve provides precise load control, smooth and safe lowering, and enhanced operational safety.
  • Air and Manual Clutch Operation: Offering supreme versatility, the air clutch allows for flexible engagement and disengagement, adapting to various operational environments and ensuring ease of use. A manual option provides backup control.
  • SAEJ-706 Standard & CE Certification: Built to exceed expectations, this winch complies with the rigorous SAEJ-706 industry standard and holds CE Certification, guaranteeing exceptional durability, performance, and safety for all industrial and commercial applications.
  • Reversible Orientation: Enjoy unparalleled installation flexibility with a reversible design that allows the motor to be positioned on the left or right, and the steel rope to spool from the top or bottom, seamlessly integrating into diverse mounting configurations.
  • Rugged Steel Rope & IP68 Waterproof Rating: Comes pre-spooled with 164.05ft x 0.87in (50m x 22mm) high-strength steel rope, perfect for abrasive conditions. The exceptional IP68 waterproof rating ensures complete protection against dust and water ingress, maintaining performance in extreme weather.

What's In The Box

  • JR Hydraulic Winch
  • Steel Rope and Heavy Duty Hook
  • Manual/Air Clutch
  • Balance Valve
  • Tensioner
  • Operating Manual

Technical Specifications

Rated Line Pull 33,000 lbs (15,000 kg)
Motor Type Hydraulic Sauer Danfoss OMS 245
Max Flow (Gallons/Minutes) 31.7 G/min (120 L/Min)
Max Pressure (Bar) 241.0 Bar
Clutch Air Clutch
Gearing 40.6:1
Gearing System Planetary
Braking Action Wet-type hydraulic brake
Drum Size (Diameter x Length) 8.27 x 13.39 in
Controls N/A
Cable Material Steel
Cable Size (Diameter x Length) 164.05ft x 0.87 in (50m x 22mm)
Fairlead N/A

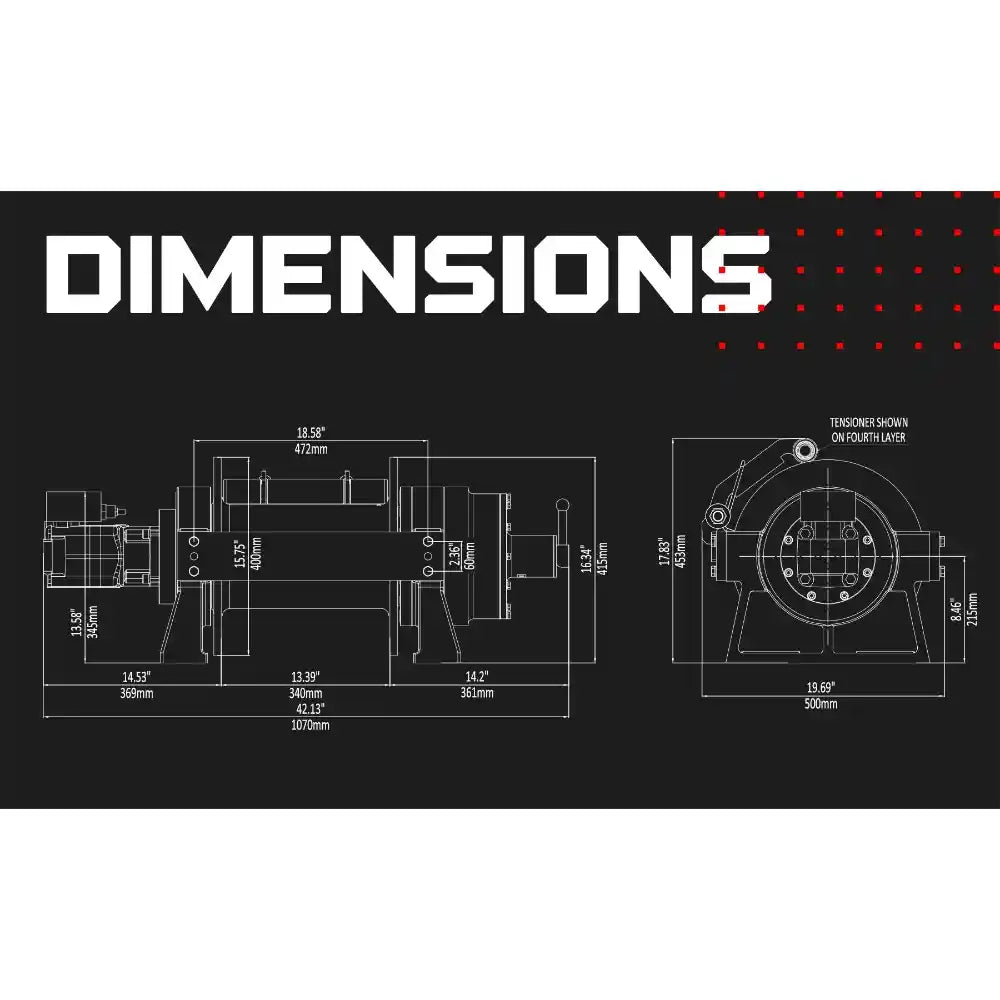

Mounting Pattern 20.55" × 7.09" × 11.02" (522mm × 180mm × 280mm) 8-M20
Dimensions 42.13 x 19.68 x 16.34 in
Weight 904 lbs
Waterproof Rating (IP) 68
Certification CE, SAEJ-706

Performance Data

Line pull lbs (kgs) Pressure Mpa(Psi)
0 4 (580.2)
21000 (9526) 10 (1045.4)
23900 (10841) 12 (1740.5)
27700 (12565) 15 (2175.6)
33000 (15000) 18 (2610.7)
Flow G/min (L/min) Line speed ft/min(m/min)
5.3 (20) 4.3 (1.3)
15.9 (60) 13.8 (4.2)
21.1 (80) 18 (5.5)
26.4 (100) 22.6 (6.9)
31.7 (120) 24.6 (7.5)
Layer of wire rope Rated line pull lbs(kgs) Total rope on drum ft (m)
1 33000 (15000) 32.8 (10)
2 27700 (12565) 71.2 (22)
3 23900 (10841) 118.1 (36)
4 21000 (9526) 164 (50)

Download Resources

Instruction Manual Technical Specifications Durability Test Report

Frequently Asked Questions

+ What type of fluid is required for the hydraulic system?

The JR15 hydraulic winch operates efficiently with standard hydraulic fluids. Please refer to the Instruction Manual for specific recommendations regarding fluid types and maintenance to ensure optimal performance and longevity.

+ Can the clutch be operated remotely?

The JR15 features an air clutch for easy engagement and disengagement. While the clutch itself is air-operated, specific remote control options for clutch activation may depend on your existing hydraulic system's controls. Consult the Technical Specifications for integration details.

+ Is the winch suitable for marine environments?

With an IP68 waterproof rating, the JR15 is highly resistant to water and dust ingress, making it suitable for challenging outdoor and even some marine conditions. Its robust construction and corrosion-resistant components ensure reliable operation in harsh, wet environments.

+ How does the reversible orientation benefit installation?

The reversible orientation feature allows for greater flexibility in mounting. You can position the motor on either the left or right side, and choose whether the steel rope spools from the top or bottom of the drum, enabling seamless integration into various vehicle or equipment setups without complex modifications.

+ What maintenance is required for the wet-type hydraulic brake?

The wet-type hydraulic brake is designed for durability and minimal maintenance. Regular checks of your hydraulic fluid levels and condition, as outlined in the Instruction Manual, are typically sufficient to ensure its continued optimal performance. There are no user-serviceable parts inside the sealed brake system.
