Engineered for Extreme Industrial Demands

  • Rugged High-Torque Sauer Danfoss Motor: At its heart, a world-class motor drives a precision 2-stage planetary gear train. This combination is engineered for extreme torque and incredible efficiency, providing the relentless pulling power needed for constant industrial use.
  • Advanced Wet-Type Hydraulic Brake: Safety is paramount. The JR10's sophisticated wet-type brake runs in a cooling fluid bath, delivering consistently smooth, powerful, and fade-free performance. Paired with the included balance valve, it ensures precise control when lowering heavy loads.
  • Air-Operated Freespool Clutch: Enhance your operational efficiency with the air-powered clutch. It allows for rapid, effortless deployment of the 157ft steel cable, saving valuable time and labor on the job site.
  • Heavy-Duty Steel Cast Frame: Built to last, the robust steel frame is constructed to withstand the punishment of the most rigorous industrial environments, ensuring durability and longevity for your investment.
  • IP68 All-Weather Reliability: Don't let the elements stop you. With an IP68 waterproof rating, the JR10 is completely sealed against dust and water ingress, ensuring unstoppable performance in any job site condition.

What's In The Box

  • JR10 22,000lb Hydraulic Winch
  • 157.49ft Steel Winch Rope
  • 22 Ton Heavy Duty Hook
  • Balance Valve
  • Rope Tensioner
  • Operating Manual

Technical Specifications

Rated Line Pull 22,000 lbs (9,979 kg)
Motor Type Hydraulic Sauer Danfoss OMS 100
Gearing / Ratio 2-Stage Planetary / 39:1
Braking Action Wet-type hydraulic brake
Clutch Air Clutch
Max Hydraulic Flow 19.8 GPM (75 L/min)
Max Hydraulic Pressure 275 Bar (3988 PSI)
Cable 157.49ft x 0.59 in (48m x 15mm) Steel
Drum Size (Dia x L) 5.43" x 12.44"
Mounting Pattern 17.0" × 2.5" × 7.6"

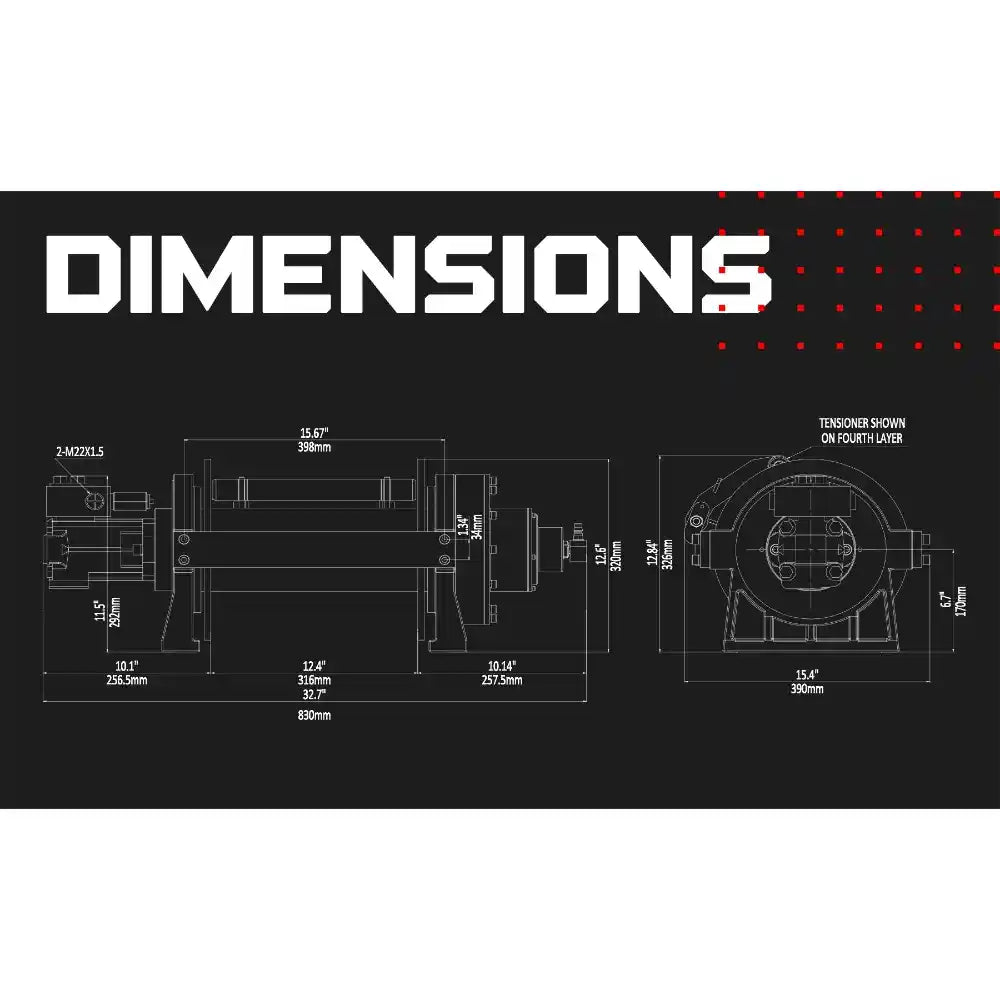

Dimensions 32.68" x 15.35" x 12.6"
Weight 430 lbs (195 kg)
Waterproof Rating IP68
Certification CE, SAEJ-706

Performance Data

Line Pull Per Layer
Layer 1 22,000 lbs
Layer 2 18,393 lbs
Layer 3 15,802 lbs
Layer 4 13,852 lbs
Line Pull (lbs) Line Speed (ft/min) Flow (GPM) Pressure (PSI)
0 5.9 4.0 363
8,000 19.7 13.2 1233
15,000 23.6 15.9 2031
22,000 26.9 19.9 2901

JR10 22,000lb Documents

Instructions Manual Technical Specifications

Frequently Asked Questions

+ What is the benefit of an Air Clutch?

An air-operated clutch allows for rapid and effortless disengagement of the drum for free-spooling. This is significantly faster and more convenient than a manual clutch, saving time and labor on commercial job sites where efficiency is key.
+ What makes the wet-type brake superior for heavy loads?

A wet-type brake operates in a cooling fluid bath, which prevents overheating and brake fade. This results in exceptionally smooth, consistent, and reliable braking performance, which is critical for safely controlling and lowering heavy loads up to 22,000 lbs.
+ What are the hydraulic system requirements for this winch?

To achieve maximum performance, your equipment's hydraulic system should be able to supply a flow rate of up to 19.8 gallons per minute (75 L/min) and sustain a maximum pressure of 275 Bar (approximately 3988 PSI).
+ Is this winch certified for professional use?

Yes. The JR10 is engineered to the rigorous SAEJ-706 standard and is CE certified, making it a fully compliant and reliable choice for demanding industrial and commercial applications.
+ How do I activate the 5-Year Industrial Warranty?

To receive the full 5-year warranty for industrial or commercial use, you must register your product after purchase. If the product is not registered, it will default to a standard 1-year warranty. The warranty covers mechanical components against defects.
