The washboard road had been rattling the truck for twenty minutes when I heard the first clunk. I glanced in the side mirror and saw the rooftop tent (RTT) swaying, the rack bolts had backed out halfway, and I was still miles from pavement. That's when I learned compatibility isn't a spec-sheet formality.

This guide is built from that kind of trial and error, not marketing claims. It will walk you through measuring your truck's rail spacing, calculating your remaining payload, and selecting a bed rack that actually fits your overlanding style: no brand bias, just a decision framework.

By the end, you'll have a personalized configuration that matches your truck, budget, and payload limits, not a generic top-10 list.

What Is a Truck Bed Rack and Why Overlanders Use Them

Before comparing brands or measuring rails, understand what a bed rack is and whether it's the right tool for your build. A bed rack is a frame bolted to your truck's bed rails, creating a raised platform above the bed. It carries gear like a rooftop tent (RTT), awning, or recovery boards while leaving the bed itself usable for storage underneath.

The real advantage over a cab-height roof rack is weight placement. A bed rack keeps the load between the axles and lower to the ground, which improves stability on off-camber trails and preserves more of your payload budget.

You also get higher dynamic load ratings than most roof setups, meaning the rack can handle heavier gear when the trail gets rough.

Steel racks cost less and you can weld a repair in the field, but they rust. Aluminum saves weight and won't corrode, yet it costs more and cracks if you over-torque a bolt.

Steel is the honest choice if you actually wheel your truck. We watched a buddy's aluminum rack crack at a bolt hole after a long washboard run. The torque was off by a few foot-pounds. Our steel rack took the same abuse and only needed a rattle-can touch-up. That's the unglamorous truth: a few pounds saved on paper can strand you on a trail if you don't treat aluminum with kid gloves.

Skip a bed rack if your truck is already near GVWR or you need to tow a fifth-wheel. The rack adds dead weight and blocks the hitch, turning a payload problem into a safety hazard. For a full breakdown of bed rack vs. roof rack trade-offs, see our Bed Rack vs. Roof Rack for Overlanding: An Honest Comparison.

With the basics defined, let's break down the design categories so you know what to look for when you start shopping.

Types of Truck Bed Racks: Design Differences That Matter

Racks come in a few distinct architectures. Understanding these categories prevents ordering a rack that won't fit.

Fixed-height racks are simpler and lighter, but lock you into one clearance. Adjustable racks offer flexibility but add joints that need maintenance. Why do adjustable racks rattle? My Tacoma's rack had eight bolts that backed out after two trips.

Bolt-on stake pocket systems are more secure than clamp-on rail attachments, which often struggle with bed rail caps and spray-in bedliners.

'Universal' fitment rarely exists. Rail spacing differs between classes, and a full-size rack won't fit a mid-size without adapters. Measure your bed rail width first.

Now that you know the types, let's walk through the compatibility checklist that determines which rack actually fits YOUR truck.

How to Choose the Right Bed Rack: Compatibility & Specs

Choosing a rack isn't about brand: it's about whether the rack fits your truck and handles your load without exceeding payload.

Dynamic load rating is the safety-critical number. Many aluminum racks support 300–500 pounds dynamic on-road, but off-road dynamic ratings are often lower; static ratings often exceed 1,000. I clocked 275 pounds dynamic on a washboard road and the rack swayed, the off-road dynamic rating is the real limit, not the static number on the box.

Aluminum saves weight and resists corrosion; steel is heavier but field-weldable, worth the weight on rough trails.

Add rack and tent height to check garage clearance. Taller racks with flat crossbars howl at highway speeds.

With the compatibility framework in hand, let's compare major brands against these criteria to match a manufacturer to your use case.

Bed Rack Brand Comparison: Value vs. Performance

Five brands dominate the overlanding bed rack conversation. Instead of declaring a winner, match each to the build type it serves best.

Rather than picking a winner, the more useful question is: which category fits your build? The table below groups by maximum payload, mid-range durability, and budget — because the rack that's right for a Tacoma weekend warrior is not the same one a Gladiator crawling Moab needs.

* Load ratings sourced from manufacturer spec pages: upTOP Overland, CBI Offroad Fab, Cali Raised LED, Wilco Offroad. Ratings vary by model year and truck fitment — confirm with your specific product listing before purchasing.

I expected the $850 Cali Raised rack to be a no-brainer. After a season of washboard, the powder coat chipped at the mounting points and the hardware loosened: a reminder that corrosion resistance and fastener grade separate $800 racks from $1,300 racks. That's when I started paying attention to the specs that don't show up in a product photo.

Entry-level racks like the Cali Raised LED and Wilco Offroad ADV save you cash up front, but they cut corners where it counts. The Cali Raised starts at $850 and includes light bar cutouts, but its steel construction and thinner powder coat mean you'll be touching up rust spots after a wet season.

The Wilco ADV is the lightest option here at 68 lbs, preserving payload for gear, yet its universal fit may require drilling on some bed rails: a permanent modification that budget buyers often overlook.

For a closer look at the best budget racks for a rooftop tent, see our guide: Best Bed Rack for a Rooftop Tent Under $1,000.

If you're still deciding between loading your bed or your roof, the next section settles that debate with hard numbers on center of gravity, payload, and real-world handling.

Bed Rack vs. Roof Rack: Making the Right Call

Some builds need a roof rack. Most overlanding trucks are better served by a bed rack. Here's the math on why.

For a deeper dive into the trade-offs, see our Bed Rack vs. Roof Rack for Overlanding: An Honest Comparison.

Last fall, when I finally moved my RTT from the roof of my Tacoma to a bed rack, the difference was immediate. The factory roof rails were rated for 150 lbs dynamic, and the tent alone pushed that limit. The bed rack's 500-lb rating meant I could carry fuel and water without the truck feeling top-heavy on side slopes. Setup time halved because I wasn't climbing onto the roof to deploy the tent. That's the part nobody warns you about: the math on paper translates directly to how your truck behaves when the trail tilts sideways.

Once you've chosen a bed rack, the next step is getting it on your truck correctly. Let's walk through the installation process.

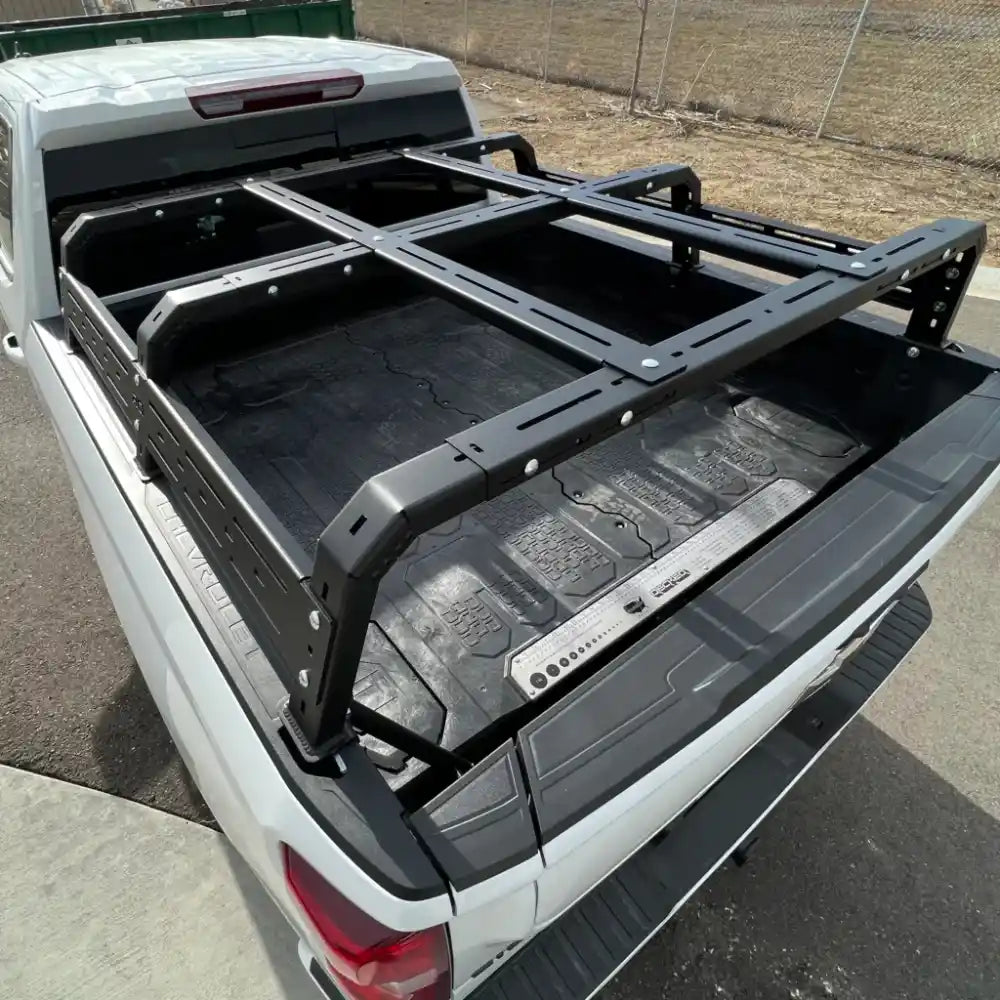

Installing Your Bed Rack: A Step-by-Step Process

A bed rack is only as reliable as its installation. Most trail failures trace back to skipped steps during the initial bolt-up.

With the rack installed and shaken down, it's time to outfit it. Let's start with the most common overlanding accessory: the rooftop tent (RTT).

Outfitting Your Rack: Rooftop Tent Integration

A rooftop tent (RTT) is why most people buy a bed rack in the first place. But not every RTT mates cleanly with every rack's crossbar spread. Measure crossbar spread against the tent's mounting track length.

Ensure dynamic load rating exceeds tent weight by at least 20%. Use T-slot bolts with oversized washers: universal U-bolts can ovalize aluminum crossbars. Universal clamps are a false economy. On a Mojave washboard, the tent walked toward the tailgate.

We strapped it down and later switched to manufacturer brackets.

Wind deflectors and anti-rattle shims aren't optional: a humming tent ruins a trip. If you're still shopping, see our guide to the best bed rack for a rooftop tent under $1,000. Beyond sleeping platforms, many overland builds need power. Next: mounting solar panels to your rack without drilling into your truck's electrical system.

Outfitting Your Rack: Solar Panel Mounting

Solar turns your truck into a self-sufficient basecamp. But mounting panels on a rack requires more than zip ties and hope.

I see flexible panels fail on ribbed racks constantly, adhesive gives out and heat builds up. A rigid panel with a 1-inch air gap stays cool and secure. Route wiring through waterproof glands and use UV-resistant clamps with strain relief loops. Tilt mounts can boost output 25–40%, and parallel wiring minimizes shading losses.

For a full walkthrough, see our step-by-step guide on mounting solar panels to a bed rack.

Power is one piece. Next, mounting bikes, recovery gear, and trail tools.

Outfitting Your Rack: Bike Racks, Recovery Gear & Storage

A bed rack is the backbone for bikes, recovery gear, and trail tools, but mounting everything without snag points or weight imbalances takes planning.

Vertical mounts save bed space but increase height; horizontal trays can block rear visibility.

Wide handlebars on a fork-mount tray taught me that staggered positions aren't optional: they're the difference between a clean mount and a handlebar that catches every branch. See our guide on Bed Rack + Bike Rack Combos That Actually Work.

Mount heavy items low and forward to preserve handling and departure angle.

A 2-inch protrusion on a jerry can mount cost me a dented quarter panel on a ledge in Moab. Now I only use flush-mount containers.

Quick-access mounts need locking mechanisms; keep tools within the rack's footprint to avoid snags.

All that gear adds weight fast. The next section is the one most overlanders skip. It's the one that keeps you off your door jamb's bad side.

Load Management, Weight Distribution & Safety

Every pound you bolt to your rack counts against your truck's GVWR. Most overland builds are overweight before the driver climbs in: here's how to know where you stand.

Open your driver's door and find the yellow-and-white sticker on the jamb. It states "the combined weight of occupants and cargo should never exceed XXXX lbs." That number is your actual payload capacity, not the brochure figure. Subtract your truck's curb weight (full fluids, no cargo) from its GVWR to confirm the math.

Mid-size truck payloads in 2025 range from about 1,583 lbs (Honda Ridgeline) to 1,889 lbs (Ineos Grenadier Quartermaster). Popular platforms like the Tacoma sit around 1,705 lbs. A rack, rooftop tent (RTT), recovery gear, and a full cooler can eat 80–90% of that before you add a single passenger.

I expected my buddy's new Colorado to have plenty of headroom after he bolted on a steel rack and a hard-shell RTT. The door-jamb sticker told a different story: with the rack, tent, and his usual trail kit, he was already at 85% of the truck's 1,720-lb payload. That sticker is the first thing I check now: it's the diagnostic that separates a safe build from a warranty-voiding gamble.

That's the part nobody warns you about: the math is unforgiving, and the sticker doesn't lie.

A rack's static load rating, often 1,200 to 1,400 lbs, only applies when the truck is parked and level. Drop off a ledge or hammer through a washboard, and dynamic forces multiply the effective weight instantly. A 200-lb RTT can spike to over 600 lbs of instantaneous load.

The dynamic load rating, typically half the static number, is the real limit for off-road safety. Exceed it, and you're bending mounting feet or cracking bed rails.

A loaded rack that rises above the cab line turns your truck into a sail. Wind gusts hit the tent and rack like a lever arm, twisting the rear axle and inducing a slow, trailer-like sway that can catch you off guard at 70 mph.

Weight and vibration take a toll over time. Let's cover the maintenance schedule that keeps your rack safe season after season.

Maintenance, Durability & Seasonal Care

A bed rack lives in a harsh environment with vibration, dust, moisture, and temperature swings, so a 15-minute inspection every 1,000 miles prevents the failures that strand you.

Check bolt torque, weld cracks, and coating integrity every 1,000 miles.

• ✓
  Re-torque all mounting bolts to manufacturer spec (star pattern)
• ✓
  Inspect welds for crack propagation, especially at mounting feet
• ✓
  Check coating integrity — touch up chips immediately to prevent rust spread
• ✓
  Inspect crossbar end caps and anti-rattle inserts for compression
• ✓
  Check all accessory mount hardware (RTT, bike rack, solar brackets)

Isolate aluminum from steel with nylon washers to prevent galvanic corrosion.

Replace isolators as soon as they collapse and metal touches metal.

Re-torque before and after every trip. We lost a rack bolt on a washboard road because we skipped the post-trip check. The fix was a spare bolt and a 10-minute re-torque. Now we never skip it.

Next, the questions that come up at every trailhead.

---

FAQ

These are the questions that come up on every trailhead and forum thread. Short, direct answers based on what we've covered.

Let's bring it all together.

Conclusion

We've covered a lot of ground, from measuring bed rails to torque specs to solar wiring. Here's what matters most when you're ready to pull the trigger.

I used to pick racks by brand reputation. Then I measured my bed rails and did the payload math. The rack I wanted needed 58 inches between stake pockets; my Tacoma had 56. The one that fit left me 200 pounds of payload for everything else. That changed how I build. The real limit isn't the rack's weight rating. It's your truck's GVWR minus curb weight and gear. Measure your bed rail spacing and stake pocket dimensions first. Compatibility starts with your truck, not a brand name. Match accessories to the rack's mounting ecosystem, not the other way around, to avoid costly adapters and weak points. A properly configured rack creates a self-contained basecamp that doesn't sacrifice daily drivability or fuel economy. The best rack fits your actual build without forcing compromises.

---
