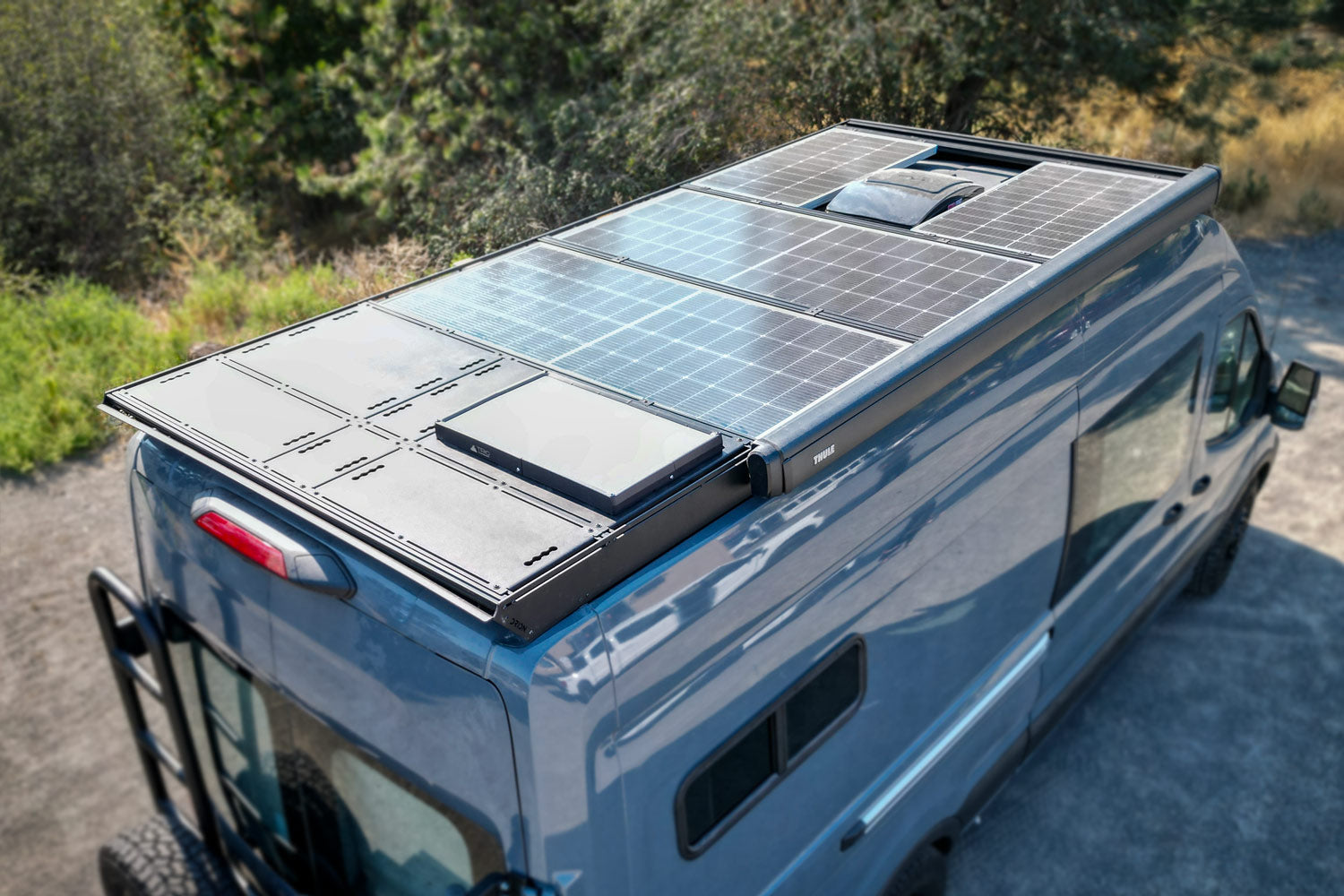

How to Mount Solar Panels on a Bed Rack (Step-by-Step Guide)

The most common solar mistake overlanders make is buying a panel before knowing what they need to power. A 100W panel is plenty for some builds and completely inadequate for others. Spend 10 minutes on this before spending money.

Calculate Your Daily Watt-Hour Budget

List every device you'll run at camp and how many hours per day you'll use it. Multiply watts × hours to get watt-hours (Wh). Add them up for your daily total.

Common draws for reference: a 12V fridge (ARB, Dometic, Iceco) averages 30–50W depending on ambient temperature and compressor cycle — budget 40W as a baseline. LED camp lights run 5–15W. Phone and camera charging adds 10–20W. A laptop is 40–65W.

Example: 40W fridge × 12 hrs + 10W lights × 4 hrs + 20W charging × 2 hrs = 480 + 40 + 40 = 560Wh/day.

Match Panel Size to Your Location

Solar panels don't produce rated watts all day. Peak sun hours — the number of hours per day where solar irradiance is high enough for near-rated output — vary significantly by region and season. Use these estimates:

• Southwest desert (Utah, Arizona, Nevada): ~5–6 peak sun hours
• Pacific Northwest coast / forest: ~2–3 peak sun hours
• Southeast / Midwest summer: ~4–5 peak sun hours

Formula: daily Wh ÷ peak sun hours = minimum panel watts. For 560Wh in the Southwest: 560 ÷ 5 = 112W minimum. Round up and add 20% buffer → a 160W panel is a realistic fit. For the PNW with the same load: 560 ÷ 2.5 = 224W → you'd need 250W+ or a portable panel you can angle.

Practical starting points: 100W covers a fridge plus small device charging in most sunny regions. 200W provides comfortable margin for the same loads and works in lower-sun environments. 300W+ is for heavy builds running induction cooking, CPAP machines, or extended stays.

Three panel types exist: rigid, flexible, and portable. Each works differently on a bed rack. The wrong choice leads to installation headaches, reduced efficiency, or early panel failure.

The upTOP WORKHORSE's crossbar layout — a rigid solar panel spans two crossbars and clamps to them with no drilling required

A rigid panel-to-crossbar installation requires only a handful of parts. Don't overcomplicate this — the basic setup is reliable and takes under two hours.

Optional but worth it: a tilting panel mount adds 10–30% output during morning and afternoon hours when the sun angle is low, by letting you adjust the panel toward the sun. The tradeoff is added height and a more complex bracket system. For a permanent everyday build, most overlanders find the flat-mount simplicity outweighs the output gain. For seasonal or part-time solar users, a tilt mount is worth the upgrade.

This process works for any rigid panel on any crossbar-style bed rack — Leitner, upTOP, Cali Raised, CBI, and others. No drilling into your truck required.

• Dry-fit the panel before touching any hardware

  Set the panel on the crossbars in your intended position. Check clearance from the cab (leave at least 2 inches for airflow and vibration), from any RTT or awning mount, and from the tailgate end. Confirm the panel doesn't block your cab's rear visibility. Mark the crossbar contact points with tape.

• Attach Z-brackets to the panel frame

  Thread M6 bolts through the pre-drilled holes in the panel's aluminum frame and through the Z-bracket's vertical face. Add a flat washer under the bolt head and a nylon-insert locknut on the back side. Hand-tight only at this stage — you'll adjust positioning before final torque.

• Position panel on crossbars and align brackets

  Set the panel back on the crossbars with the Z-brackets resting flat against the crossbar tubing. Slide the panel to your marked position. Check that all four bracket contact points sit flush — no rocking or gap on any corner.

• Secure brackets to crossbars

  If using crossbar clamp hardware: slide the clamp plate under the crossbar tube and bolt through the Z-bracket from above, sandwiching the crossbar between bracket and clamp plate. If your bed rack has pre-drilled mounting holes in the crossbars: bolt Z-brackets directly. Torque to snug — firm contact, not gorilla-tight. Overtightening aluminum crossbars risks cracking.

• Final-torque the panel-to-bracket bolts

  Now that position is confirmed, torque the M6 panel bolts to about 4–5 Nm (35–45 in-lb). Use thread-locker (blue Loctite) on the panel bolts if you're running rough terrain frequently — vibration can work them loose over thousands of miles.

• Route the MC4 cable off the rack

  Guide the panel's MC4 leads along the inside of a rack leg — this keeps wire out of the airstream and protects it from debris. Sleeve the entire run in split conduit. Secure the conduit to the rack leg every 10–12 inches with stainless zip ties. Keep wire away from any moving parts, sharp edges, or exhaust heat.

• Protect the wire entry point into the cab or bed

  If you're running wire through a drilled hole: install a rubber grommet before routing wire — bare metal edges will eventually chafe through insulation. If you're running wire externally along the truck body: use an automotive wire management clip every 12 inches and end with a weatherproof pass-through grommet at the final entry point.

• Pre-connection check before plugging in MC4

  With the panel still disconnected from the charge controller: use a multimeter to confirm panel polarity (red lead = positive, should read positive voltage in sunlight). Verify no exposed copper anywhere in the run, no kinks in wire, all zip ties secure. Only then connect to the charge controller.

The wiring run is where most DIY solar installs fail — not because it's complicated, but because people undersize wire, skip the fuse, or run the charge controller in the wrong location. Here's how to do it right.

Wire Gauge

Undersized wire causes resistive heat buildup and voltage drop — both of which rob you of power and create a safety hazard. Use these as minimum gauges:

• 10 AWG — for a single 100W panel with runs up to 15 feet
• 8 AWG — for 200W+ systems or any run over 15 feet
• 6 AWG — for 300–400W systems or runs over 20 feet

When in doubt, go one gauge heavier. Copper is cheap; rewiring a routed run is not.

The Correct Wiring Path

The charge controller sits between the panel and the battery — it's not optional. Connecting a solar panel directly to a battery without a controller risks overcharging, which damages the battery and, in the case of AGM or flooded lead-acid, can cause off-gassing and fire. The controller also prevents reverse current drain (battery discharging back through the panel at night).

The Fuse Is Not Optional

Install an inline ANL fuse or automotive circuit breaker on the positive wire between the charge controller and the battery, within 18 inches of the battery terminal. If a wiring fault causes a short, this fuse is the only thing preventing a battery fire. Size the fuse to 125% of your maximum expected current: for a 30A charge controller, use a 40A fuse.

MC4 Connectors

MC4 is the industry-standard weatherproof connector for solar panels — virtually every panel ships with MC4 leads pre-installed. They click together without soldering and are rated for outdoor UV exposure. Don't cut and splice unless you have a proper MC4 crimping tool. Improper crimps are a leading cause of poor solar performance and connection failures on rough terrain.

If you've spent any time researching solar, you've hit this question. Here's the plain-language answer.

PWM (Pulse Width Modulation)

PWM controllers are simpler and cheaper. They work by gradually reducing the amount of power going into the battery as it approaches full charge — like a throttle. They're efficient enough when your panel voltage closely matches your battery voltage. For a small setup (100W panel, 12V AGM battery, short cable runs) a quality PWM controller like the Renogy Wanderer does the job at around $20–$30.

MPPT (Maximum Power Point Tracking)

MPPT controllers use active electronics to constantly find the panel's maximum power point — the voltage and current combination that extracts the most energy. In real-world conditions (varying sun angles, partial cloud, morning and afternoon hours), MPPT controllers produce 15–30% more power from the same panel compared to PWM. They also handle higher panel voltages, which means you can run panels in series for 24V or 48V input and step down to 12V battery charging with minimal loss.

MPPT is required for LiFePO4 (lithium iron phosphate) batteries, which have different charging profiles than AGM. It's worth the cost for any build over 100W or any setup using lithium batteries.

Controller Sizing

Size your controller in amps: (total panel watts ÷ battery voltage) × 1.25 safety factor = minimum controller amps. Examples:

• 100W ÷ 12V × 1.25 = 10.4A → 15A controller minimum
• 200W ÷ 12V × 1.25 = 20.8A → 30A controller
• 400W ÷ 12V × 1.25 = 41.7A → 60A controller

Brand Recommendations

• Budget / PWM: Renogy Wanderer 10A or 30A (~$20–$35) — solid build quality for the price, good for simple setups
• Mid-range MPPT: Renogy Rover 20A–40A (~$60–$100) — reliable, good app monitoring via Bluetooth dongle
• Premium MPPT: Victron SmartSolar 75/15 to 100/30 (~$80–$150) — best-in-class monitoring via the Victron Connect app, widely used in serious overland builds
• Integrated system: REDARC Manager30 (~$500) — combines charge controller, DC-DC charger, and battery monitor in one unit; popular for builds that need alternator charging and solar in one box

A full RTT setup on a Leitner ACS FORGED — a solar panel can share the same rack by positioning it behind the cab on the forward crossbars

This is the question we get most often from truck owners building out a complete overlanding setup. The short answer is: yes, an RTT and a solar panel can share the same bed rack — with planning.

The standard approach on a long-bed or full-size truck: mount the solar panel on the forward crossbars (closest to the cab) and the RTT toward the tailgate. This keeps the panel in direct sun for most of the day while the RTT benefits from the rear positioning for easier ladder access. The reverse works too — RTT forward and panel rear — but watch for cab shadow blocking the panel in the morning.

On a short bed Tacoma or Ranger, fitting both requires careful measurement. Most 100W rigid panels measure about 47" long. Most 2-person RTTs are 60"+ when closed. Combined, that's 107"+ on a 60" bed. Options: use a 60W or 80W compact panel, mount a portable folding panel separately from the rack, or use a side-mount tilting bracket that positions the panel off the side of the rack rather than on top.

For rack recommendations that accommodate both, explore the full bed rack lineup — pay attention to crossbar count and span, and pair with our rooftop tent collection for RTT dimensions to check clearance before ordering either component.

These are the issues that show up in every overlanding forum thread after someone's solar setup underperforms or fails. All of them are avoidable.
