Engineered for Maximum Industrial Output

  • Extended Reach for Maximum Versatility: The oversized drum isn't just for show; it holds 164ft of heavy-duty steel rope. This extended capacity provides crucial flexibility, allowing you to tackle longer pulls and more complex recovery scenarios without having to reposition your equipment. This addresses the common problem of limited reach in standard winches.
  • Advanced Wet-Type Hydraulic Braking: Safety and control are paramount. The YP9 features a sophisticated wet-type hydraulic brake that runs in a cooling fluid bath. This ensures smooth, consistent, and fade-free braking performance, providing superior load-holding power compared to standard brakes—eliminating the risk of brake failure during critical operations.
  • Efficient and Durable Powertrain: At its core, a high-torque 100cc hydraulic motor drives a robust 2-stage planetary gear system with a 39:1 ratio. This combination is engineered for unbeatable efficiency, delivering relentless pulling power while ensuring a long, reliable service life under constant industrial strain. Say goodbye to underpowered winches that fail under pressure.
  • Certified for Professional Confidence: With both CE and the rigorous SAEJ-706 certifications, plus an IP67 rating for dust and water resistance, the YP9 is proven to meet the highest industry standards for safety and performance. This isn't just a claim; it's a guarantee that your winch is built for professional use in the harshest environments.
  • Continuous Heavy-Duty Operation: Unlike electric winches that overheat during extended use, the YP9's hydraulic system runs off your equipment's hydraulic power, providing constant pulling force without thermal limitations. This makes it ideal for repetitive commercial applications where downtime costs money.
  • Industrial-Grade Construction: Built to withstand the rigors of daily commercial use, this winch features robust construction and includes a balance valve to regulate hydraulic pressure. The included rope tensioner ensures proper cable spooling, extending rope life and maintaining optimal performance over thousands of cycles.

What's In The Box

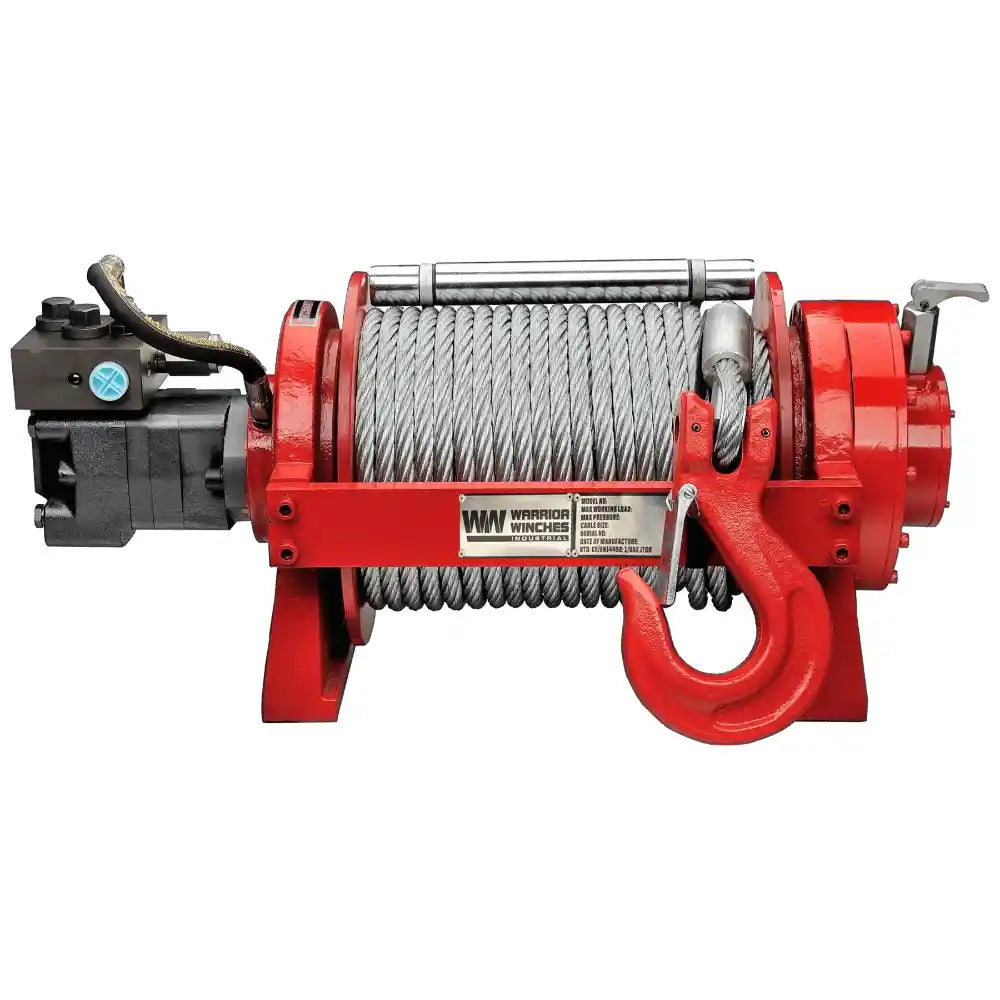

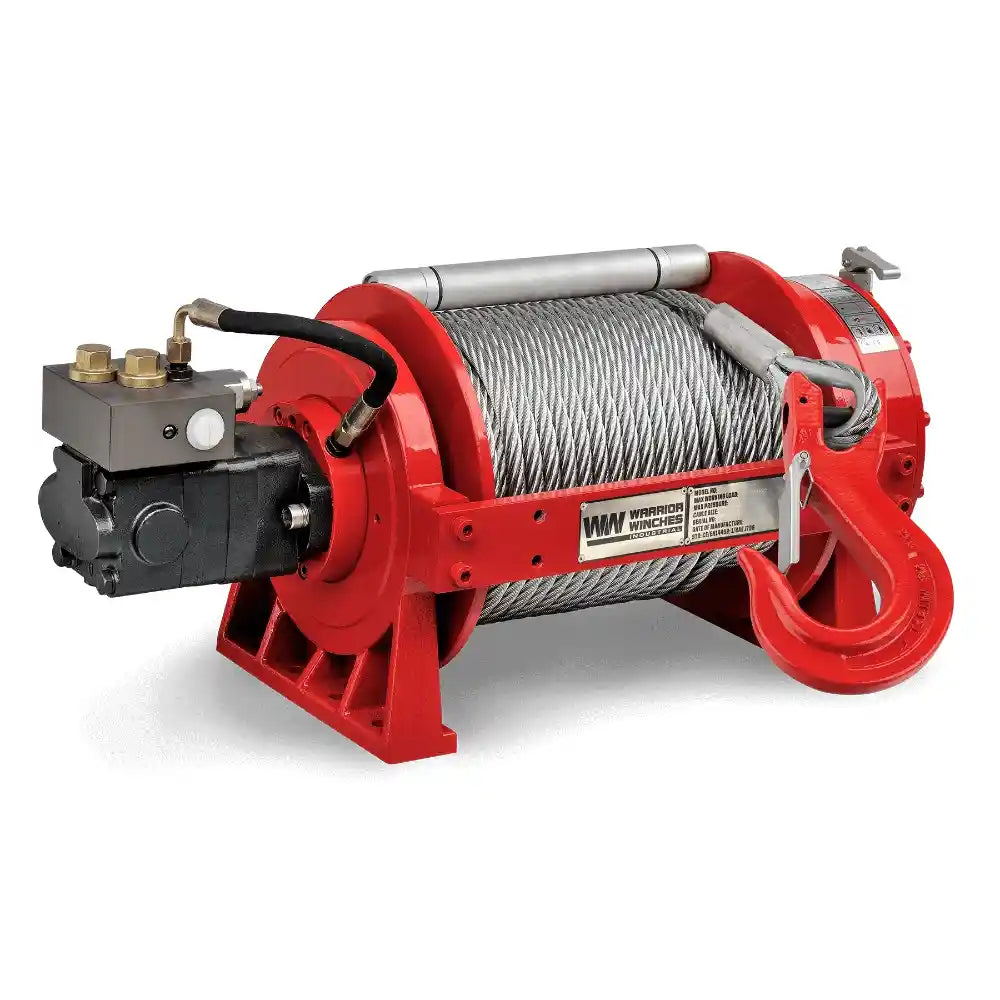

  • YP9 20,000lb Hydraulic Winch
  • 164ft Steel Rope (Ø 0.55" / 14mm) - Pre-installed
  • Rope Tensioner
  • Balance Valve
  • Operating Manual

Technical Specifications

Rated Line Pull 20,000 lbs (9,072 kg)
Motor Type Hydraulic 100cc
Gearing / Ratio 2-Stage Planetary / 39:1
Braking Action Wet-Type Hydraulic Brake
Cable Ø 0.55" × 164' (Ø 14mm × 50m) Steel
Max Hydraulic Flow 19.8 GPM (75 L/min)
Max Hydraulic Pressure 275 Bar (3988 PSI)

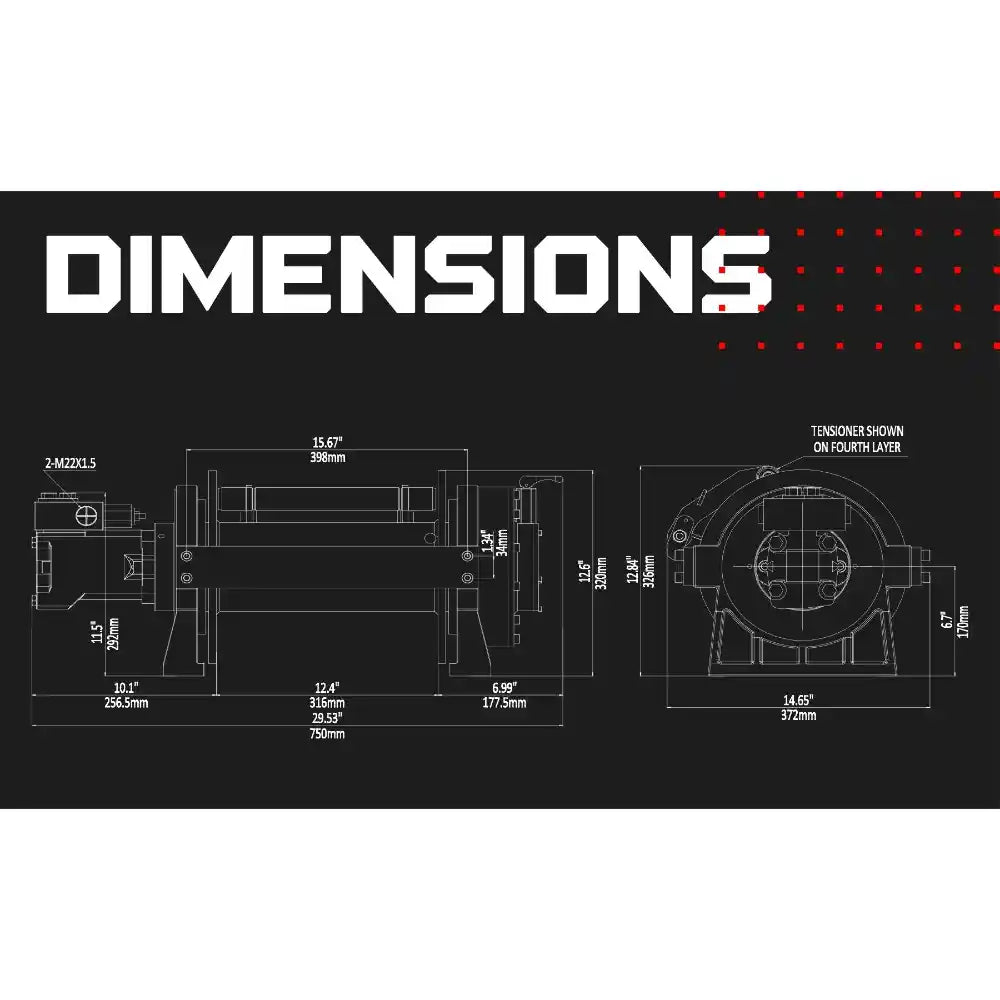

Mounting Pattern 17.0" × 2.5" × 7.6"
Dimensions 34.3" × 11.8" × 13.0" (870mm × 300mm × 330mm)
Net Weight 247 lbs (112 kg)
Certification CE, SAEJ-706, IP67 Rated

Performance Data

Line Pull vs Pressure
0 lbs 363 PSI
8,000 lbs 1233 PSI
15,000 lbs 2031 PSI
20,000 lbs 2538 PSI
Flow vs Line Speed
4.0 GPM 5.9 ft/min
7.9 GPM 11.8 ft/min
13.2 GPM 19.7 ft/min
19.9 GPM 29.5 ft/min

Download Resources

User Manual Technical Specifications

Frequently Asked Questions

+ What equipment is the YP9 winch best suited for?

The YP9 is specifically designed for heavy-duty industrial applications. It is an ideal fit for large skid steers, agricultural tractors, commercial recovery vehicles, and other heavy equipment with a suitable hydraulic system capable of delivering the required flow and pressure.
+ What is a "wet-type" hydraulic brake?

A wet-type brake means the braking components are enclosed and run in a fluid bath (typically oil). This provides consistent cooling, which results in extremely smooth, reliable, and powerful braking performance that won't fade under heavy, repetitive use—a critical safety feature for industrial applications.
+ What are the hydraulic system requirements to run this winch at full power?

To achieve maximum performance, your equipment's hydraulic system should be able to supply a flow rate of up to 19.8 gallons per minute (75 L/min) and a pressure of up to 275 Bar (3988 PSI). The included balance valve helps regulate the system for optimal operation.
+ Does this winch come with everything needed for operation?

This kit includes the core components: the winch with pre-installed steel rope, a balance valve to regulate hydraulic pressure, a rope tensioner, and an operating manual. You will need to supply hydraulic hoses and a control valve specific to your equipment's setup.
+ How do I activate the 5-Year Industrial Warranty?

To receive the full 5-year warranty for industrial or commercial use, you must register your product after purchase. If the product is not registered, it will default to a standard 1-year warranty. The warranty covers mechanical and electrical components against defects but excludes wear items like the steel rope.
