What's In The Box

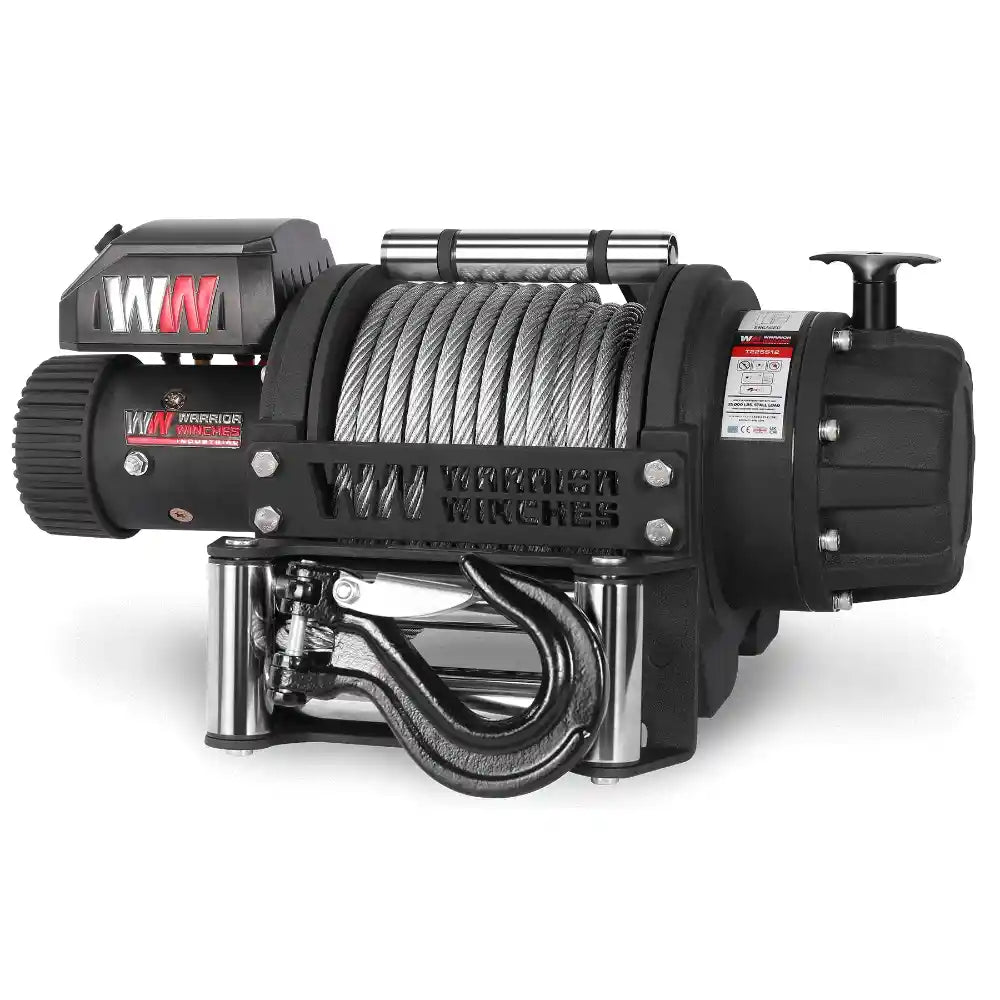

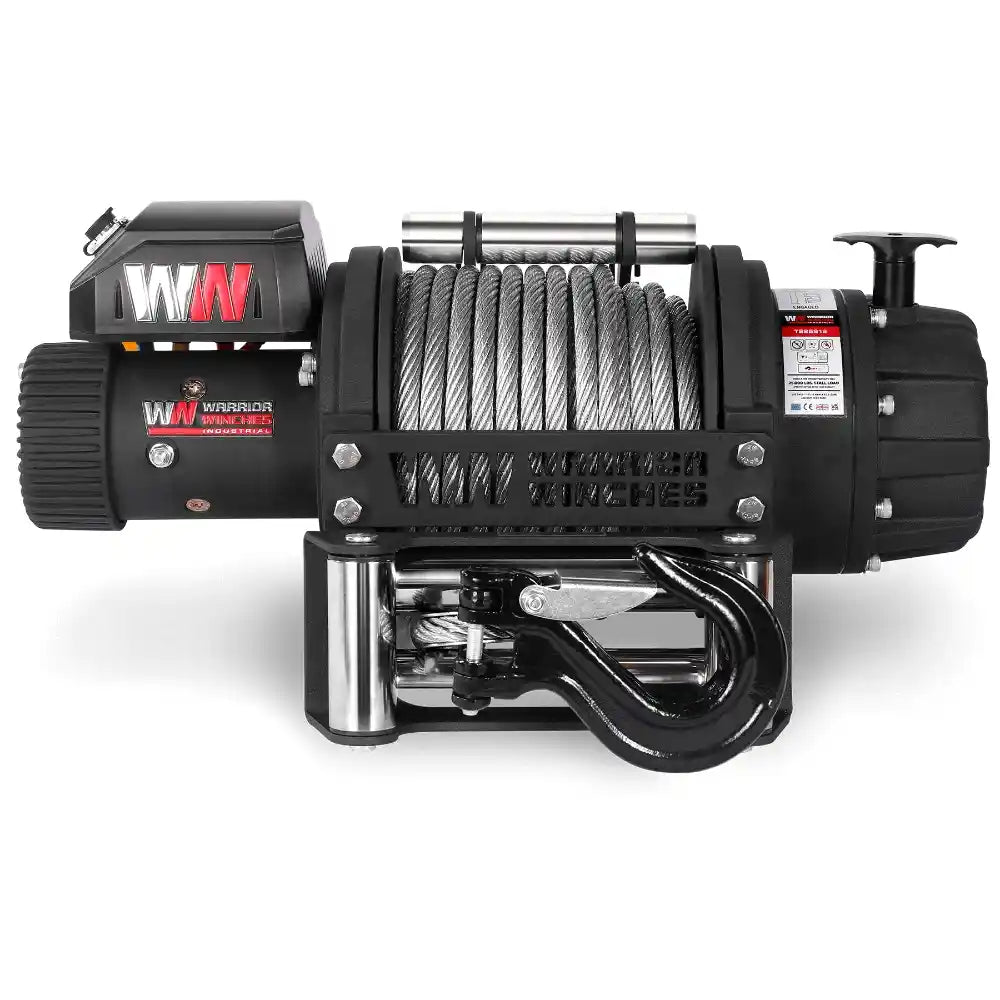

  • T1000 25,000lb Winch
  • Heavy Duty Stainless Steel Roller Fairlead
  • Steel Rope
  • Heavy Duty Hook
  • Heavy Duty Wired Remote Control
  • Rope Tensioner
  • Stainless Steel Mounting Hardware (Nuts/Bolts)

Technical Specifications

Rated Line Pull 25,000 lbs
Motor Type (12V) 12V:Input: 6.4kW / 8.6hp; Output: 3.1kW / 4.2hp
Clutch Manual
Gearing 450:1
Gearing System Planetary
Braking Action Patented ratchet
Drum Size (Diameter x Length) 4.72 x 7.8 in
Controls Wired Remote
Cable Material Steel
Cable Size (Diameter x Length) 65.62ft x 0.54 in
Fairlead Roller

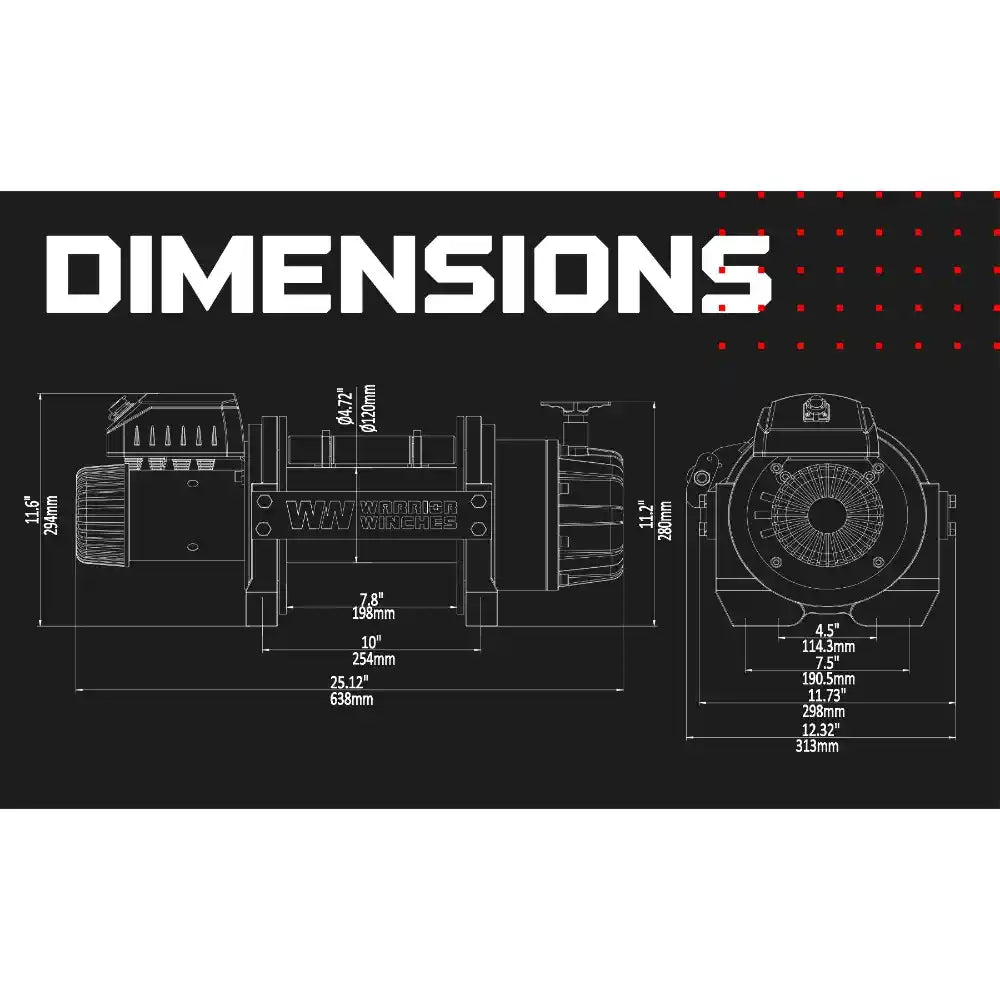

Mounting Pattern 10 “×4.5 “ (254mm×114.3 mm) 10 “×7.5 “ (254mm×190.5mm)
Dimensions 25.12 x 12.32 x 11.57 in
Weight 220 lbs
Waterproof Rating (IP) 67
Certification CE

Performance Data (12V)

Layer of Rope/Cable Line Pull: lbs (kgs) Rope on drum ft (m)
1 25000 (11340) 17.7 (5.4)
2 20724 (9400)     39.4 (12.0)
3 17698 (8027)     62.3 (19)
4 15443 (7005)     65.6 (20)
Line Pull lbs (kgs) Line Speed 12v ft/min (m/min) Amp Draw 12v
0 27.5 (8.4) 45
5000 (2268)     9.5 (3.0)     190
10,000 (4,536) 6.9 (2.1)     290
15000 (6804)     5.2 (1.6)     380
22000 (9979)     3.9 (1.2)     465
25000 (11340)     2.6 (0.8)     530

Download Resources

User Manual Technical Specifications Durability Test Report

Frequently Asked Questions

+ Is this winch truly designed for commercial use?

Absolutely. The T1000 was engineered for industrial and commercial applications from the ground up. Its robust construction, high torque motor, and 5-year commercial warranty make it the ideal choice for tow trucks, industrial trailers, and heavy-duty work rigs.

+ What does the IP68 waterproof rating mean for real-world use?

An IP68 rating ensures the winch is completely dust-tight and can be submerged in water up to 1 meter deep for 30 minutes without intrusion. This means you can operate with confidence in heavy rain, mud, and harsh job site conditions without risking damage to the electrical components.

+ Why would I choose a steel cable over synthetic?

Steel cable is extremely durable and highly resistant to abrasion. It's the preferred choice for industrial and commercial applications where the rope is frequently dragged over rough surfaces like rocks, gravel, or pavement. It offers a longer lifespan in these demanding environments.

+ How do I activate the 5-year warranty?

To receive the full 5-year industrial warranty, you must register your purchase. Any product that is not registered will only be covered by the standard 1-year warranty. Please follow the warranty registration process included with your product or contact us for details.

+ What is covered under the warranty?

The 5-year warranty covers defects in any mechanical or electrical component of the winch. It does not cover cosmetic defects, worn parts from improper use, the steel rope, or accessories. Electrical components like remotes and contactors are covered for 12 months. Please see the full warranty details for a complete list of exclusions.
