What's In The Box

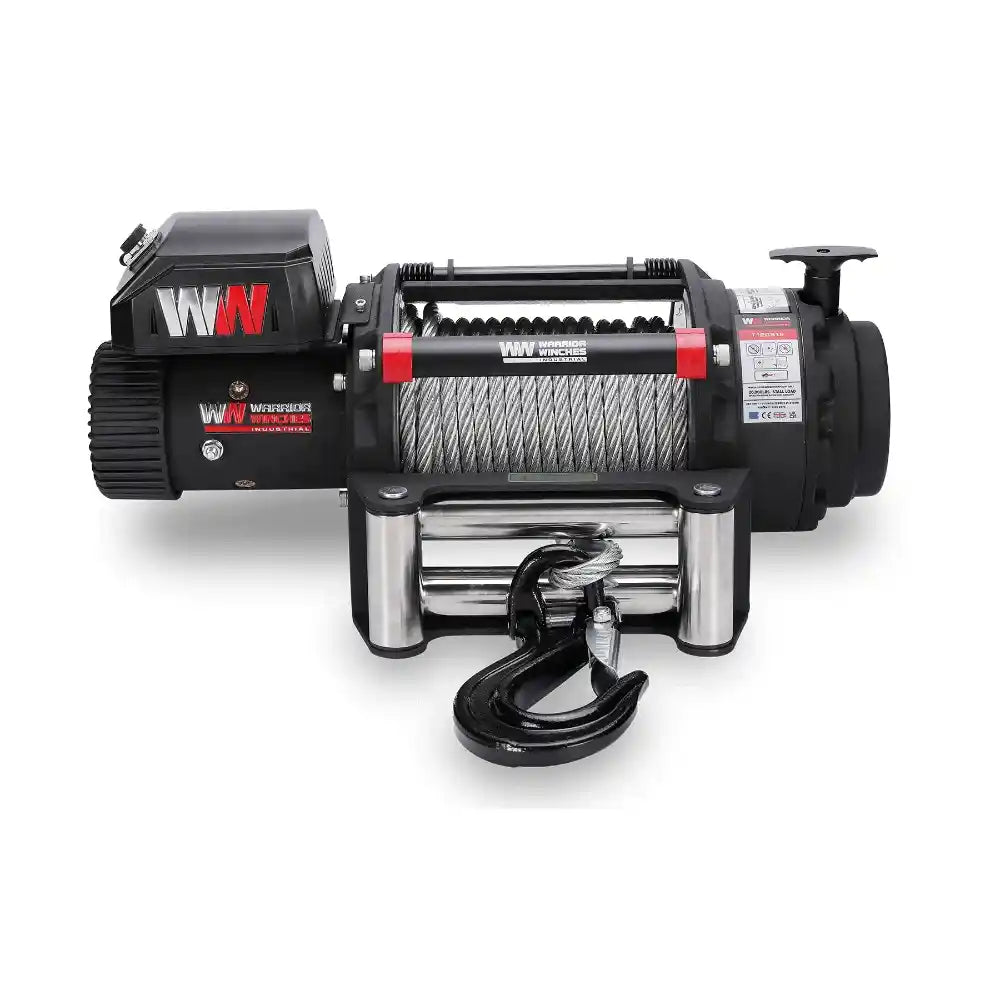

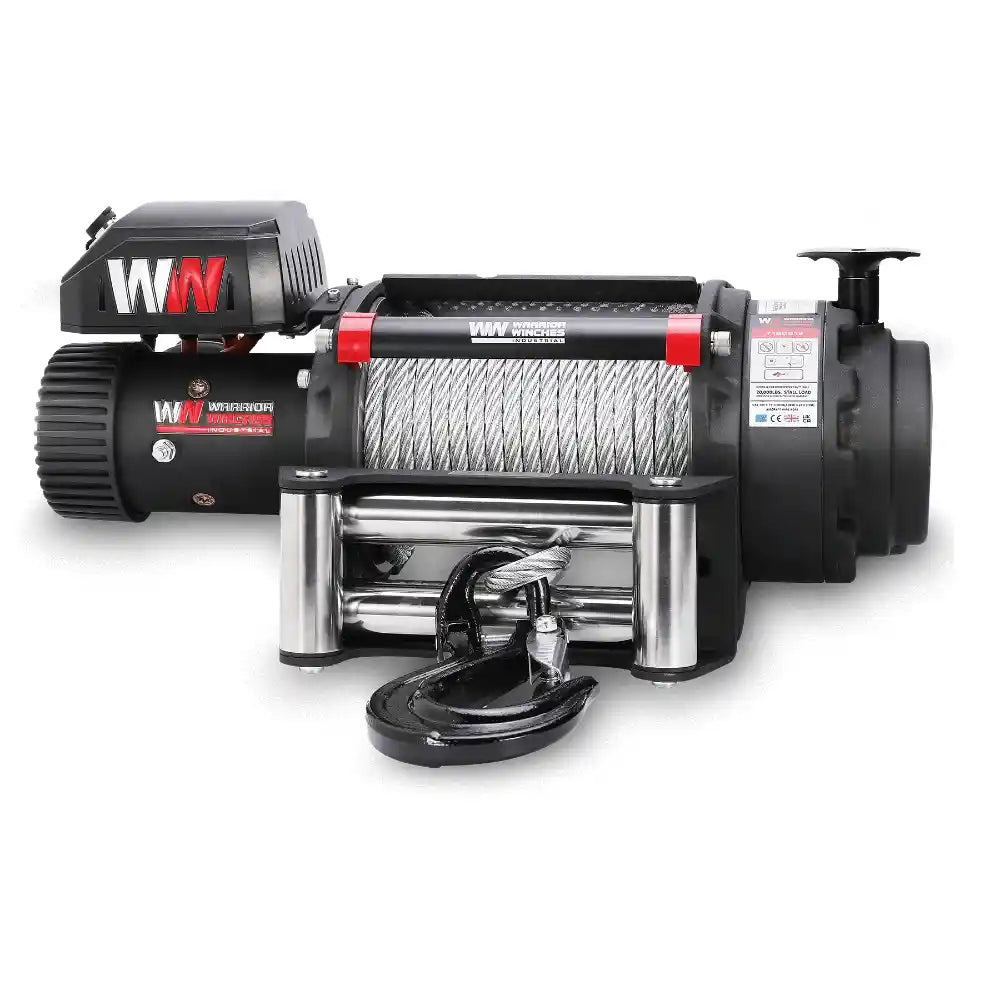

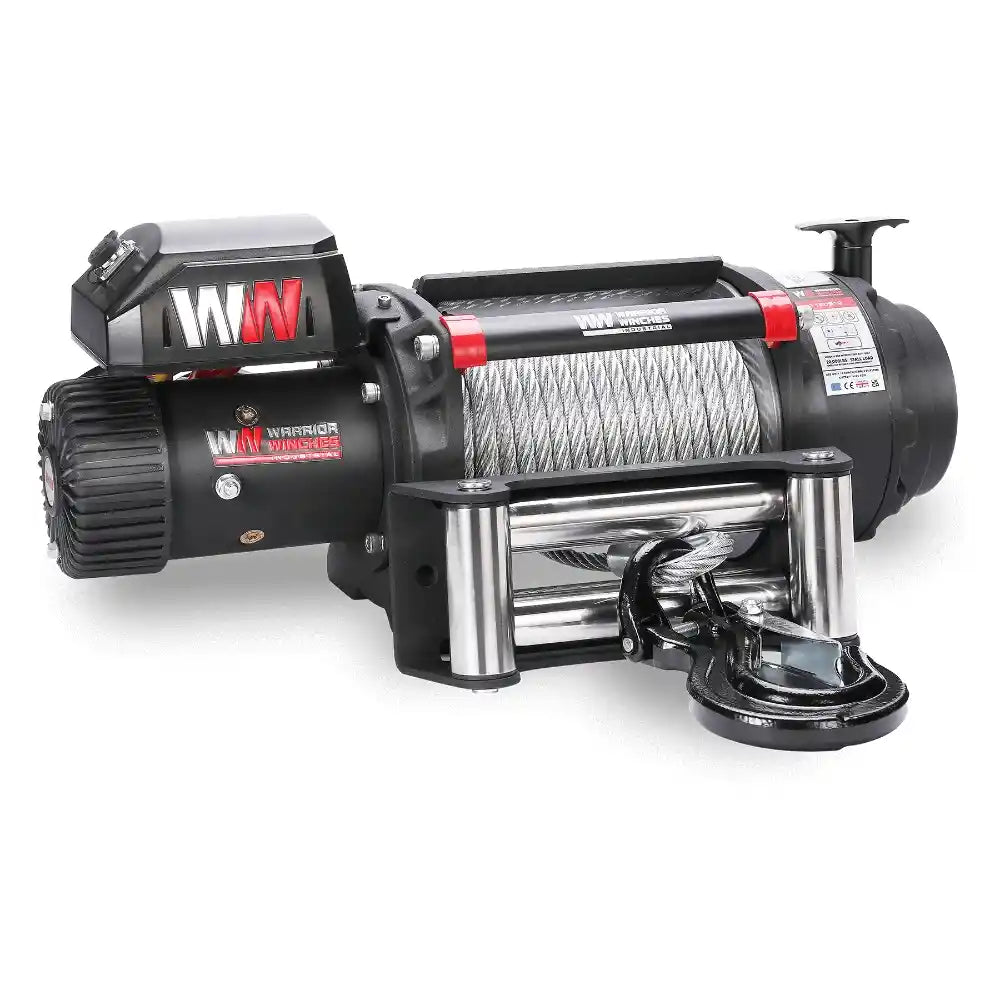

  • T1000 20,000lb Winch
  • Heavy Duty Stainless Steel Roller Fairlead
  • 65.6ft Steel Rope
  • Heavy Duty Clevis Hook
  • Heavy Duty Wired Remote Control
  • Rope Tensioner
  • Stainless Steel Mounting Hardware (Nuts/Bolts)

Technical Specifications

Rated Line Pull 20,000 lbs (9,072 kg)
Motor Type (12V) Input: 6.2kW / 8.3hp; Output: 3.3kW / 4.4hp
Clutch Manual
Gearing 430:1
Gearing System Planetary
Braking Action Automatic Screw Cone
Drum Size (Diameter x Length) 3.5 x 8.62 in
Controls Wired Remote
Cable Material Steel
Cable Size (Diameter x Length) 65.62ft x 0.47 in
Fairlead Roller

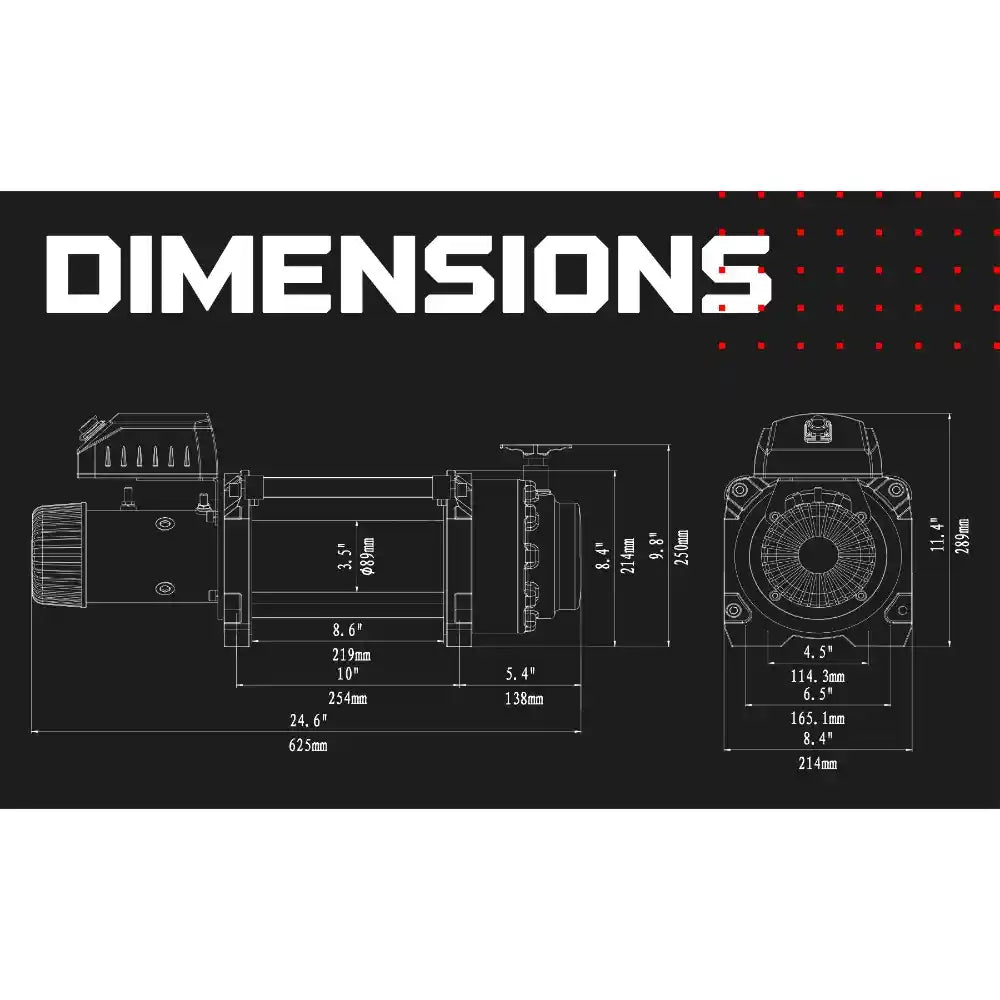

Mounting Pattern 10" x 4.5" (254mm x 114.3mm) and 10" x 6.5" (254mm x 165.1mm) 8-M12
Dimensions 24.61" x 8.43" x 11.38"
Weight 159 lbs (72 kg)
Waterproof Rating (IP) 67
Certification CE

Performance Data (12V)

Layer of Rope/Cable Line Pull: lbs (kgs) Rope on drum ft (m)
1 20,000 (9,072) 18.0 (6.0)
2 16,160 (7,330) 40.7 (13.0)
3 13,557 (6,149) 65.6 (20.0)
Line Pull lbs (kgs) Line Speed 12v ft/min (m/min) Amp Draw 12v
0 22 (6.7) 65
6,000 (2,722) 7.2 (2.2) 190
10,000 (4,536) 5.6 (1.7) 260
12,500 (5,670) 4.9 (1.5) 305
14,000 (6,350) 4.6 (1.4) 330
17,500 (7,938) 3.6 (1.1) 380
20,000 (9,072) 3.3 (1.0) 420

Download Resources

User Manual Technical Specifications Durability Test Report

Frequently Asked Questions

+ Is this winch truly designed for commercial use?

Absolutely. The T1000 was engineered for industrial and commercial applications from the ground up. Its robust construction, high torque motor, and 5-year commercial warranty make it the ideal choice for tow trucks, industrial trailers, and heavy-duty work rigs.
+ What does the IP67 waterproof rating mean for real-world use?

An IP67 rating ensures the winch is completely dust-tight and can be submerged in water up to 1 meter deep for 30 minutes without intrusion. This means you can operate with confidence in heavy rain, mud, and harsh job site conditions without risking damage to the electrical components.
+ Why would I choose a steel cable over synthetic?

Steel cable is extremely durable and highly resistant to abrasion. It's the preferred choice for industrial and commercial applications where the rope is frequently dragged over rough surfaces like rocks, gravel, or pavement. It offers a longer lifespan in these demanding environments.
+ How do I activate the 5-year warranty?

To receive the full 5-year industrial warranty, you must register your purchase. Any product that is not registered will only be covered by the standard 1-year warranty. Please follow the warranty registration process included with your product or contact us for details.
+ What is covered under the warranty?

The 5-year warranty covers defects in any mechanical or electrical component of the winch. It does not cover cosmetic defects, worn parts from improper use, the steel rope, or accessories. Electrical components like remotes and contactors are covered for 12 months. Please see the full warranty details for a complete list of exclusions.
