What's In The Box

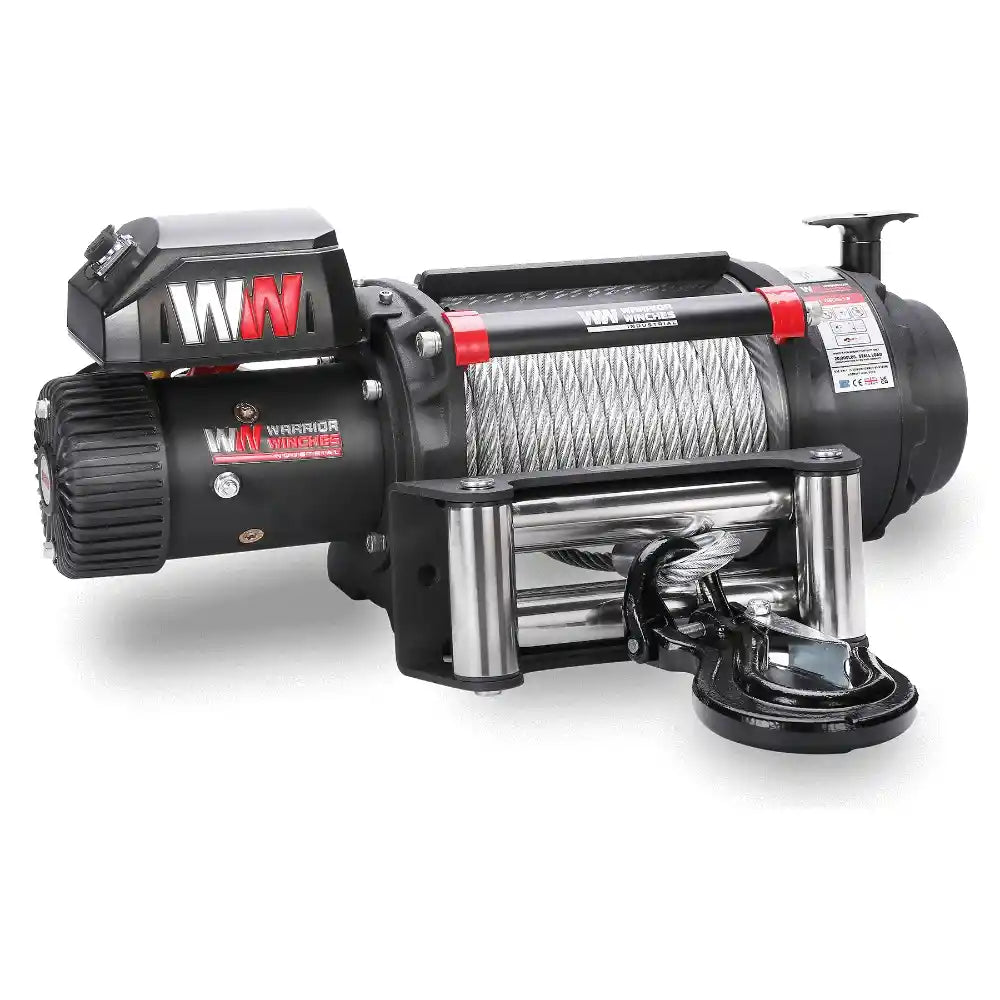

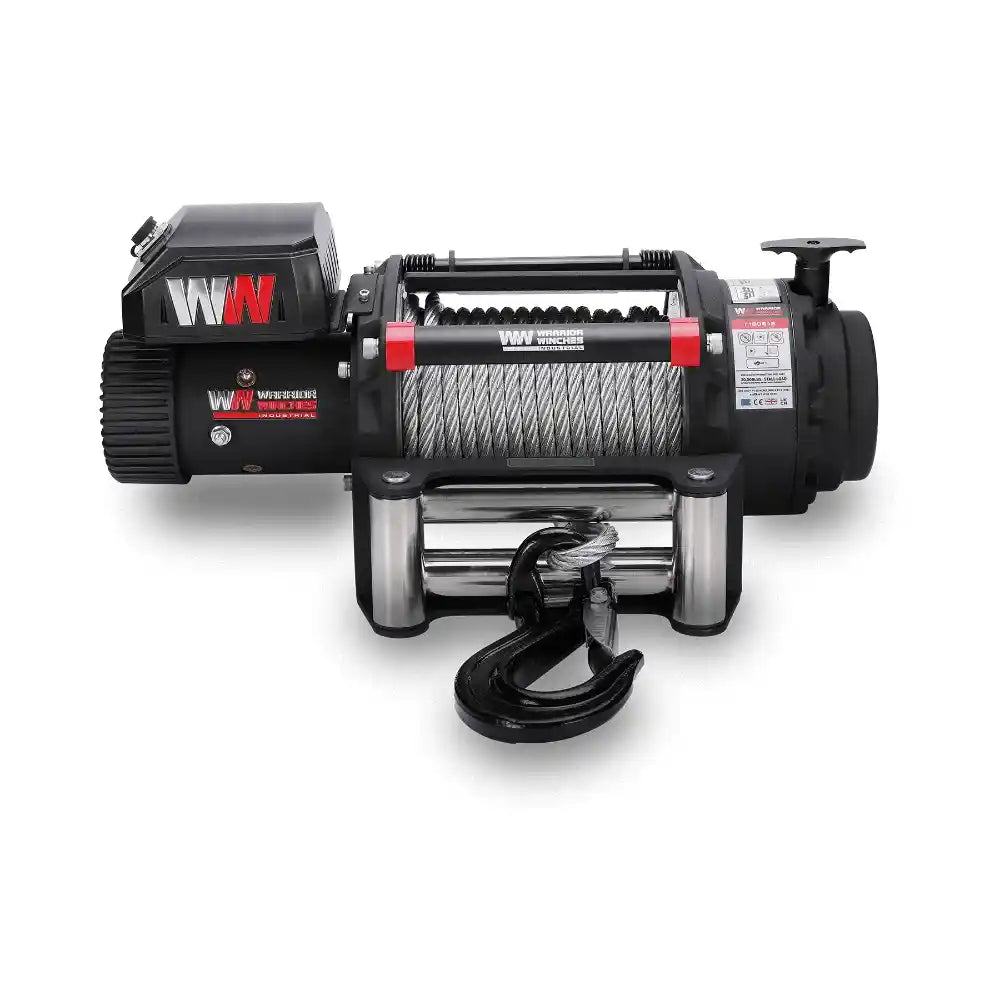

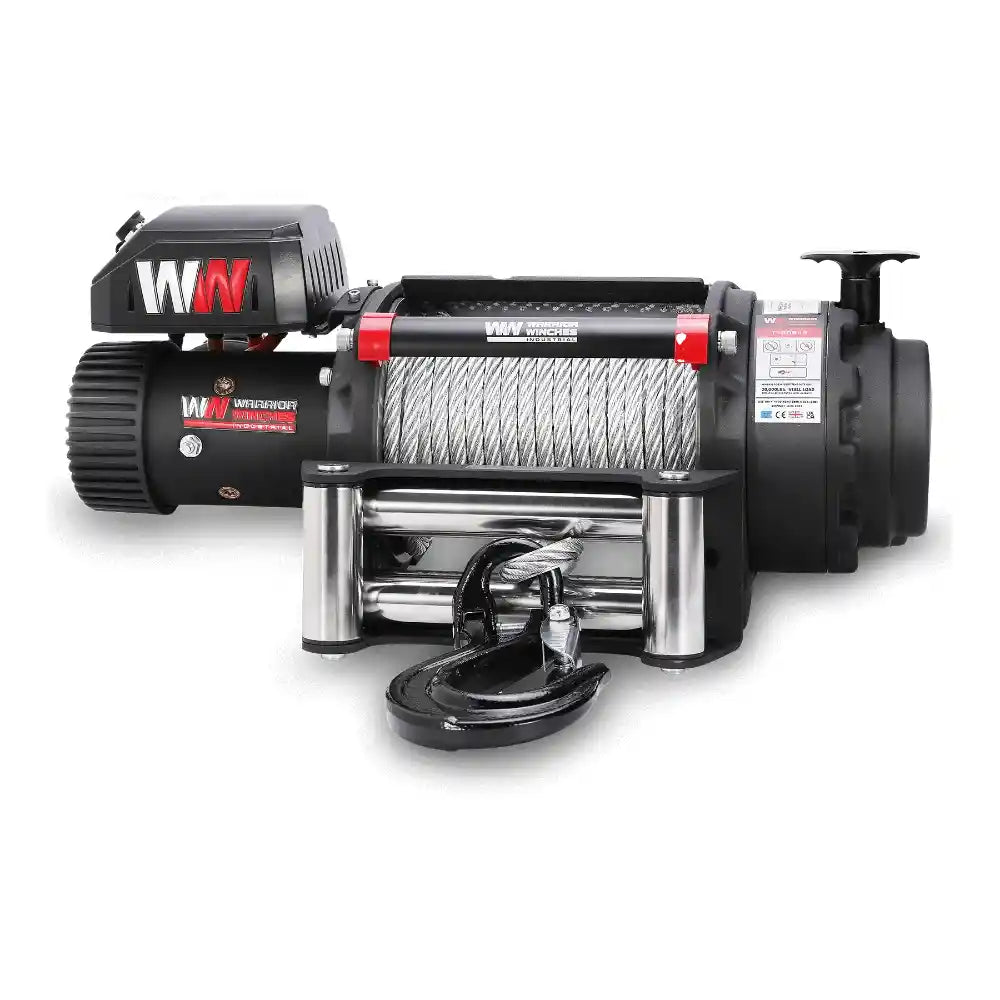

  • T1000 18,000lb Winch
  • Heavy Duty Stainless Steel Roller Fairlead
  • 65.6ft Steel Rope
  • Heavy Duty Clevis Hook
  • Heavy Duty Wired Remote Control
  • Rope Tensioner
  • Stainless Steel Mounting Hardware (Nuts/Bolts)

Technical Specifications

Rated Line Pull 18,000 lbs (8,165 kg)
Motor Type (12V) Input: 5.4kW / 7.2hp; Output: 2.9kW / 3.9hp
Clutch Manual
Gearing 430:1
Gearing System 3-Stage Planetary
Braking Action Automatic Screw Cone
Drum Size (Diameter x Length) 3.5 x 8.62 in
Controls Wired Remote
Cable Material Steel
Cable Size (Diameter x Length) 65.6ft x 0.47 in (Ø 15/32" × 65.6')
Fairlead Heavy Duty Stainless Steel Roller
Mounting Pattern 10" x 4.5" (254mm x 114.3mm) and 10" x 6.5" (254mm x 165.1mm) 8-M12

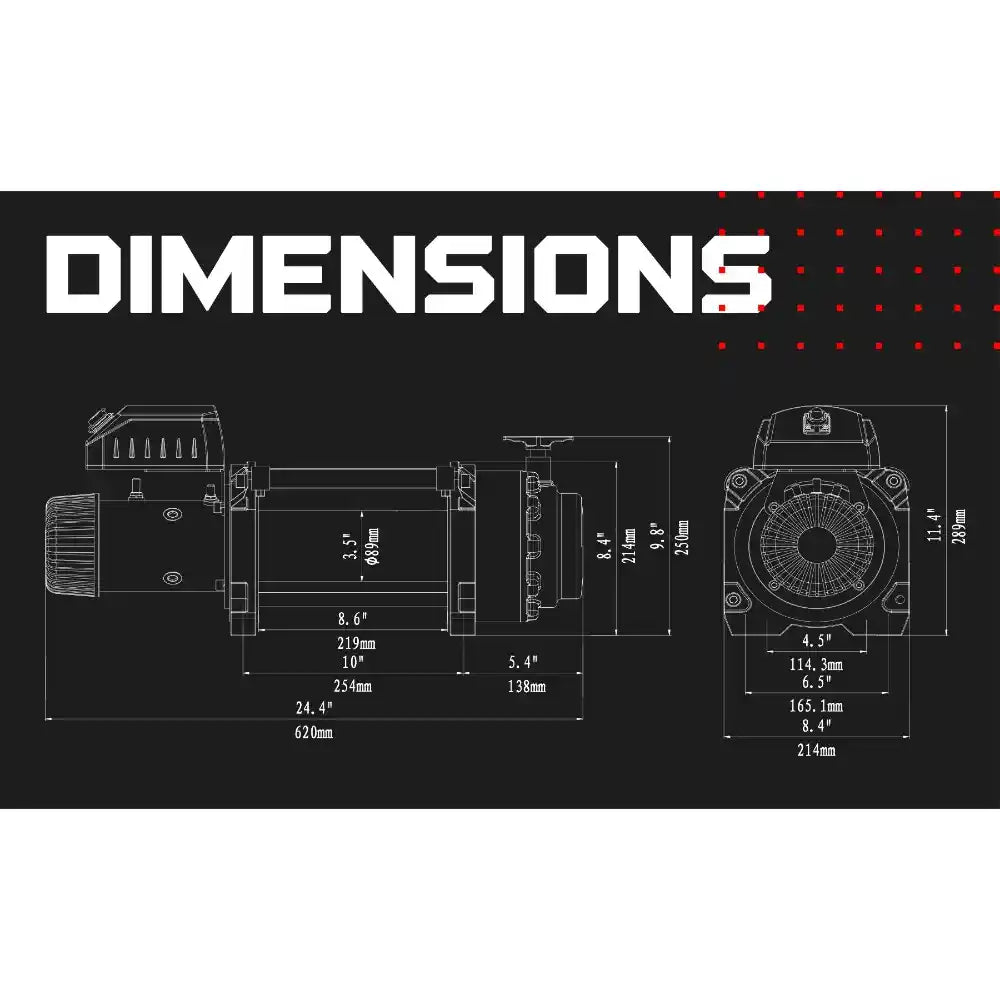

Dimensions 24.4" x 8.4" x 11.1"
Weight 147.7 lbs (67 kg)
Waterproof Rating (IP) 68
Certification CE

Performance Data (12V)

Layer of Rope/Cable Line Pull: lbs (kgs) Rope on drum ft (m)
1 18,000 (8,165) 18.0 (6.0)
2 14,544 (6,597) 40.7 (13.0)
3 12,200 (5,534) 65.6 (20.0)
Line Pull lbs (kgs) Line Speed 12v ft/min (m/min) Amp Draw 12v
0 19.7 (6.0) 100
6,000 (2,722) 6.9 (2.1) 210
10,000 (4,536) 5.6 (1.7) 320
12,500 (5,670) 4.9 (1.5) 360
14,000 (6,350) 4.6 (1.4) 380
16,000 (7,257) 3.9 (1.2) 420
18,000 (8,165) 3.0 (1.0) 460

Download Resources

User Manual Technical Specifications Durability Test Report

Frequently Asked Questions

+ What makes this winch "Severe Duty"?

"Severe Duty" refers to its military-grade design, which includes a full IP68 waterproof rating, a double-sealed all-brass motor that won't corrode, sealed gears and contactors, and lubrication rated for extreme temperatures. It's built to perform reliably where other winches would fail.
+ Is this winch suitable for a commercial recovery vehicle?

Absolutely. Its 18,000lb capacity, robust construction, and 5-year industrial warranty make it a perfect primary winch for commercial tow trucks, heavy-duty trailers, and other industrial applications that demand reliability.
+ What is the advantage of an all-brass series wound motor?

Brass is a corrosion-resistant alloy. By using it for the motor components, Warrior eliminates the risk of internal rust and corrosion caused by moisture and condensation, which is a major cause of failure in standard steel-component motors. This significantly increases the winch's long-term durability.
+ Can this winch be fully submerged in water?

Yes. The IP68 rating is the highest standard of ingress protection for this type of equipment. It signifies that the winch is completely dust-tight and is protected against long-term immersion in water under pressure, making it ideal for deep water crossings and muddy environments.
+ How do I activate the 5-year warranty?

To receive the full 5-year industrial warranty, you must register your purchase. Any product that is not registered will only be covered by the standard 1-year warranty. Please follow the warranty registration process included with your product or contact us for details.
+ What is covered under the warranty?

The 5-year warranty covers defects in any mechanical or electrical component of the winch. It does not cover cosmetic defects, worn parts from improper use, the steel rope, or accessories. Electrical components like remotes and contactors are covered for 12 months. Please see the full warranty details for a complete list of exclusions.
