Engineered for Safety, Built for Work

  • Certified Performance & Compliance: Meeting SAEJ-706 standards and conforming to EN 14492-1 (when fully fitted) isn't just a feature—it's your assurance of quality. This winch solves the critical business problem of needing equipment that is proven, certified, and compliant for professional job sites.
  • Hydraulic Full Load Holding Brake: Experience ultimate control and safety. The advanced hydraulic brake provides precise, stable load handling, preventing slippage and giving the operator complete command. This directly addresses the risk of accidents and damage during sensitive lifting and pulling operations.
  • Exceptional Design Ratios for Longevity: With an optimal 10:1 drum-to-rope ratio, the RV15 minimizes stress and wear on the steel cable, extending its service life and reducing long-term operating costs. This smart engineering means less maintenance and greater reliability.
  • Unmatched Installation Versatility: Custom rigs and complex mounting scenarios are no problem. The fully reversible orientation allows the winch to be mounted with the motor on either side and the rope spooling from the top or bottom, solving common installation headaches and saving valuable fabrication time.
  • Continuous Heavy-Duty Operation: Unlike electric winches that can overheat during extended use, the RV15's hydraulic system runs off your vehicle's power steering pump or PTO, providing constant power without thermal limitations. This makes it ideal for repetitive commercial applications.
  • Industrial-Grade Construction: With CE certification and robust construction, this winch is built to meet professional standards. The included balance valve helps regulate the hydraulic system, ensuring smooth operation and protecting your investment in demanding work environments.

What's In The Box

  • RV15 15,000lb Hydraulic Winch
  • Heavy Duty Roller Fairlead
  • 65.6ft Steel Rope
  • Heavy Duty Clevis Hook
  • Rope Tensioner
  • Balance Valve

Technical Specifications

Rated Line Pull 15,000 lbs (6,804 kg)
Gearing 17.3:1
Braking Action Hydraulic Full Load Holding
Cable Ø 0.47" × 65.6' (Ø 12mm × 20.0m) Steel
Max Hydraulic Flow 15.8 G/Min (60 L/Min)
Max Hydraulic Pressure 17.5 Mpa (2538 PSI)
Mounting Pattern 12.0"×4.5" and 14.5"×6.7"

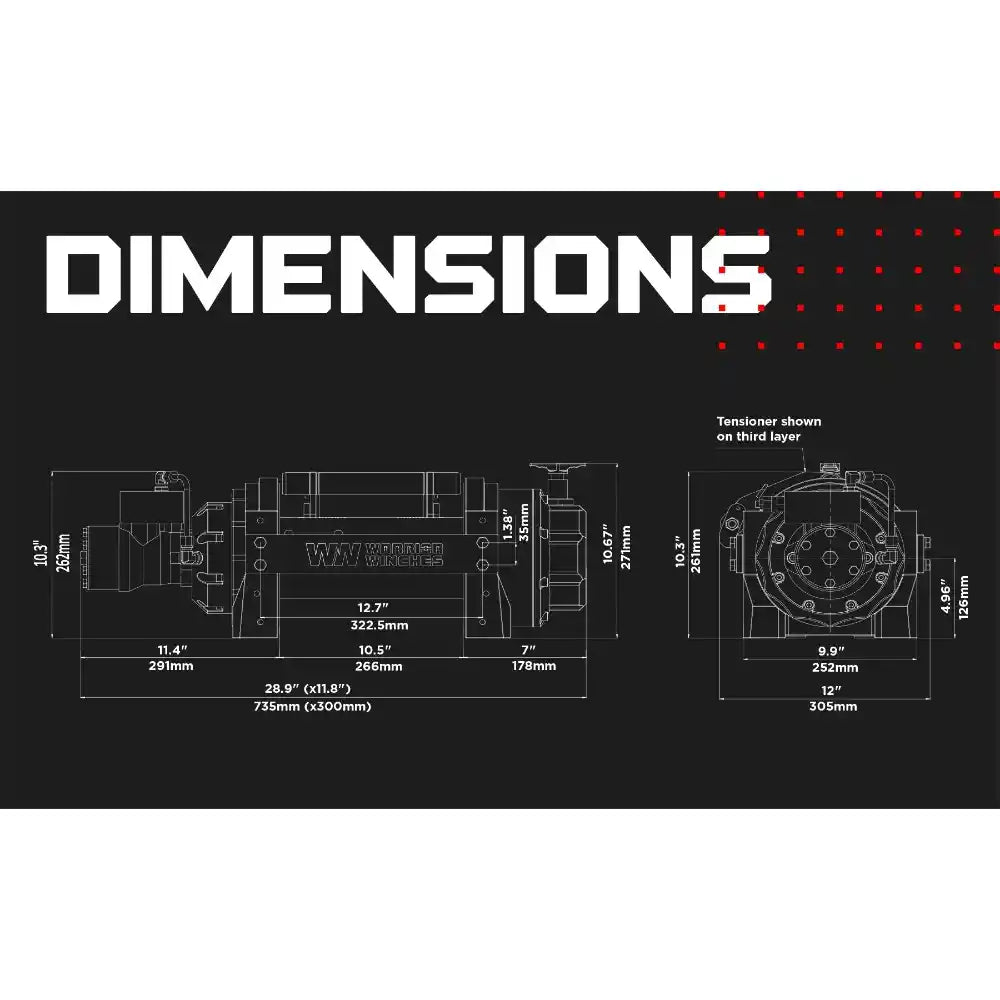

Dimensions 28.9" × 11.8" × 10.9" (735mm × 300mm × 277mm)
Net Weight 171.1 lbs (77.6 kg)
Compliance SAEJ-706, CE, EN 14492-1* (*when fully fitted)

Performance Data

Line Pull Per Layer
Layer 1 15,000 lbs (6,804 kg)
Layer 2 12,791 lbs (5,807 kg)
Layer 3 11,150 lbs (5,062 kg)
Line Pull (lbs) Line Speed (ft/min) Flow (G/min) Pressure (PSI)
0 23 2.6 290
8,000 16.7 5.2 1337
12,000 8.5 10.4 2030
15,000 4.2 15.6 ~2538

Download Resources

User Manual Technical Specifications Durability Test Report Dimensions Drawing

Frequently Asked Questions

+ What is the primary advantage of this hydraulic winch over an electric one?

The main advantage is its suitability for long, heavy-duty cycles. Hydraulic winches run off your vehicle's power steering pump or a PTO, providing constant power without the risk of overheating or draining the electrical system. This makes them ideal for commercial and industrial use where reliability is paramount.

+ What kind of hydraulic system is required to operate the RV15?

Your hydraulic system must be able to provide a flow rate between 1.3 to 15.8 gallons per minute (5-60 L/Min) and operate at a maximum pressure of 17.5 Mpa (approximately 2538 PSI). The included balance valve helps regulate the system.

+ Is this winch certified for use on European job sites?

Yes, when all supplied parts (including the steel rope, fairlead, and tensioner) are fitted correctly as part of a suitable installation, the winch conforms to the BS EN 14492-1:2006+A1:2009 standard, making it suitable for professional use in the UK and Europe.

+ How difficult is it to install with the reversible mounting feature?

The reversible mounting greatly simplifies installation. It gives you the freedom to position the winch to best fit your vehicle or equipment layout without needing custom brackets or re-routing hydraulic lines extensively. This saves significant time and fabrication costs.

+ What is required to activate the 5-Year Industrial Warranty?

To receive the full 5-year warranty for industrial/commercial use, you must register your product after purchase. If the product is not registered, it will be covered by a standard 1-year warranty. The warranty covers mechanical components against defects but excludes wear items like the steel rope.
