What's In The Box

  • T1000 25,000lb Winch
  • Aluminum Hawse Fairlead
  • Synthetic Rope
  • Heavy Duty Hook
  • Heavy Duty Wired Remote
  • Stainless Steel Mounting Hardware (nuts/bolts)

Technical Specifications

Rated Line Pull 25,000 lbs (11,340 kg)
Motor (12V) Input: 6.4kW / 8.6hp; Output: 3.1kW / 4.2hp
Gearing / Ratio 3-Stage Planetary / 450:1
Braking Action Patented Ratchet External Brake
Rope 65.62ft x 0.54 in (20m x 13.7mm) Synthetic
Drum Size (Dia x L) 4.72" x 7.8" (120mm x 198mm)
Mounting Pattern 10" x 4.5" and 10" x 7.5"

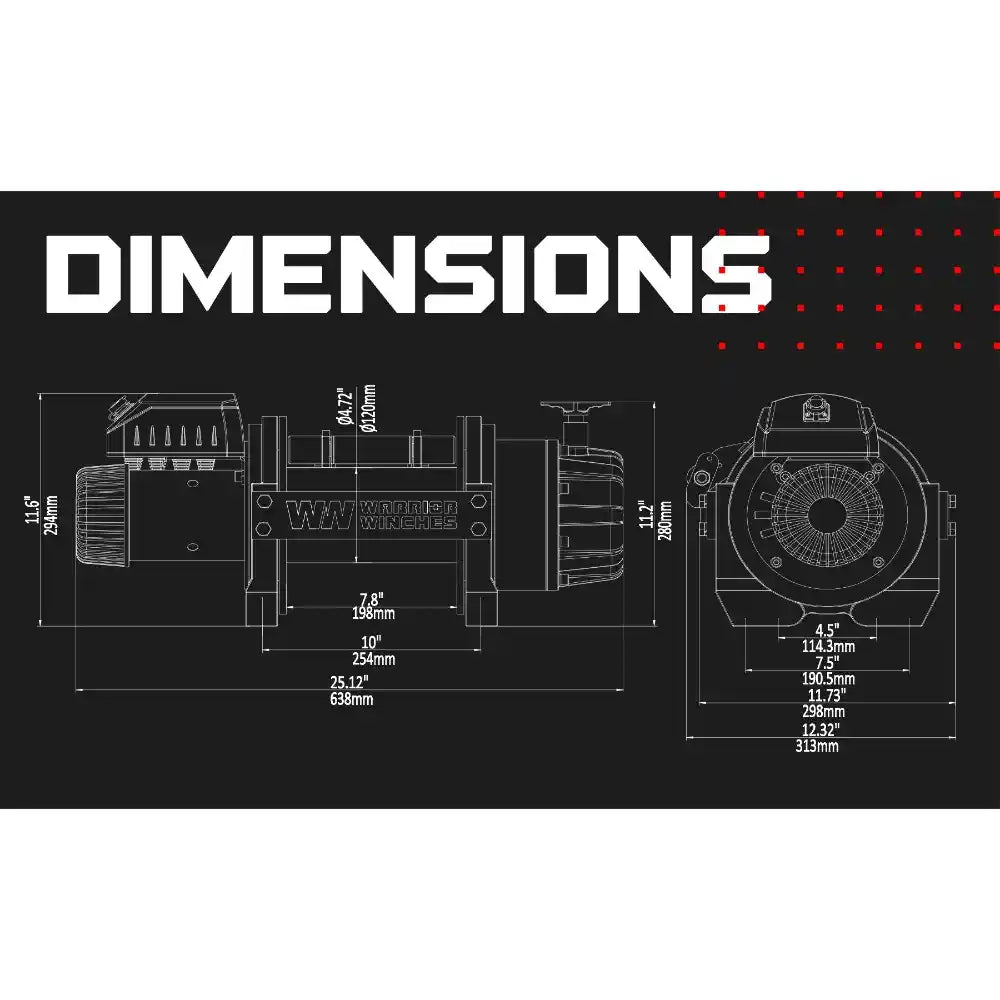

Dimensions 25.12" x 12.32" x 11.57"
Weight 212 lbs (96 kg)
Waterproof Rating IP67
Certification CE

Performance Data (12V)

Line Pull Per Layer
Layer 1 25,000 lbs (11,340 kg)
Layer 2 20,724 lbs (9,400 kg)
Layer 3 17,698 lbs (8,027 kg)
Layer 4 15,443 lbs (7,005 kg)
Line Pull (lbs) Line Speed (ft/min) Amp Draw
0 27.5 45A
10,000 6.9 290A
22,000 3.9 465A
25,000 2.6 530A

Download Manuals

User Manual Technical Specifications Durability Test Report

Frequently Asked Questions

+ What is the real-world benefit of the external brake with synthetic rope?

The external brake is a revolutionary safety feature. It completely isolates the synthetic rope from the immense heat generated during braking, which is the number one cause of rope failure in traditional winches. This preserves your rope's strength and dramatically increases safety and longevity.
+ What kind of vehicle is this 25,000lb winch designed for?

This is a severe-duty winch for the heaviest applications. It's ideal for large commercial recovery vehicles, heavy-duty industrial equipment, military vehicles, and oversized off-road rigs where maximum pulling power is a necessity.
+ How waterproof is this winch?

The T1000 features a military-grade IP68 rating on its core components and a robust IP67 overall rating. This means it is highly protected against dust and can be submerged in water, making it truly all-weather capable.
+ What does the overload protection do?

The overload protection system is designed to prevent catastrophic failure by safeguarding the winch's motor and gears from damage if the load exceeds the winch's rated capacity, enhancing both safety and the lifespan of the unit.
+ How do I activate the 5-Year Industrial Warranty?

To receive the full 5-year warranty for industrial or commercial use, you must register your product after purchase. If the product is not registered, it will default to a standard 1-year warranty. The warranty covers mechanical components against defects.
