What's In The Box

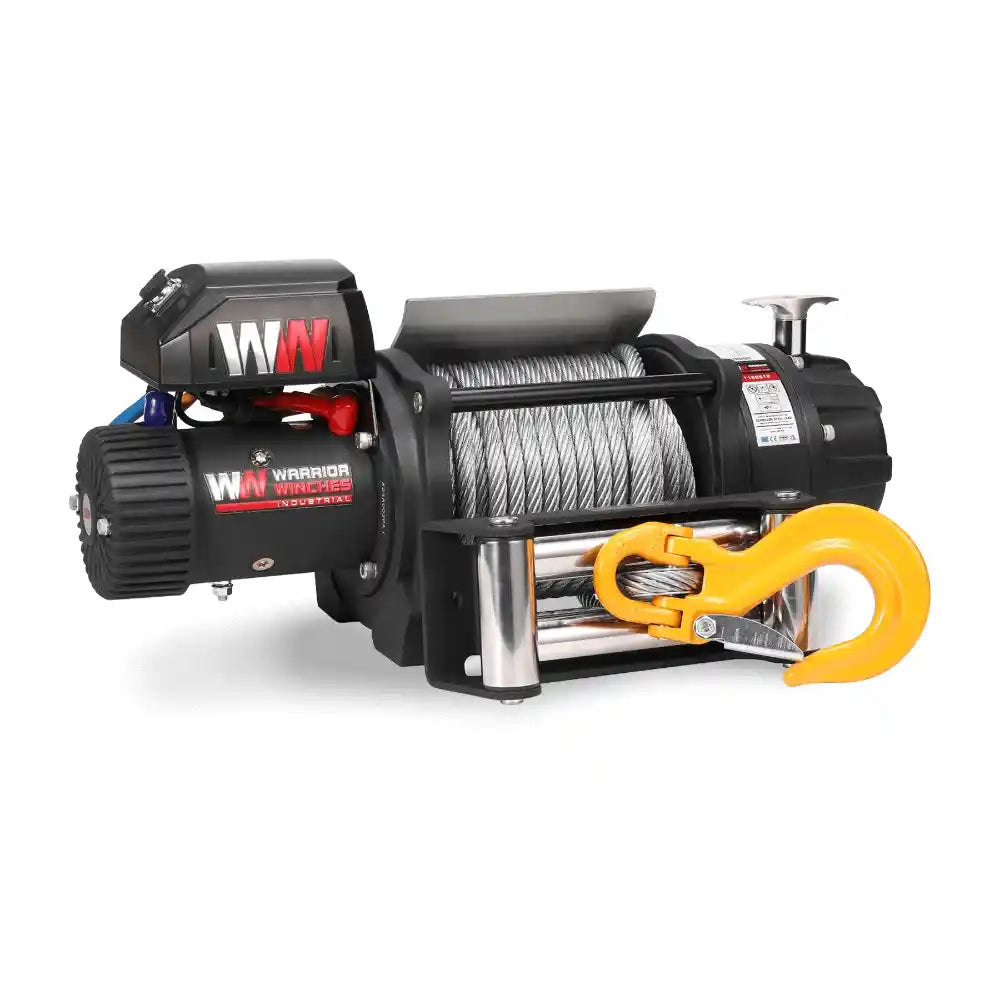

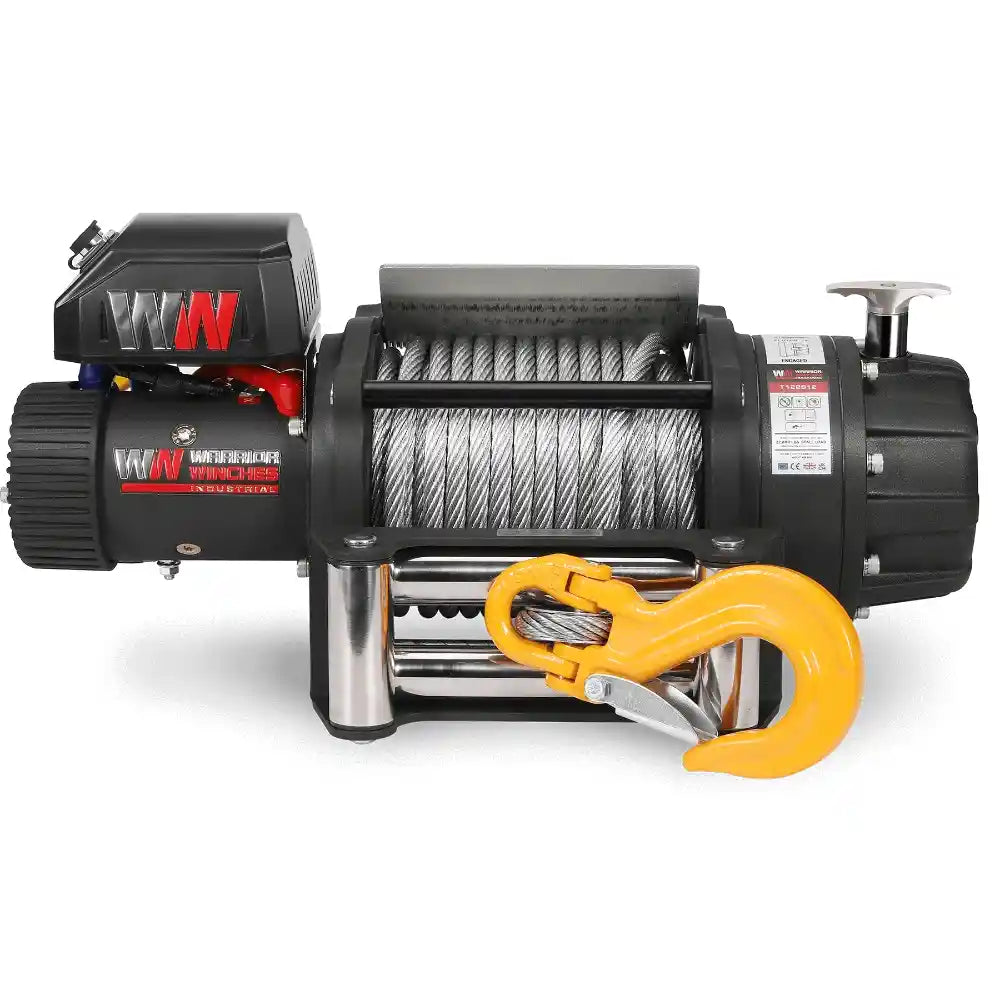

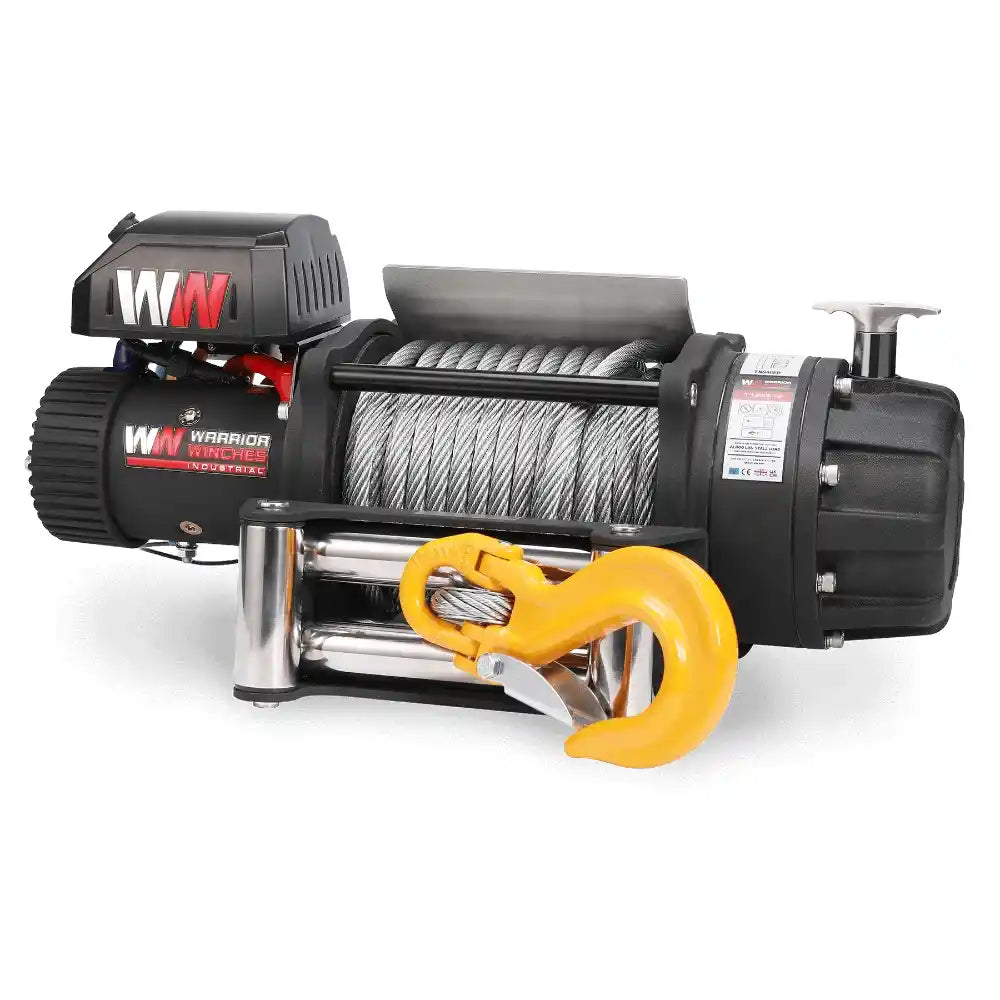

  • T1000 22,000lb Winch
  • Heavy Duty Stainless Steel Fairlead
  • Steel Rope
  • Heavy Duty Hook
  • Heavy Duty Wired Remote
  • Cable Tensioner
  • Stainless Steel Mounting Hardware (nuts/bolts)

Technical Specifications

Rated Line Pull 22,000 lbs (9,979 kg)
Motor (12V) 7.4hp / 5.5kW  / 7.4hp
Gearing / Ratio 3-Stage Planetary / 450:1
Braking Action External Brake
Cable 65.6 ft x 15/32 in (20m x 13.8mm) Steel

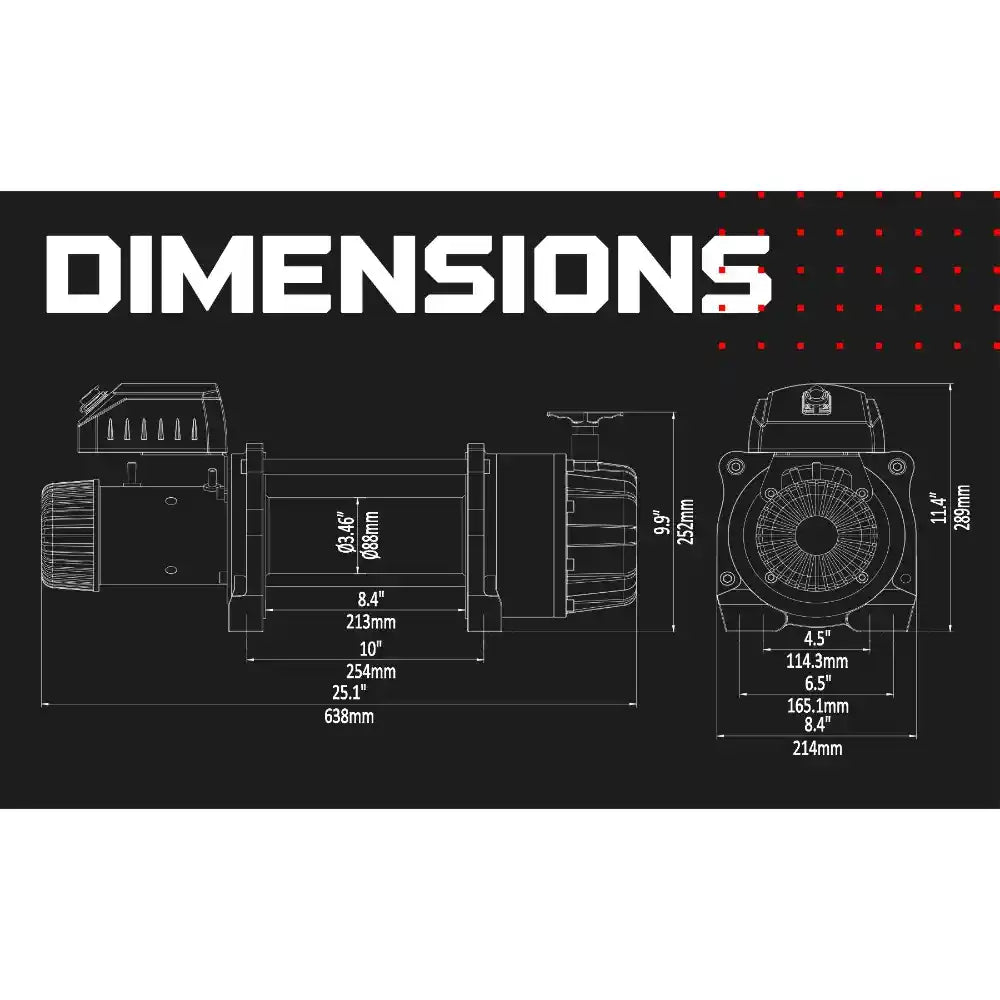

Mounting Pattern 10" x 4.5" and 10" x 6.5"
Dimensions 25.2" x 8.4" x 11.4"
Weight 165.3 lbs (75 kg)
Certification CE, IP68 Rated
Drum Size  (Dia x L) Ø3.46 “×8.4 “ (Ø88mm×213mm)

Performance Data (12V)

Line Pull Per Layer Rope On Drum FT(M)
Layer 1 22,000 lbs 14.1 (4.3)
Layer 2 17,300 lbs 32.8 (10.0)
Layer 3 14,260 lbs 55.1 (16.8)
Layer 4 12,130 lbs 78.7 (24.0)
Line Pull (lbs) Line Speed (ft/min) 12V Amp Draw
0 21.7 65A
5,000 9.8 175A
15,000 4.9 350A
22,000 3.0 460A

T1000 22,000lb Manuals

Instructions Manual Technical Specifications Durability Test

Frequently Asked Questions

+ What makes the external brake a "revolutionary" feature?

Traditional winches place the brake inside the rope drum, which generates enormous heat that can damage synthetic rope or degrade grease with steel rope. The T1000's external brake completely isolates the drum from braking heat, ensuring safer operation, better load control, and much longer component life.
+ What kind of vehicle is this 22,000lb winch designed for?

This is a severe-duty winch for heavy applications. It's ideal for large commercial recovery vehicles, industrial equipment haulers, agricultural tractors, and military-style vehicles where maximum pulling power is required.
+ How does the Overload Protection (OLP) work?

The T1000 features a built-in resettable Overload Protection circuit. If the winch pull exceeds a safe capacity, it will temporarily interrupt power to prevent damage to the motor and gears. This allows you to reassess the situation and protects your investment from accidental damage.
+ How waterproof is the IP68 rating?

IP68 is the highest level of protection for this class of equipment. It signifies the winch and its control box are completely dust-tight and can withstand long-term immersion in water under pressure, making it truly all-weather and submersible.
+ How do I activate the 5-Year Industrial Warranty?

To receive the full 5-year warranty for industrial or commercial use, you must register your product after purchase. If the product is not registered, it will default to a standard 1-year warranty. The warranty covers mechanical components against defects.
