What's In The Box

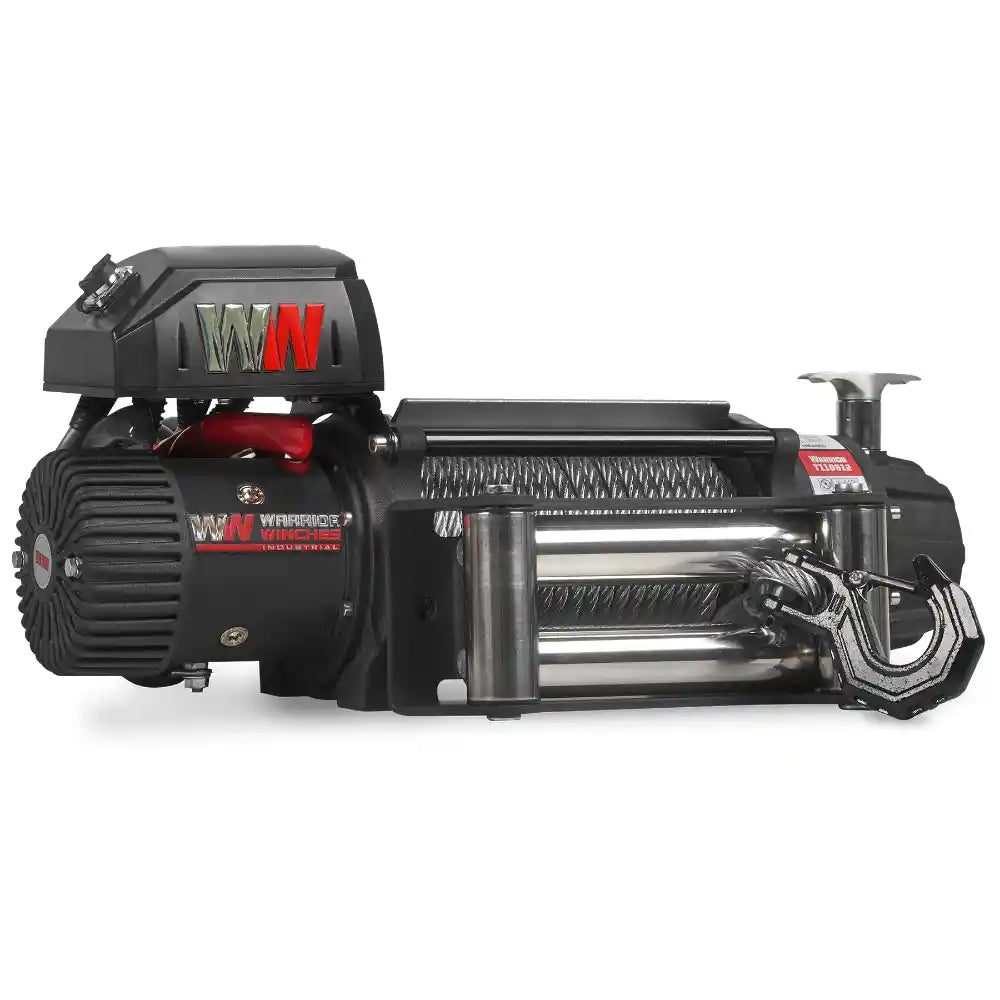

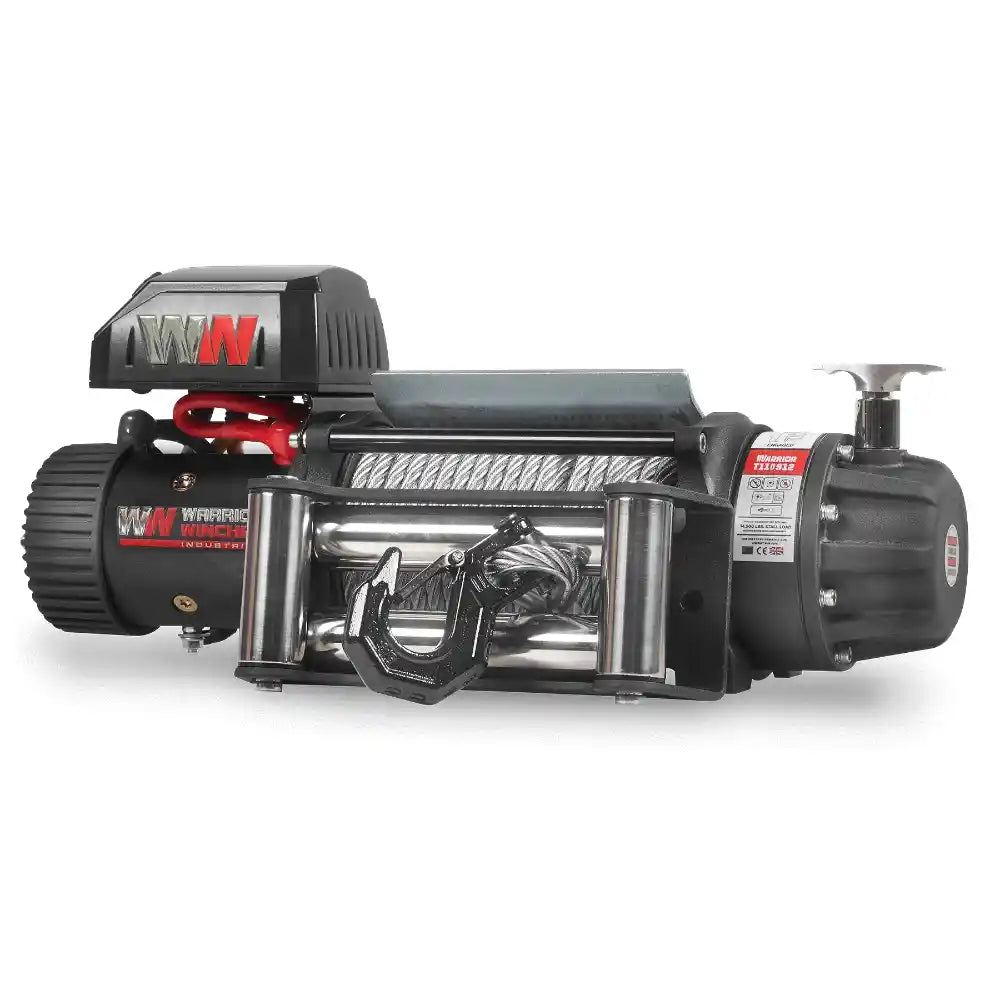

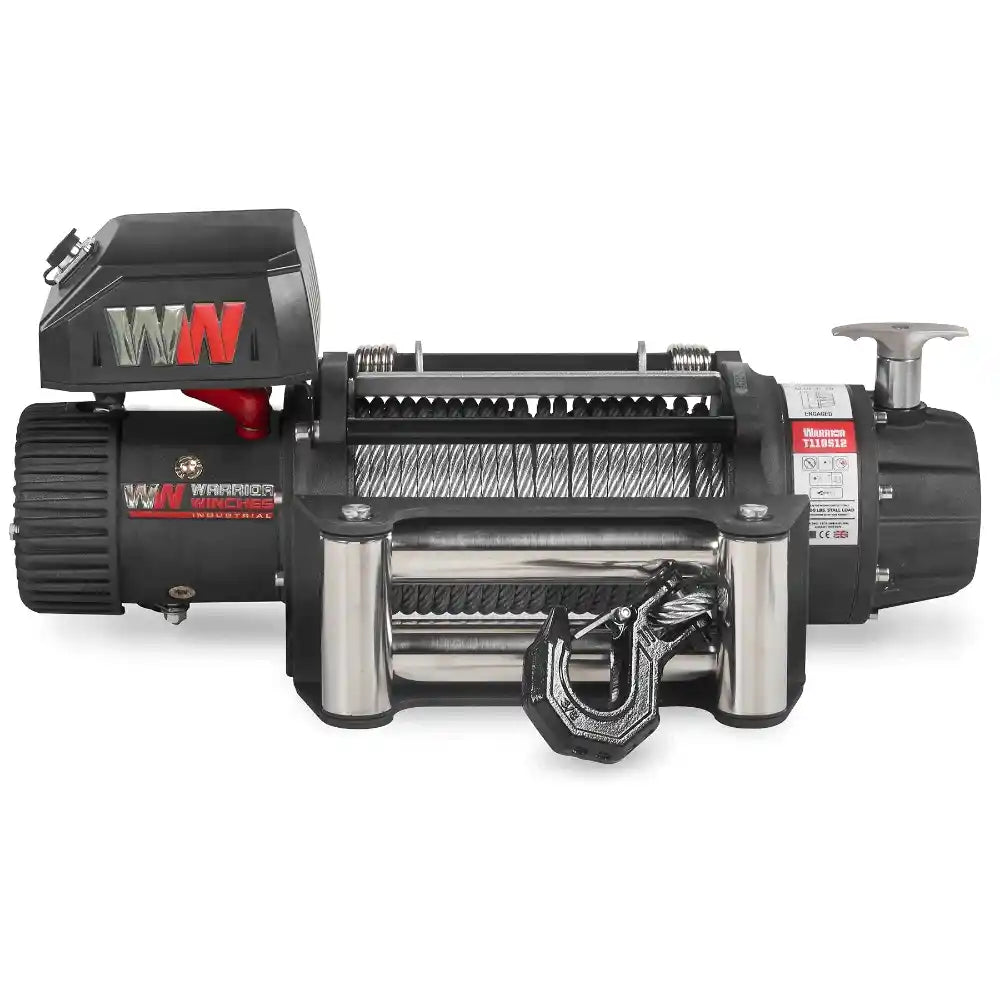

  • T1000 Winch
  • Heavy Duty Stainless Steel Fairlead
  • Steel Rope
  • Heavy Duty Hook
  • Heavy Duty Wired Remote
  • Trident 2.4G Wireless Remote
  • Tensioner
  • Stainless Steel Mounting Hardware (nuts/bolts)

Technical Specifications

Rated Line Pull 12500 lbs (5760 kg)
Motor Type (12V) Input: 4.6kW / 6.2hp; Output: 2.1kW / 2.8hp
Clutch Manual
Gearing 228:1
Gearing System Planetary
Braking Action External Brake
Drum Size (Diameter x Length) 2.48 x 8.54 in (63 x 217 mm)
Controls Wired Remote, Wireless Remote
Cable Material Steel
Cable Size (Diameter x Length) 59ft x 0.35 in (18m x 9mm)
Fairlead Roller
Mounting Pattern 10 x 4.4 in (254mm × 114.3 mm; 4-M10)

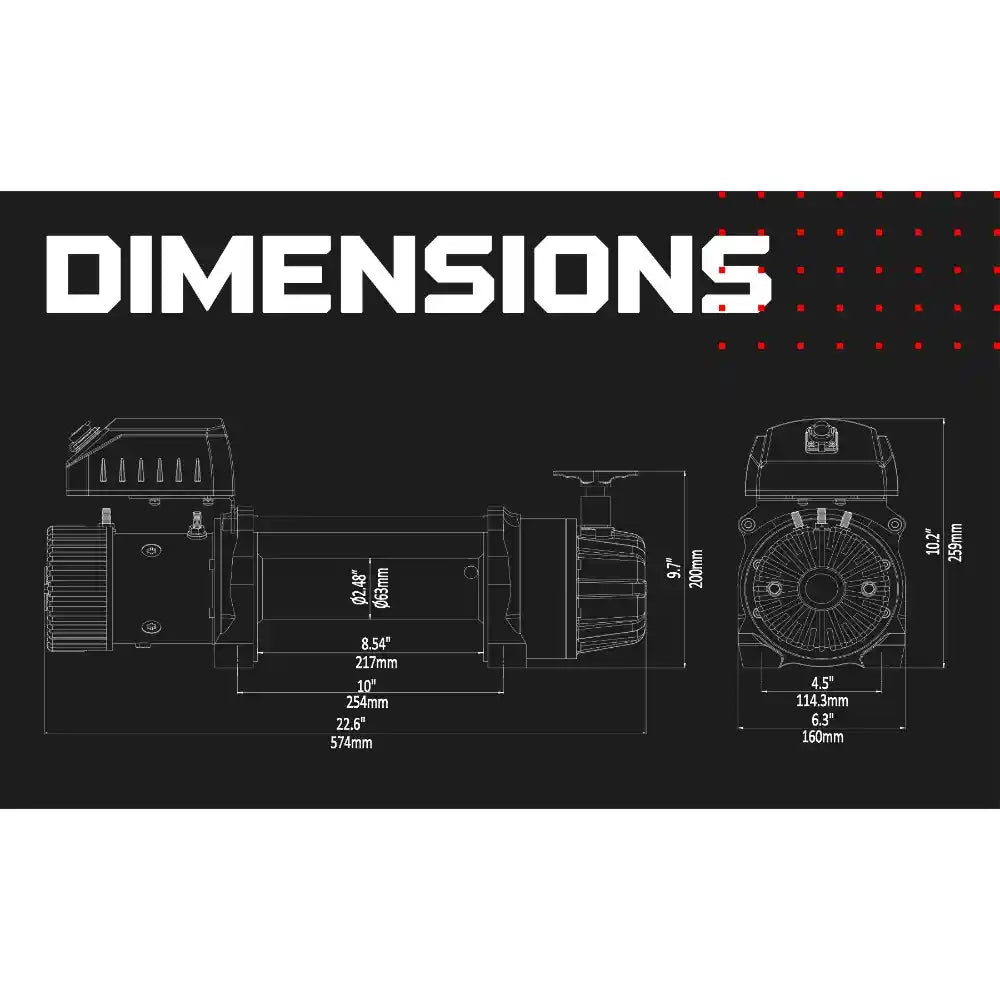

Dimensions 22.6 x 6.3 x 10.2 in (574 x 160 x 259 mm)
Waterproof Rating (IP) 67 (Stated as IP68 Military-Grade in features for superior protection)
Certification CE

Performance Data (12V)

Layer of Rope/Cable Line Pull: lbs (kgs) Rope on drum ft (m)
1 12500 (5760) 16.1 (4.9)
2 9800 (4445) 36.4 (11.1)
3 8075 (3662) 61.0 (18.6)
4 6860 (3110) 82.0 (25.0)
Line Pull lbs (kgs) Line Speed 12v ft/min (m/min) Amp Draw 12v
0 32.2 (9.8) 65
3000 (1361) 14.8 (4.5) 140
6000 (2722) 10.5 (3.2) 260
8000 (3629) 7.5 (2.3) 320
12500 (5670) 4.6 (1.4) 380

Download Resources

Instruction Manual Technical Specifications Durability Test Report

Frequently Asked Questions

+ Is this winch truly military-grade?

Yes, the T1000 was originally developed as an advanced military prototype and has proven its capabilities in severe climates. Its design and features, including the IP68 military-grade rating, are engineered for extreme durability and performance under the toughest conditions, meeting the demands of industrial, commercial, and military applications.
+ What does the IP68 rating mean for this winch?

The IP68 military-grade rating signifies that the T1000 winch is completely dust-tight and can withstand prolonged immersion in water beyond 1 meter. This provides superior protection for internal components, ensuring reliable operation in heavy rain, mud, river crossings, and other extremely wet or dusty environments.
+ Why is an external brake preferred for severe duty winches?

An external brake system is crucial for severe-duty applications as it prevents heat buildup within the winch drum. This design ensures consistent and reliable braking performance, maintains the integrity of the steel rope, and enhances overall safety and control during prolonged or heavy winching operations, especially under significant load.
+ What is the warranty for the T1000 12,500lb winch?

The Warrior Winches T1000 series comes with a minimum 5-year warranty for commercial & industrial u
