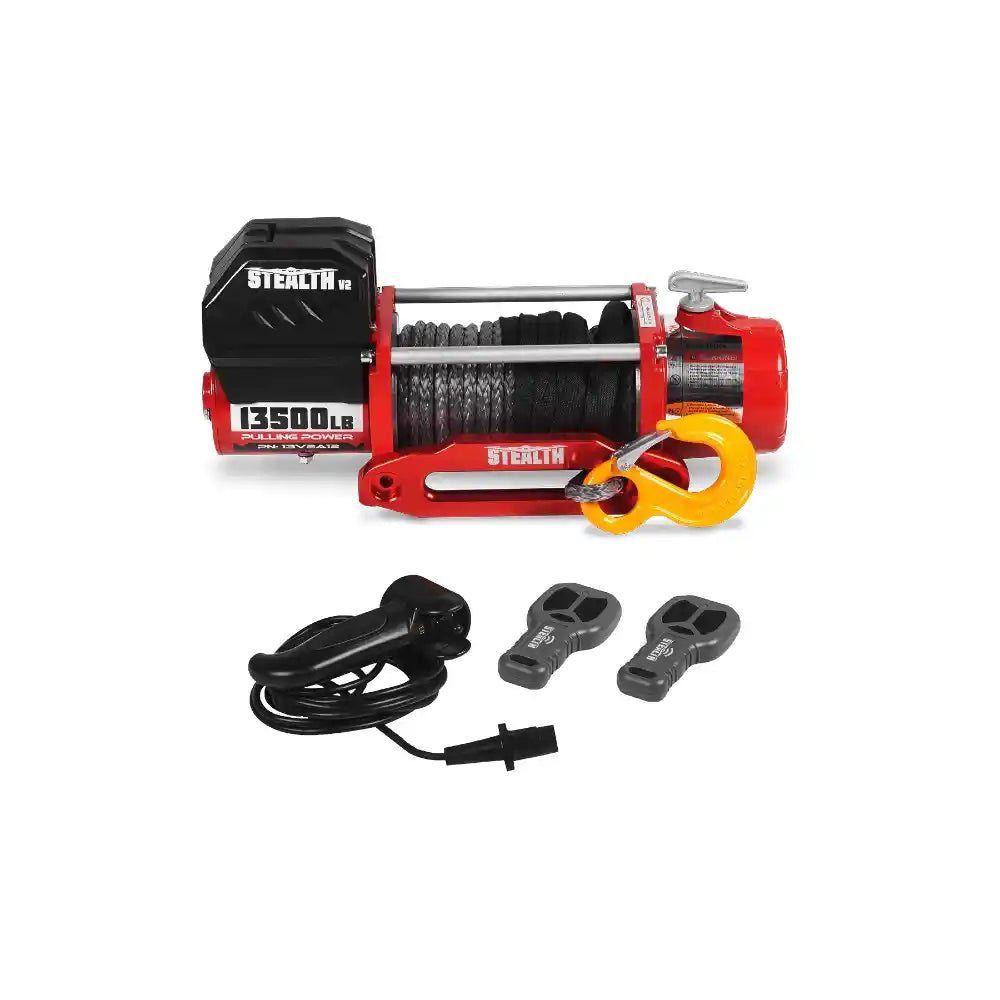

What's In The Box

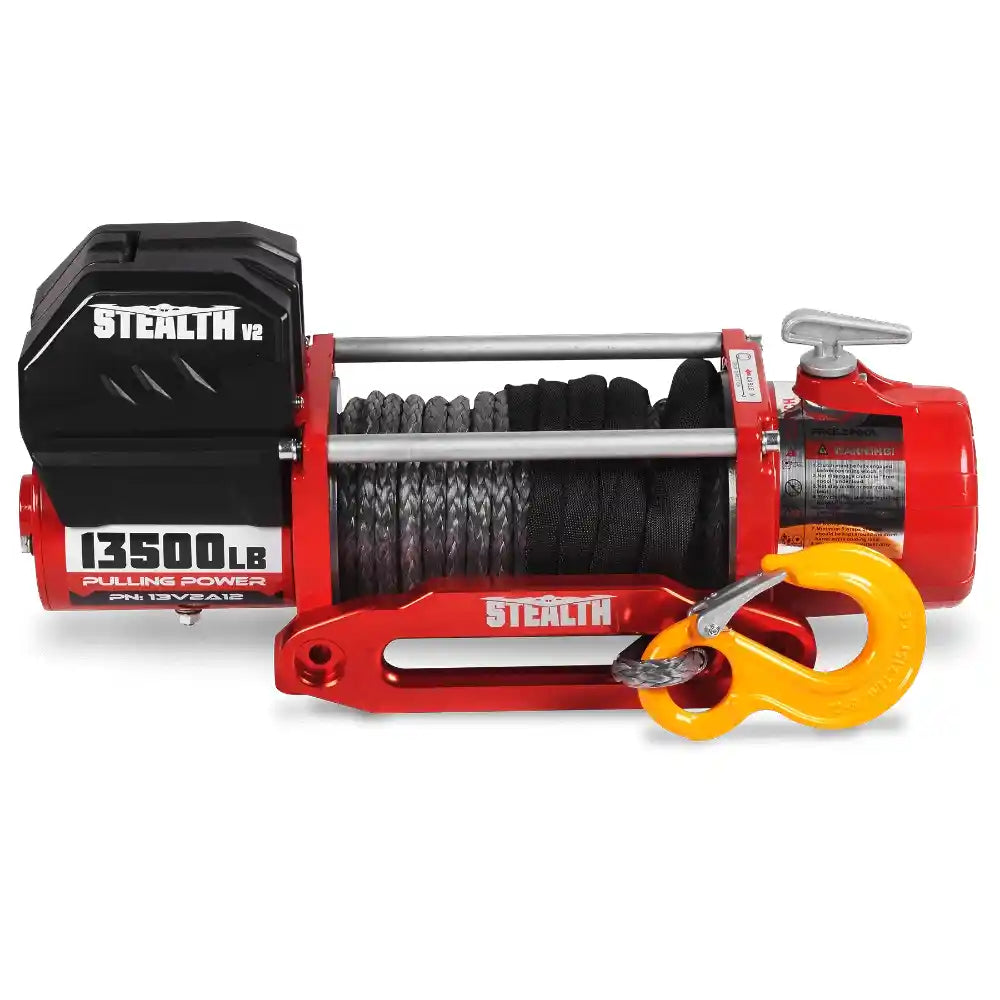

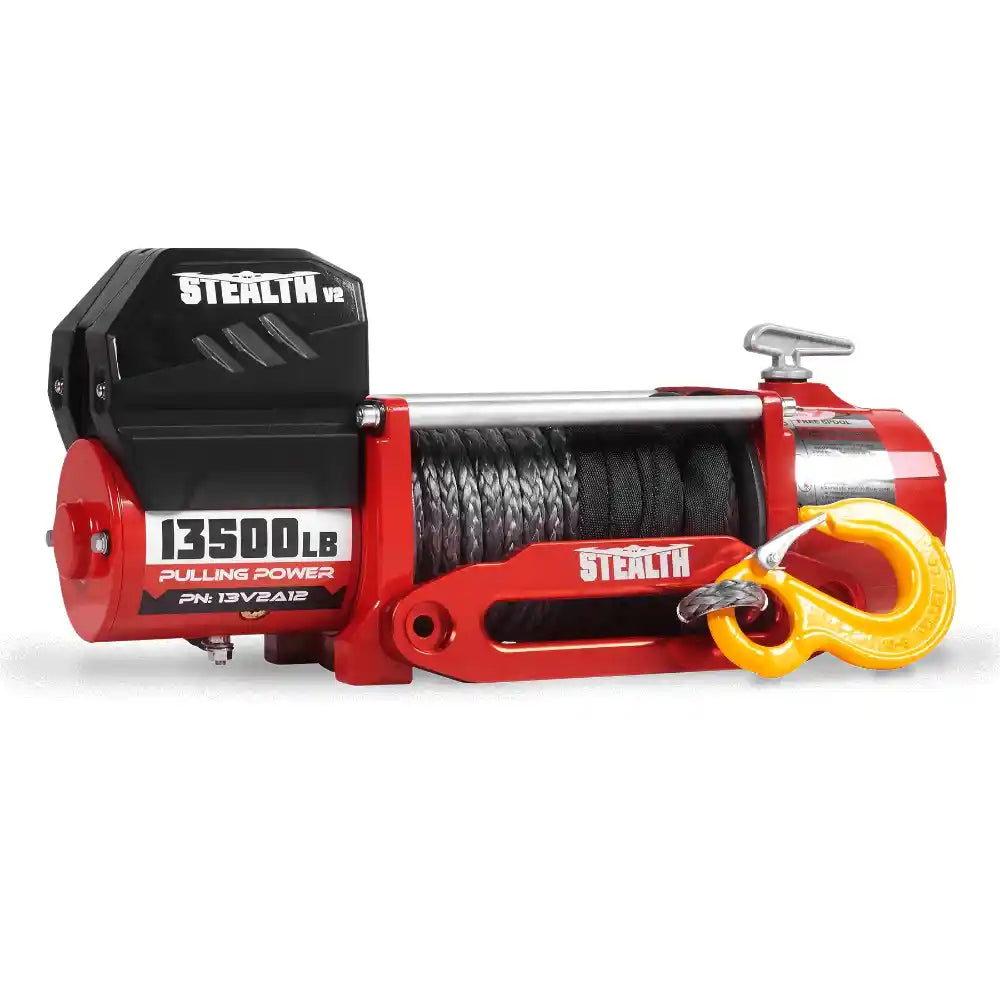

  • Stealth 13,500lb Winch
  • 65.6ft Synthetic Rope

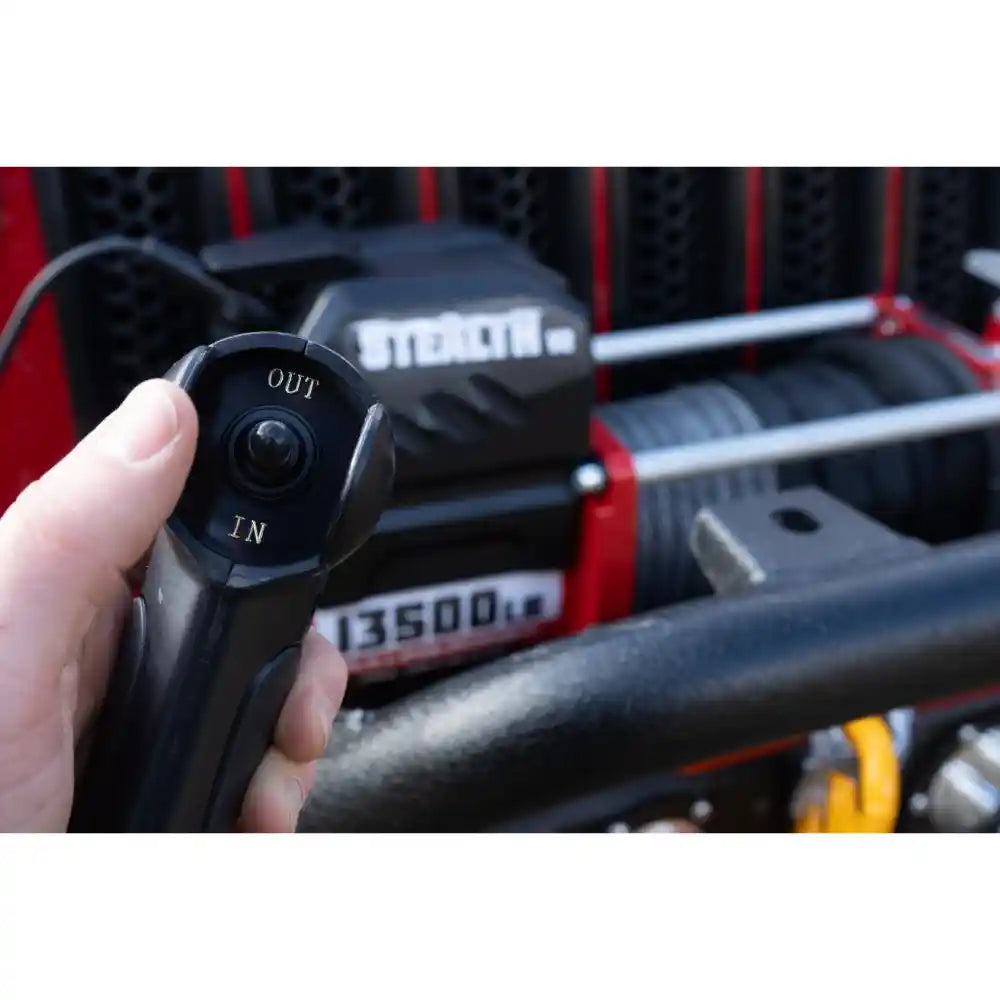

  • 12.8ft Wired Hand Control
  • Two (2) Wireless Control Handsets

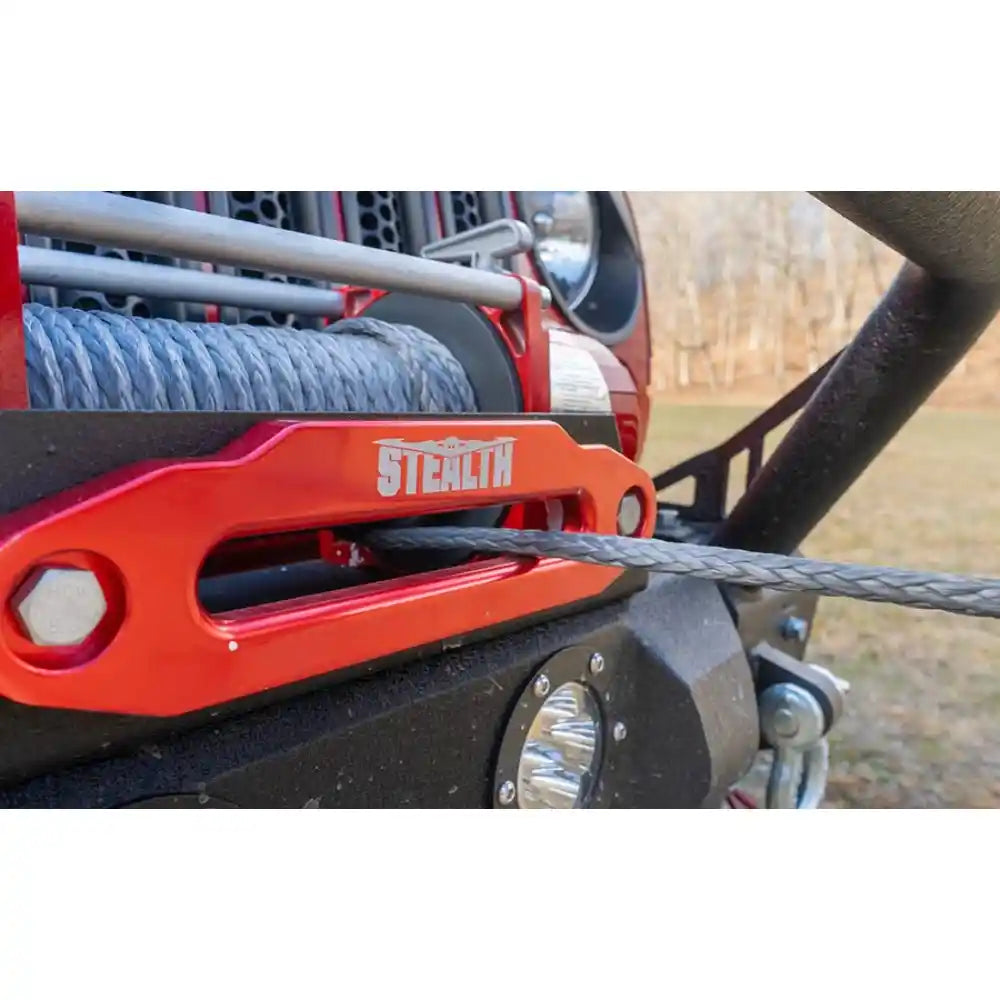

  • Aluminum Hawse Fairlead
  • Mounting Bolts for Standard Installations
  • Battery Cables (May require extension)
  • Hand Saver Strap & Heavy Duty Hook
  • Instruction Manual

Technical Specifications

Rated Line Pull 13,500 lbs (6,123 kg)
Motor (12V) Input: 6.1hp / 4.6kW; Output: 2.8hp / 2.1 kW
Gearing / Ratio 3-Stage Planetary / 265:1
Braking Action Automatic In-The-Drum
Rope 65.62ft x 0.39 in Synthetic
Controls 2x Wireless Remotes, 1x Wired Remote

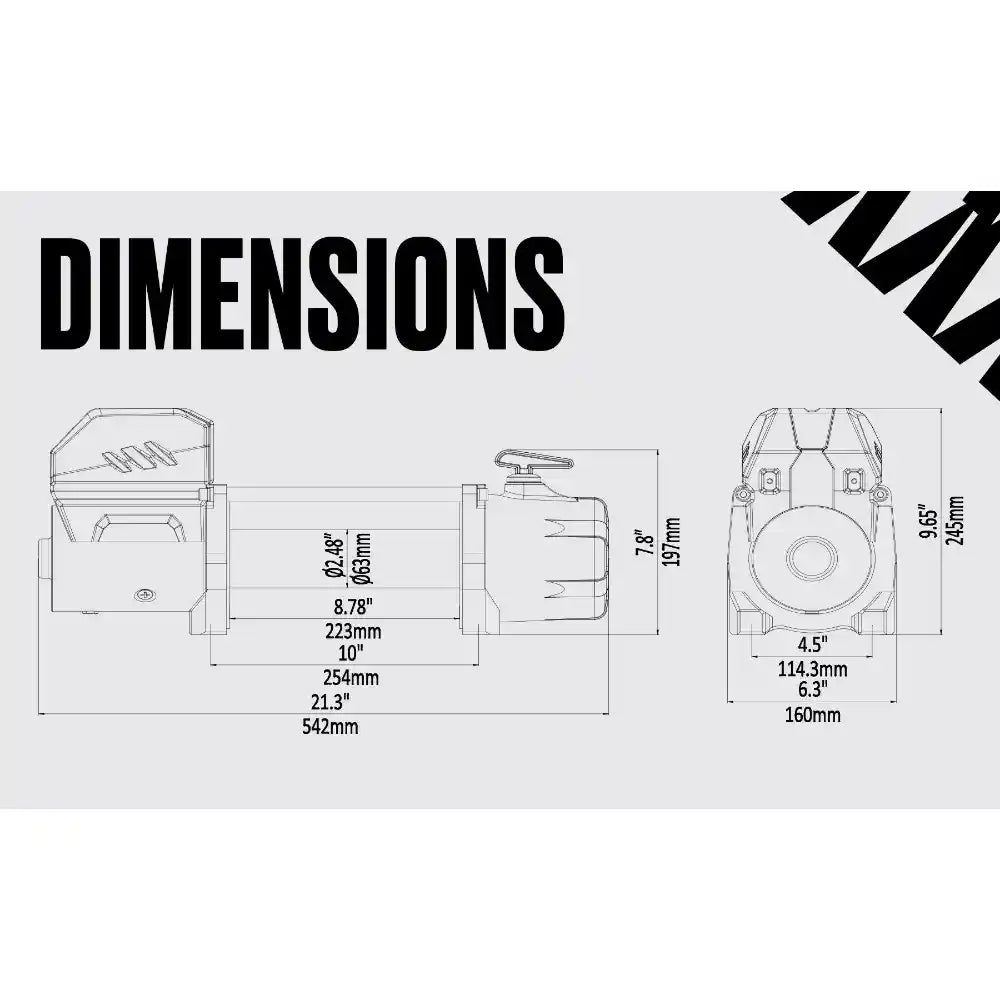

Mounting Pattern 10" × 4.5" (254mm × 114.3mm)
Dimensions 21.34" x 6.3" x 9.65"
Weight 62 lbs (28 kg)
Waterproof Rating IP54
Certification CE

Performance Data

Line Pull Per Layer
Layer 1 13,500 lbs
Layer 2 10,596 lbs
Layer 3 8,720 lbs
Layer 4 7,408 lbs
Line Pull (lbs) Line Speed (ft/min) Amp Draw (12V)
0 19.7 72A
4,000 10.5 180A
8,000 7.5 265A
13,500 3.9 390A

Download Manuals

Instructions Technical Specifications

Frequently Asked Questions

+ What makes this the "best budget winch"?

The Stealth winch delivers exceptional value by including premium features—like a powerful 6.1hp motor, full steel gears, synthetic rope, and two wireless remotes—at a price point where these features are not typically standard.
+ Is this winch strong enough for my full-size truck or Jeep?

Yes. With a 13,500lb rated line pull, the Stealth is perfectly suited for recovering full-size 4x4s, trucks, and heavily equipped off-road vehicles. A general rule is to have a winch rated for at least 1.5 times your vehicle's weight.
+ What does the IP54 waterproof rating mean?

An IP54 rating means the winch is protected against dust ingress and splashing water from any direction. It is suitable for typical off-road conditions like rain and mud splashes but is not designed to be fully submerged for extended periods.

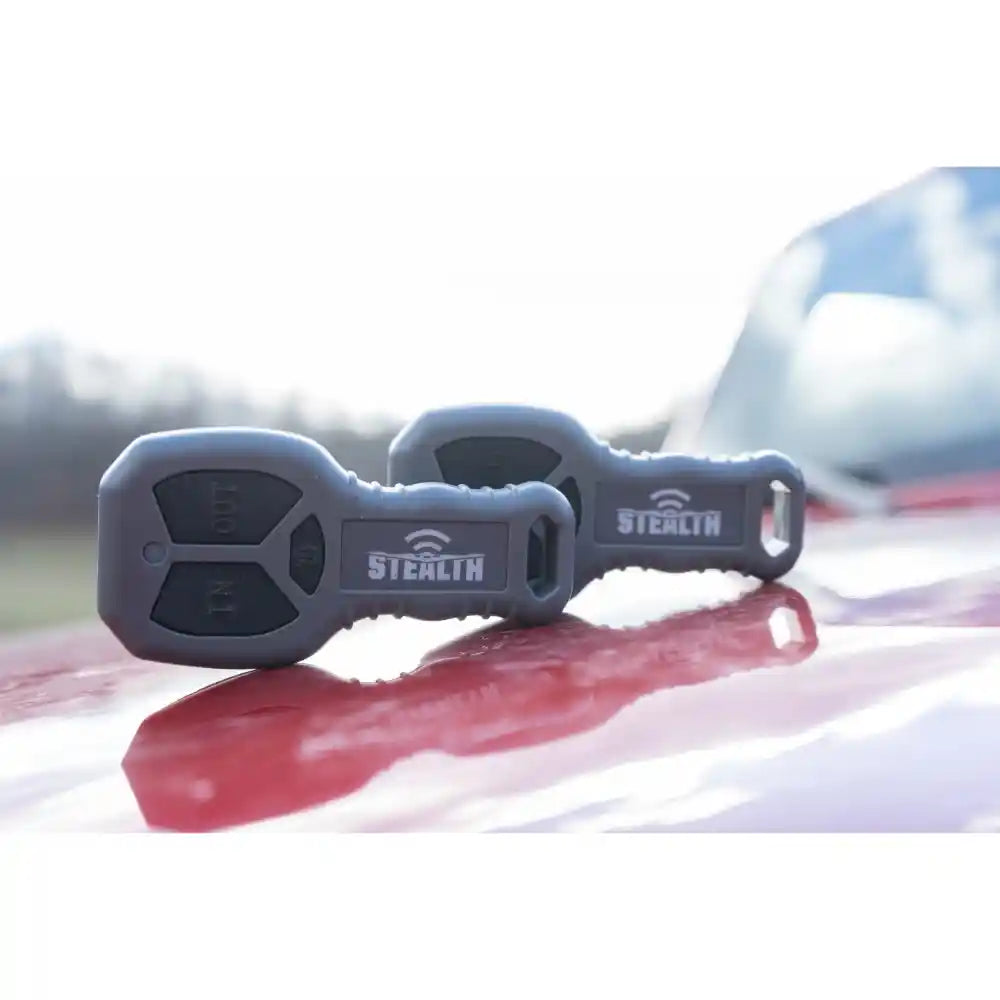

+ Why does this winch include two wireless remotes?

Including two wireless remotes provides incredible convenience and a valuable backup. You can keep one in your vehicle and one with your recovery gear, or have a spare ready in case one is lost or damaged on the trail.
+ What is the warranty on the Stealth winch?

The Stealth winch is part of our "non-industrial" range and comes with a 3-year limited warranty when registered after purchase. This covers defects in materials and workmanship, giving you peace of mind for your off-road adventures.
