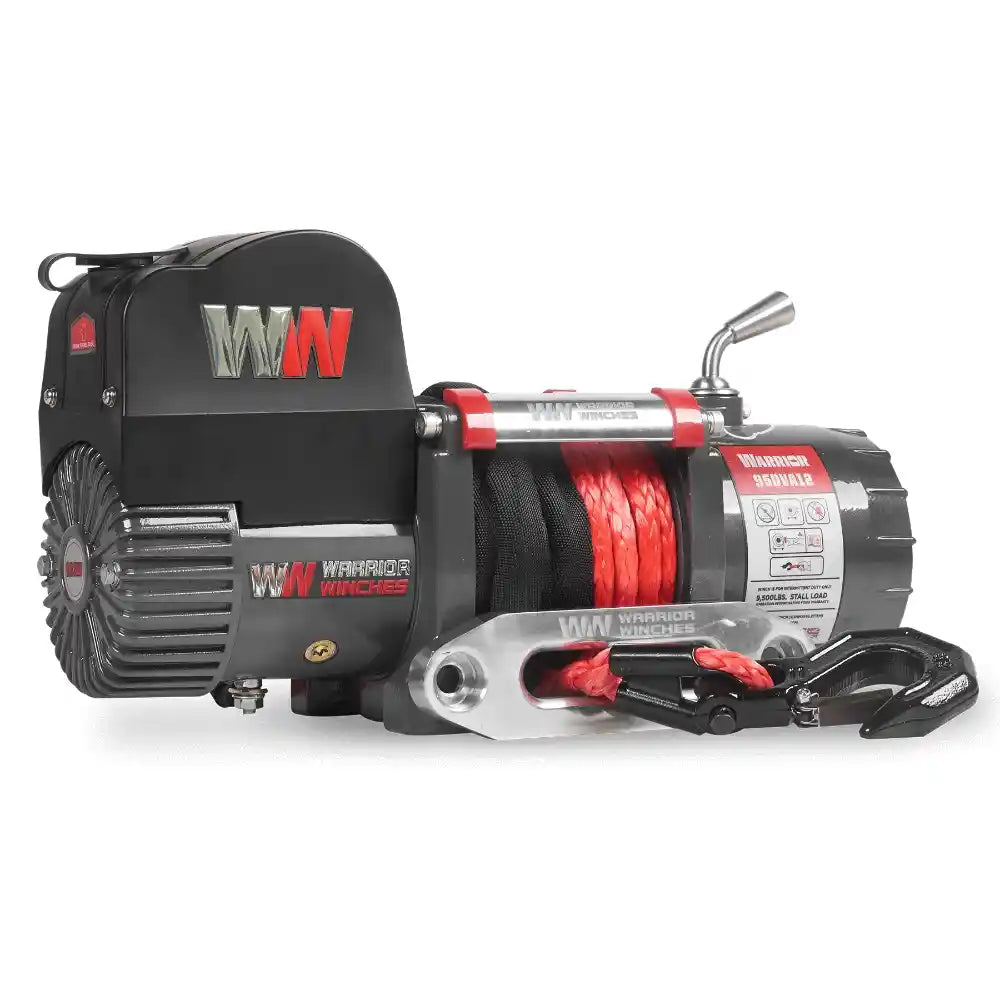

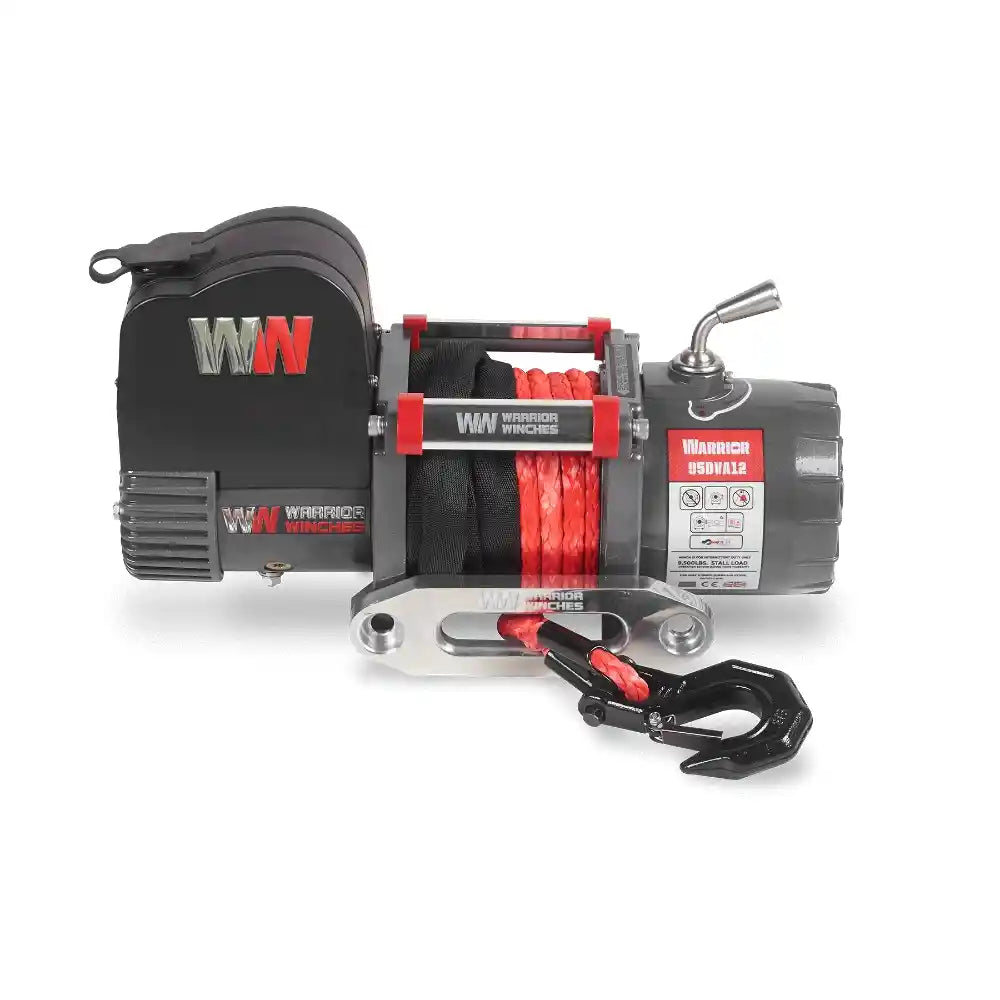

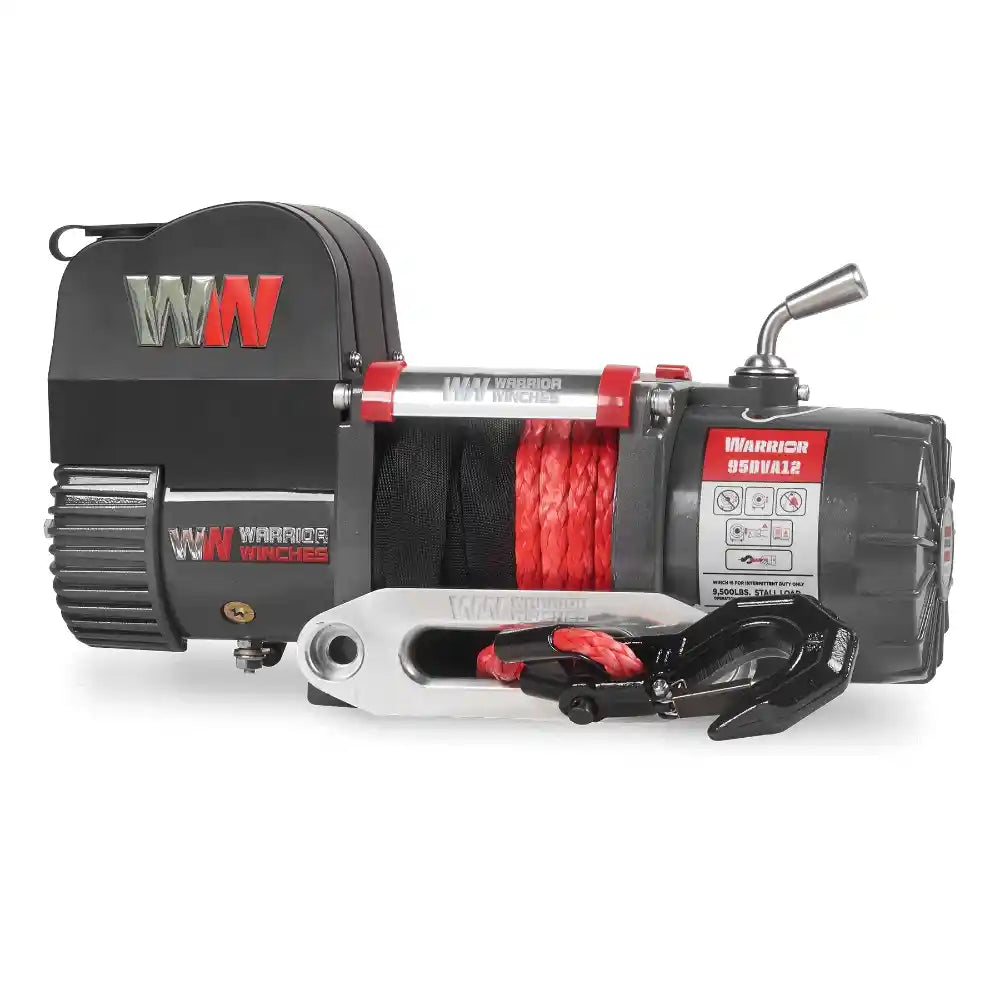

Advanced Features for Extreme Durability

  • 17.95" Wide Short Drum: Optimised for installations where space is at a premium, offering compact dimensions without sacrificing performance.
  • Revolutionary External Brake: Delivers superior control and safety by providing exceptional load holding and smooth operation, while preventing heat buildup in the drum for prolonged winch life.
  • 600 Amp Silver Tip Contactor: Ensures highly reliable, high-performance electrical connections, crucial for consistent power delivery during demanding pulls.
  • Silver Copper Motor with Copper Brush Holders: Engineered for enhanced durability and maximum electrical efficiency, ensuring reliable operation in tough conditions.
  • IP67 Waterproof Sealing: Provides comprehensive protection against dust and water ingress, guaranteeing dependable performance even in extreme weather and challenging terrain.
  • High-Performance Series Wound Motor: Double-sealed with solid brass contacts for maximum power, speed, and efficiency with reduced current draw.
  • Heavy-Duty Waterproof Contactors: Features 4-pin waterproof contactors for unwavering reliability.
  • Double-Sealed Drum with Maintenance-Free Bearings: Guarantees smooth, consistent rope management and reduced maintenance requirements.
  • Quiet, Ultra-Efficient Full-Steel Planetary Gearing: Provides robust power transmission that is both efficient and incredibly durable, standing up to the toughest challenges.
  • Complete Control: Includes a heavy-duty integrated wireless remote and a 12.4FT wired remote handset, giving you total command at your fingertips.

What's In The Box

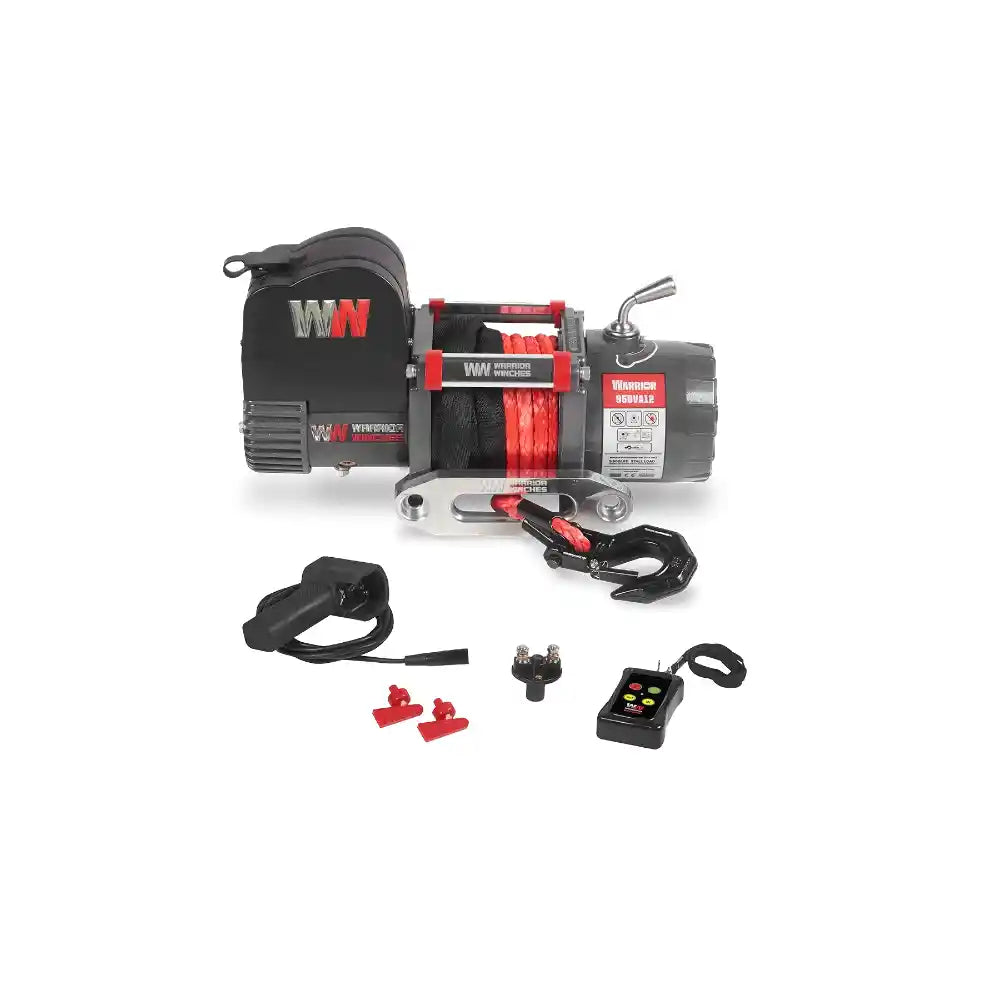

  • Samurai Winch
  • Heavy Duty Aluminum Hawse Fairlead
  • Synthetic Rope
  • Heavy Duty Battery Leads
  • 12.4FT Wired Remote handset
  • Wireless 2.4G Upgraded Remote
  • Removable Heavy Duty Hook
  • Isolation Switch
  • Stainless Steel Mounting Hardware (nuts/bolts)

Technical Specifications

Rated Line Pull 9500 lbs (4309 kg)
Motor Type (12V) Input: 6.1hp/4.6Kw; Output: 2.8hp/2.1kW
Clutch Manual
Gearing 196:1
Gearing System Planetary
Braking Action External Brake
Drum Size (Diameter x Length) 2.48 x 4.72 in (63 x 120 mm)
Controls Wired Remote, Wireless Remote
Cable Material Synthetic
Cable Size (Diameter x Length) 49.2ft x 0.37 in (15m x 9.5mm)
Fairlead Hawse
Mounting Pattern 5.94 x 4.5 in (151 x 114.3 mm)

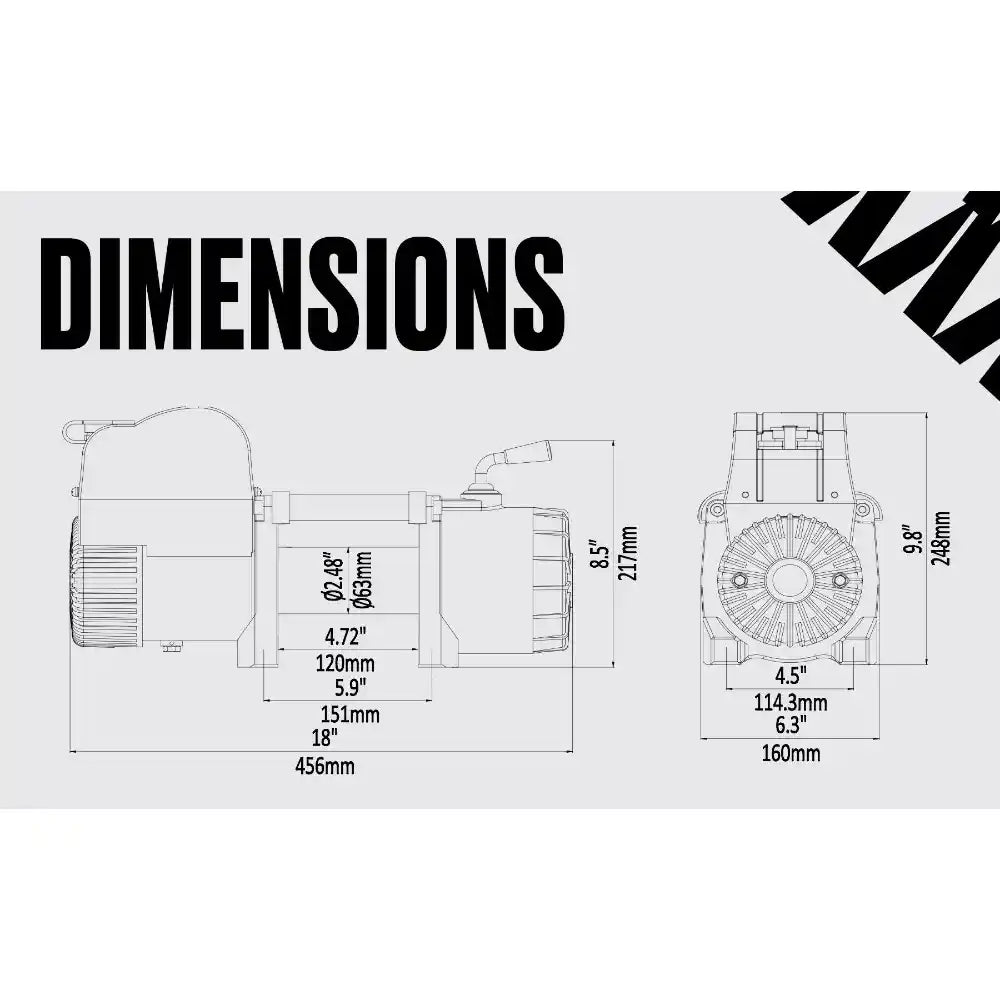

Dimensions 17.95 x 6.3 x 9.76 in (456 x 160 x 248 mm)
Weight 60 lbs (27.2 kg)
Waterproof Rating (IP) 67
Certification CE

Performance Data (12V)

Layer of Rope/Cable Line Pull: lbs (kgs) Rope on drum ft (m)
1 9500 (4309) 9.8 (3.0)
2 7600 (3447) 24.6 (7.5)
3 6200 (2812) 42.7 (13.0)
4 5400 (2400) 45.9 (14.0)
Line Pull lbs (kgs) Line Speed 12v ft/min (m/min) Amp Draw 12v
0 36 (11.0) 50
2000 (907) 17.4 (5.3) 120
3000 (1360) 15.4 (4.7) 150
6000 (2721) 10.5 (3.2) 260
8000 (3628) 8.2 (2.5) 300
9500 (4309) 6.5 (2.0) 355

Download Resources

Instruction Manual Technical Specifications Technical Drawing

Frequently Asked Questions

+ How many feet of synthetic rope are included?

There is 49.2 feet (15 meters) of 0.37-inch (9.5mm) synthetic rope on this winch.
+ What are the mounting hole dimensions?

The mounting pattern for this winch is 5.94 x 4.5 inches (151 x 114.3 mm).
+ Can the control solenoid be remote mounted?

Yes, the solenoid can be relocated using solenoid extension cables (sold separately).
+ What is the warranty for the Samurai 9,500lb winch?

The Warrior Winches Samurai range comes with a minimum 5-year warranty for commercial & industrial use, covering mechanical or electrical component defects to the original retail buyer. This warranty is valid upon product registration. Unregistered products revert to a standard 1-year warranty. Please refer to the full warranty details for exclusions and claim procedures.
+ What is covered under the 5-year warranty?

The 5-year warranty covers defects in any mechanical or electrical component of the winch. Exclusions include cosmetic defects (paint, decals), worn parts due to improper use, synthetic ropes outside of 6 months (Armortek Extreme Ropes outside of 12 months), and accessories like fairleads, hooks, and mounting plates. Remotes, solenoids, contactors, and isolation switches are covered for 12 months. Failures due to acts of God, non-original parts, or modifications by unauthorized parties are also excluded. Full details are available in the warranty document.
