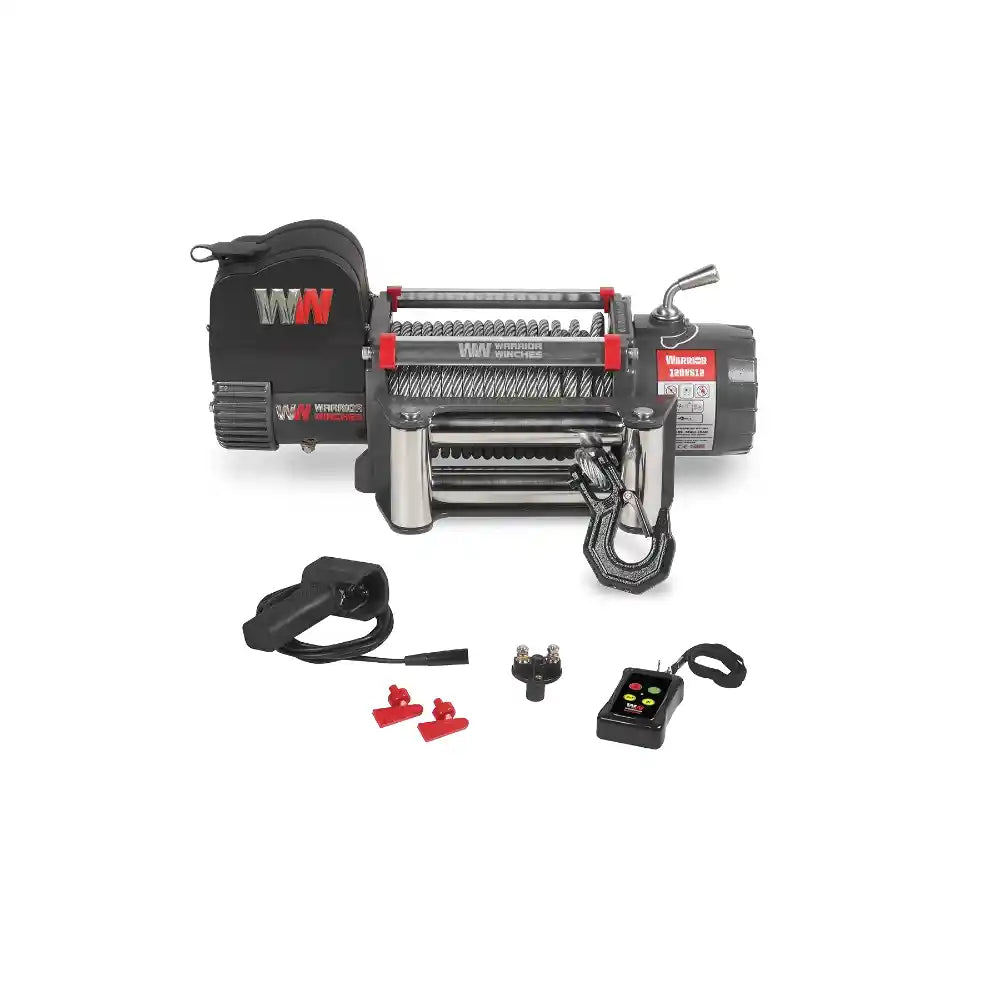

What's In The Box

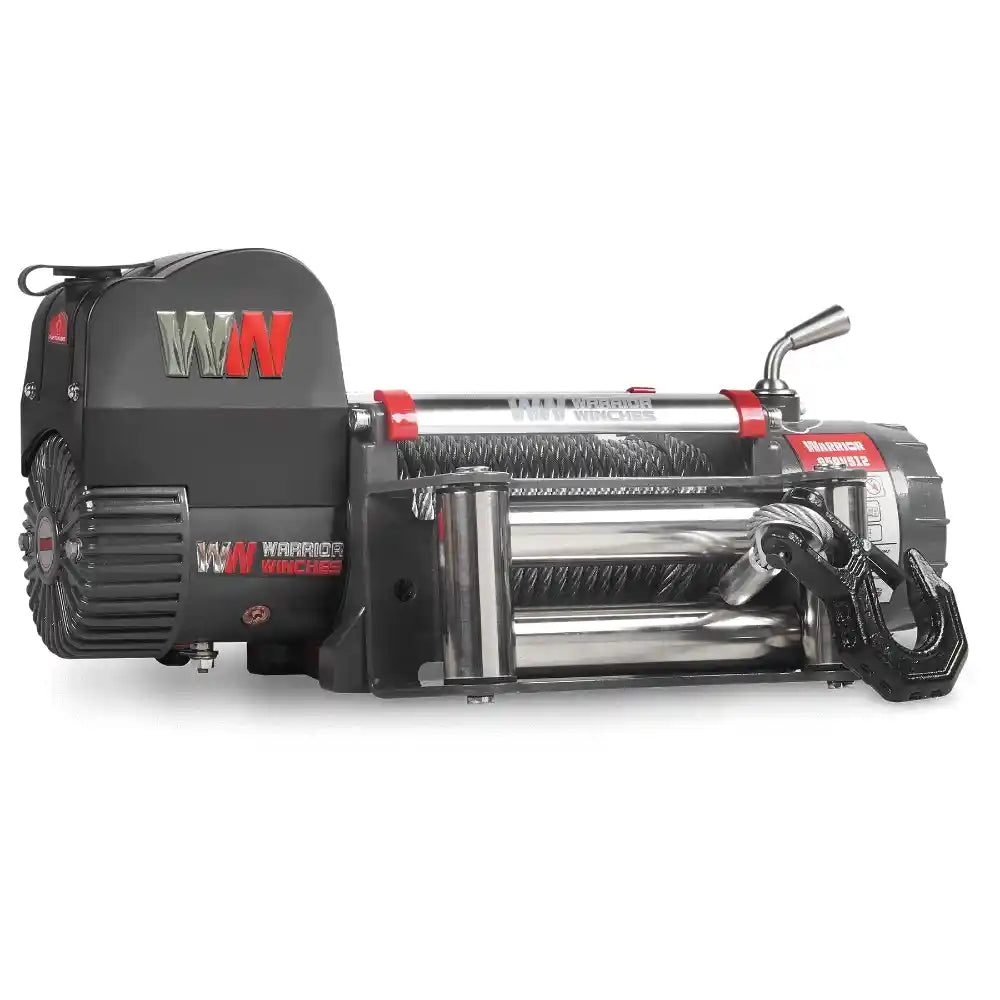

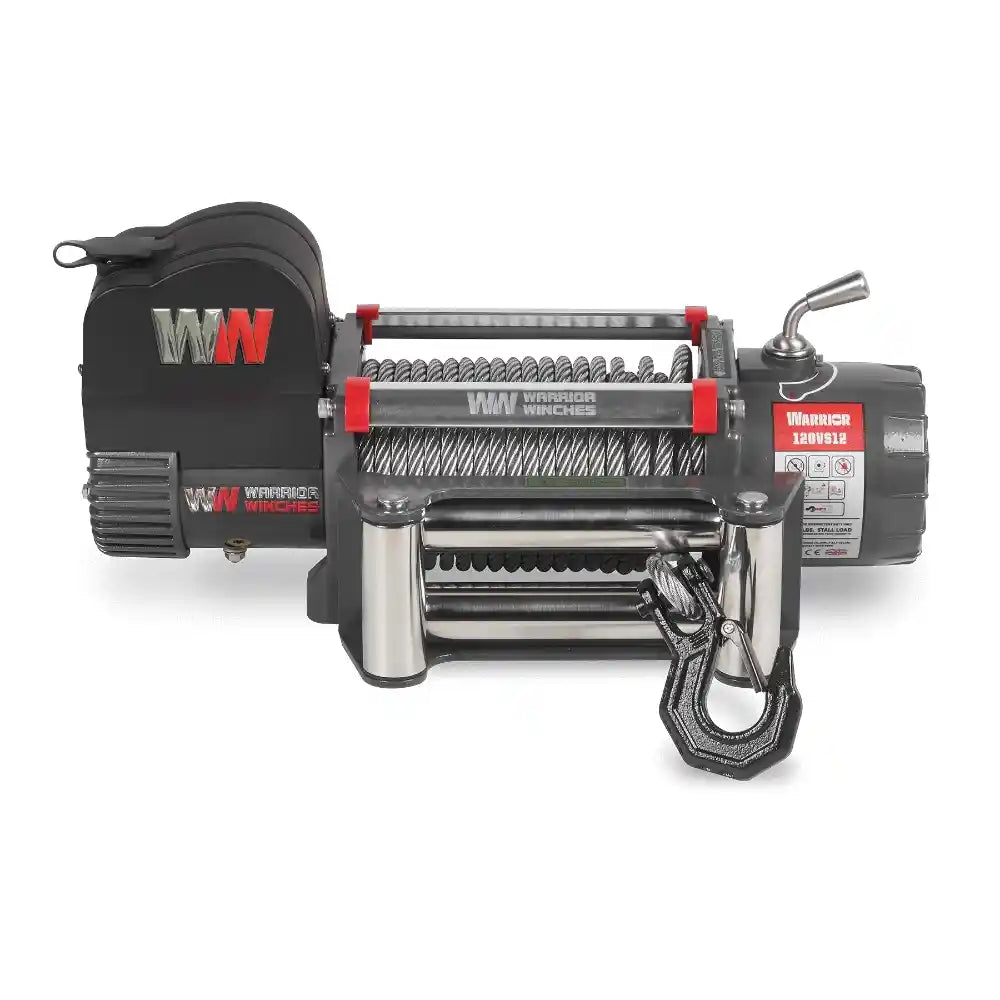

  • Samurai 12,500lb Winch
  • Heavy Duty Stainless Steel Roller Fairlead
  • 85.31ft Steel Rope
  • Heavy Duty Battery Leads & Isolation Switch
  • 12.4ft Wired Remote Handset
  • Integrated 2.4G Wireless Remote
  • Removable Heavy Duty Hook
  • Stainless Steel Mounting Hardware

Technical Specifications

Rated Line Pull 12,500 lbs (5,669 kg)
Motor (12V) Input: 6.7hp / 5.0kW Output:3.2hp/2.4kW
Gearing / Ratio 3-Stage Planetary / 253:1
Braking Action External Brake
Controls Wired Remote, Wireless Remote
Cable 85.31ft x 0.4 in Steel
Drum Size (Dia x L) 2.48" x 8.78"
Mounting Pattern 10" x 4.4" (254 x 114 mm)
Dimensions 22.01" x 6.3" x 9.76"
Weight 97 lbs (44 kg)
Certification CE

Performance Data (12V)

Line Pull Per Layer Rope On Drum FR(M)
Layer 1 12,500 lbs 15.1 (4.6)
Layer 2 9,775 lbs 34.1 (10.4)
Layer 3 8,000 lbs 57.7 (17.6)
Layer 4 6,800 lbs 83.7 (25.5)
Line Pull (lbs) Line Speed (ft/min) 12V Amp Draw
0 27.9 45A
6,000 11.5 200A
10,000 5.9 300A
12,500 4.2 380A

Samurai 12,500 LB Manuals

Instructions Manual Technical Specifications Technical Diagram Durability Test

Frequently Asked Questions

+ Why is an external brake better than a standard in-drum brake?

An external brake is a revolutionary upgrade because it moves the source of heat away from the winch drum. Traditional in-drum brakes can get extremely hot, which can degrade grease and damage synthetic ropes over time. The Samurai's design ensures superior, fade-free braking without compromising your gear.

+ Is this winch strong enough for my full-size truck or heavy SUV?

Yes. With a 12,500lb rated line pull, the Samurai is an excellent choice for recovering full-size 4x4s, heavy-duty trucks, and highly equipped off-road vehicles. A general rule of thumb is to choose a winch rated for at least 1.5 times your vehicle's gross weight.

+ How waterproof is the IP67 rating?

An IP67 rating means the winch is fully protected from dust ingress and can be submerged in water up to 1 meter deep for 30 minutes. This extensive sealing on the motor, drum, and contactor makes it highly reliable for deep water crossings and muddy environments.

+ Is the wireless remote included with the winch?

Yes, the 12V Samurai model includes a heavy-duty integrated 2.4G wireless system right out of the box. You get the convenience and safety of wireless operation without needing to purchase any extra accessories.

+ What is the warranty on the Samurai 12,500lb winch?

The Samurai series winch comes with a 5-year limited warranty for commercial/industrial use when registered after purchase. This covers mechanical components against defects and demonstrates our commitment to quality and durability.
