Engineered for Safety, Built for Work

  • Certified Performance & Compliance: Meeting SAEJ-706 standards and conforming to EN 14492-1 (when fully fitted) is your assurance of quality. This winch solves the critical business problem of needing equipment that is proven, certified, and compliant for professional job sites.
  • Hydraulic Full Load Holding Brake: Experience ultimate control. The advanced hydraulic brake provides precise, stable load handling, preventing slippage and giving the operator complete command. This directly addresses the risk of accidents and damage during sensitive load handling operations.
  • Exceptional Design Ratios for Longevity: With an optimal 10:1 drum-to-rope ratio, a 2:1 wire rope safety factor, and a 2.5x rated load rope fixing, the RV10 is over-engineered for safety and durability. This reduces wear on the cable and provides an extra layer of reliability.
  • Unmatched Installation Versatility: Custom rigs and complex mounting scenarios are no problem. The fully reversible orientation allows the winch to be mounted with the motor on either side and the rope spooling from the top or bottom, solving common installation headaches.

What's In The Box

  • RV10 10,000lb Hydraulic Winch
  • 65.6ft Steel Winch Rope
  • Heavy Duty Hook
  • Balance Valve
  • Rope Tensioner

Technical Specifications

Rated Line Pull 10,000 lbs (4,536 kg)
Clutch Manual
Braking Action Hydraulic
Drum Size (Dia x L) Ø 4.0" × 7.91" (Ø 102mm × 201mm)
Cable Ø 0.40" × 65.6’ (Ø 10.2mm × 20.0m) Steel
Mounting Pattern 10"×4.5" and 10"×6.5"

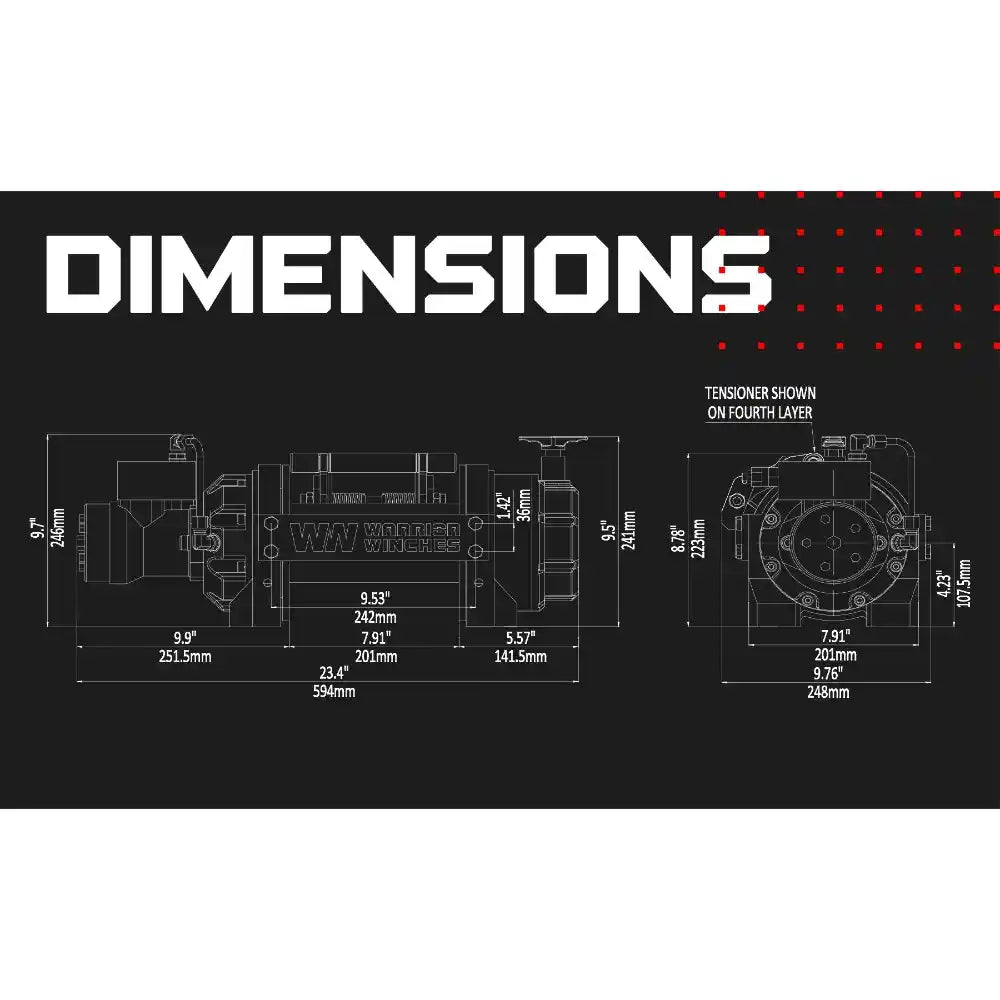

Dimensions 23.4" × 9.3" × 9.5" (594mm × 237mm × 241mm)
Net Weight 103.2 lbs (46.8 kg)
Max Hydraulic Flow 15.8 G/Min (60 L/Min)
Max Hydraulic Pressure 15.0 Bar (2175 PSI)
Certification CE, SAEJ-706

Performance Data

Line Pull Per Layer Rope on drum ft(m)
Layer 1 10,000 lbs 23.0 (7.0)
Layer 2 7,355 lbs 49.2 (15.0)
Layer 3 6,780 lbs 78.7 (24.0)
Layer 4 5,711 lbs 98.4 (30.0)
Line Pull (lbs) Line Speed (ft/min) Flow (G/min) Pressure (PSI)
0 36.1 1.3 435
4,000 23.6 2.6 986
6,000 11.8 5.2 1334
10,000 3.0 15.6 2175

RV10 10,000LB Manuals

Instructions Manual Technical Specifications Manual Technical Drawing Durability Test

Frequently Asked Questions

+ What is the advantage of a hydraulic winch for my business?

Hydraulic winches are ideal for commercial use because they offer a continuous duty cycle. They run off your vehicle's hydraulic system, so they don't overheat or drain batteries, allowing you to work longer and more reliably than with an electric winch.

+ What hydraulic system is required to operate the RV10?

Your hydraulic system should be able to provide a flow rate between 1.3 to 15.8 gallons per minute (5-60 L/Min) and operate at a maximum pressure of 15.0 Bar (approximately 2175 PSI). The included balance valve helps regulate the system for safe operation.

+ Is this winch certified for professional job sites?

Yes. The RV10 is engineered to the rigorous SAEJ-706 standard and also conforms to the European BS EN 14492-1 standard when all supplied parts are correctly fitted, making it suitable and compliant for professional industrial use.

+ What does the "Reversible Orientation" feature mean?

This feature offers incredible installation flexibility. It means you can mount the winch with the motor on either the left or right side, and have the rope spool from either the top or bottom of the drum, to best suit your vehicle or equipment's specific layout.

+ How do I activate the 5-Year Industrial Warranty?

To receive the full 5-year warranty for industrial or commercial use, you must register your product after purchase. If the product is not registered, it will default to a standard 1-year warranty. The warranty covers mechanical components against defects.
