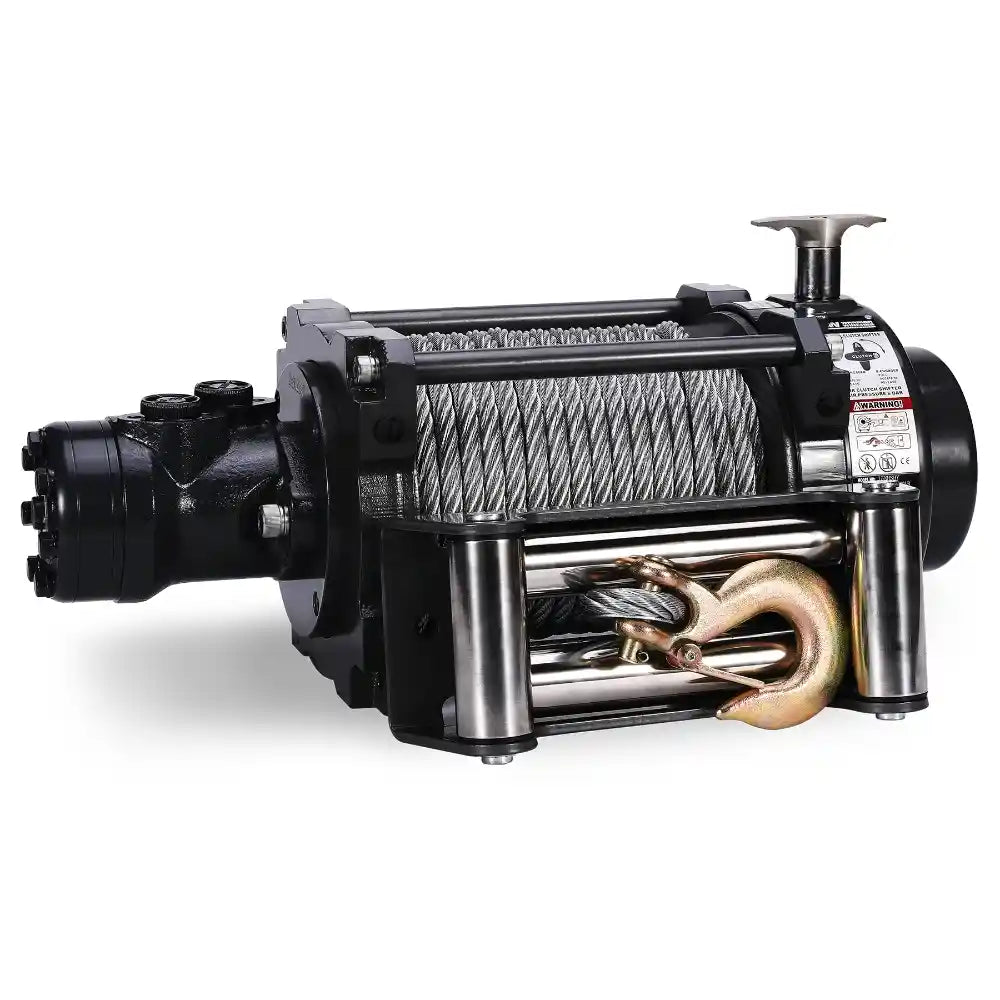

Warrior NH 15000lb Industrial Hydraulic Winch | Steel Rope

SKU 15NHSHY-CAD
$1,249.99

  Free Shipping. Ships in 1-3 Business Days

  Price Match Guarantee

  Safe/Secure Checkout

  Questions? Chat or Call us: (409) 916-8280

Notify me when back in stock

Why Choose the Warrior NH 15,000lb Hydraulic Winch?

⚙️

Patented Heavy Duty Gearing

Robust 33.4:1 planetary gearing ensures efficient, relentless pulling power and exceptional durability under extreme loads.

🛡️

Integral, Automatic Failsafe Brake

Built-in brake system within the drum guarantees secure load holding and prevents slippage for enhanced safety.

💨

Spring Engaged Manual Freespool

Allows for quick, simple, and controlled deployment of the steel rope, maximizing efficiency during operations.

💧

Stainless Steel Fairlead & Fittings

Equipped with durable, corrosion-resistant stainless steel components for superior longevity in harsh conditions.

📏

Rugged & Compact Design

Reliable and strong with a small footprint (21.81 x 8.9 x 10.31 in) for adaptable mounting without compromising power.

IP67 Waterproof & CE Certified

Fully protected against dust and water immersion, meeting European safety standards for reliable and safe operation.

Description

Compact & Mighty: Warrior NH 15,000lb Hydraulic Winch with Steel Rope

Compact Powerhouse: The NH 15,000lb Industrial Hydraulic Winch

When your operation demands robust pulling power, precision control, and uncompromising durability in a compact form, the Warrior Winches NH 15,000lb Industrial Hydraulic Winch with Steel Rope is engineered to exceed expectations. This industrial-grade powerhouse is built for continuous, heavy-duty performance, ready to tackle any challenge you throw its way.

At its heart, a patented steel gearing system integrates seamlessly with a high-efficiency hydraulic motor, ensuring maximum performance across its impressive 15,000lb rated line pull. The built-in internal brake provides rock-solid load holding and smooth, controlled operation, giving you the confidence to handle the toughest tasks with ease. Designed for demanding environments, the NH winch is fully equipped with stainless steel roller fairleads and premium fittings, delivering long-lasting durability and unstoppable performance. Small footprint. Big power. No limits. Get the winch that never quits, backed by a 5-year industrial warranty.

Warrior NH Series in Action

Key Features for Unrivaled Performance

  • Patented Heavy Duty Gearing (33.4:1 Planetary): Ensures robust and efficient performance, delivering relentless pulling power and exceptional durability even under the most extreme loads for extended periods.
  • Integral, Automatic Failsafe Brake: Provides an automatic brake system within the drum, guaranteeing secure load control and preventing slippage to enhance safety and operational confidence.
  • Spring Engaged Manual Freespool: Allows for quick, simple, and controlled deployment of the steel rope, offering maximum efficiency during critical winching operations.
  • Stainless Steel Fairlead and Fittings: Comes equipped with a durable stainless steel roller fairlead and premium stainless steel fittings, offering superior corrosion resistance and increased longevity in challenging and harsh conditions.
  • Rugged and Compact Design: Built for reliability and longevity, this winch boasts a small footprint (Dimensions: 21.81 x 8.9 x 10.31 in, Weight: 152 lbs) without compromising strength, making it adaptable to various mounting configurations.
  • IP67 Waterproof Rating & CE Certified: With an IP67 rating, this winch is fully protected against dust and water immersion. CE Certification further assures its compliance with European safety standards, guaranteeing reliable and safe operation.
Warrior Winches RV15 15,000lb Industrial Hydraulic Winch

What's In The Box

  • NH Hydraulic Winch
  • Steel Winch Rope (86.95ft x 0.47 in)
  • Heavy Duty Hook
  • Heavy Duty Roller Fairlead
  • Operating Manual

Technical Specifications

Rated Line Pull 15,000 lbs (6,804 kg)
Motor Type Hydraulic
Max Flow (Gallons/Minutes) 15.6 G/min (59 L/Min)
Max Pressure (Bar) 207.0 Bar
Clutch Manual
Gearing 33.4:1
Gearing System Planetary
Braking Action Auto in the drum
Drum Size (Diameter x Length) 3.5 x 8.54 in
Controls N/A
Cable Material Steel
Cable Size (Diameter x Length) 86.95ft x 0.47 in (26.5m x 12mm)
Fairlead Roller (Stainless Steel)
Mounting Pattern 10" × 4.5" (254mm × 114.3mm) 4-M12
Dimensions 21.81 x 8.9 x 10.31 in
Weight 152 lbs (69 kg)
Waterproof Rating (IP) 67
Certification CE

Performance Data

Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 15000 (6804) 18.0 (5.5)
2 12120 (5498) 41.7 (12.4)
3 10168 (4612) 65.9 (20.1)
4 8757 (3972) 86.9 (26.5)
Line Pull lbs (kgs) Pressure Mpa (Psi)
0 2.0 (290.1)
5000 (2268) 4.3 (623.7)
10000 (4536) 8.7 (1261.8)
12000 (5443) 10.0 (1450.3)
15000 (6804) 13.0 (1885.4)
Flow G/min (L/min) Line Speed ft/min (m/min)
1.3 (5.0) 1.6 (0.5)
2.6 (10.0) 3.3 (1.0)
5.3 (20.0) 6.6 (2.0)
7.9 (30.0) 9.8 (3.0)
15.9 (60.0) 19.7 (6.0)

Download Resources

Instruction Manual Technical Specifications Technical Diagram

Frequently Asked Questions

+ What type of fluid is required for the hydraulic system?

The NH hydraulic winch operates efficiently with standard hydraulic fluids. Please refer to the Instruction Manual for specific recommendations regarding fluid types and maintenance to ensure optimal performance and longevity.

+ How does the automatic failsafe brake work?

The integral, automatic failsafe brake is built directly into the drum. It engages automatically when the winching operation stops or power is removed, securely holding the load in place and preventing any unwanted slippage for maximum safety and control.

+ Is the winch suitable for marine environments?

With an IP67 waterproof rating and corrosion-resistant stainless steel fairlead and fittings, the NH winch is highly durable against water and dust, making it well-suited for challenging outdoor and even some harsh marine conditions.

+ What is the warranty for the Warrior Winches NH 15,000lb winch?

The Warrior Winches NH 15,000lb winch comes with a 5-year warranty for commercial and industrial use, covering defects in mechanical or electrical components. Please remember that accessories like steel ropes and certain electrical parts have different coverage periods, and product registration is required to receive the full 5-year warranty. Always refer to the detailed warranty exclusions for comprehensive information.

+ What is the benefit of the patented heavy-duty gearing?

The patented heavy-duty planetary gearing system (33.4:1 ratio) is specifically designed to provide superior strength and efficient torque transfer. This ensures robust and reliable pulling power across the entire load range, translating to longer operational life and consistent performance even with repeated heavy use.
