Core Features for Unrivaled Performance

  • Heavy-Duty Planetary Gearing & High-Torque Motor: Featuring robust 53:1 planetary gearing driven by a powerful hydraulic motor, the JR30 provides immense torque transfer and exceptionally reliable performance for the most demanding heavy-duty applications.
  • Multi-Disc Friction Brake & Balance Valve: The integrated wet-type hydraulic multi-disc friction brake, combined with a precision balance valve, ensures meticulous load control, consistently smooth lowering, and significantly enhanced safety during all operations.
  • Air and Manual Clutch Operation: Offering ultimate operational flexibility, the air clutch allows for quick and effortless engagement and disengagement, adapting seamlessly to diverse operational environments. A manual option ensures reliable backup control.
  • SAEJ-706 Standard & CE Certification: Engineered and certified to the highest standards, the JR30 complies with the rigorous SAEJ-706 industry standard and holds CE Certification, guaranteeing supreme durability, precision, and safety in all industrial and commercial settings.
  • Reversible Orientation: Maximizing installation adaptability, the reversible design allows for flexible motor positioning (left or right) and rope spooling (top or bottom), ensuring easy integration into various vehicle or equipment configurations.
  • Rugged Steel Rope & IP68 Waterproof Rating: Supplied with an impressive 147.64ft x 1.26in (45m x 32mm) high-strength steel rope, ideal for abrasive conditions. The paramount IP68 waterproof rating provides complete protection against dust and water, maintaining optimal performance in the harshest conditions.

What's In The Box

  • JR Hydraulic Winch
  • Steel Rope and Heavy Duty Hook
  • Manual/Air Clutch
  • Balance Valve
  • Tensioner
  • Operating Manual

Technical Specifications

Rated Line Pull 66,000 lbs (30,000 kg)
Motor Type Hydraulic
Max Flow (Gallons/Minutes) 31.7 G/min (120 L/Min)
Max Pressure (Bar) 241.0 Bar
Clutch Air Clutch
Gearing 53:1
Gearing System Planetary
Braking Action Wet-type hydraulic brake
Drum Size (Diameter x Length) 10.63 x 14.17 in
Controls N/A
Cable Material Steel
Cable Size (Diameter x Length) 147.64ft x 1.26 in (45m x 32mm)
Fairlead N/A

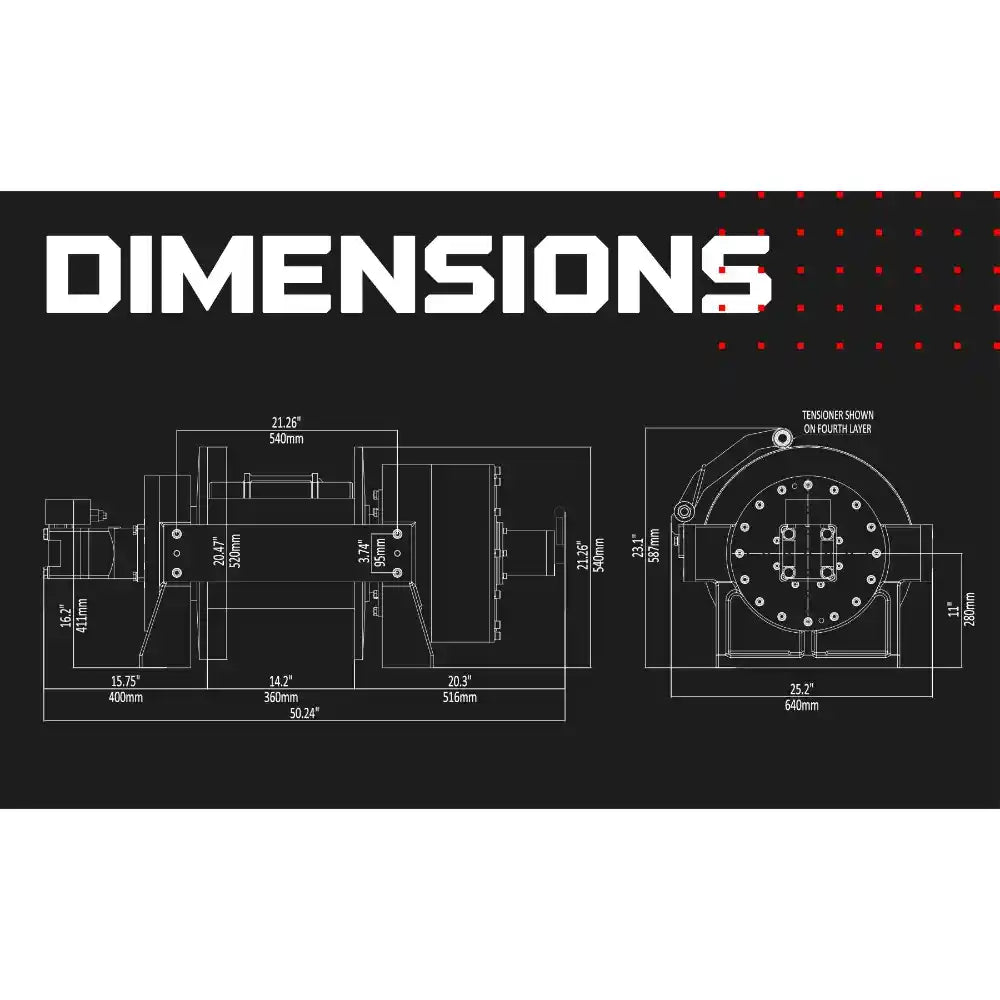

Mounting Pattern 24" × 6.7" × 12.2" (610mm × 170mm × 310mm) 8-M27
Dimensions 50.24 x 25.2 x 21.26 in
Weight 2083 lbs
Waterproof Rating (IP) 68
Certification CE, SAEJ-706

Performance Data

Line pull lbs (kgs) Pressure Mpa(Psi)
0 7 (1015.3)
44000 (20000) 11 (1595.4)
55000 (25000) 14 (2030.5)
66000 (30000) 16 (2320.6)
Flow G/min (L/min) Line speed ft/min(m/min)
5.3 (20) 2.0 (0.6)
13.2 (50) 5.2 (1.6)
22.5 (85) 9.8 (3.0)
31.7 (120) 13.5 (4.1)
Layer of wire rope Rated line pull lbs(kgs) Total rope on drum ft (m)
1 66000 (30000) 27.9 (8.5)
2 54572 (24754) 61.7 (18.8)
3 46450 (21070) 101.7 (31)
4 40432 (18340) 147 (45)

Download Resources

Instruction Manual Technical Specifications Durability Test Report

Frequently Asked Questions

+ What type of fluid is required for the hydraulic system?

The JR30 hydraulic winch operates efficiently with standard hydraulic fluids. Please refer to the Instruction Manual for specific recommendations regarding fluid types and maintenance to ensure optimal performance and longevity.
+ Can the clutch be operated remotely?

The JR30 features an air clutch for easy engagement and disengagement. While the clutch itself is air-operated, specific remote control options for clutch activation may depend on your existing hydraulic system's controls. Consult the Technical Specifications for integration details.
+ Is the winch suitable for marine environments?

With an IP68 waterproof rating, the JR30 is highly resistant to water and dust ingress, making it suitable for challenging outdoor and even some marine conditions. Its robust construction and corrosion-resistant components ensure reliable operation in harsh, wet environments.
+ How does the reversible orientation benefit installation?

The reversible orientation feature allows for greater flexibility in mounting. You can position the motor on either the left or right side, and choose whether the steel rope spools from the top or bottom of the drum, enabling seamless integration into various vehicle or equipment setups without complex modifications.
+ What is the warranty for the Warrior Winches JR30?

The Warrior Winches JR30 comes with a 5-year warranty for commercial and industrial use, covering mechanical or electrical component defects. Please note that accessories, steel ropes, and certain electrical components have different coverage periods, and purchases must be registered to qualify for the full 5-year warranty. Refer to the detailed warranty exclusions for more information.
