What's In The Box

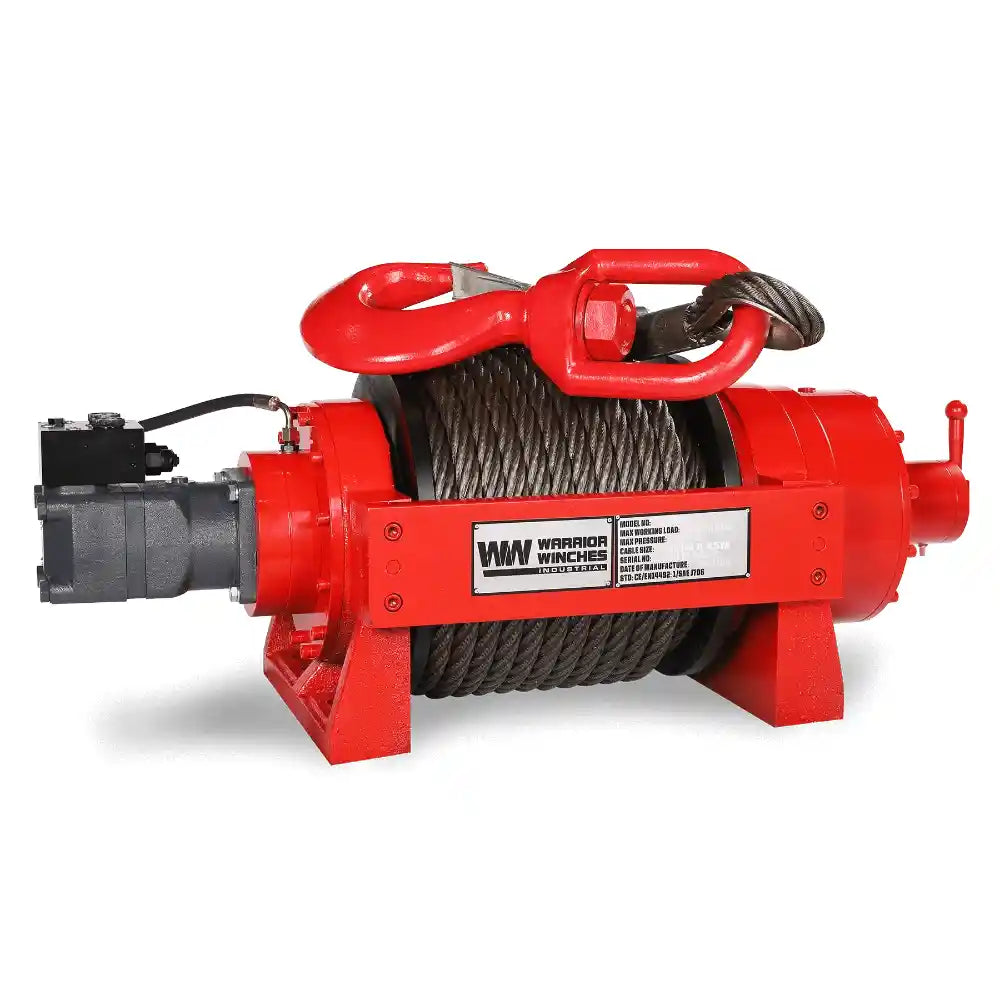

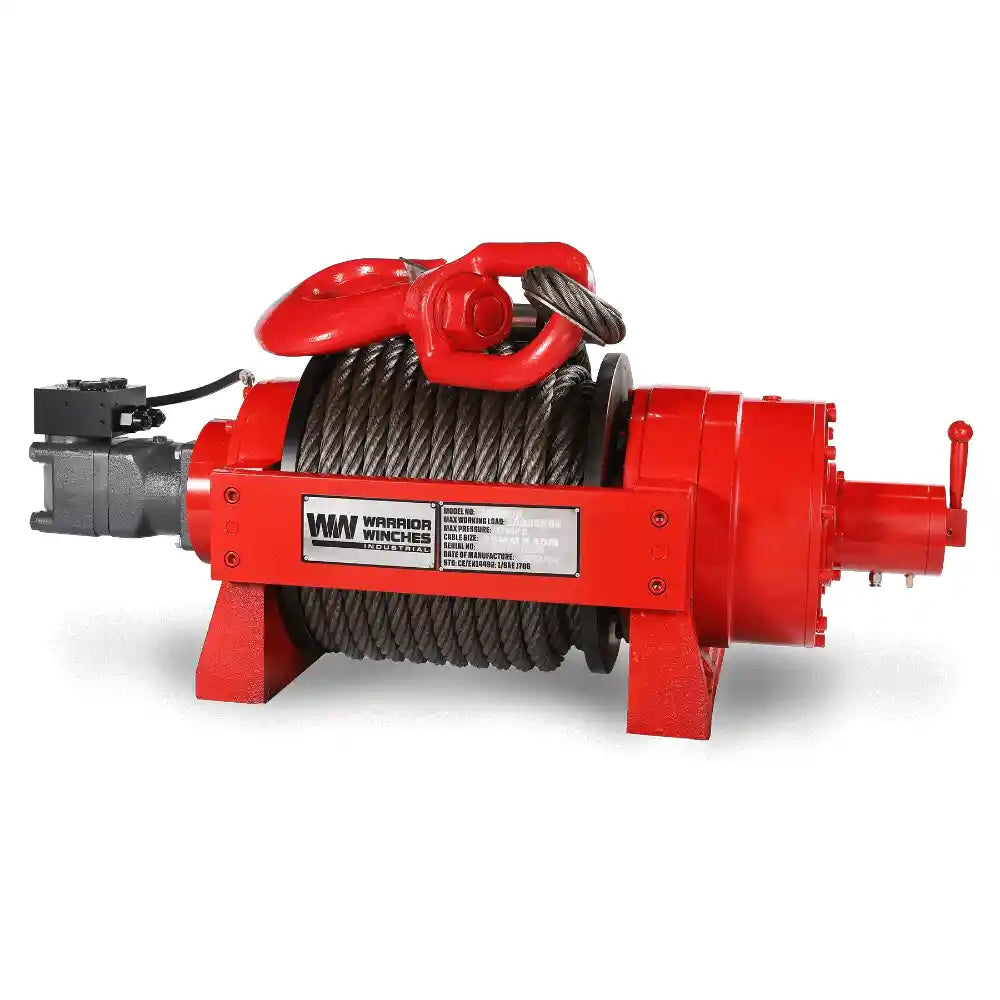

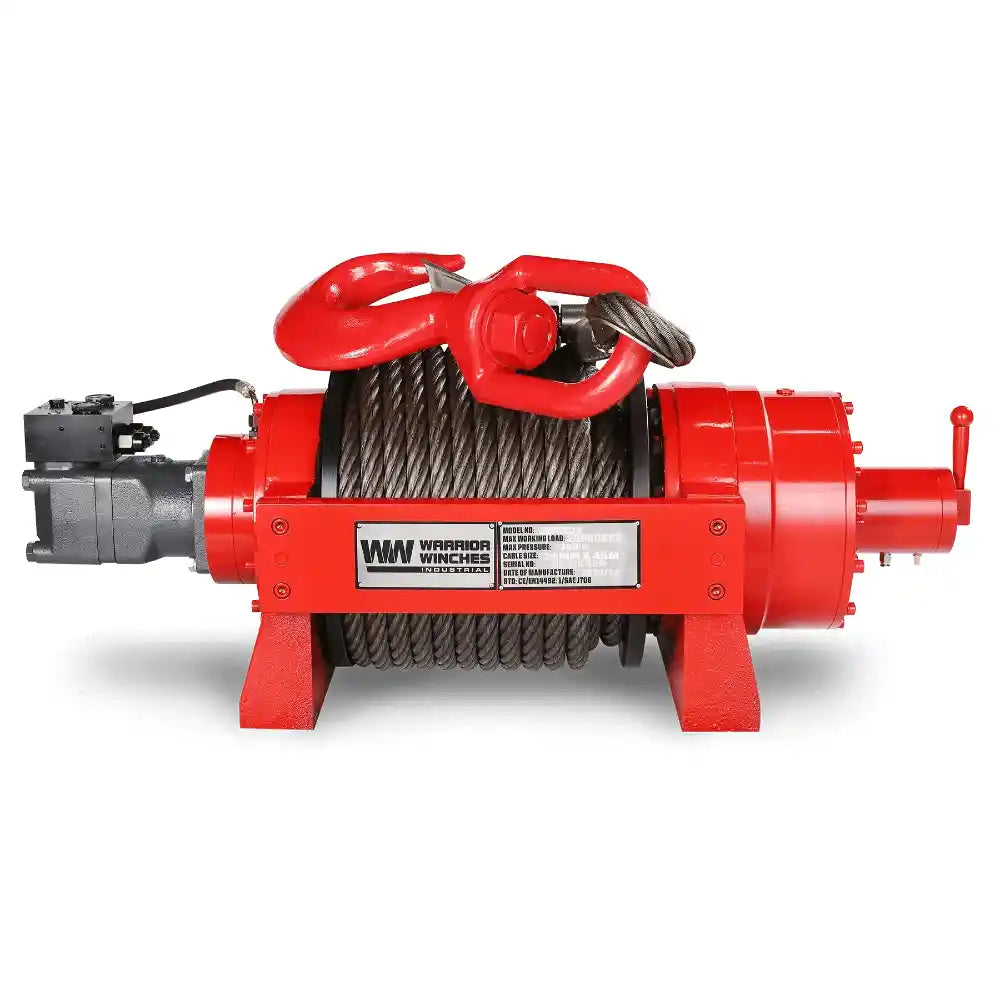

  • JR20 44,000lb Hydraulic Winch
  • 147ft Steel Rope & Heavy Duty Hook
  • Combined Manual/Air Clutch Mechanism
  • Balance Valve
  • Rope Tensioner
  • Operating Manual

Technical Specifications

Rated Line Pull 44,000 lbs (20,000 kg)
Motor Type Hydraulic Sauer Danfoss OMT 310
Gearing / Ratio Planetary / 36:1
Braking Action Wet-Type Multi-Disc Hydraulic Brake
Clutch Air & Manual Operation
Max Hydraulic Flow 31.7 GPM (120 L/min)
Max Hydraulic Pressure 241 Bar (3500 PSI)
Cable Ø 1.02" × 147' (Ø 26mm × 45m) Steel

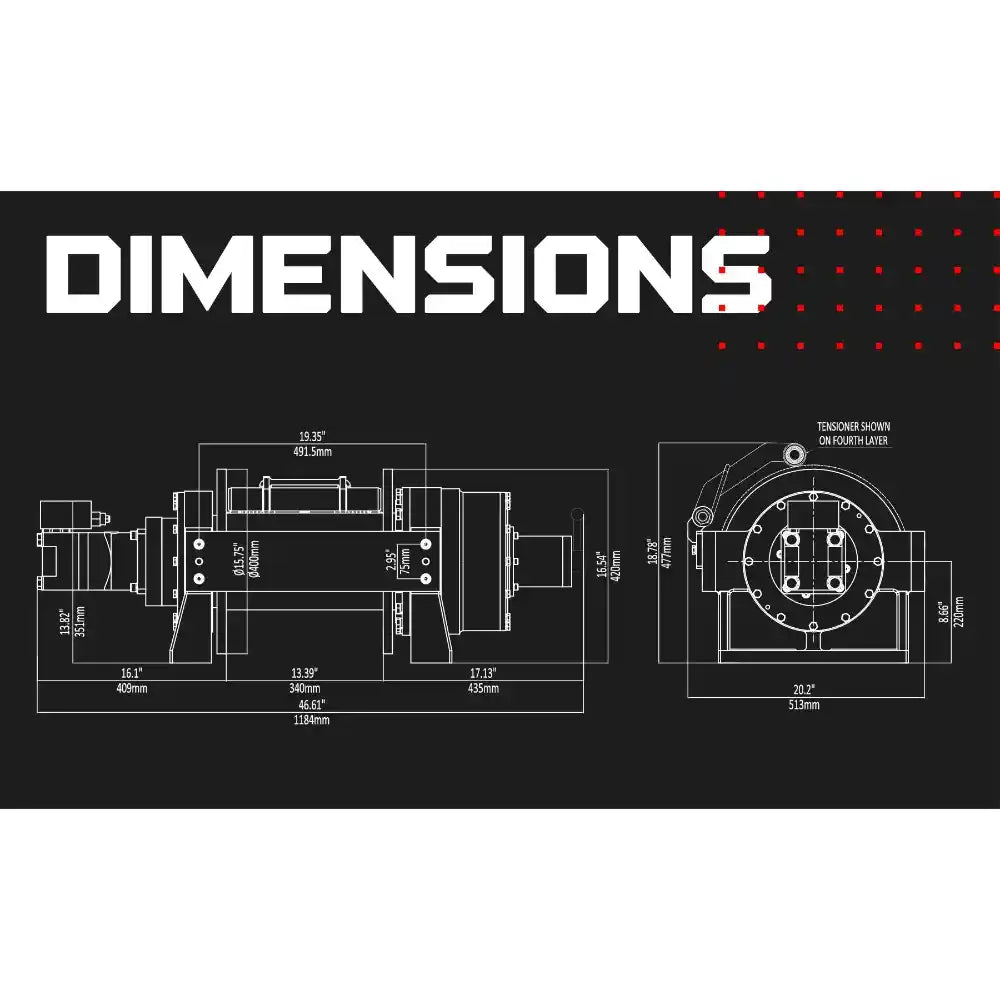

Mounting Pattern 20.94" × 6.3" × 11.02"
Certification CE, SAEJ-706, IP68 Rated

Performance Data

Line Pull Per Layer
Layer 1 44,000 lbs
Layer 2 36,128 lbs
Layer 3 30,600 lbs
Layer 4 26,543 lbs
Line Pull vs Pressure
0 lbs 1088 PSI
22,000 lbs 1045 PSI
33,000 lbs 2176 PSI
44,000 lbs 2901 PSI
Flow vs Line Speed
5.3 GPM 3.3 ft/min
13.2 GPM 8.9 ft/min
22.5 GPM 15.4 ft/min
31.7 GPM 23.0 ft/min

Download Resources

Winch Manual Technical Specifications Durability Tests

Frequently Asked Questions

+ What applications is this 44,000lb winch designed for?

The JR20 is engineered for the most demanding tasks in sectors like heavy equipment recovery, oil & gas, towing, and specialized industrial rigging where colossal pulling power is required from a compact unit.
+ What is the benefit of the dual Air and Manual clutch?

It offers the best of both worlds. The air clutch allows for rapid, effortless free-spooling of the drum with the flick of a switch, saving time and labor. The manual clutch provides a reliable, mechanical backup, ensuring you can always disengage the drum even without air pressure.
+ What are the hydraulic system requirements for this winch?

To achieve peak performance, your equipment's hydraulic system must be capable of supplying a flow rate of up to 31.7 gallons per minute (120 L/min) and sustaining a maximum pressure of 241 Bar (approximately 3500 PSI).
+ How does the wet-type multi-disc brake improve safety?

The multi-disc brake provides a large friction surface for incredible holding power. Because it's a "wet" brake (running in fluid), it remains cool and provides exceptionally smooth, consistent, and predictable braking performance, which is critical when handling extreme loads.
+ What is required to activate the 5-Year Industrial Warranty?

To receive the full 5-year warranty for industrial or commercial use, you must register your product after purchase. If the product is not registered, it will default to a standard 1-year warranty. The warranty covers mechanical components against defects.
