Key Features for Enhanced Performance

  • 1,500 lbs. Capacity: Confidently handle significant loads with a robust 1,500 lb pulling and lifting capacity, perfect for various utility applications.
  • Powerful 1.1 HP 120V AC Motor: Experience consistent and strong pulling power thanks to the high-performance 1.1 HP 120V AC motor, ensuring efficiency for every task.
  • Dynamic Braking System: The permanent magnetic motor provides reliable dynamic braking, offering enhanced safety and precise control during lifting and lowering operations.
  • Efficient 2-Stage Planetary Gearing: With a 262:1 gear ratio, the 2-stage planetary gearing system delivers smooth and powerful operation, maximizing torque output.
  • Free-Spool "Pull and Turn" Clutch: Quickly and easily engage or disengage the clutch for rapid wire rope deployment, improving efficiency and convenience.

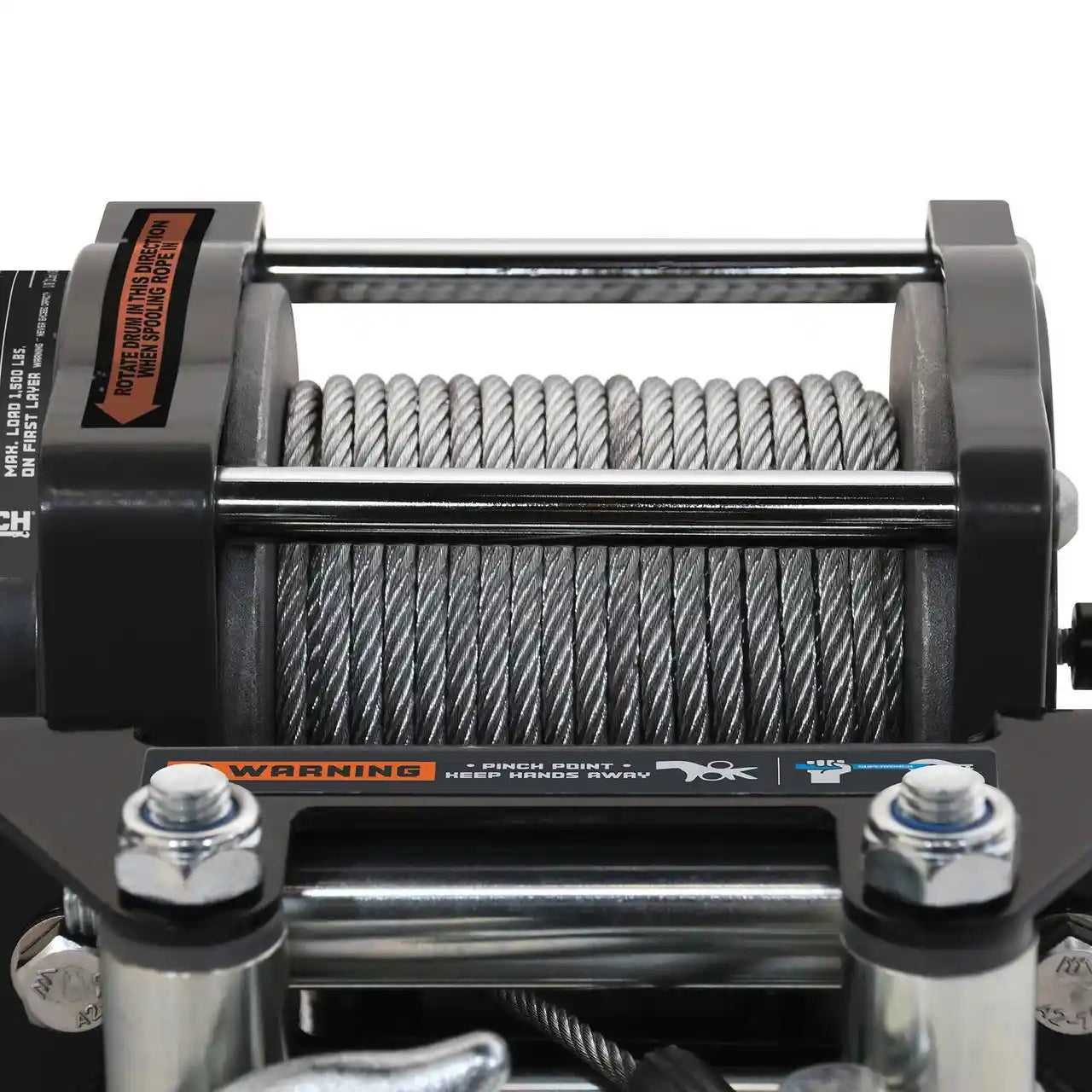

  • Durable 5/32 in. x 35 ft. Steel Wire Rope: Equipped with a sturdy and long-lasting steel wire rope, offering reliable performance and resistance to wear and tear.
  • 4-Way Roller Fairlead: Ensure optimal wire rope guidance and reduce abrasion with the included 4-way roller fairlead, extending the life of the rope.
  • IP66 Waterproof and Dustproof Rating: Operate confidently in challenging conditions. The IP66 rating provides superior protection against dust ingress and powerful water jets.
  • Compact Handheld Remote Control: Control your hoist with ease using the compact and user-friendly 12' handheld remote, allowing for safe operation from a distance.
  • Durable Gray Powder Coat Finish: The robust gray powder coat finish provides excellent resistance against corrosion and wear, maintaining the hoist's appearance and longevity.

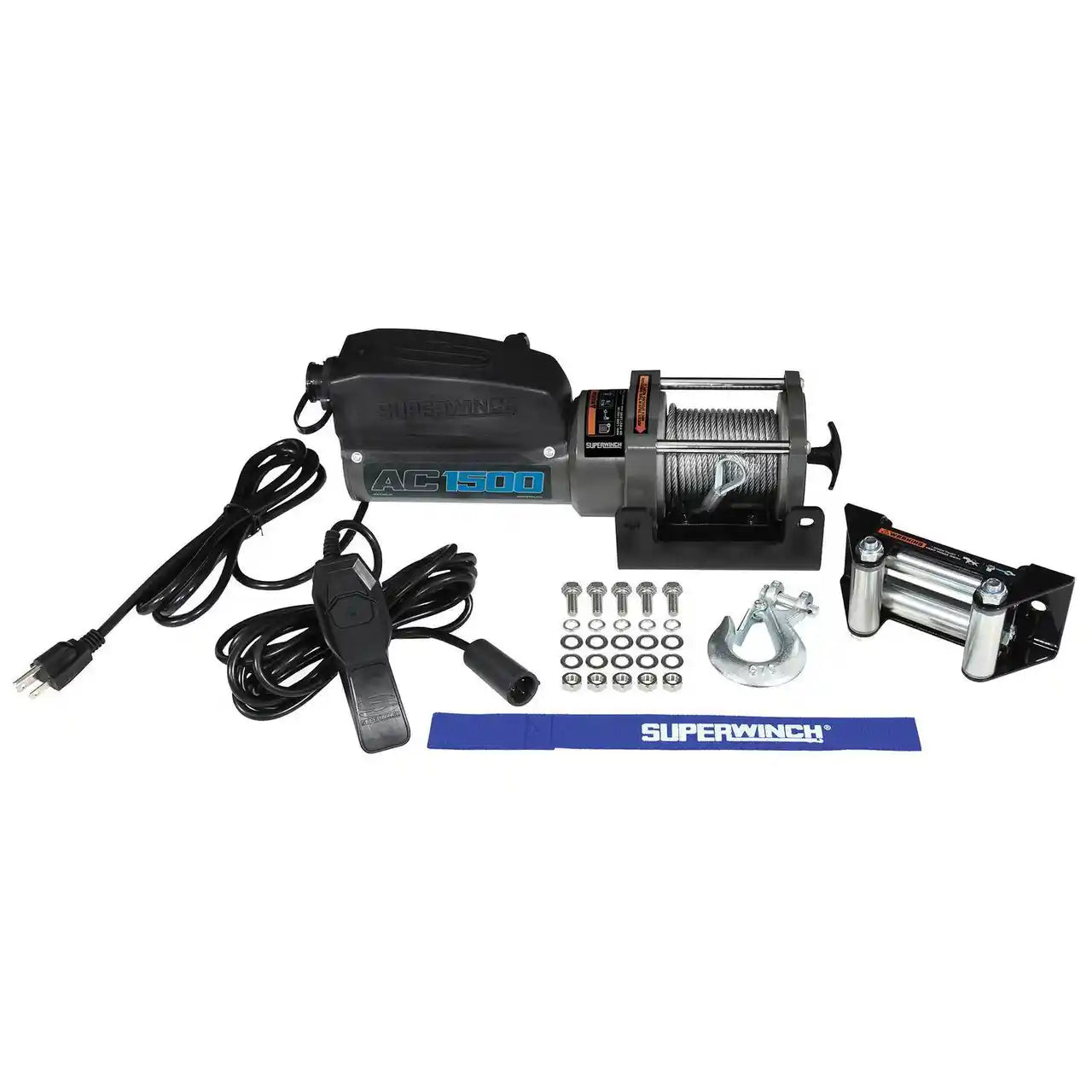

What's In The Box

  • Superwinch AC 1500 1500lb 120V AC Hoist
  • 5/32 in. x 35 ft. Steel Wire Rope (pre-installed)
  • Heavy-Duty, Clevis Pinned Latched Winch Hook
  • 4-Way Roller Fairlead

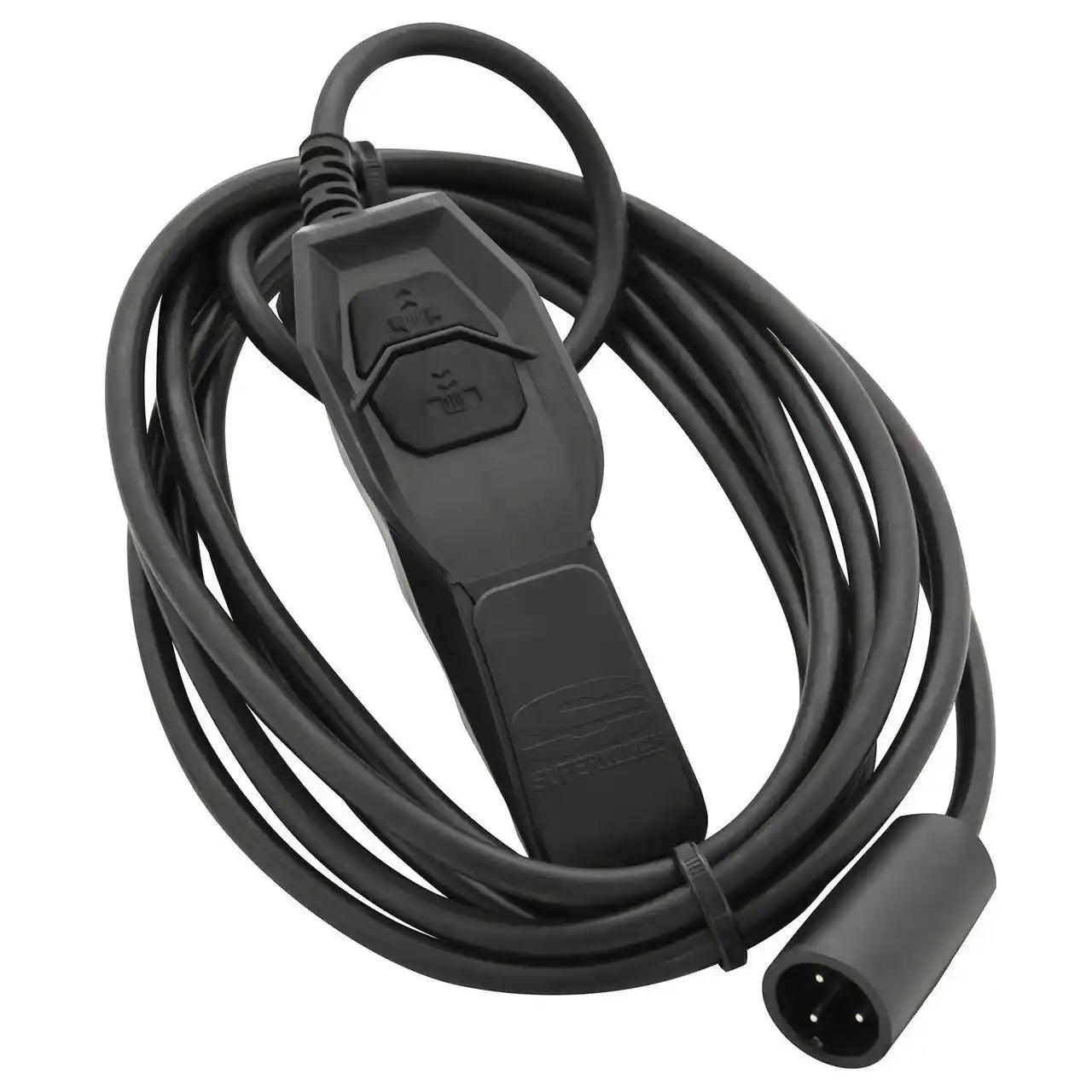

  • 12 ft Rubber Sealed Hand-held Remote Control
  • Instruction Manual
Superwinch AC 1500 hoist components and accessories

Technical Specifications

Rated Line Pull 1,500 lbs. (680 kg)

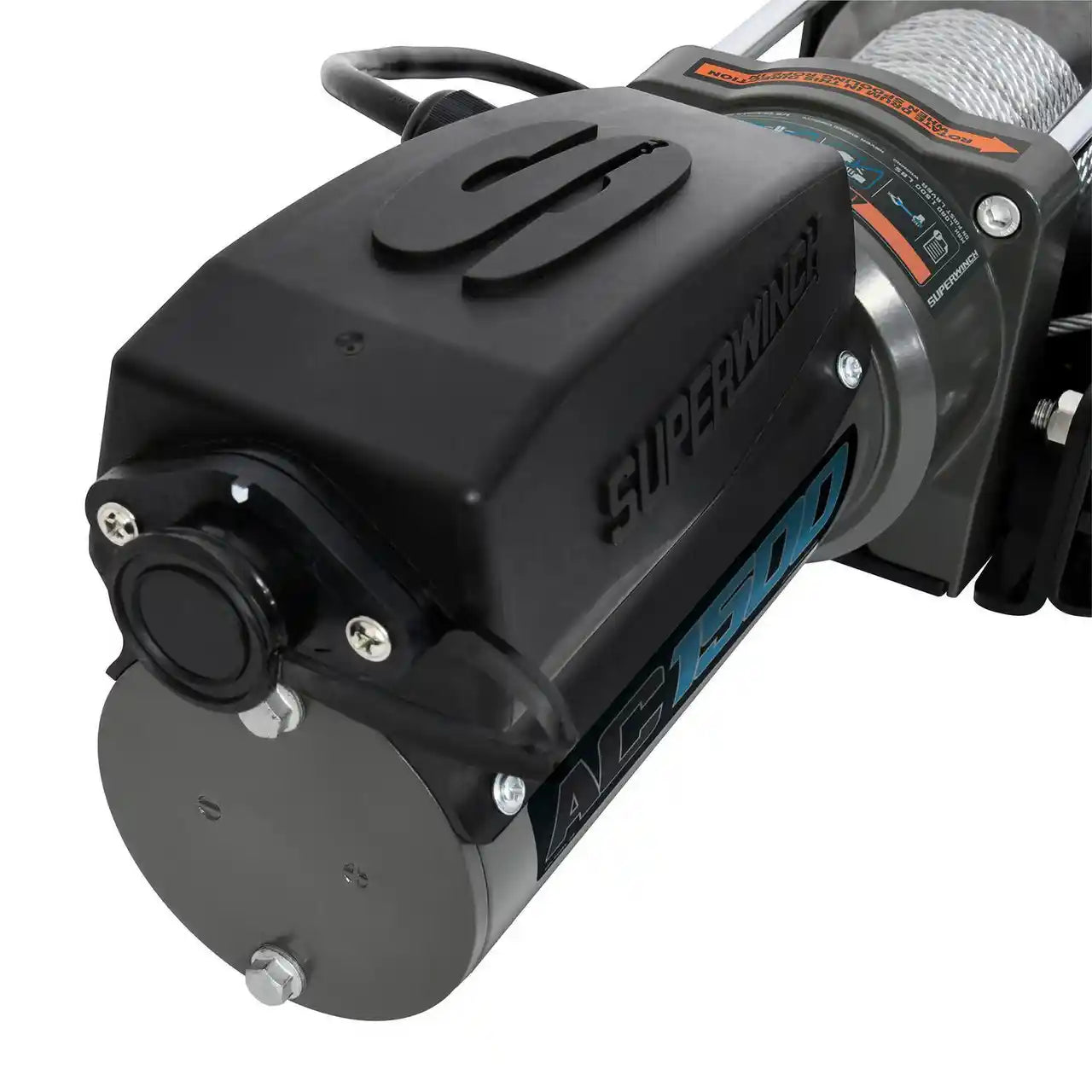

Motor 1.1 HP 120V AC, Permanent Magnetic
Remote Control 12 ft Rubber Sealed Hand-held
Rope 5/32 in. x 35 ft. (3.9mm x 10.6m) Steel Wire
Gear System 2-stage planetary
Gear Ratio 262:1
Brake System Dynamic
Clutch Free-Spooling, Pull and Turn Handle
Fairlead 4-Way Roller
Drum Dimensions 3.2 in. L x 1.9 in. D
IP Rating IP66 Waterproof and Dustproof
Finish Gray Powder Coat
Color Black
Weight 25.00 LBS (11.34 kg)

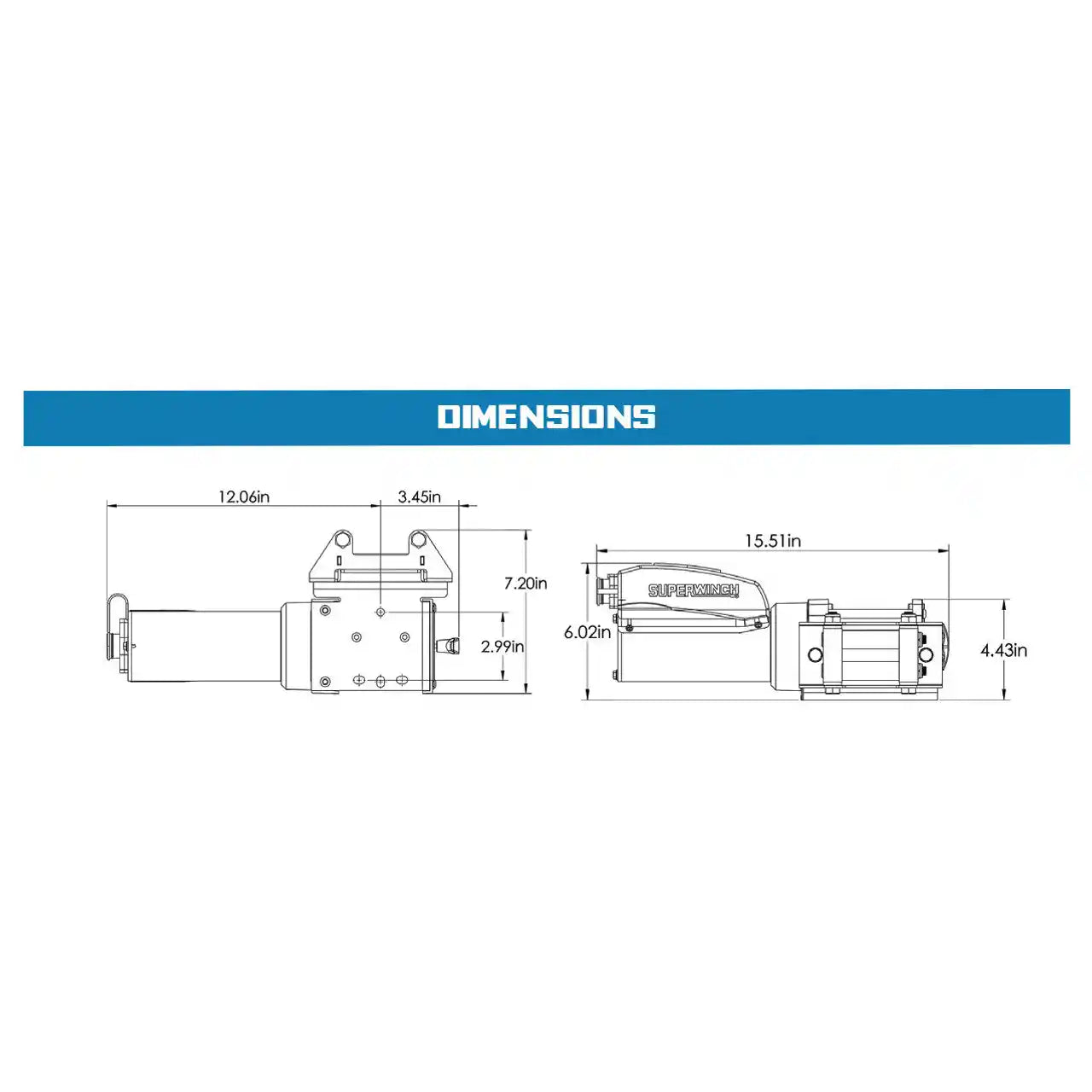

Width 10.83 in. (27.5 cm)
Height 7.90 in. (20.1 cm)
Depth 18.00 in. (45.7 cm)
Voltage 120V AC
Warranty 2 Year Limited Manufacturer
Winch Model AC 1500

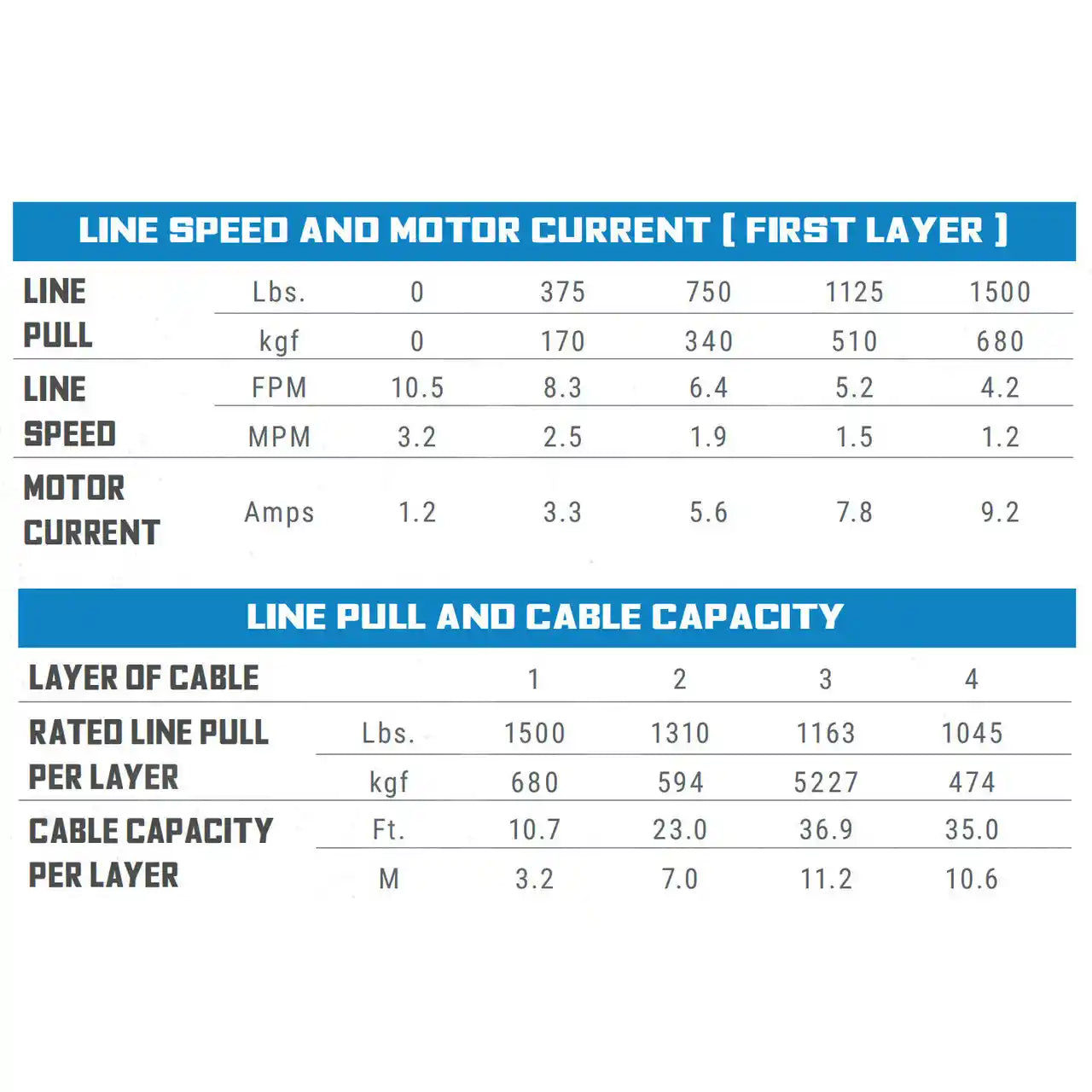

Performance Data

Motor Performance
Motor Type 120V AC Permanent Magnet
Motor HP 1.1 HP
Brake Type Dynamic
Rope & Drum
Rope Material Steel Wire
Rope Diameter 5/32 in. (3.9mm)
Rope Length 35 ft (10.6m)
Drum Size 3.2 in. L x 1.9 in. D

Download Resources

Instruction Manual (PDF)

Frequently Asked Questions

+ What does the 120V AC motor mean for performance?

The 120V AC motor allows the hoist to be plugged directly into standard wall outlets, providing consistent power without the need for a DC power source like a vehicle battery. This makes it ideal for stationary use in workshops, garages, and various utility applications.

+ What kind of brake system does the AC 1500 use?

The Superwinch AC 1500 features a dynamic braking system. This system uses the motor's own electrical properties to slow and hold the load when power is removed, providing reliable and controlled stops.

+ Is the AC 1500 suitable for outdoor use?

Yes, the AC 1500 has an IP66 rating, meaning it is highly protected against dust and strong jets of water. This makes it suitable for use in various outdoor and challenging environments where exposure to elements is a concern.

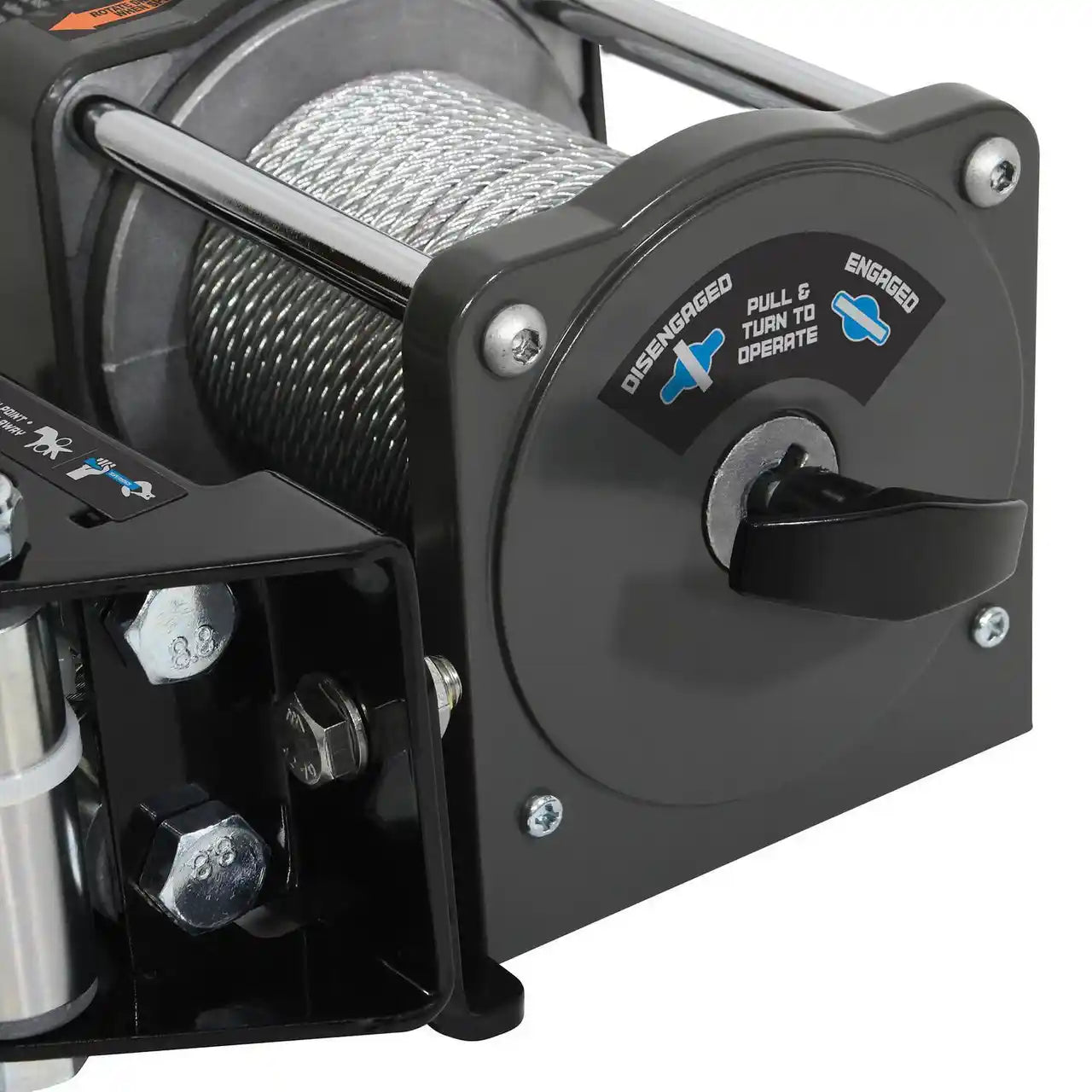

+ What is the purpose of the "pull and turn" clutch handle?

The "pull and turn" clutch handle allows you to quickly and easily disengage the winch drum, enabling free-spooling of the wire rope. This is particularly useful for manually pulling out the rope to the desired length without consuming motor power, saving time and energy.

+ What is the warranty on the Superwinch AC 1500?

The Superwinch AC 1500 comes with a limited 2-year manufacturer's warranty, ensuring peace of mind regarding the quality and durability of your investment.
