Engineered for Extreme Demands, Built to Last

  • Dominant 9,500 lbs Line Pull: Tackle the toughest recovery scenarios with confidence, thanks to the impressive 9,500 lbs (4,309 kg) rated line pull, providing ample power for ATVs, UTVs, and light trucks.
  • High-Efficiency 5.2 HP Motor: The powerful 5.2 HP / 3.8KW, 12V DC Series Wound Motor delivers consistent and reliable performance, ensuring rapid line speed and sustained power under load.
  • Robust 3-Stage Planetary Gearing: Experience smooth and efficient power transfer with the advanced 3-stage planetary gear system, boasting a 218:1 ratio for superior torque and control during heavy pulls.
  • All-Weather Sealed Solenoid: The critical weather-sealed solenoid and circuit breaker protected design ensures maximum protection against water, mud, snow, and debris, guaranteeing reliability in any climate.

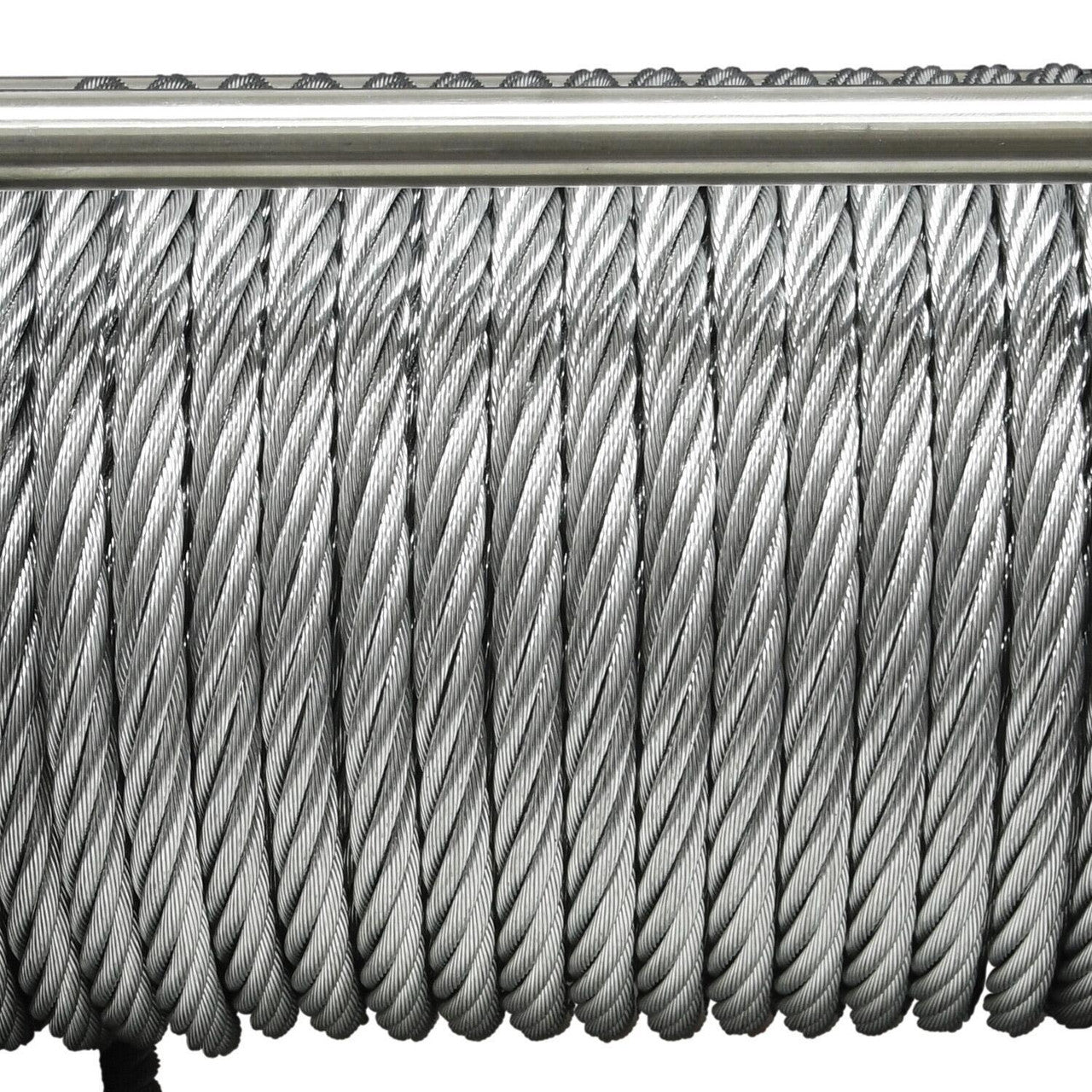

  • Premium Steel Wire Rope: Comes equipped with a durable 95 ft x 21/64 in (8.3mm x 29m) steel wire rope, offering exceptional strength and resistance to abrasion for long-lasting use in challenging environments.
  • Enhanced Rope Protection & Guidance: Features a heat insulated first layer to protect the rope from motor heat and a high-quality stainless steel 4-way roller fairlead for smooth, reduced-friction rope feeding, extending the life of your wire rope.
  • Ergonomic Freespool Engagement: The intuitive ergonomic pull and turn freespool allows for quick and easy rope deployment, while the heavy-duty, clevis pinned, latched hook ensures a secure and safe connection every time.
  • Durable & Reliable Control: Control your recovery with precision using the rugged 12 ft rubber sealed handheld remote control, designed for durability and ease of use in adverse conditions.
  • Corrosion-Resistant Construction: Built with high-quality stainless steel tiebars and a durable, powder-coated steel drum, the Tiger Shark 9500 resists corrosion and wear, maintaining its sleek black finish and structural integrity.
  • Automatic Load Holding Brake: The integrated mechanical, automatic load holding brake system provides unwavering security, preventing rollback and ensuring complete control and safety during all winching operations.
  • Exceptional Warranty: Backed by a Limited Lifetime Mechanical Warranty and a Limited 7-Year Electrical Warranty, affirming Superwinch's commitment to quality and lasting performance.

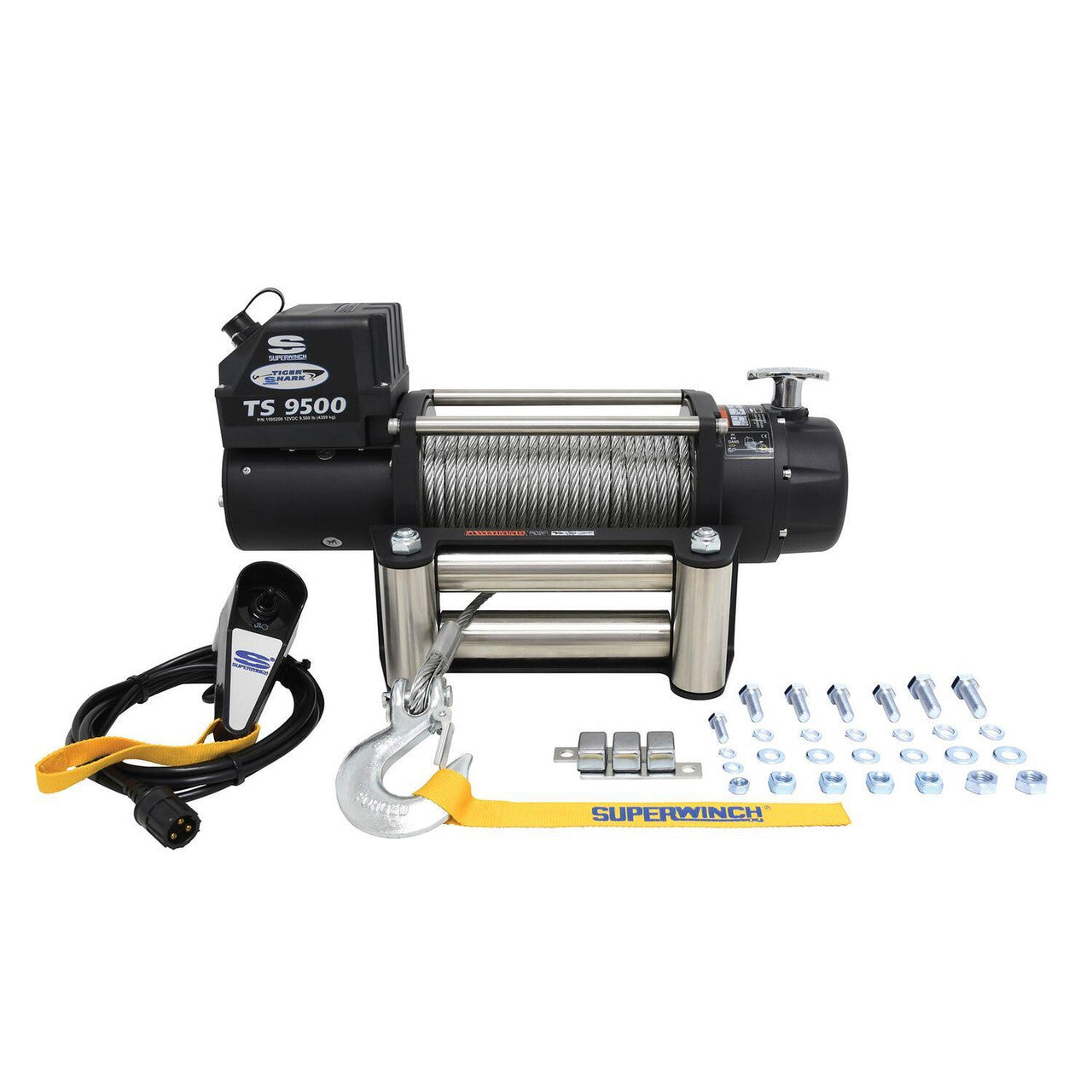

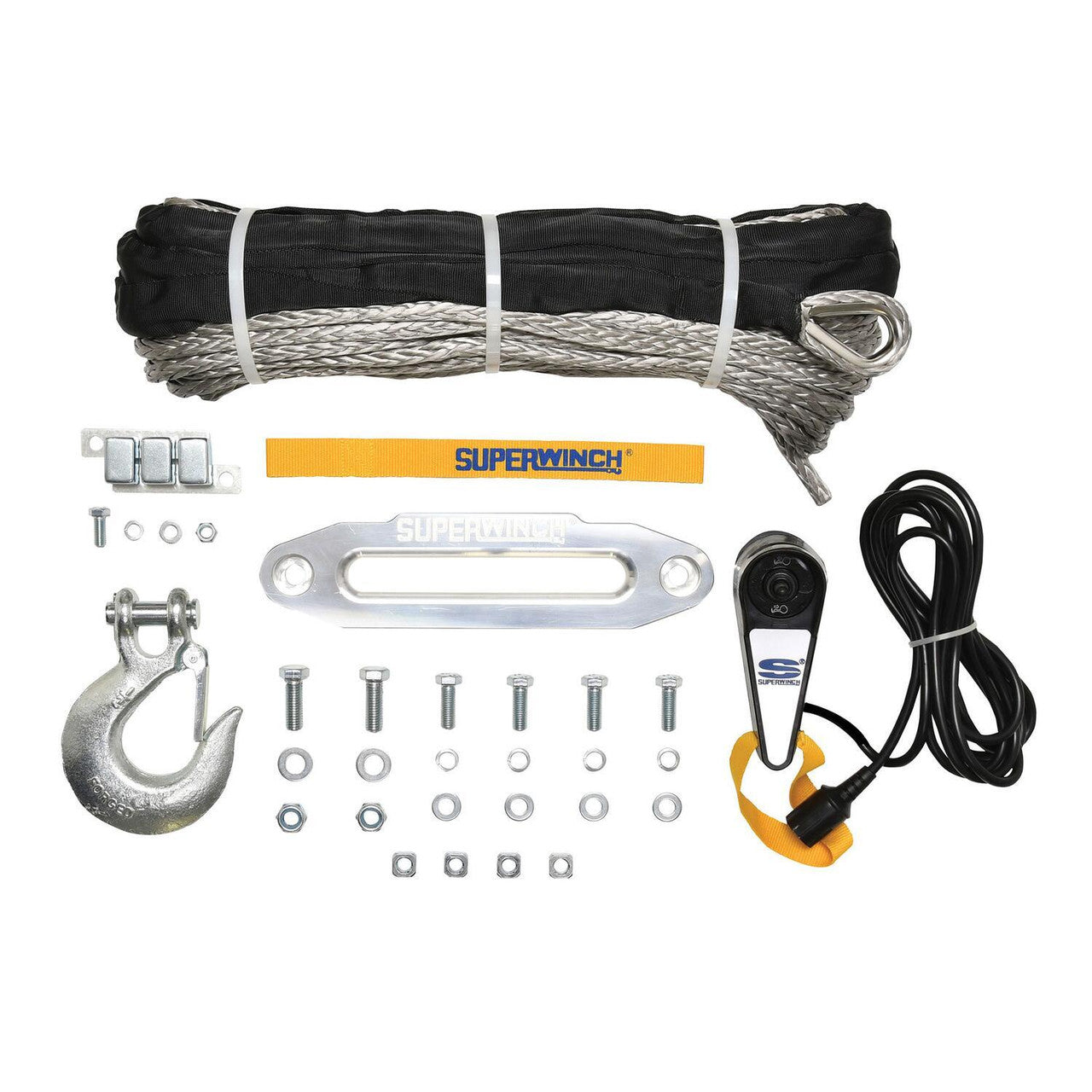

What's In The Box

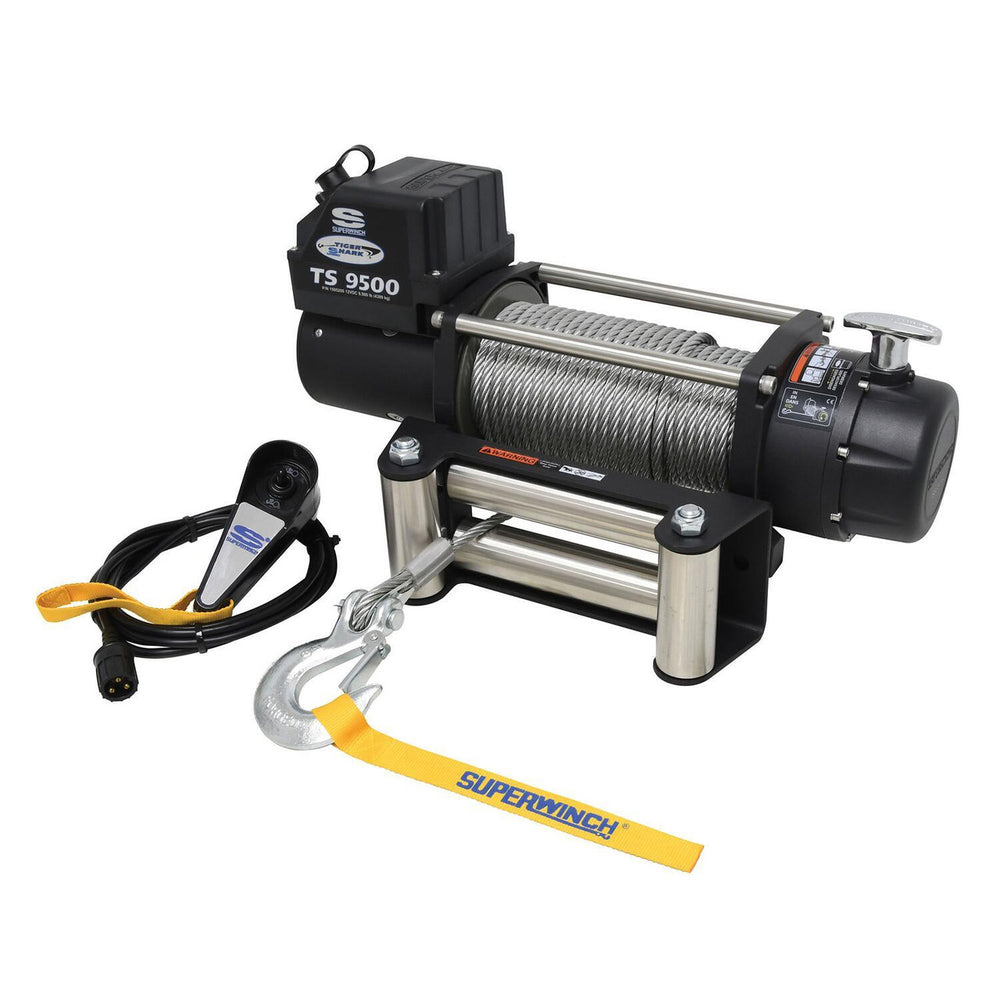

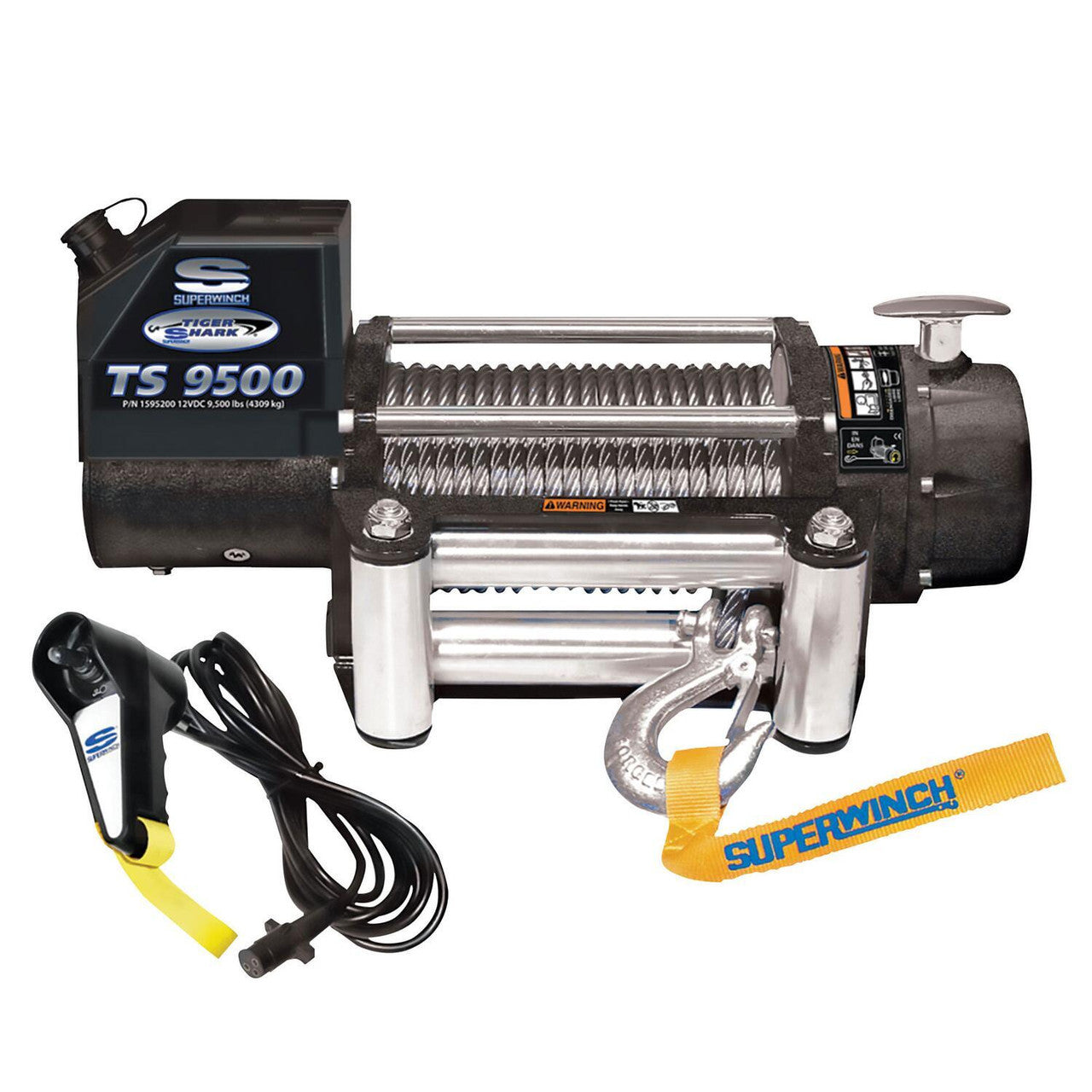

  • Superwinch Tiger Shark 9500 12V DC Winch (Black)
  • 95 ft x 21/64 in Steel Wire Rope or 80 ft. - 3/8 in. UV coated Synthetic Rope
  • Stainless Steel 4-Way Roller Fairlead

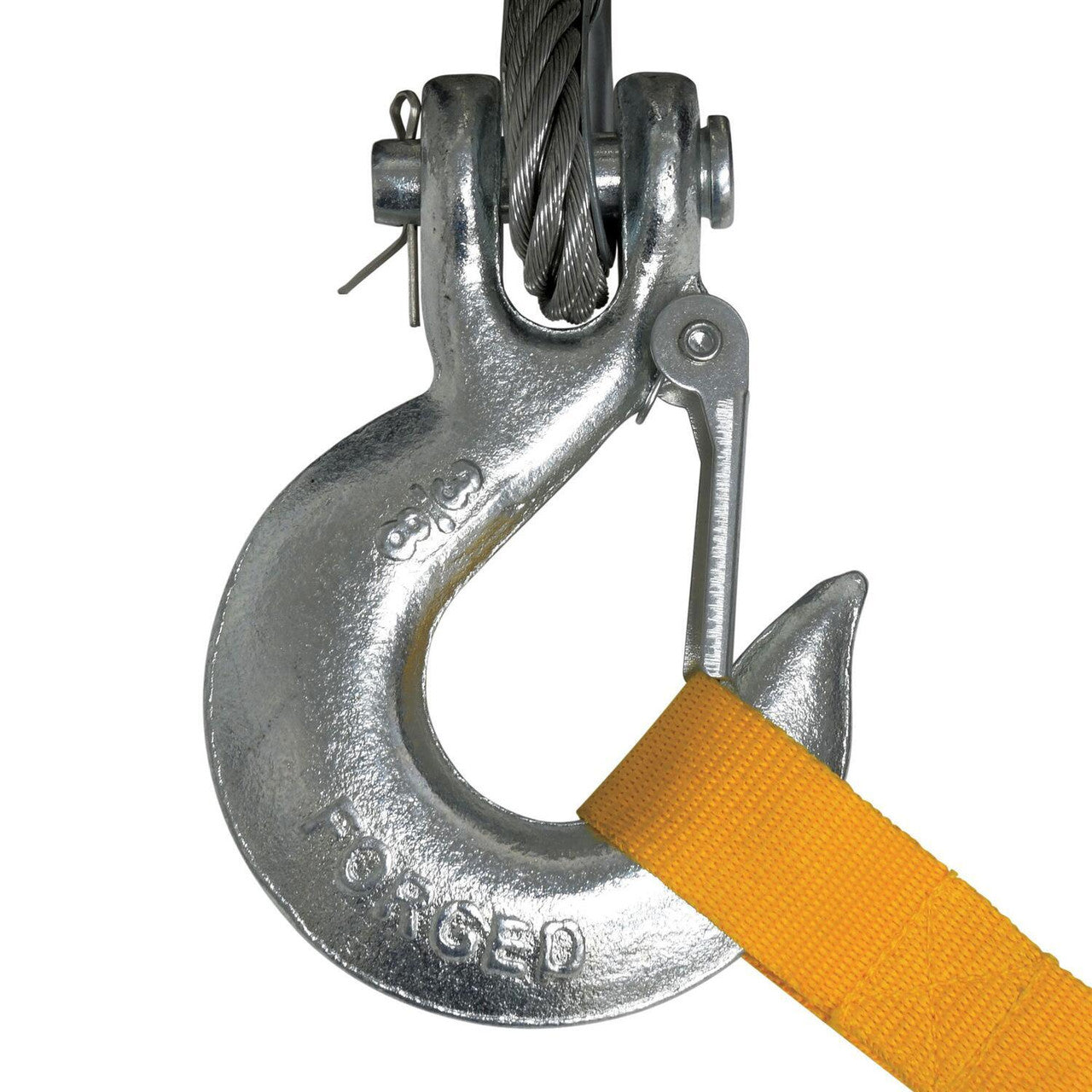

  • Heavy-Duty, Clevis Pinned, Latched Hook
  • 12 ft Rubber Sealed Handheld Remote Control
  • All Necessary Mounting Hardware

Technical Specifications

Rated Line Pull 9,500 lbs (4,309 kg)

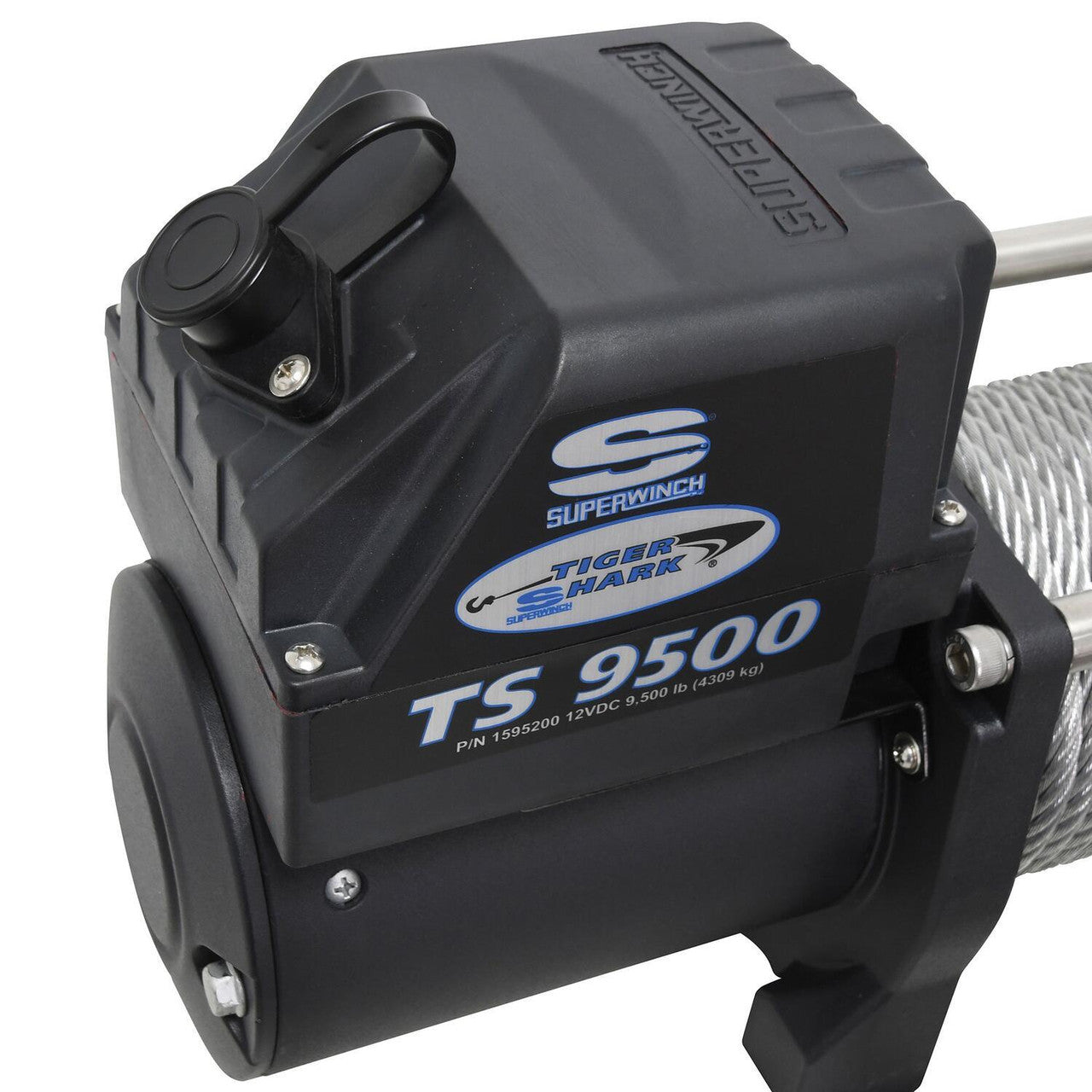

Motor Series Wound 5.2 HP / 3.8KW, 12V DC
Gearing System 3-Stage Planetary
Gear Ratio 218:1
Brake System Mechanical, Automatic Load Holding
Clutch Ergonomic Pull and Turn Freespool
Rope Material Steel Wire Rope / Synthetic Rope
Rope Dimensions 21/64 in x 95 ft (8.3mm x 29m) / 3/8 in x 80 ft (9.5mm x 24.3m)
Fairlead Stainless Steel 4-Way Roller Fairlead (Wire Rope)
Solenoid Weather Sealed Solenoid and Circuit Breaker Protected
Remote Control 12 ft Rubber Sealed Hand-Held, Wire Remote Type
Drum Durable Fully Welded Steel Drum
Tiebars Stainless Steel
Color Black
Material Steel
Surface Finish Powder Coated
Voltage 12V DC
Winch Hook Heavy-Duty, Clevis Pinned Latched

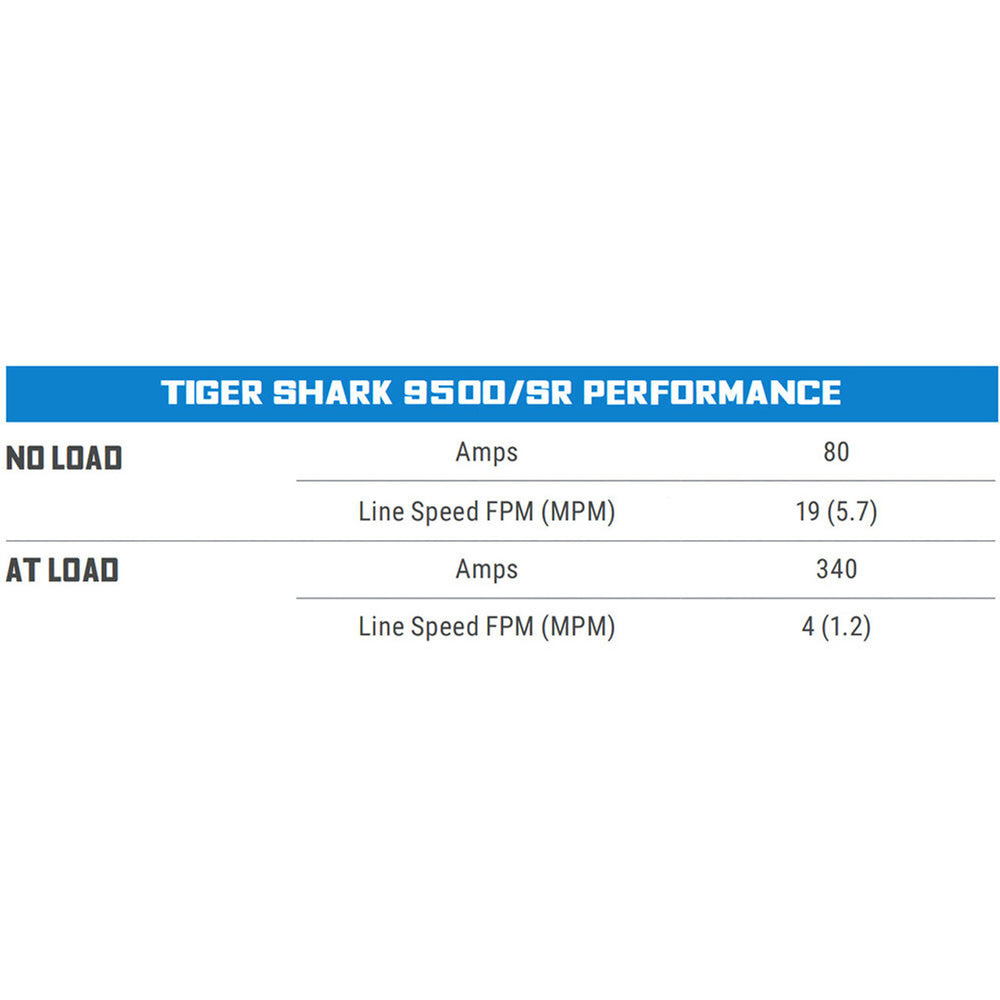

Line Speed 80 Amps Motor Draw / 19 FPM (5.7 MPM) (at 0 Line Pull)
Weight 82.00 LBS (37.19 kg)

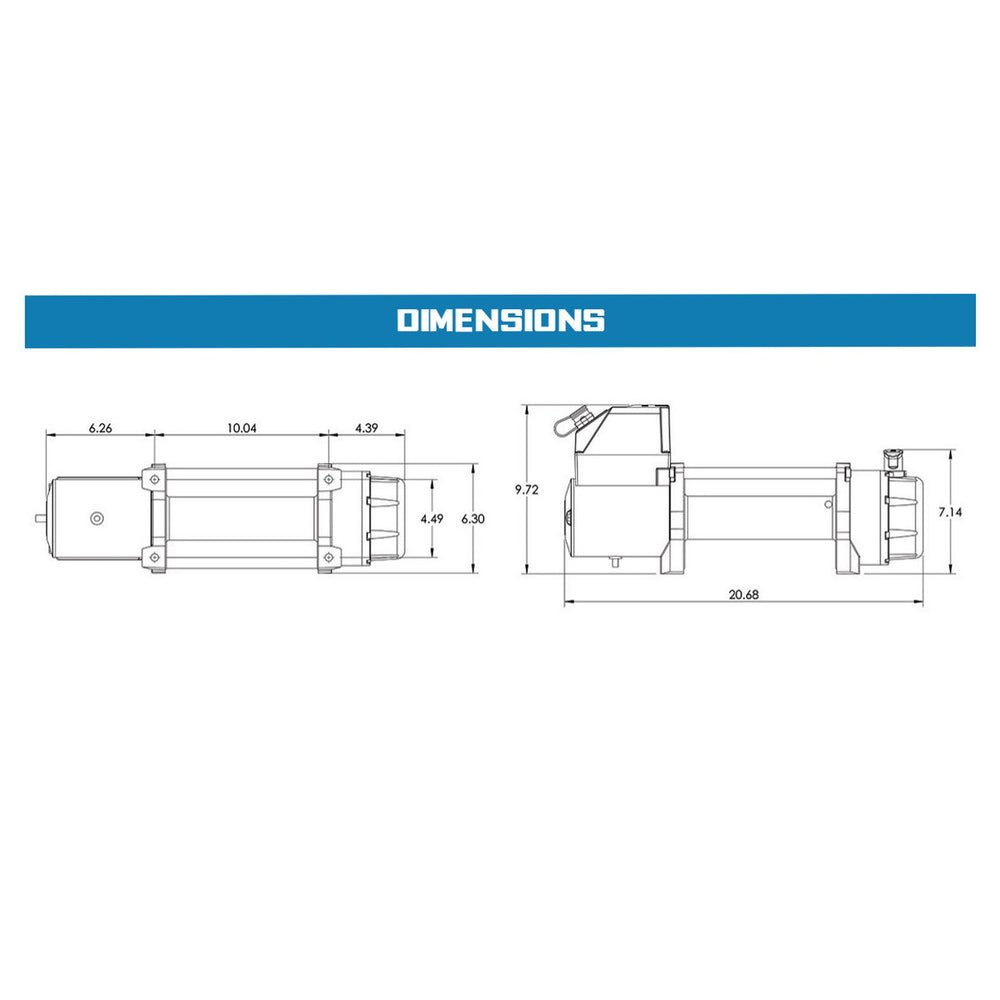

Dimensions (L x W x H) 23.00 in x 12.00 in x 12.00 in
Winch Series Tiger Shark Series
Winch Model Tiger Shark 9500 Series

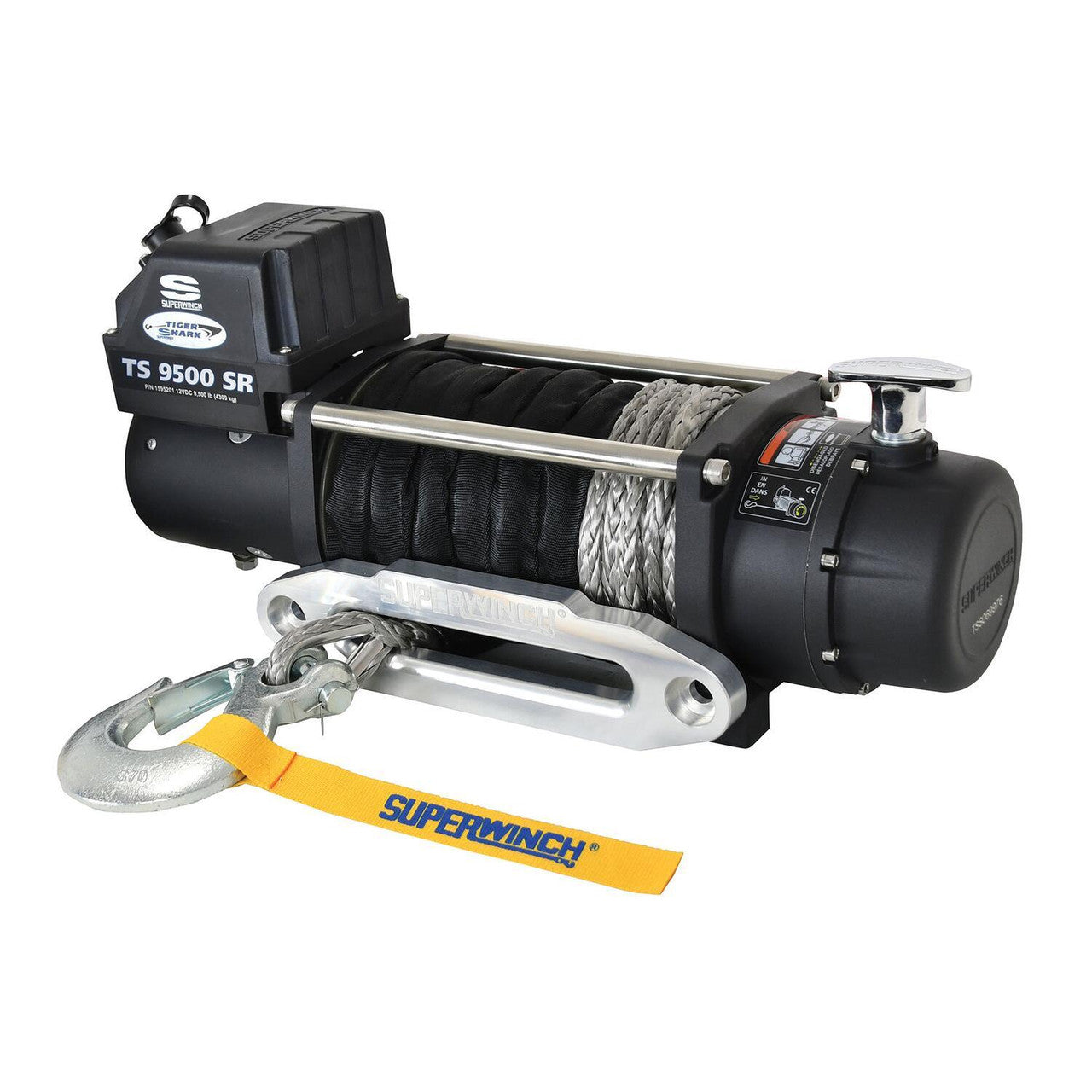

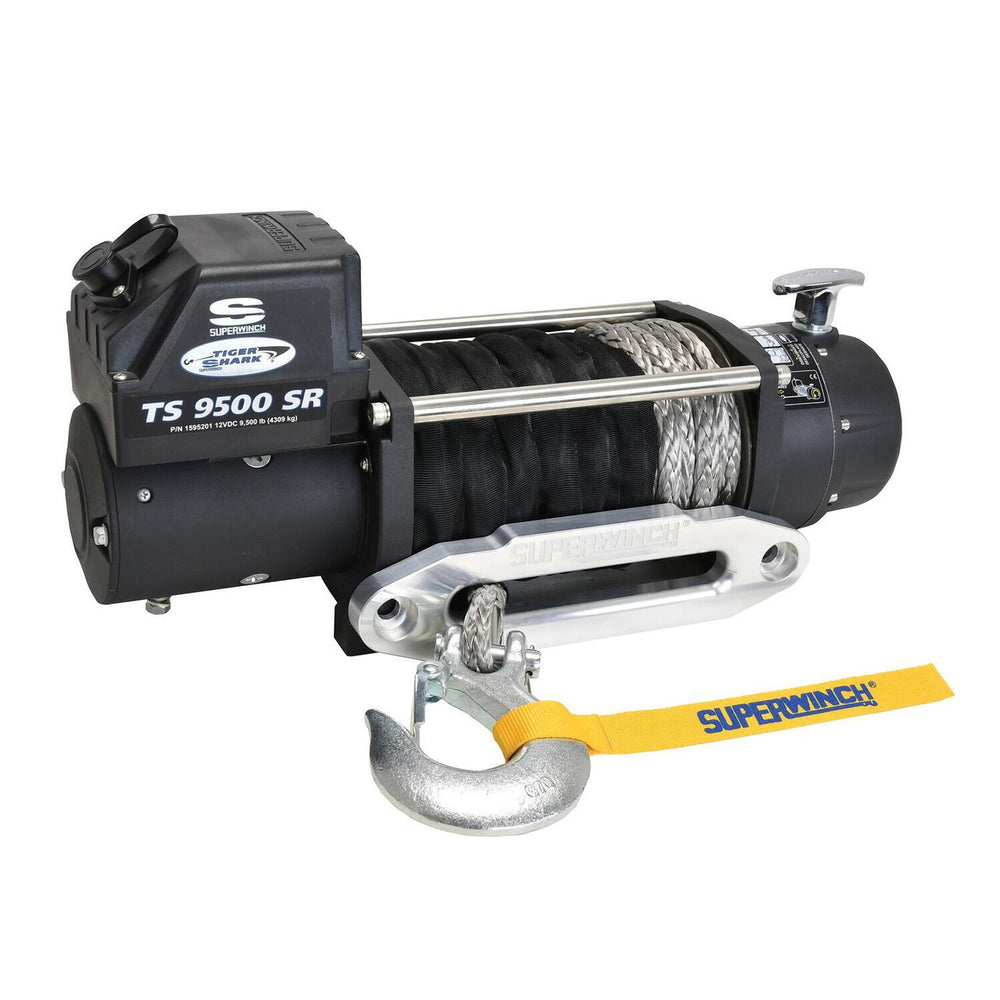

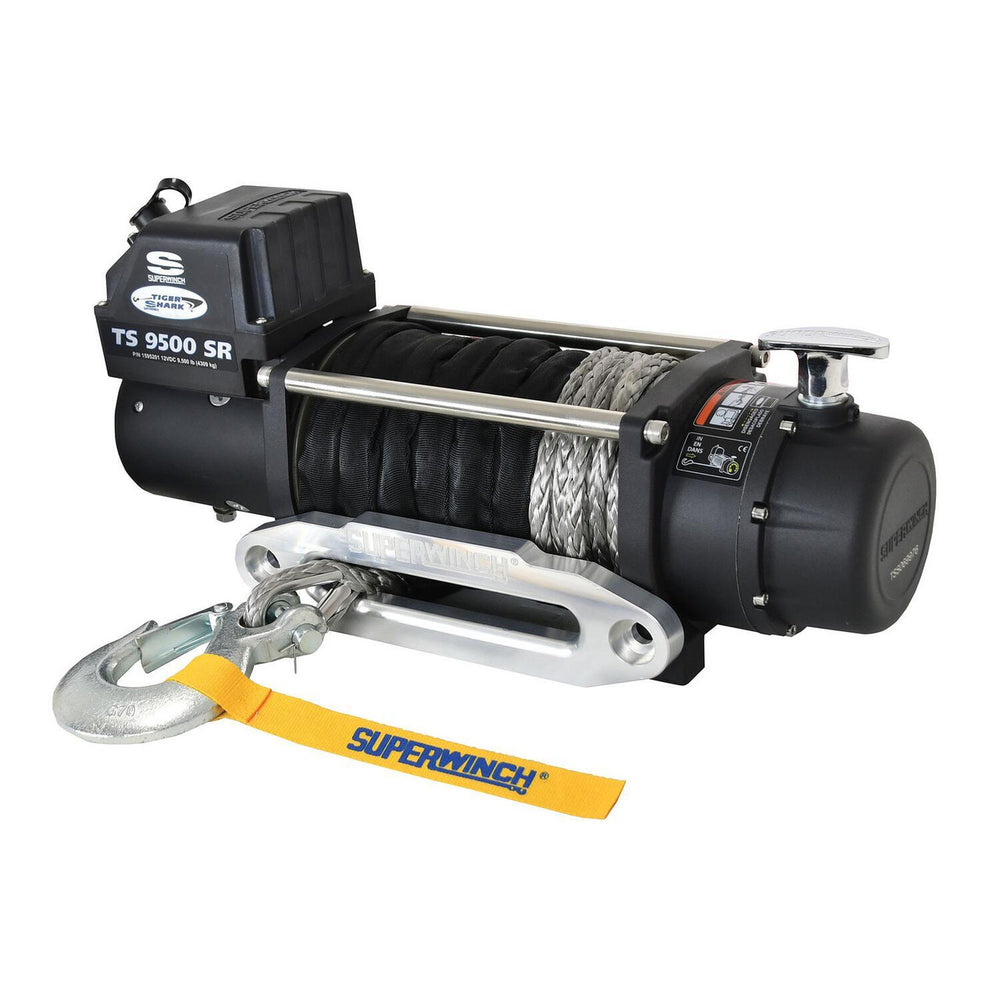

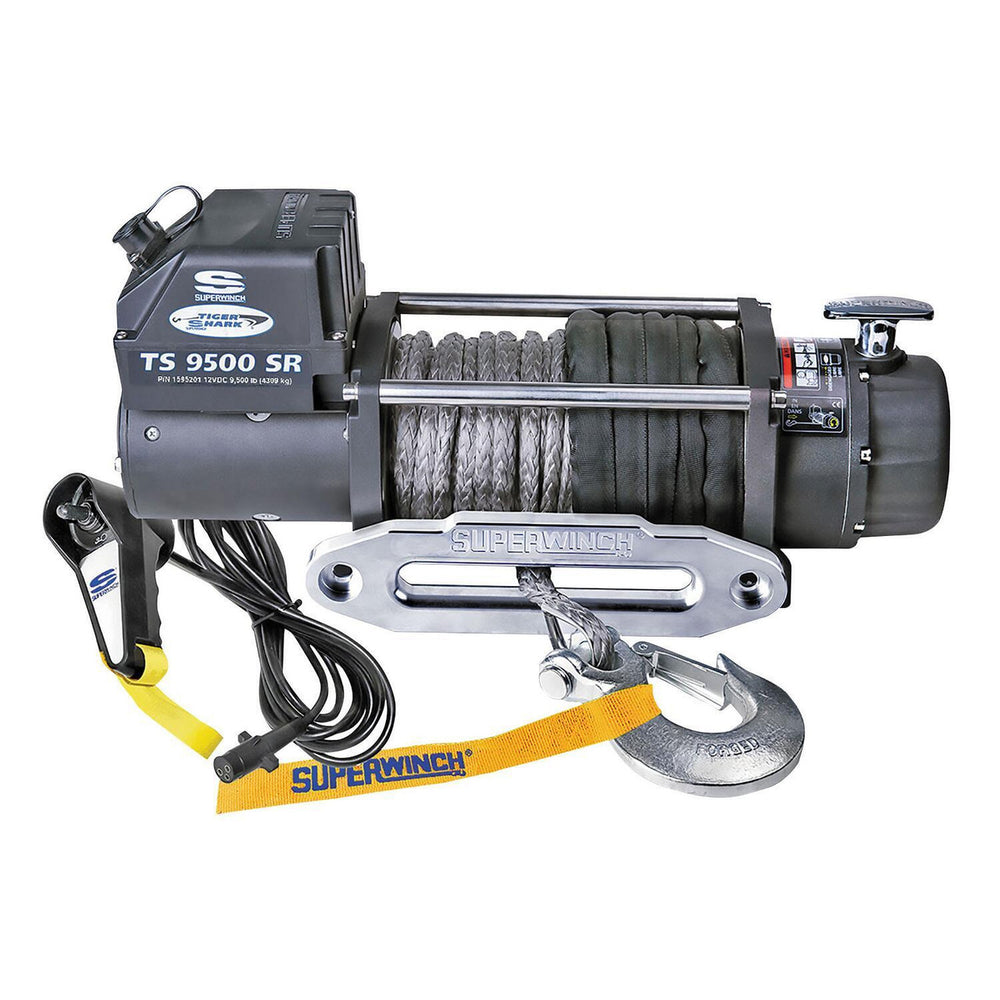

Winch Fitment Tiger Shark 9500, Tiger Shark 9500SR
Warranty Limited Lifetime Mechanical / Limited 7 Year Electrical
EN Compliant No

Frequently Asked Questions

+ Why is the Superwinch Tiger Shark 9500 considered a benchmark?

The Tiger Shark 9500 sets the benchmark by offering a powerful 9,500 lb line pull, a robust 5.2 HP motor, advanced 3-stage planetary gearing, and weather-sealed components, all while providing exceptional value. It delivers premium performance and durability that often costs significantly more in other brands.

+ What type of vehicles is the Tiger Shark 9500 best suited for?

With its 9,500 lb capacity, the Tiger Shark 9500 is ideally suited for a wide range of vehicles, including Jeeps, light to medium-duty trucks, SUVs, and other off-road vehicles that require reliable recovery capabilities. It's perfect for tackling challenging trails and demanding recovery tasks.

+ How does the "heat insulated first layer" benefit the wire rope?

The heat insulated first layer is a crucial feature that protects the steel wire rope from heat buildup generated by the winch motor during operation. This insulation helps to prevent premature degradation and damage to the rope, extending its lifespan and ensuring consistent performance.

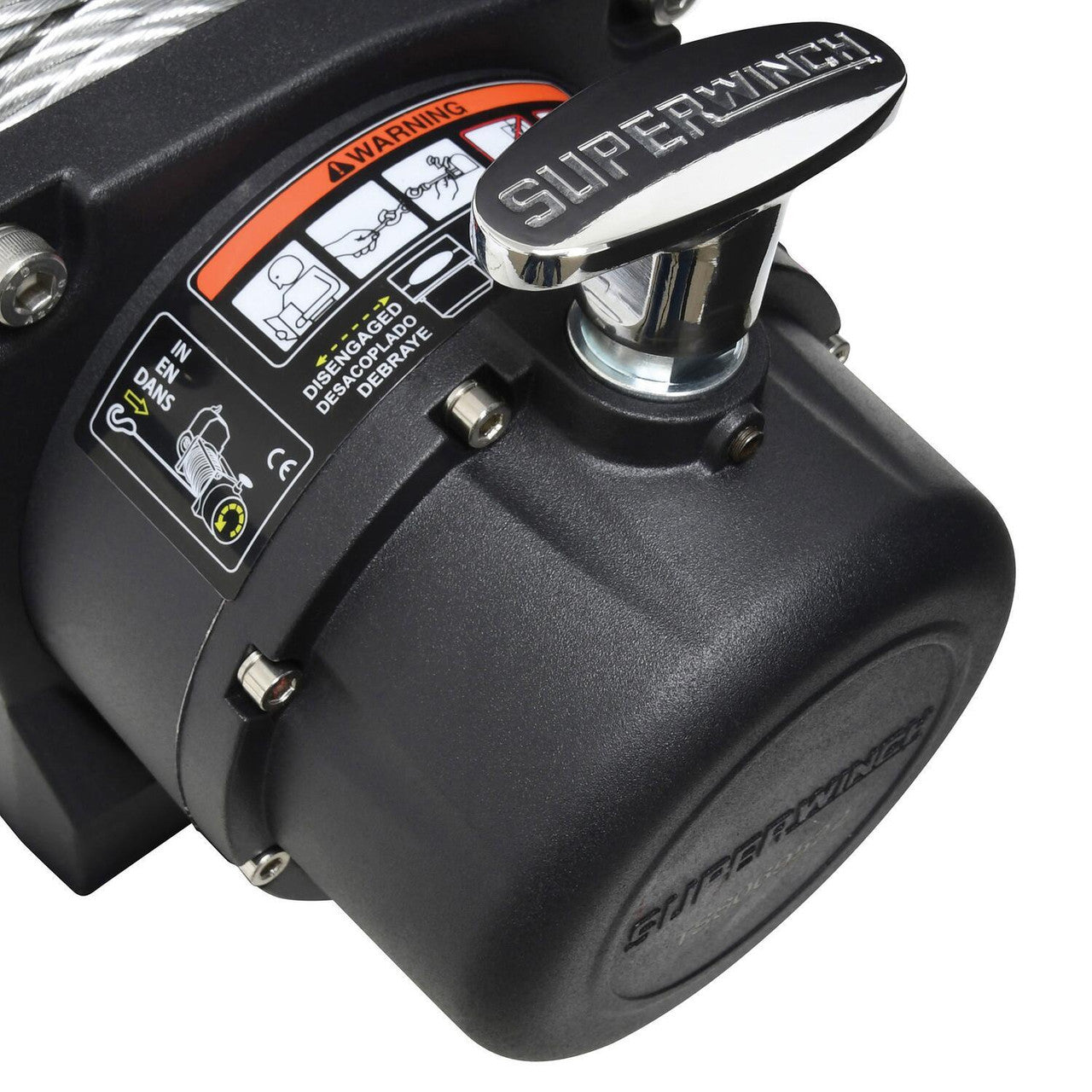

+ What does the "ergonomic pull and turn freespool" offer?

The ergonomic pull and turn freespool mechanism allows for quick, easy, and comfortable disengagement of the drum. This enables you to rapidly pull out the wire rope by hand to connect to an anchor point without relying on the motor, saving valuable time during recovery operations.

+ What is covered by the Limited Lifetime Mechanical/Limited 7 Year Electrical Warranty?

The Limited Lifetime Mechanical Warranty covers defects in materials and workmanship for mechanical components for the life of the product. The Limited 7-Year Electrical Warranty covers electrical components like the motor and solenoid for seven years from the date of purchase. This comprehensive coverage reflects Superwinch's confidence in the Tiger Shark 9500's quality and durability.
