Key Features & Professional-Grade Benefits

  • Massive 18,000 lbs Pulling Capacity: Engineered to handle the toughest commercial winching tasks with confidence. This winch is built for high GVW vehicles, trailers, and roll-off container applications where failure is not an option.

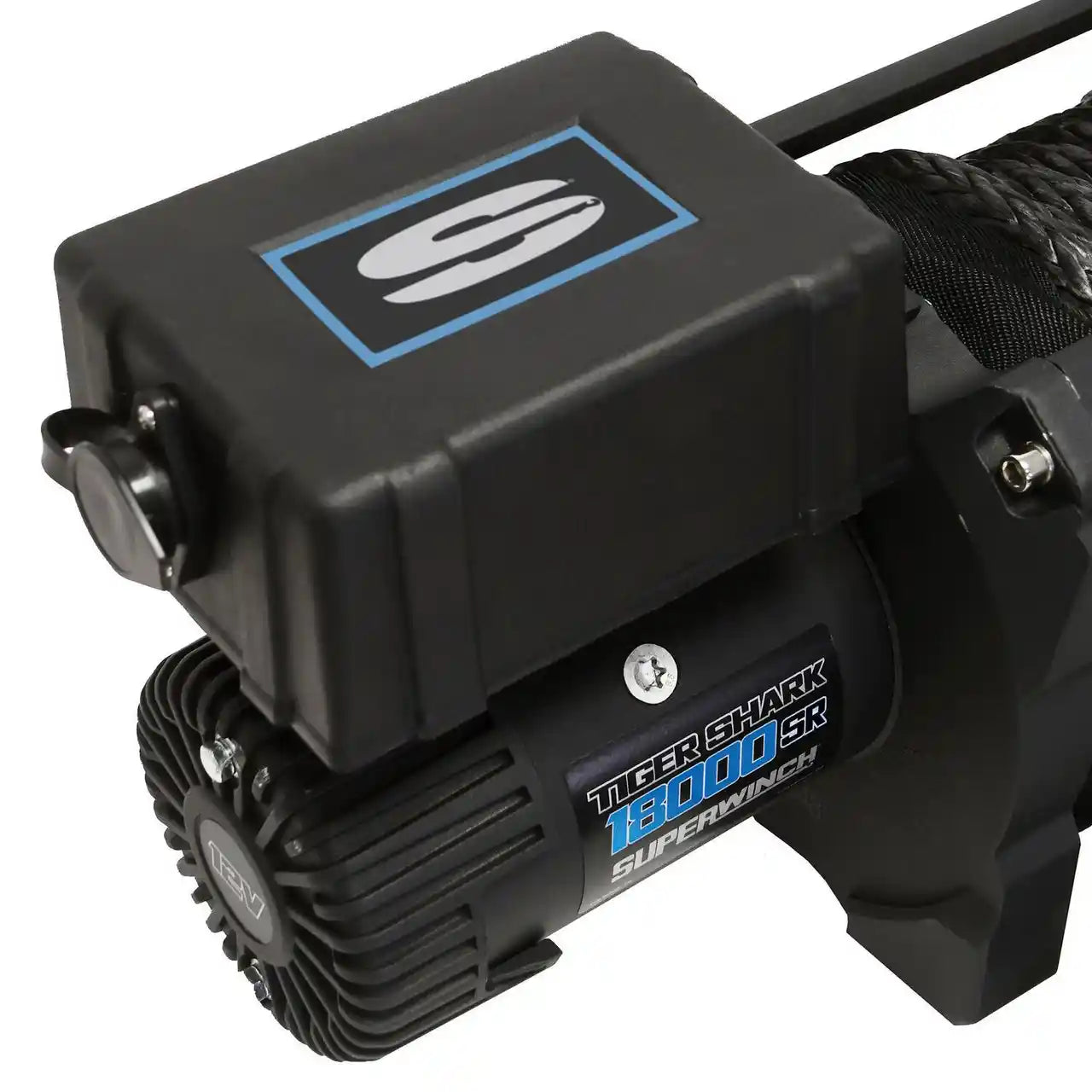

  • Powerful 6.8 HP Motor: The series wound 12V DC motor delivers 5.0KW of raw power, providing exceptional performance and faster line speeds compared to competing models in its class.
  • Advanced 3-Stage Planetary Gearing: The 345:1 gear ratio provides incredible mechanical advantage for smooth, controlled pulling power even under extreme loads.
  • Automatic Cone Brake: Ensures secure load holding and prevents free-spooling under load, giving you precise control and enhanced safety during critical operations.
  • Kick-N-Flip Style Freespool Clutch: Innovative design allows for convenient hand and foot operation, making rope deployment quick and effortless whether you're working in tight spaces or need hands-free engagement.

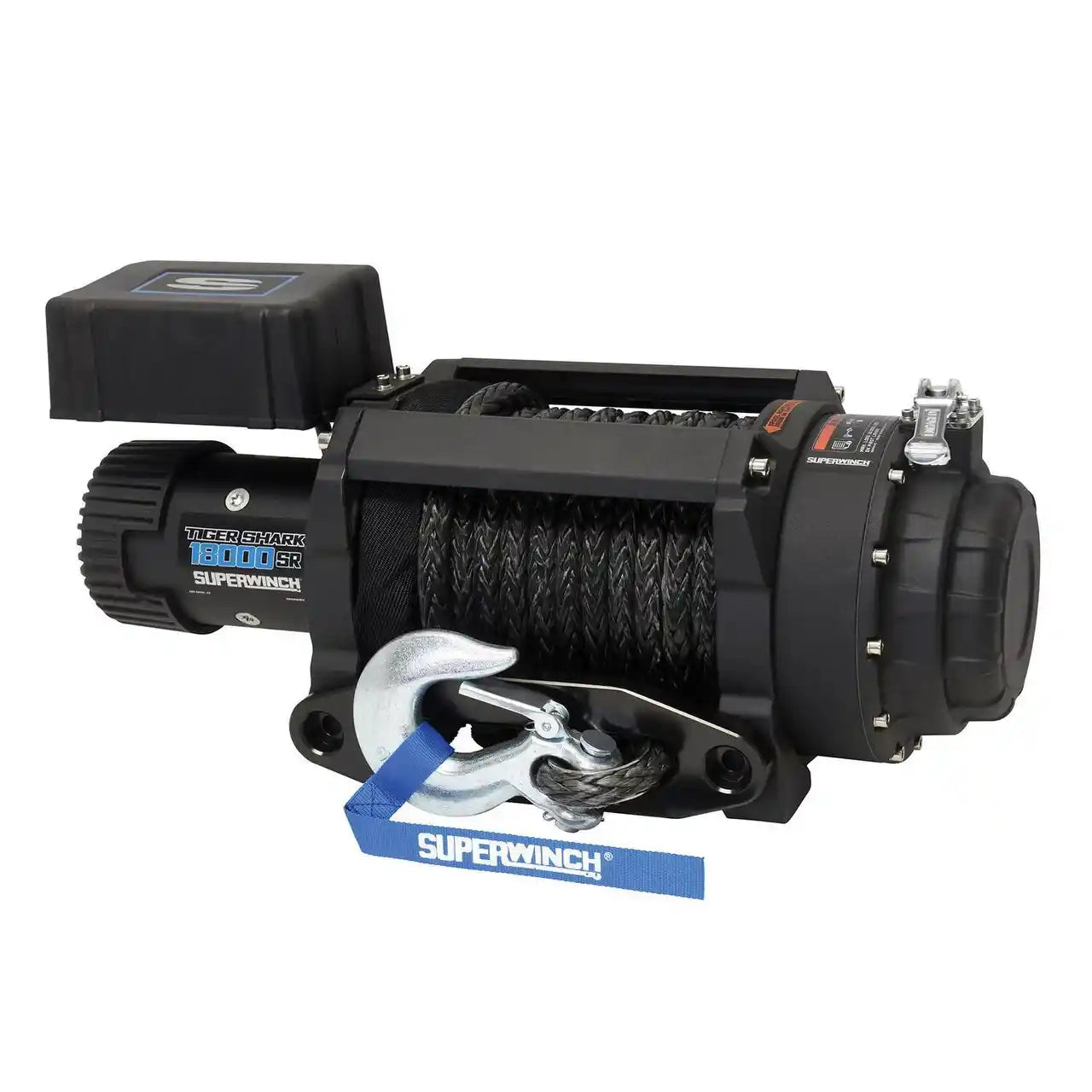

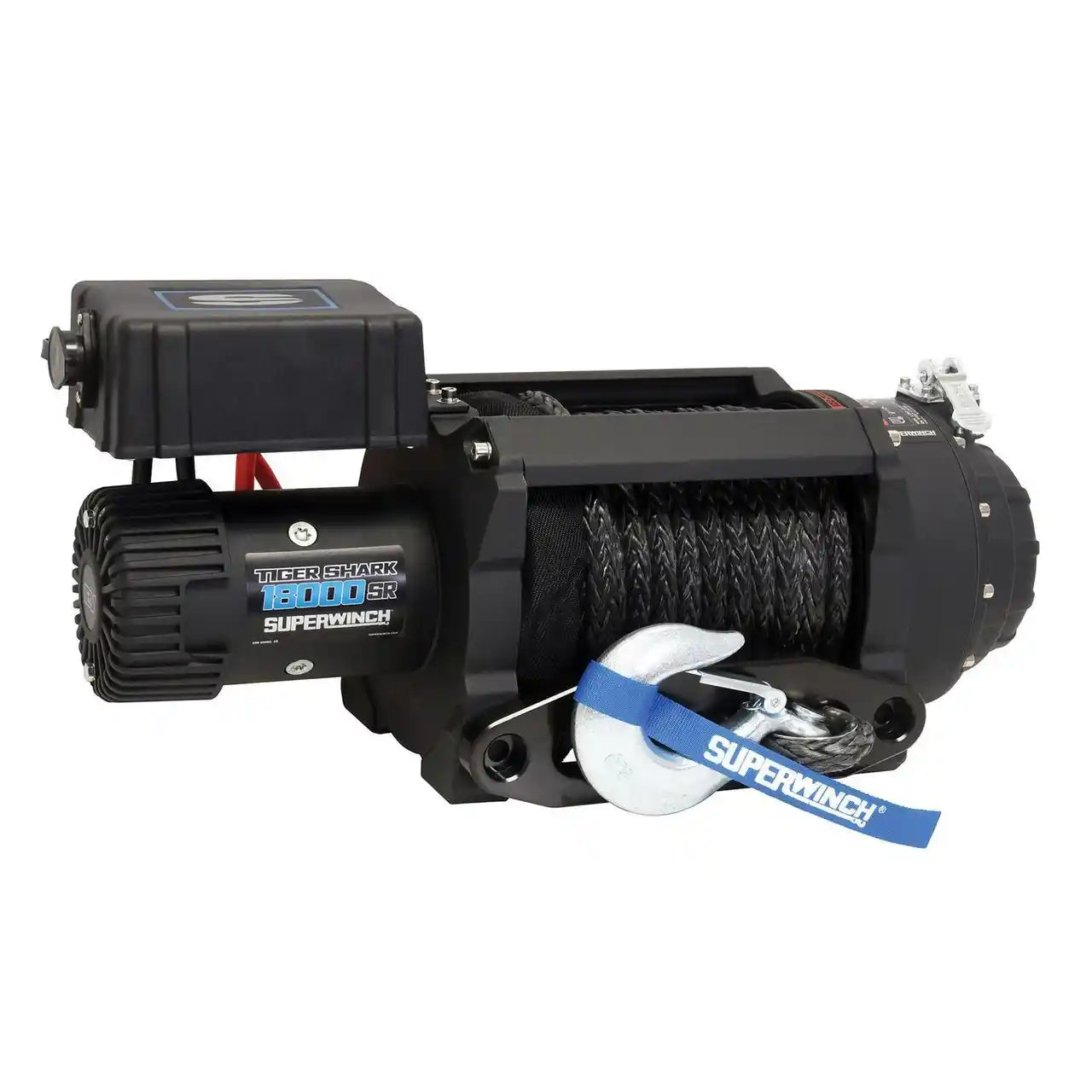

  • Choice of Rope Materials: Available with either traditional steel cable or lightweight synthetic rope options. The synthetic rope variant includes a premium aluminum hawse fairlead for smooth operation and reduced weight.
  • Heat-Insulated First Layer: Protects the rope and drum from excessive heat buildup during extended pulls, ensuring consistent performance and longer rope life.

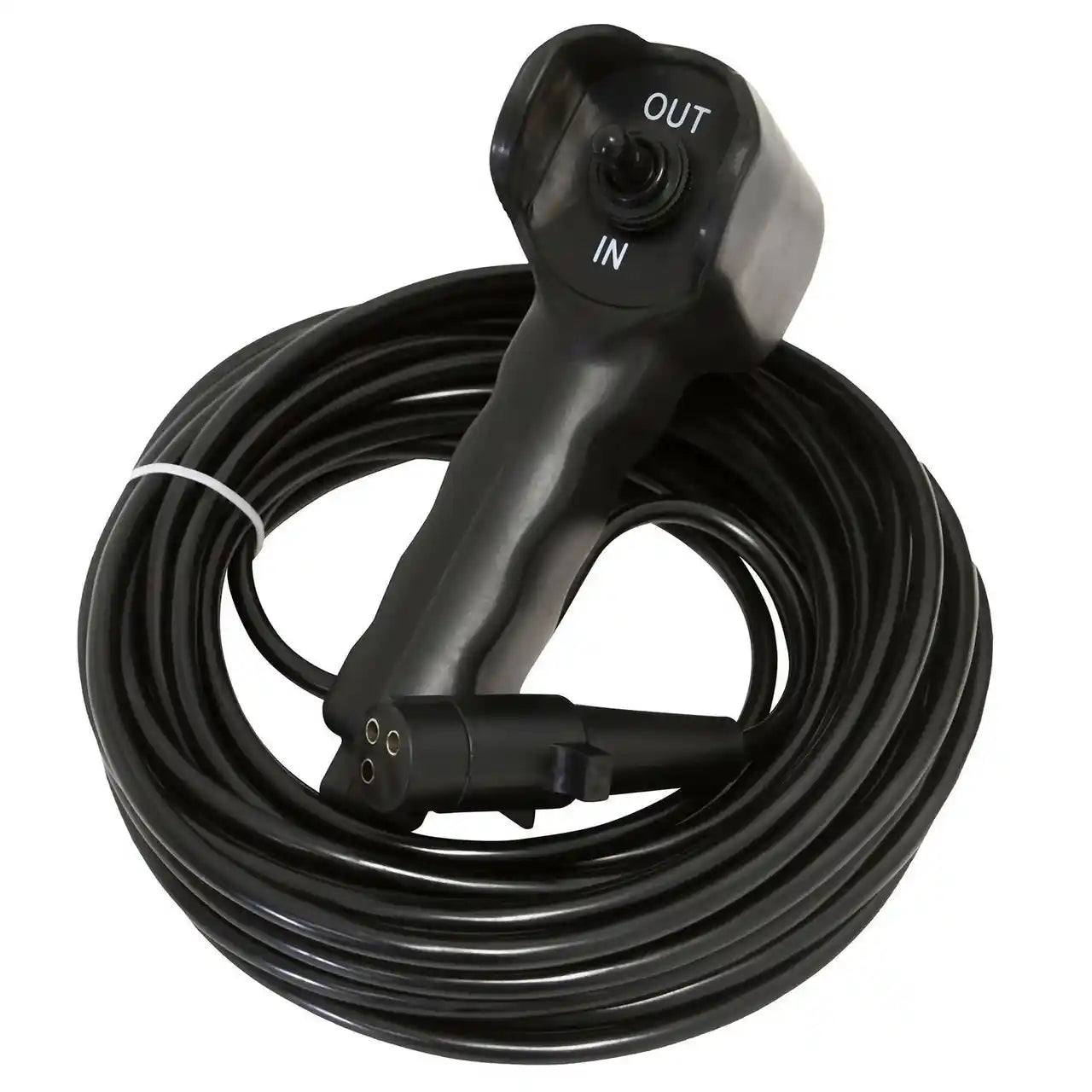

  • 30 ft. Handheld Wired Remote: Provides ample reach for safe operation from a distance. Optional wireless remote control available separately (part no. 2277) for maximum convenience.
  • Rugged Textured Black Finish: Powder-coated protection resists corrosion, scratches, and wear, maintaining professional appearance even in harsh commercial environments.

Built for Commercial & Industrial Excellence

The Tiger Shark 18000SR is the definitive solution for professional operators who demand reliability and performance day after day. Its engineering excellence makes it ideal for:

  • Heavy-Duty Vehicle Recovery: Perfect for tow trucks, wreckers, and recovery operators handling large vehicles and equipment.
  • Commercial & Industrial Applications: Designed for mounting on heavy-duty trailers, roll-off containers, and industrial equipment requiring serious pulling power.
  • Construction & Infrastructure: Assists in moving heavy machinery, materials handling, and equipment positioning on job sites.
  • Marine & Maritime Use: Suitable for boat launching, dock operations, and marine equipment handling.

Backed by an industry-leading warranty protection plan including Limited Lifetime Mechanical and 3-year Limited Electrical Warranty, the Tiger Shark 18000SR is engineered to provide years of dependable, heavy-duty performance.

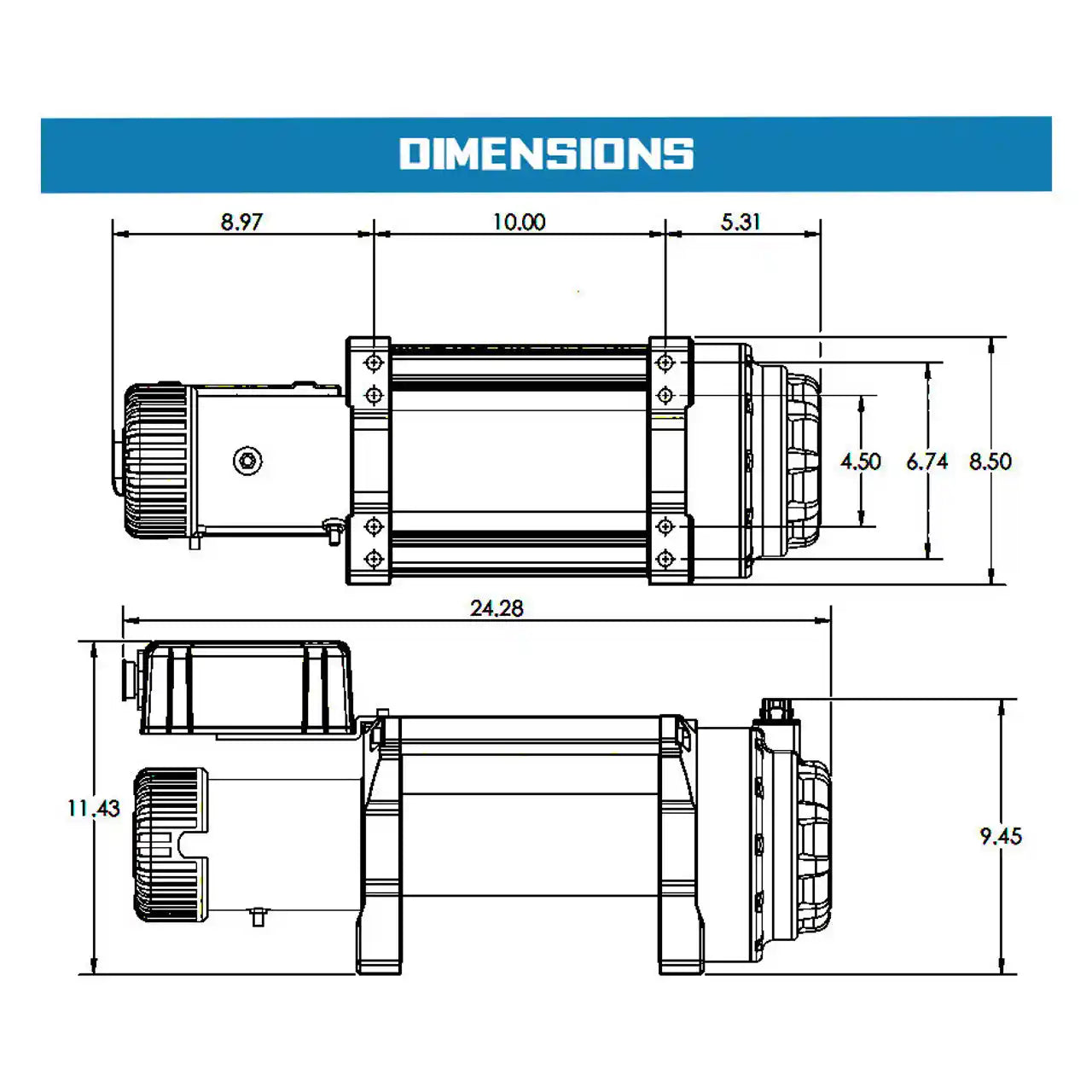

 Superwinch Tiger Shark 18000SR Mounting Detail

Technical Specifications

Rated Line Pull 18,000 lbs (8,165 kgs)
Motor Type Series Wound 12V DC
Motor Power 6.8 HP / 5.0 KW
Voltage 12V DC
Gearing System 3-Stage Planetary
Gear Ratio 345:1
Braking System Automatic Cone Brake
Clutch Type Kick-N-Flip (Hand & Foot Operation)
Drum Construction Durable Fully Welded Steel
Drum Size 3.5" x 8.8" (88mm x 223mm)
Rope Length (Synthetic) 33/64" x 79 ft (13mm x 24m)

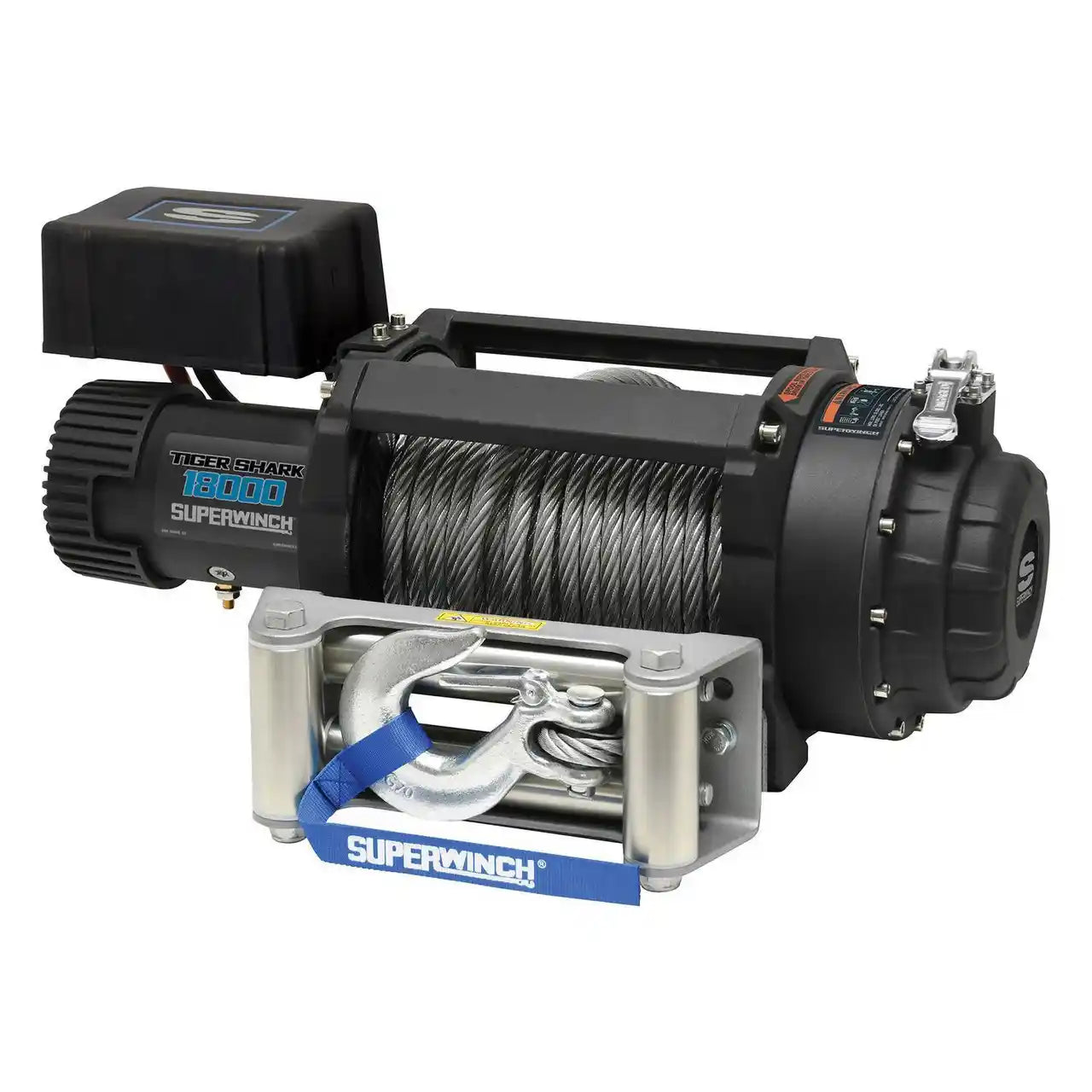

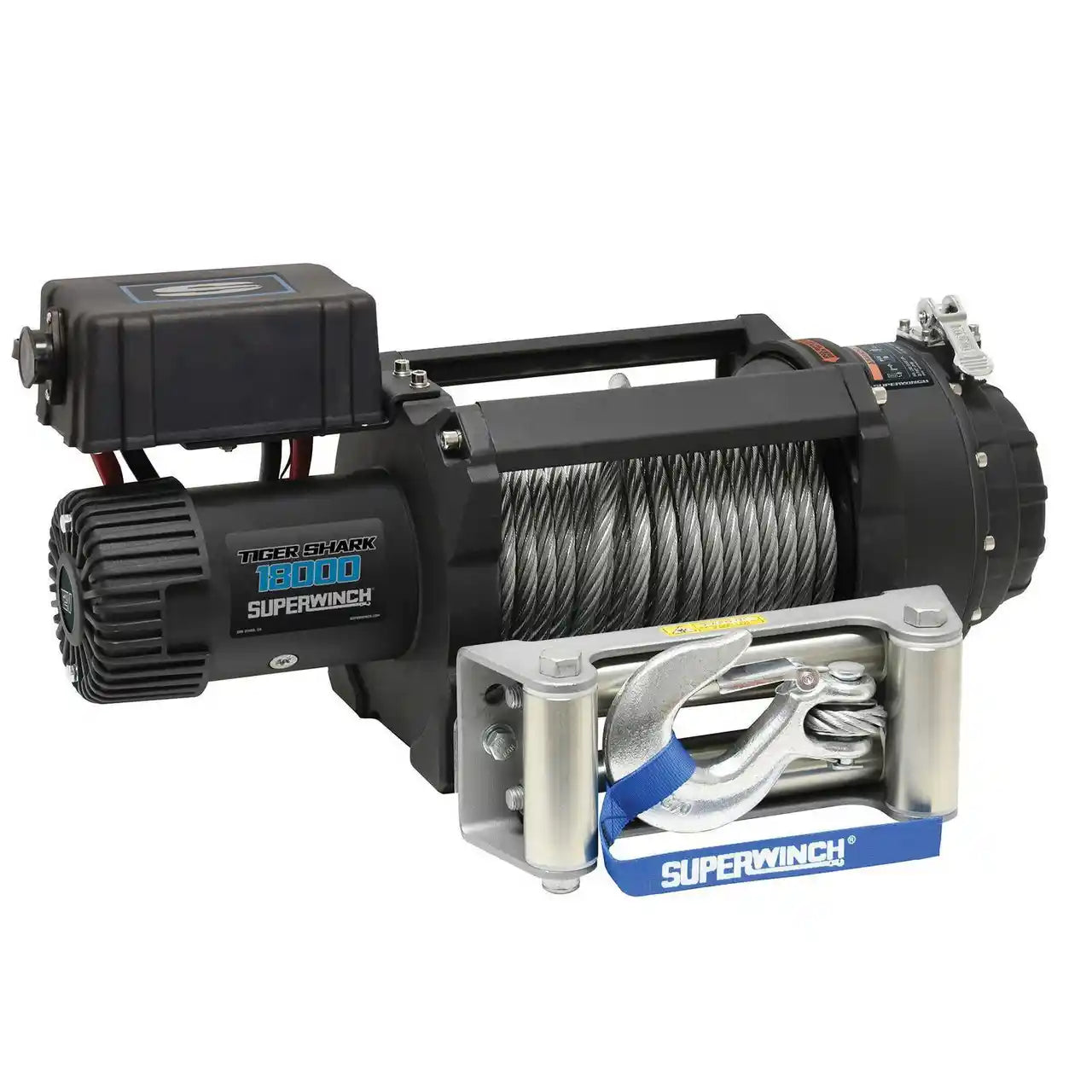

Rope Material Options Steel Cable or Synthetic Rope
Fairlead (Synthetic Rope) Aluminum Hawse
Hook Type Heavy-Duty, Clevis Pinned, Latched
Remote Control 30 ft Handheld Wired Remote (Wireless Optional - Part No. 2277)
Dimensions (L x W x H) 28" x 12" x 16"
Weight 106 lbs
Finish Textured Black Powder Coat
Battery Requirement Single 650 CCA minimum (Dual 12V 600 CCA recommended)
Warranty Limited Lifetime Mechanical / 3 Year Limited Electrical

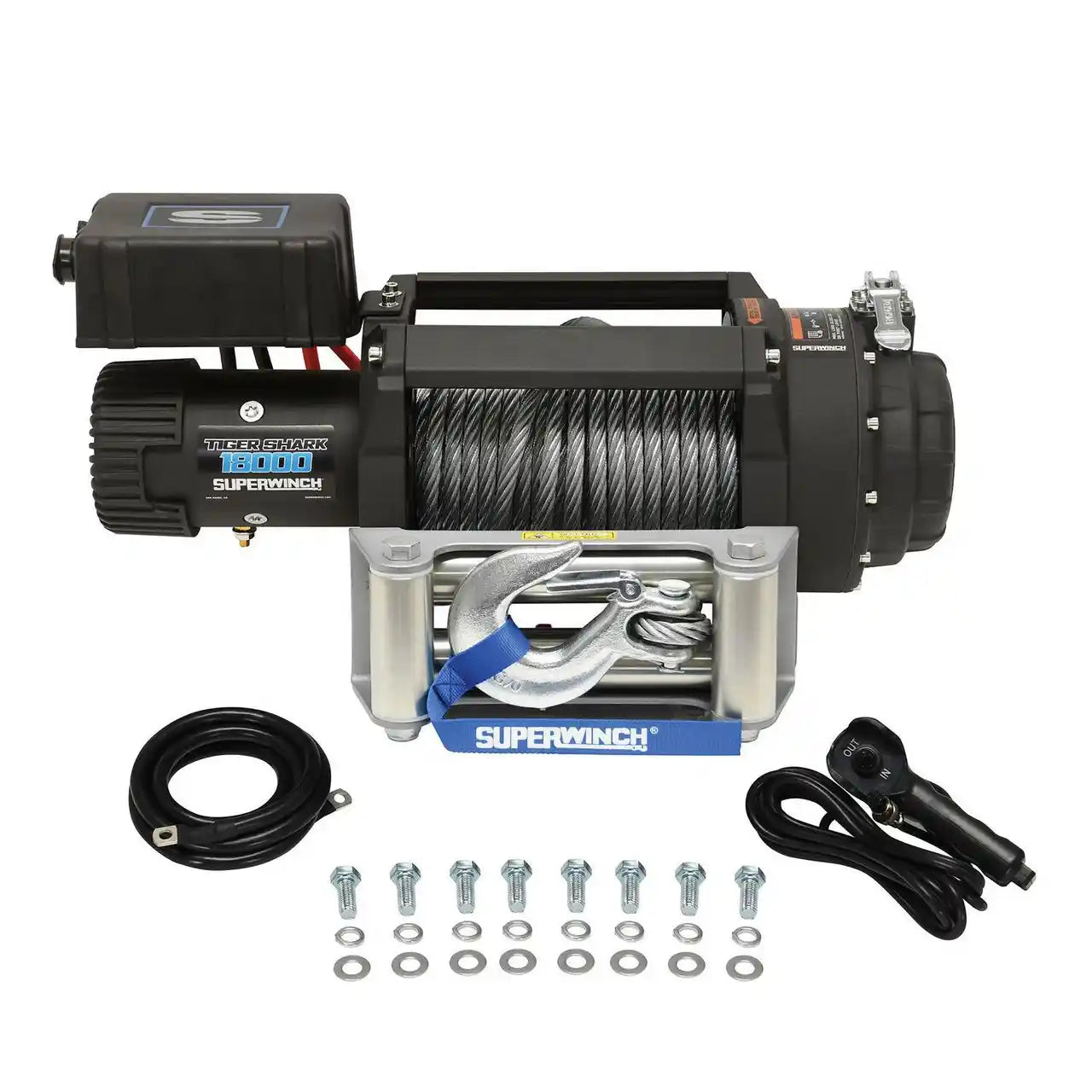

What's In The Box?

  • Superwinch Tiger Shark 18000SR Winch
  • 79 ft Synthetic Rope or Steel Cable (Pre-installed - depending on variant)
  • Heavy-Duty Clevis Pinned Latched Hook
  • Aluminum Hawse Fairlead (Synthetic Rope Variant)
  • 30 ft Handheld Wired Remote Control
  • Mounting Hardware
  • User Manual & Installation Instructions

Download Resources

Installation Instructions & User Manual

Frequently Asked Questions

+ What's the difference between the steel cable and synthetic rope versions?

The Tiger Shark 18000SR is available in two rope variants. The steel cable version offers traditional durability and abrasion resistance, ideal for rugged environments with sharp edges or extreme heat. The synthetic rope (SR) version is lighter weight, easier to handle, safer if it breaks under load, and includes an aluminum hawse fairlead. Both provide the same 18,000 lb pulling capacity - choose based on your specific application needs.
+ What battery setup is recommended for optimal performance?

For optimal performance, Superwinch recommends a single battery with a minimum of 650 CCA (Cold Cranking Amps). For heavy-duty commercial use or extended winching operations, dual 12V batteries with 600 CCA each are recommended to ensure consistent power delivery and prevent voltage drops during demanding pulls.
+ How does the Kick-N-Flip clutch work?

The innovative Kick-N-Flip style freespool clutch allows you to engage and disengage the winch drum using either your hand or foot. This versatile design is especially useful when you need to quickly deploy rope or when working in confined spaces where reaching the clutch by hand is difficult. Simply flip or kick the lever to activate freespool mode for fast rope deployment.
+ Can I upgrade to a wireless remote control?

Yes! The Tiger Shark 18000SR comes standard with a 30 ft handheld wired remote control. If you prefer wireless operation, Superwinch offers an optional wireless remote control kit (part number 2277) that can be purchased separately for added convenience and flexibility.
+ What is the heat-insulated first layer feature?

The heat-insulated first layer is a protective feature that shields the first wrap of rope on the drum from excessive heat generated during heavy pulls. This innovative design helps prevent heat damage to the rope, extends rope life, and maintains consistent performance during extended winching operations - especially important in commercial applications.
+ Is this winch suitable for permanent mounting on a trailer?

Absolutely! The Tiger Shark 18000SR is specifically engineered for heavy-duty commercial applications including permanent trailer mounting, roll-off containers, and industrial equipment. The rugged textured black powder-coated finish provides excellent corrosion resistance, and the included mounting hardware makes installation straightforward. Its proven reliability makes it ideal for daily commercial use.
+ What warranty coverage does this winch include?

The Tiger Shark 18000SR is backed by Superwinch's industry-leading warranty protection plan, which includes Limited Lifetime Mechanical Warranty and 3-Year Limited Electrical Warranty. This comprehensive coverage demonstrates Superwinch's commitment to quality and gives you peace of mind for long-term commercial use.
