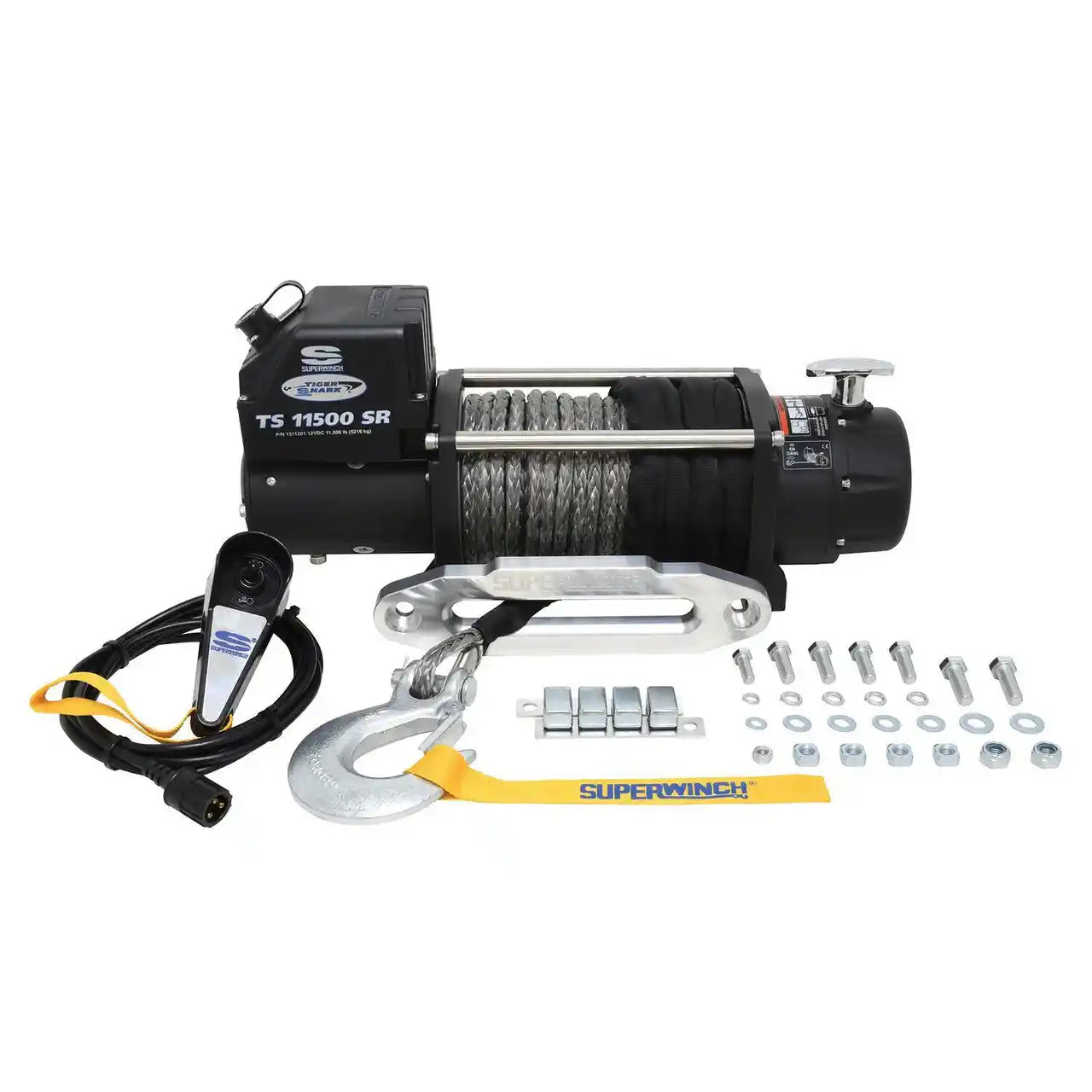

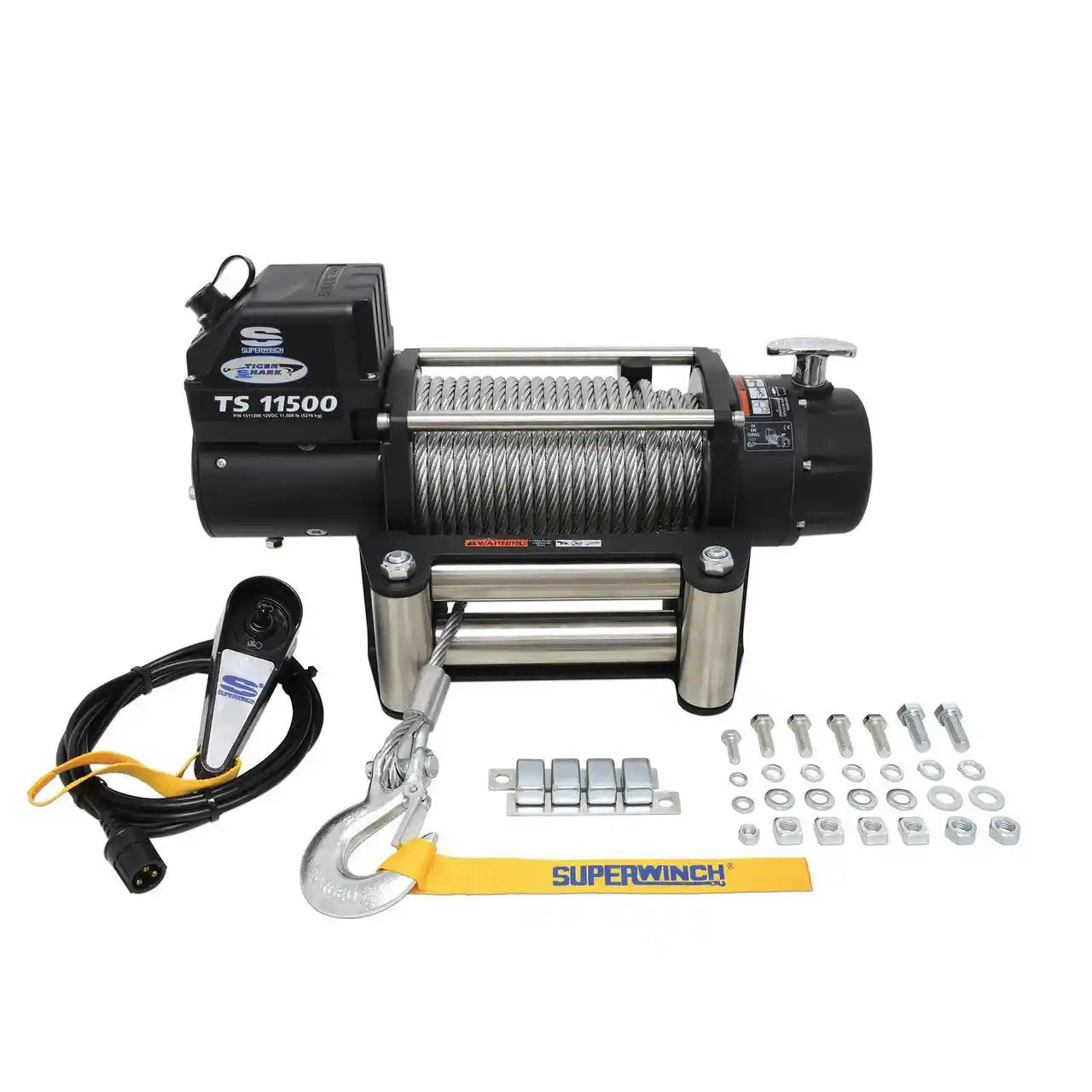

What's In The Box

  • Superwinch Tiger Shark 11500SR 12V DC Winch (with chosen rope type)
  • Rope (Steel Wire: 3/8 in x 84 ft / Synthetic: 3/8 in x 80 ft)
  • Fairlead (Stainless Steel 4-Way Roller for Steel / Aluminum Hawse for Synthetic)
  • Heavy-Duty, Clevis Pinned, Latched Hook
  • Weather Sealed Solenoid and Circuit Breaker Protected
  • 12 ft Rubber Sealed Hand-held Remote Control
  • Necessary Wiring and Hardware

Technical Specifications

Capacity 11,500 lbs (5,216 kg)

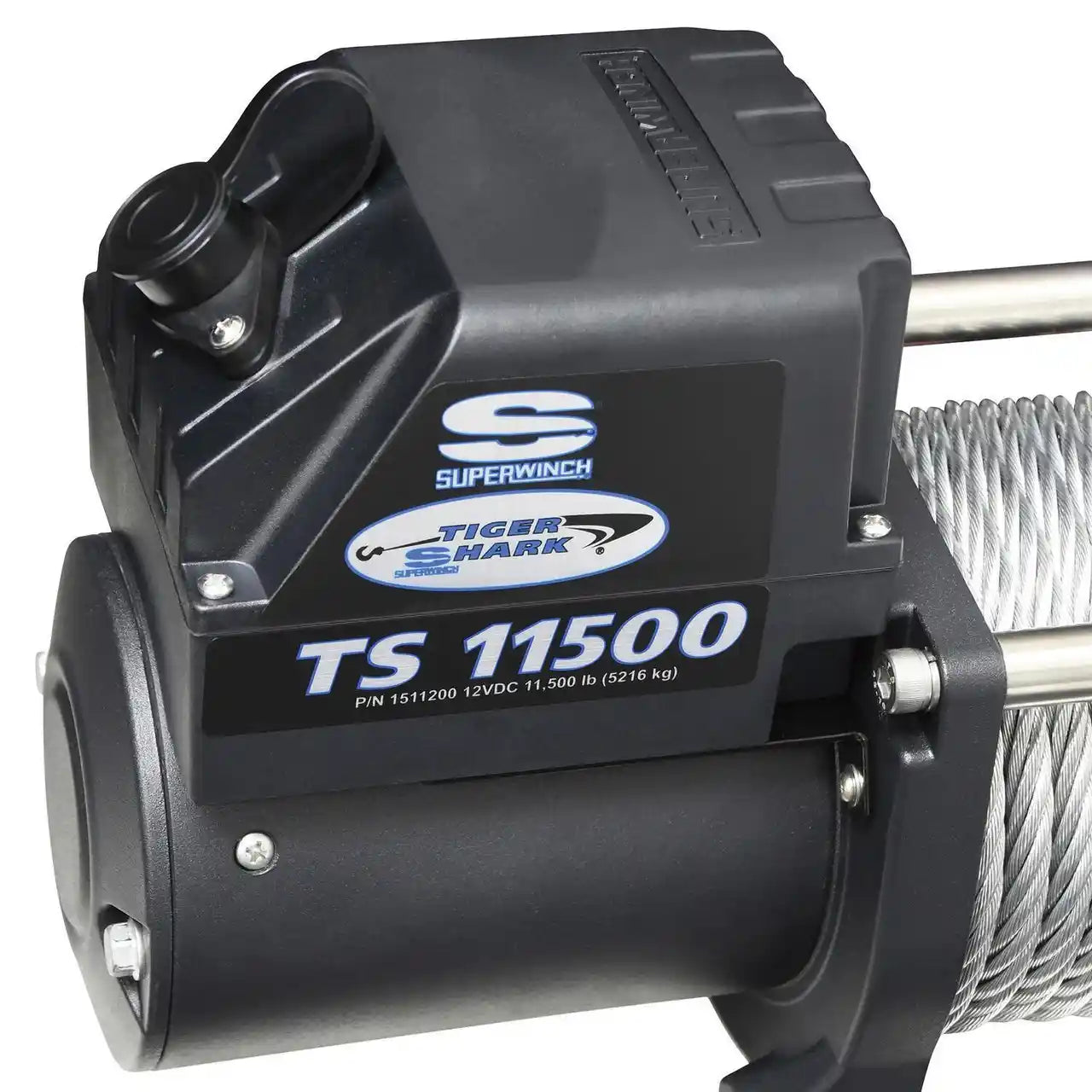

Motor 6.0 HP / 4.4 KW, 12V DC Series Wound
Gear System 3-Stage Planetary
Gear Ratio 218:1
Brake System Mechanical, Automatic Load Holding

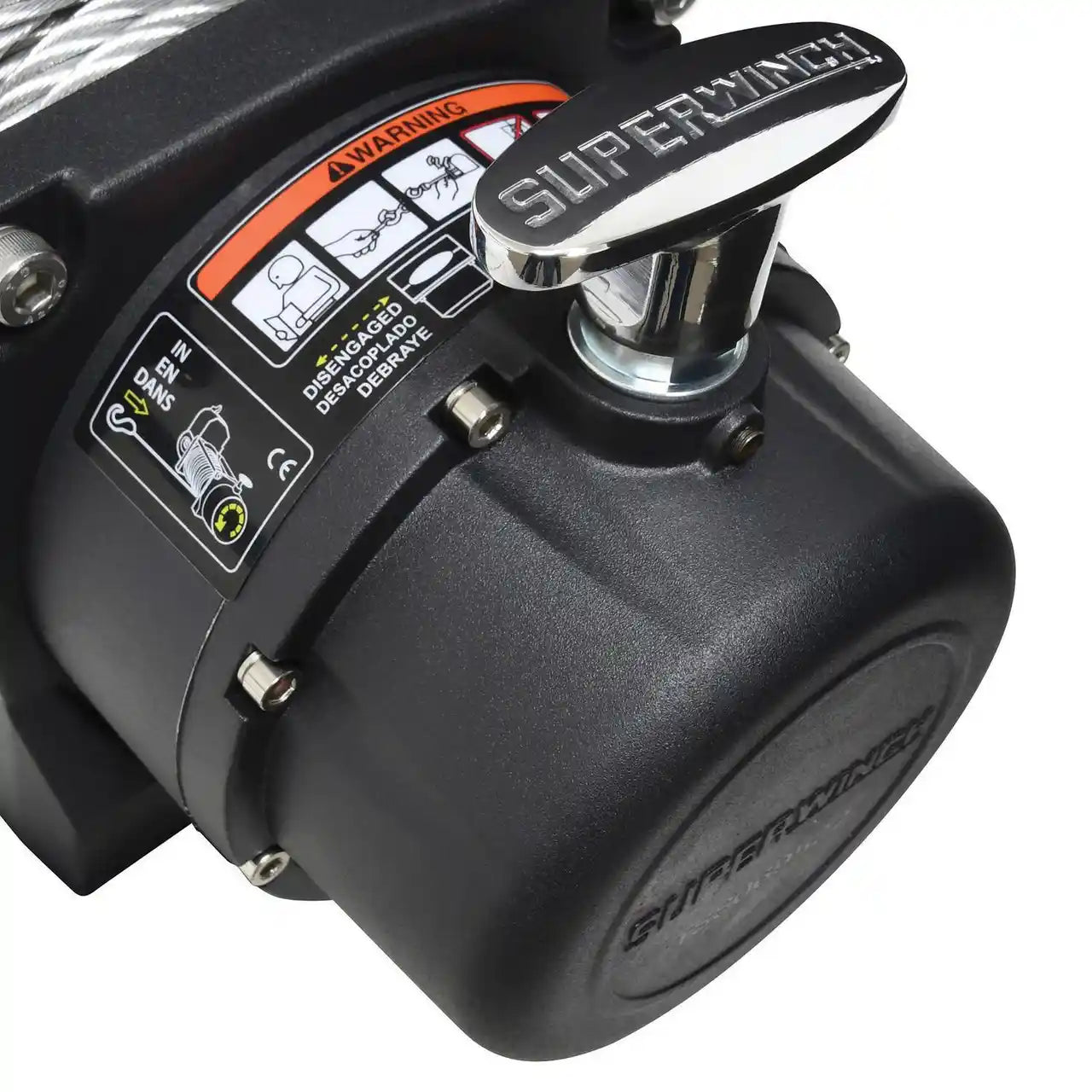

Clutch Ergonomic Pull and Turn Freespool
Solenoid Weather Sealed Solenoid and Circuit Breaker Protected

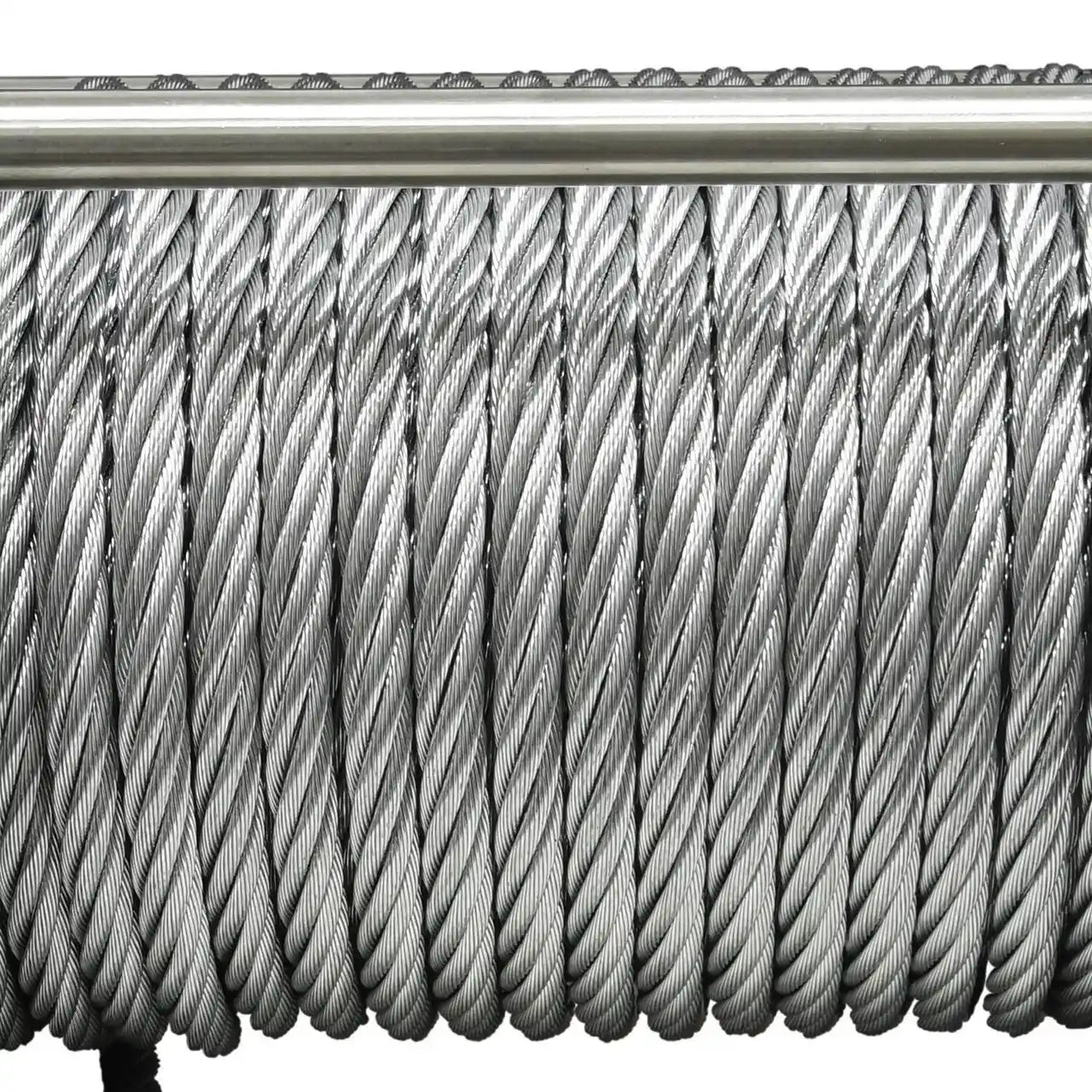

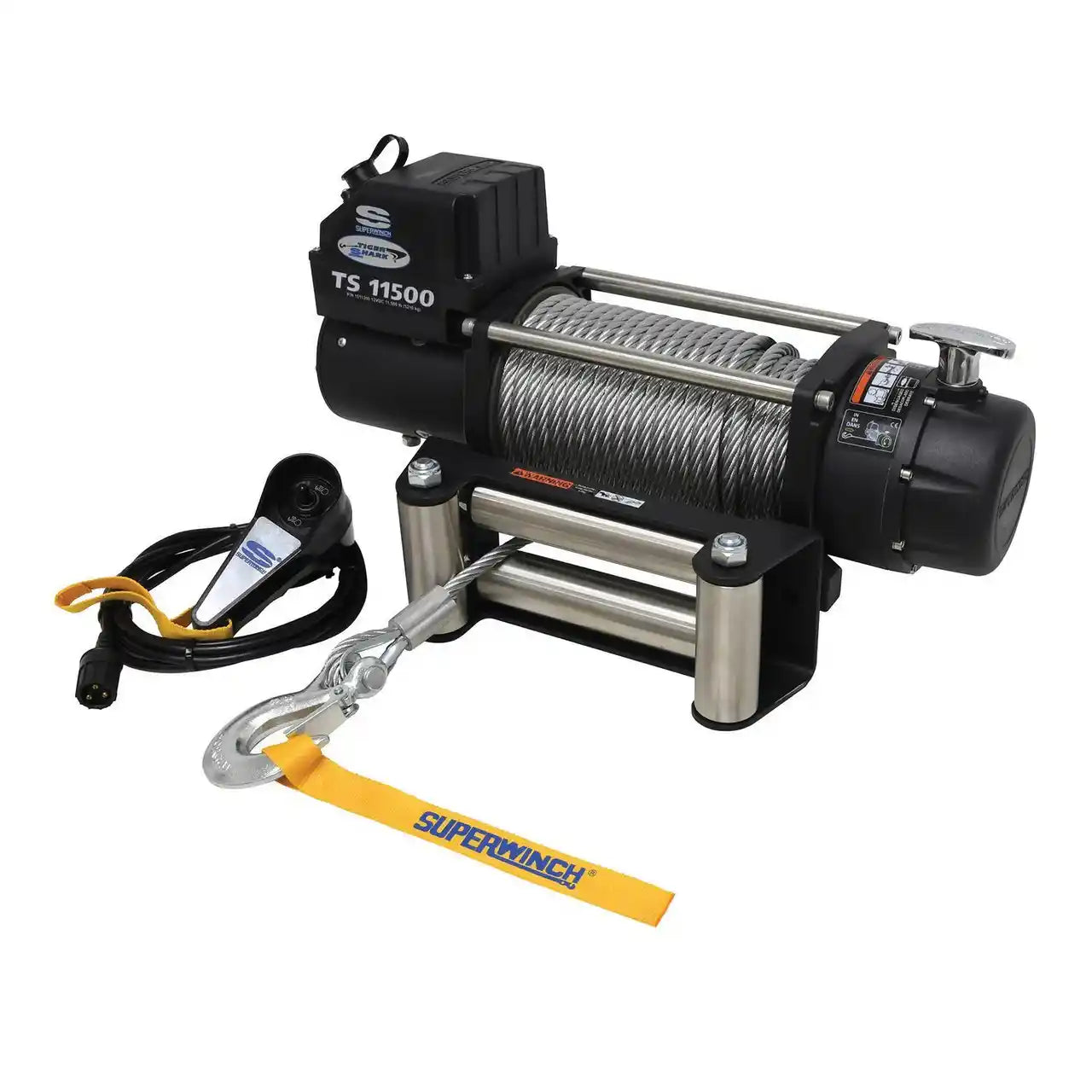

Rope Material (Option 1) Steel Wire Rope
Rope Length (Option 1) 3/8 in x 84 ft (9.5mm x 25.6m)
Fairlead (Option 1) Stainless Steel 4-Way Roller Fairlead

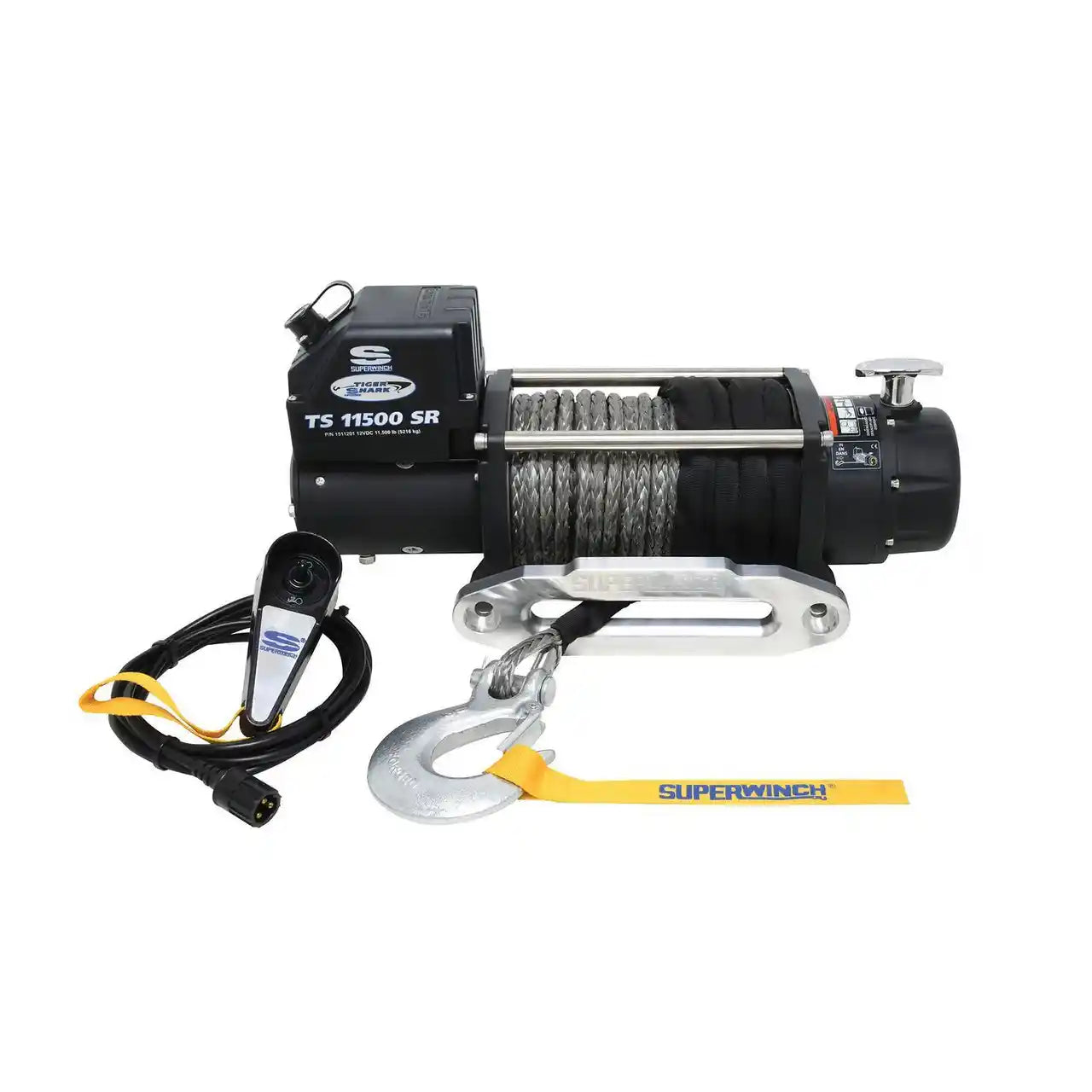

Rope Material (Option 2) Synthetic Rope
Rope Length (Option 2) 3/8 in x 80 ft (9.5mm x 24.3m)
Fairlead (Option 2) Aluminum Hawse Fairlead
Winch Hook Heavy-Duty, Clevis Pinned Latched
Remote Type Wire, 12 ft Rubber Sealed Hand-held
Drum Durable Fully Welded Steel Drum
Line Speed 80 Amps Motor Draw/19 FPM (5.7 MPM)
EN Compliant No
Color Black
Material Steel
Surface Finish Powder Coated
Weight 86.00 LBS (39.01 kg)

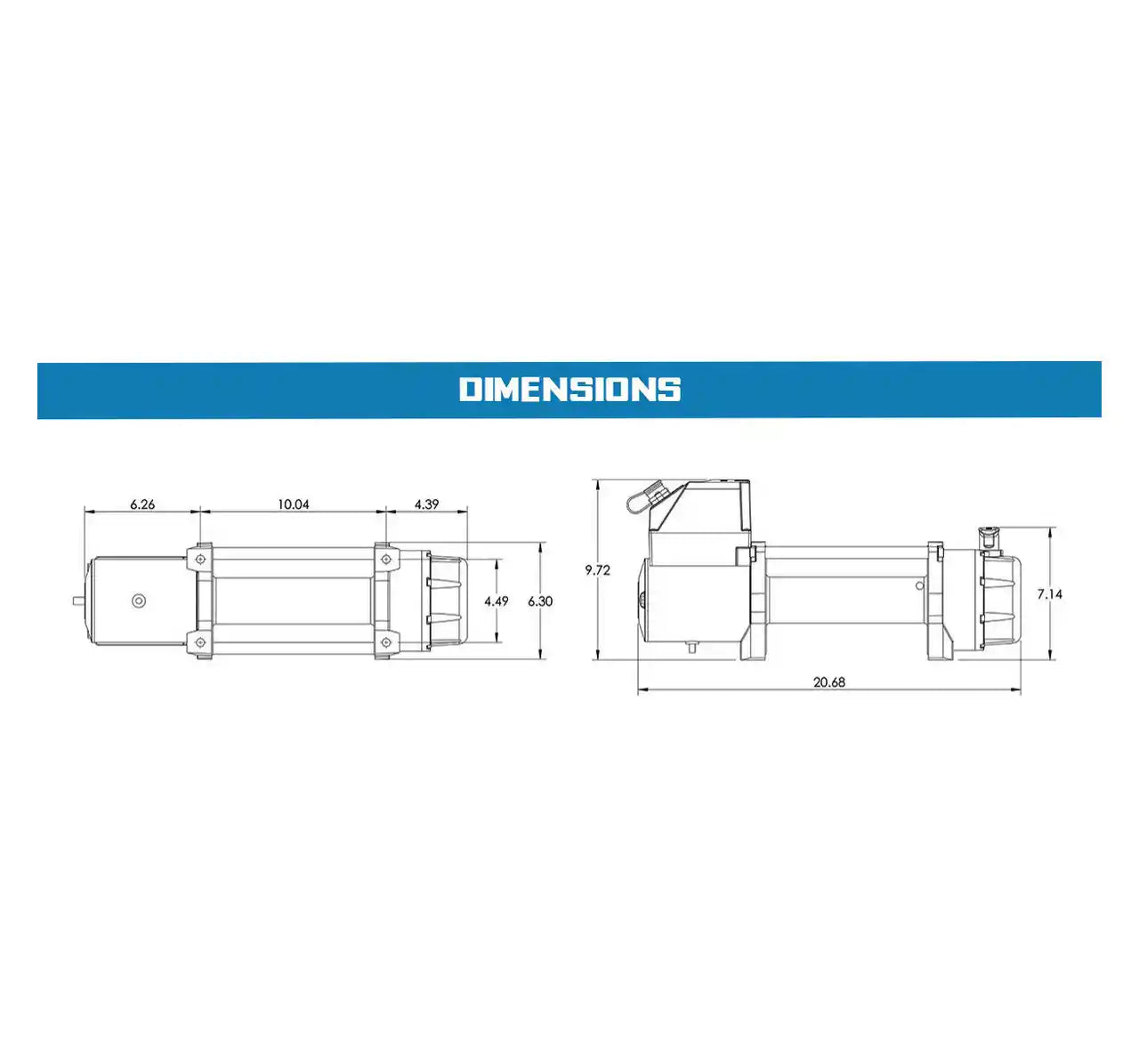

Dimensions (L x W x H) 23.00 in x 12.00 in x 12.00 in (58.42 cm x 30.48 cm x 30.48 cm)
Warranty Limited Lifetime Mechanical / Limited 7 Year Electrical

Frequently Asked Questions

+ What is the difference between steel and synthetic rope?

Steel wire rope is highly durable, resistant to abrasion, and generally more economical. It requires a roller fairlead. Synthetic rope is lighter, stronger (pound-for-pound), safer in case of breakage (less recoil), and easier to handle. It requires a hawse fairlead and is less prone to kinking or rust.

+ Is this winch waterproof?

The Superwinch Tiger Shark 11500SR features a weather-sealed solenoid and a robust design to resist water ingress, making it suitable for challenging outdoor conditions. While not fully submersible like some IP68-rated models, it's highly resistant to splashes and rain.

+ What type of motor does it use?

The Tiger Shark 11500SR is equipped with a powerful 6.0 HP series wound motor. Series wound motors are known for their high torque output and reliability, making them ideal for heavy-duty winching applications.

+ What is the warranty on this Superwinch product?

The Superwinch Tiger Shark 11500SR comes with a Limited Lifetime Mechanical Warranty and a Limited 7 Year Electrical Warranty, providing long-term peace of mind for your investment.
