Engineered for Superior Performance

  • Massive 12,000 lb Pulling Capacity: Tackle the toughest recovery situations with confidence. The SX12SR delivers exceptional pulling power that exceeds the demands of modern vehicles and heavy-duty applications.
  • High-Performance 6.0 HP Sealed Motor: Experience relentless power with the robust 6.0 HP motor. The sealed design protects against moisture, dust, and debris, ensuring long-term reliability in harsh environments.

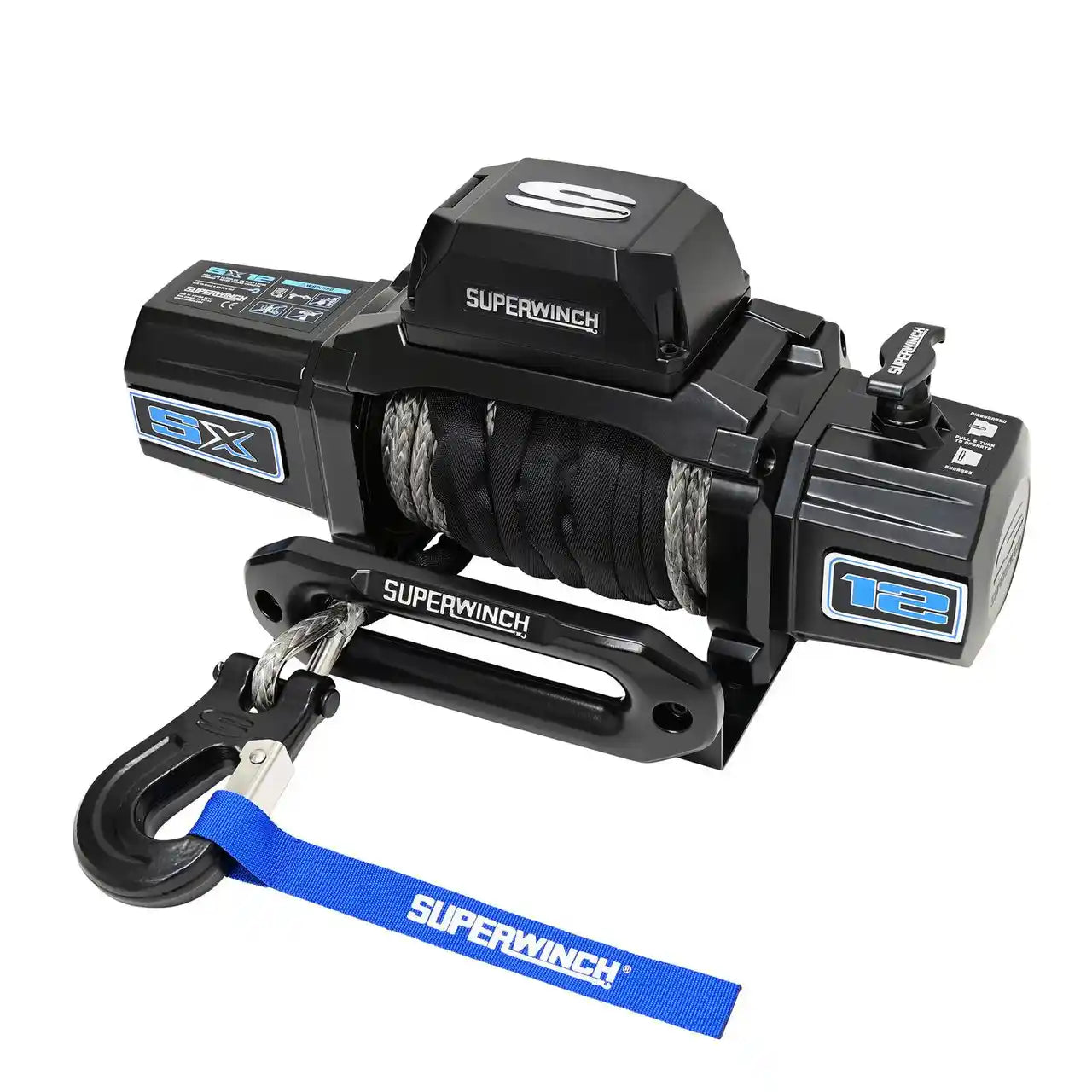

  • Durable 80' UV-Coated Synthetic Rope: The 3/8" diameter synthetic rope is lighter and safer than steel cable while offering superior strength. UV coating protects against sun damage, extending rope life significantly.
  • Advanced Dual Remote Control System: Operate your winch with convenience and safety. Includes both a wireless remote and a 12' wired remote with an integrated lithium-ION rechargeable LED flashlight for nighttime operations.

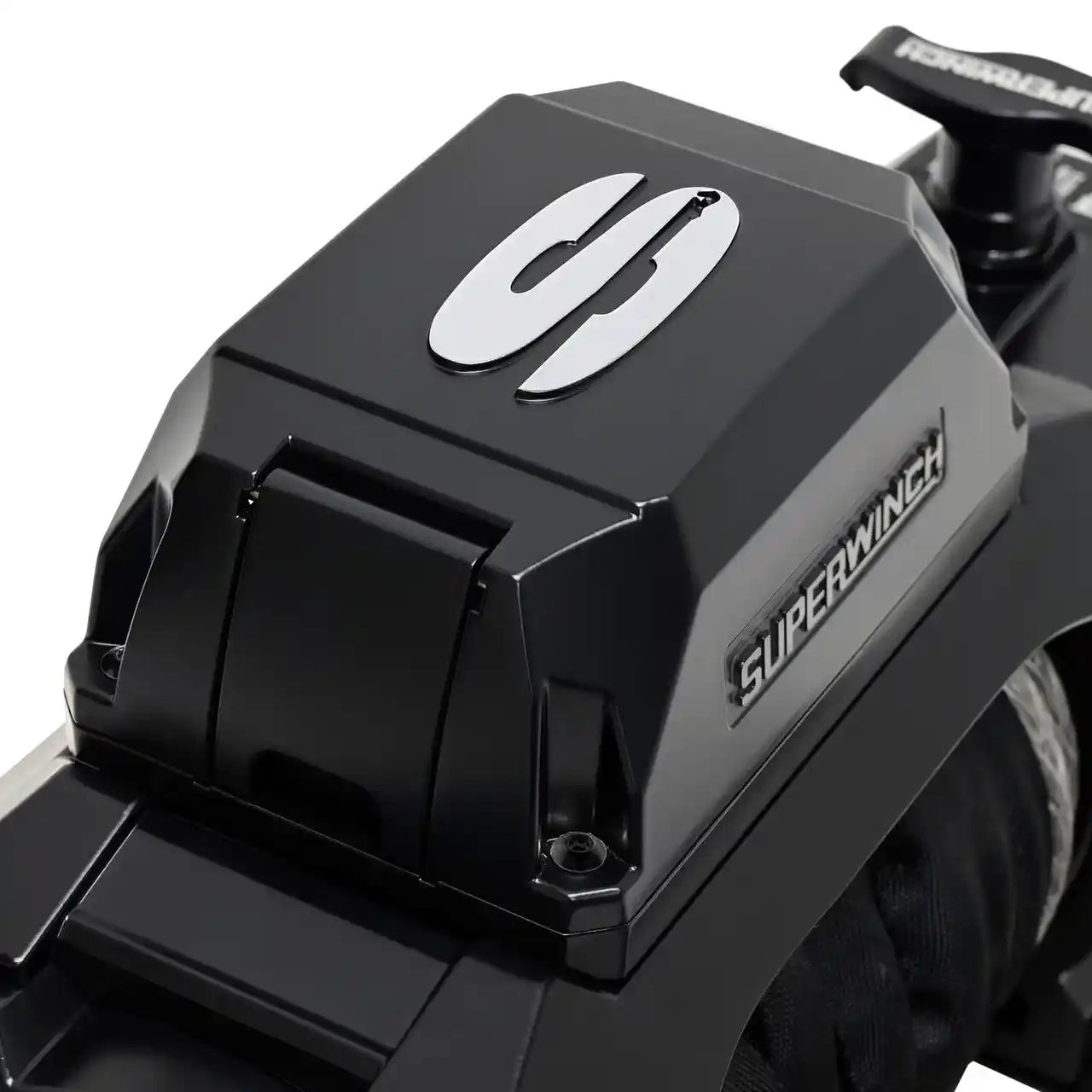

  • Relocatable Die-Cast Aluminum Control Box: Maximize installation flexibility with a control box that can be positioned wherever it works best for your vehicle setup. The die-cast aluminum construction ensures durability and heat dissipation.
  • Innovative Patented Drum Light: Work safely in low-light conditions with the integrated drum light that illuminates the spooling area, making night operations safer and more efficient.

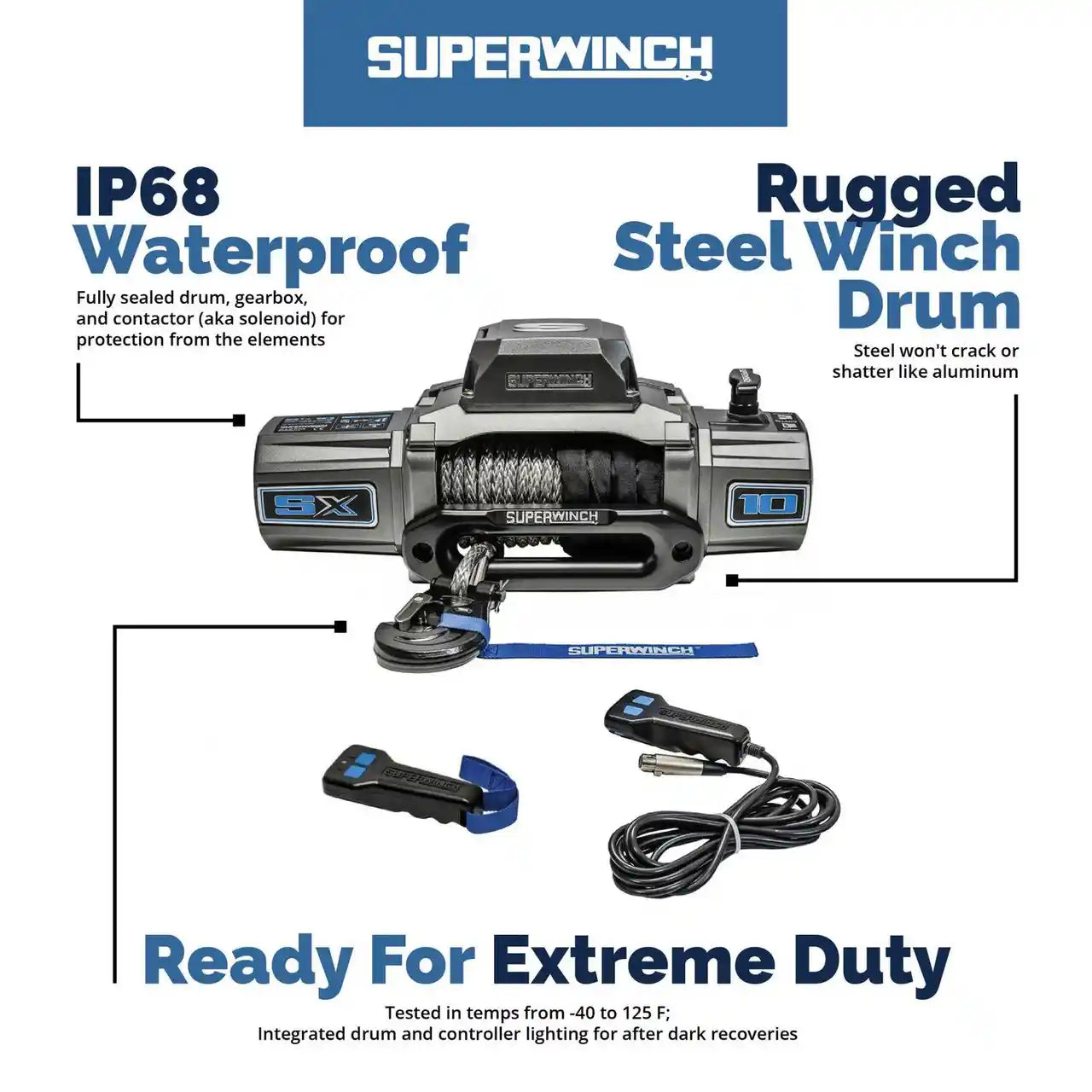

  • IP68 Waterproof and Dustproof Rating: Don't let weather stop your operations. With an IP68 rating, this winch is completely protected against dust ingress and can withstand continuous immersion in water, making it ideal for all environments.
  • Efficient 3-Stage Planetary Gearing: The 231:1 gear ratio provides optimal balance between power and speed, delivering smooth, controlled pulling performance with minimal motor strain.
  • 100% Full Load Holding Automatic Brake: Safety is paramount. The automatic mechanical brake securely holds full loads, providing peace of mind during critical operations and steep recoveries.

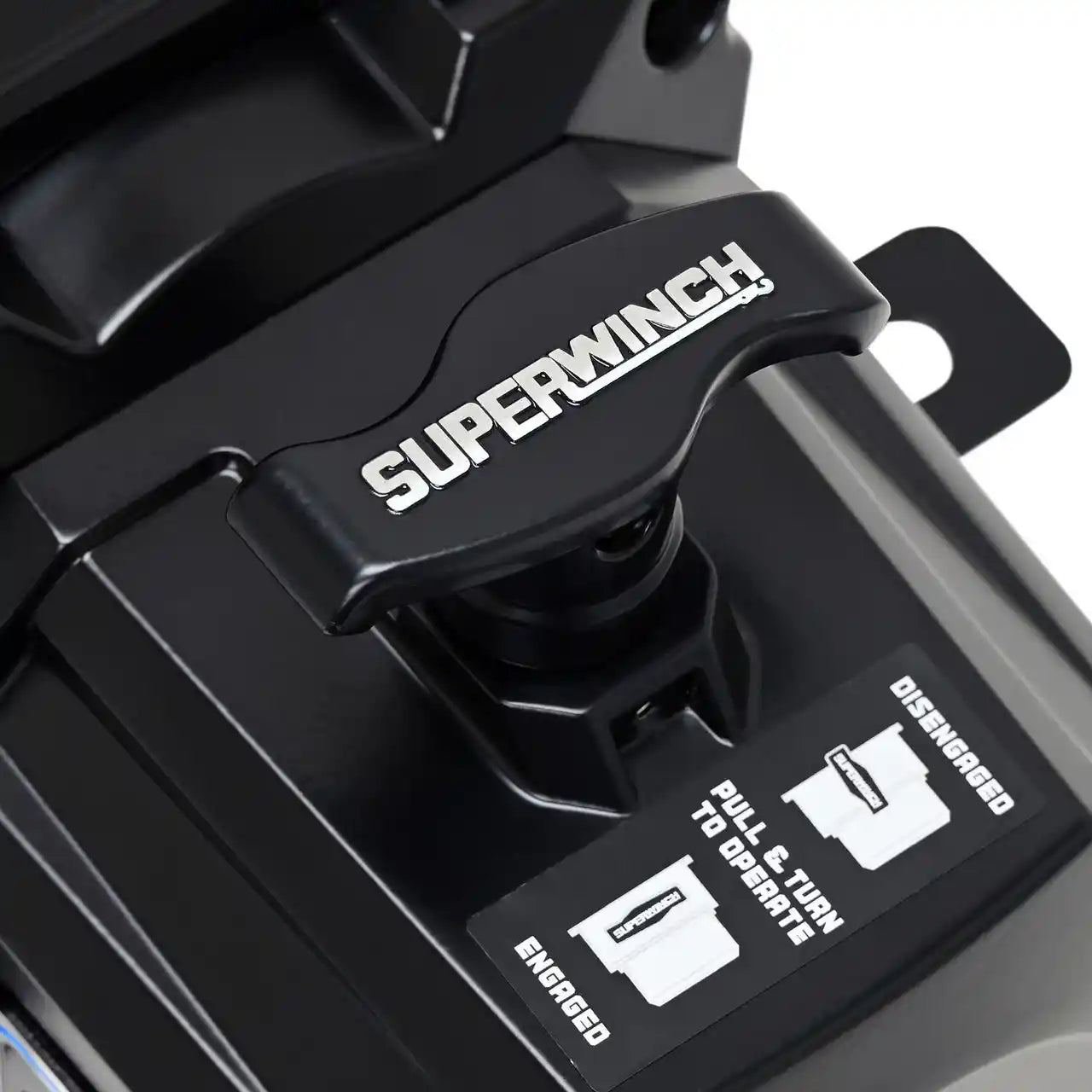

  • User-Friendly Ergonomic Clutch: The pull-and-turn clutch handle offers intuitive operation, making it easy to engage and disengage the free-spooling function quickly when you need it most.
  • Versatile Clockable Gear Box: Customize the winch orientation to fit your specific mounting requirements. The clockable gear box allows for multiple mounting positions without compromising performance.
  • Durable Metallic Graphite Powder Coat Finish: Available in both black and graphite finishes, the premium powder coat provides exceptional corrosion resistance and maintains its appearance through years of tough use.

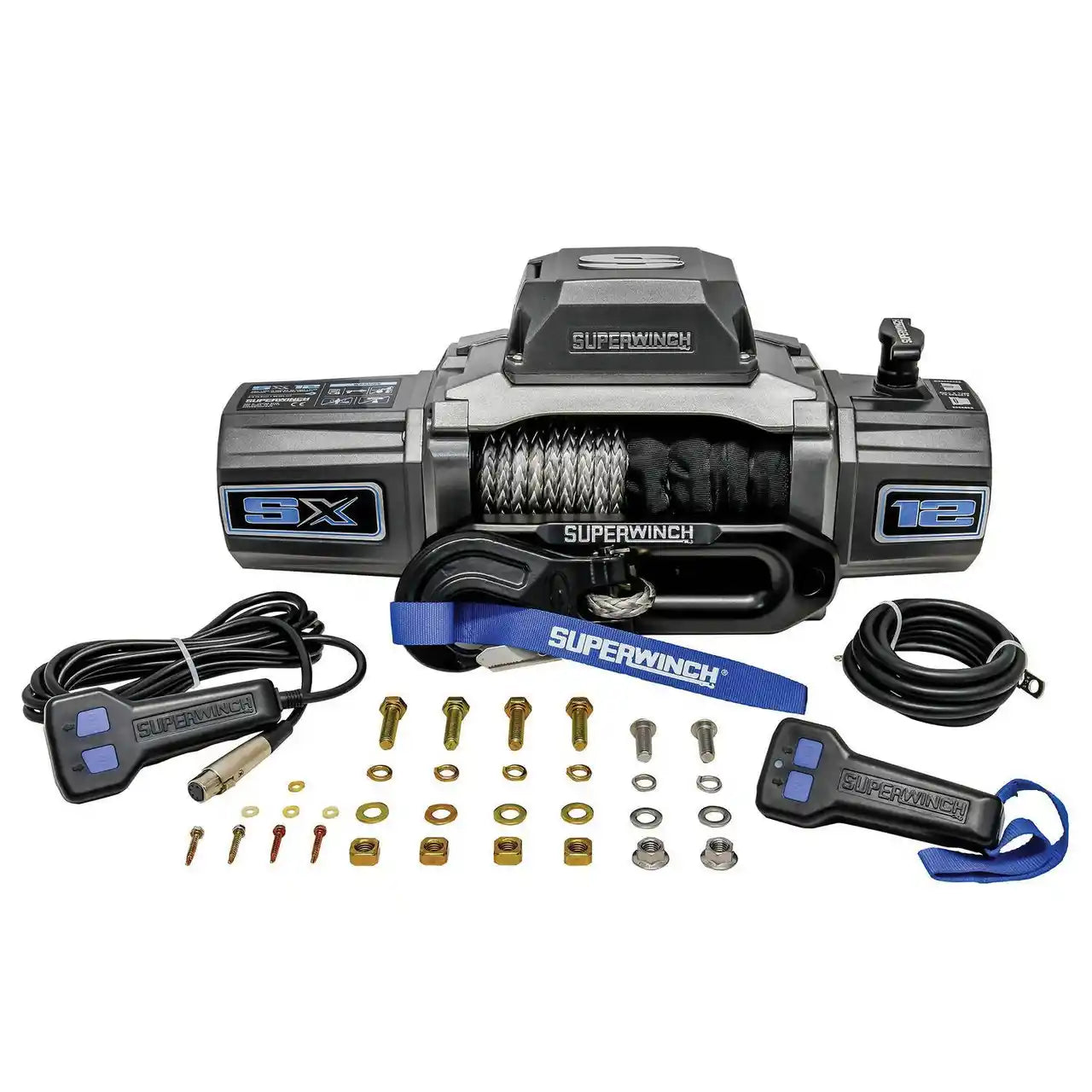

What's In The Box

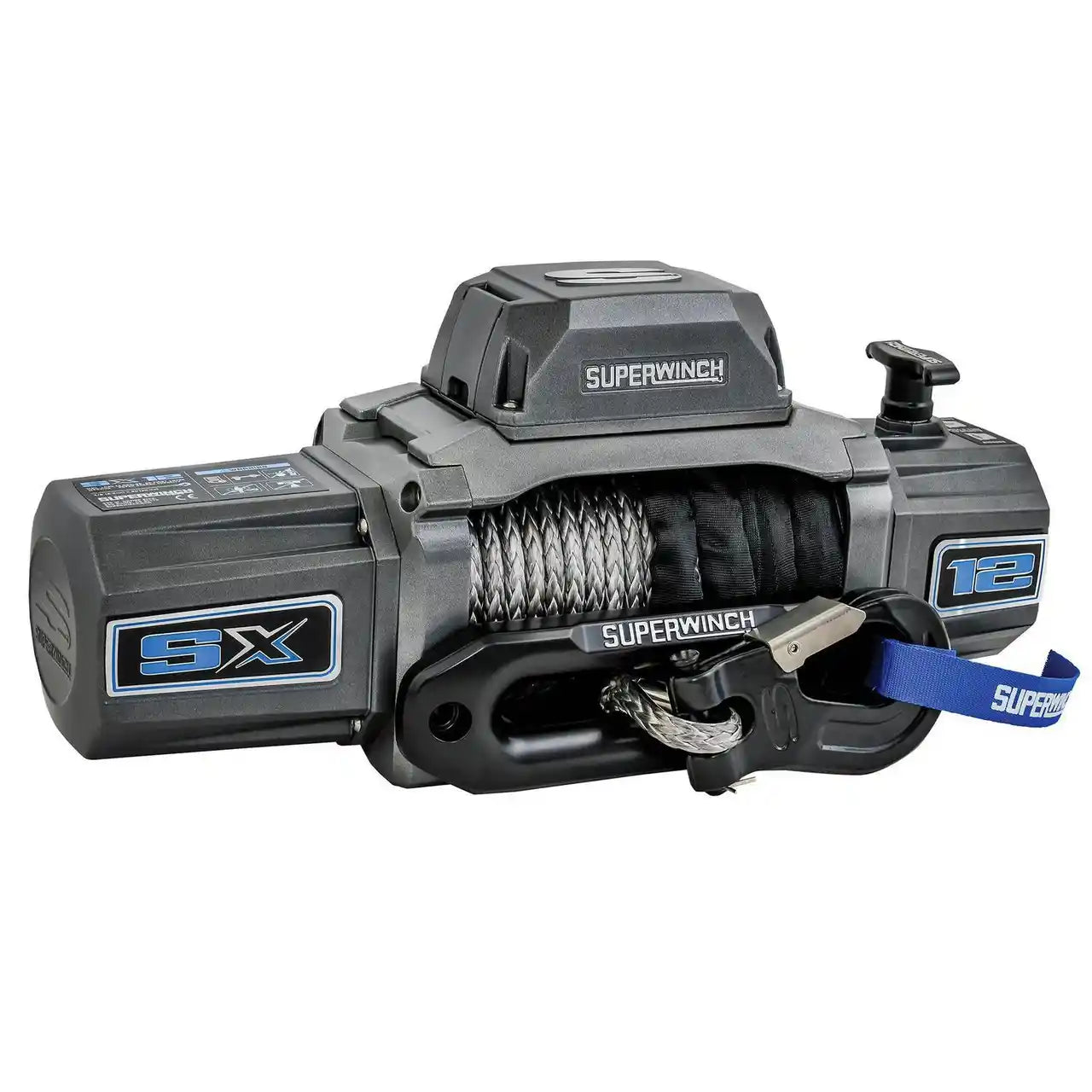

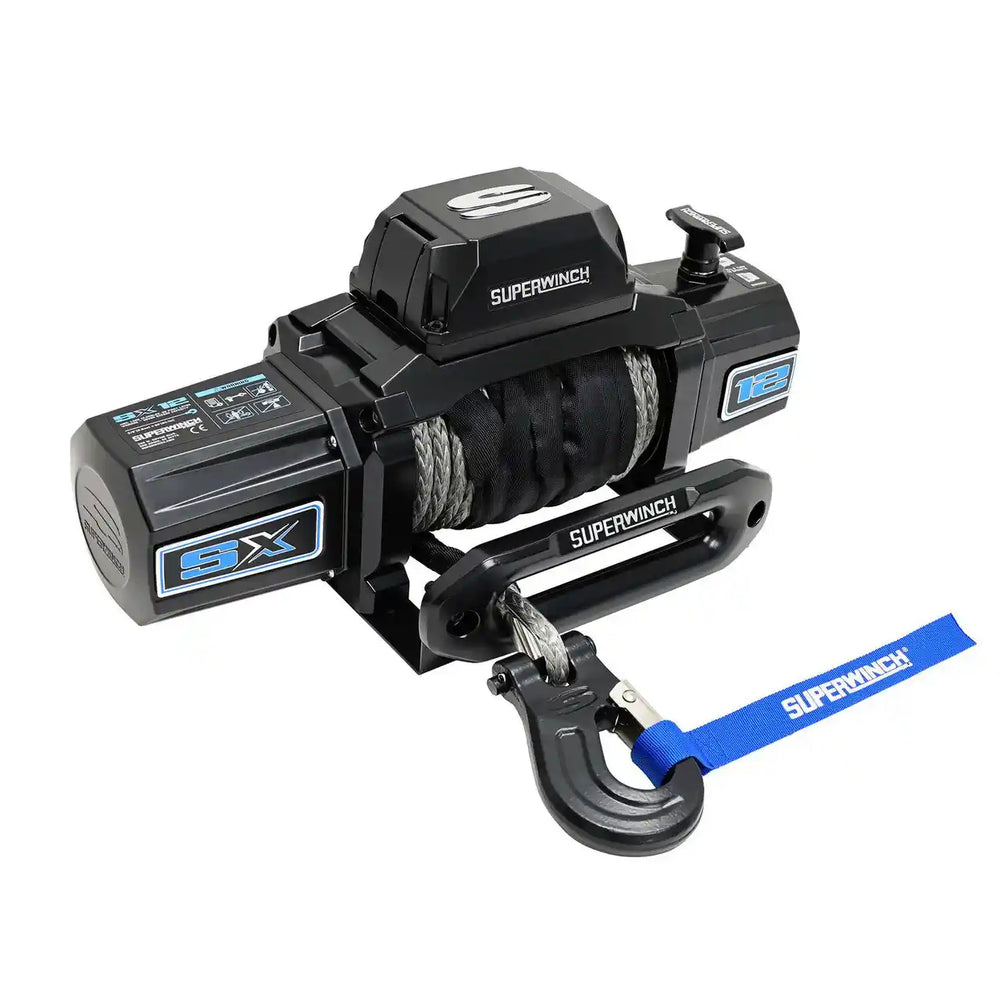

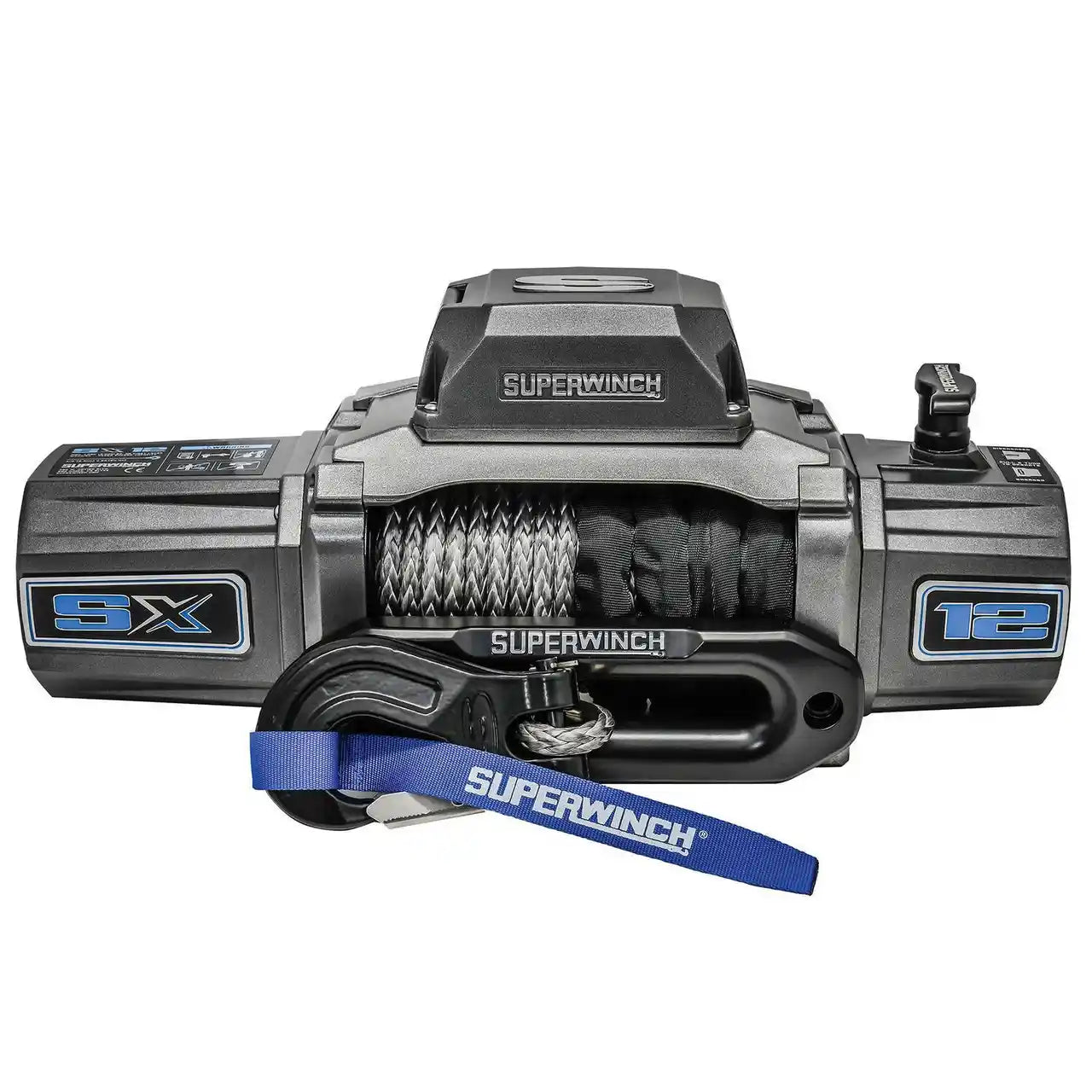

  • Superwinch SX12SR 12000lb Winch
  • Relocatable Die-Cast Aluminum Control Box
  • Wireless Remote Control
  • 12' Wired Remote with Integrated LED Flashlight
  • 80' UV-Coated 3/8" Synthetic Rope
  • Heavy Duty Clevis Winch Hook
  • Aluminum Hawse Fairlead
  • All Necessary Mounting Hardware
 Superwinch SX12SR features and components

Technical Specifications

Rated Line Pull 12,000 lbs (5,443 kg)
Motor 6.0 HP Sealed, 12V DC
Remote Control Wireless & 12' Wired with LED Flashlight
Rope 3/8" x 80' UV-Coated Synthetic
Gear System 3-Stage Planetary
Gear Ratio 231:1
Brake System 100% Full Load Holding Automatic Mechanical Brake
Clutch Pull and Turn Handle
Fairlead Aluminum Hawse
Drum Diameter 2.5"
IP Rating IP68 Waterproof and Dustproof
Finish Durable Metallic Graphite Powder Coat
Color Options Black, Graphite
Weight 62 lbs (28.1 kg)
Dimensions 24" L x 13" W x 12" H
Mounting Type Bolt-On, No Drilling Required
Warranty Limited Lifetime Mechanical / Limited 7 Year Electrical

Performance Data

Motor Performance
Motor Draw 68 Amps
Line Speed 23.4 FPM (7.13 MPM)
Voltage 12V DC
Construction Features
Control Box Relocatable Die-Cast Aluminum
Drum Material Fully Welded Steel
Task Lighting Patented Drum Light
Clutch Handle Ergonomic Pull-and-Turn

Download Resources

Instruction Manual

Frequently Asked Questions

+ What is the advantage of synthetic rope over steel cable?

Synthetic rope offers several advantages: it's significantly lighter (about 1/4 the weight of steel), safer (doesn't store kinetic energy like steel cable), floats on water, is easier to handle, and doesn't corrode. The UV coating on the SX12SR's rope provides additional protection against sun damage.
+ How does the IP68 rating benefit winch performance?

The IP68 rating means the winch is completely dust-tight and can be submerged in water beyond 1 meter depth continuously. This ensures reliable operation in muddy conditions, river crossings, heavy rain, or any environment where water and debris exposure is a concern.
+ Can the control box be mounted in different positions?

Yes, the die-cast aluminum control box is designed to be relocatable. This allows you to position it wherever it works best for your specific vehicle setup, improving installation flexibility and optimizing cable routing.
+ What does "clockable gear box" mean?

A clockable gear box can be rotated to different positions during installation. This feature allows you to orient the winch motor and gear housing to fit specific mounting configurations without compromising performance or requiring custom brackets.
+ Is the wireless remote included with the winch?

Yes, the SX12SR comes complete with both a wireless remote and a 12' wired remote that features an integrated lithium-ION rechargeable LED flashlight. This gives you multiple control options for different situations.
+ What colors is the SX12SR available in?

The Superwinch SX12SR is available in two premium finishes: black and graphite. Both feature a durable metallic graphite powder coat finish that provides excellent corrosion resistance and maintains its appearance through tough use.
