Key Features for Superior Recovery and Performance

  • 7,500 lbs. Pulling Capacity: Tackle challenging recovery situations and heavy loads with confidence.
  • 3.6 HP Permanent Magnet Motor: Delivers consistent, powerful pulling with integrated dynamic braking for precise control.
  • Choice of Rope: Steel Wire or Synthetic:

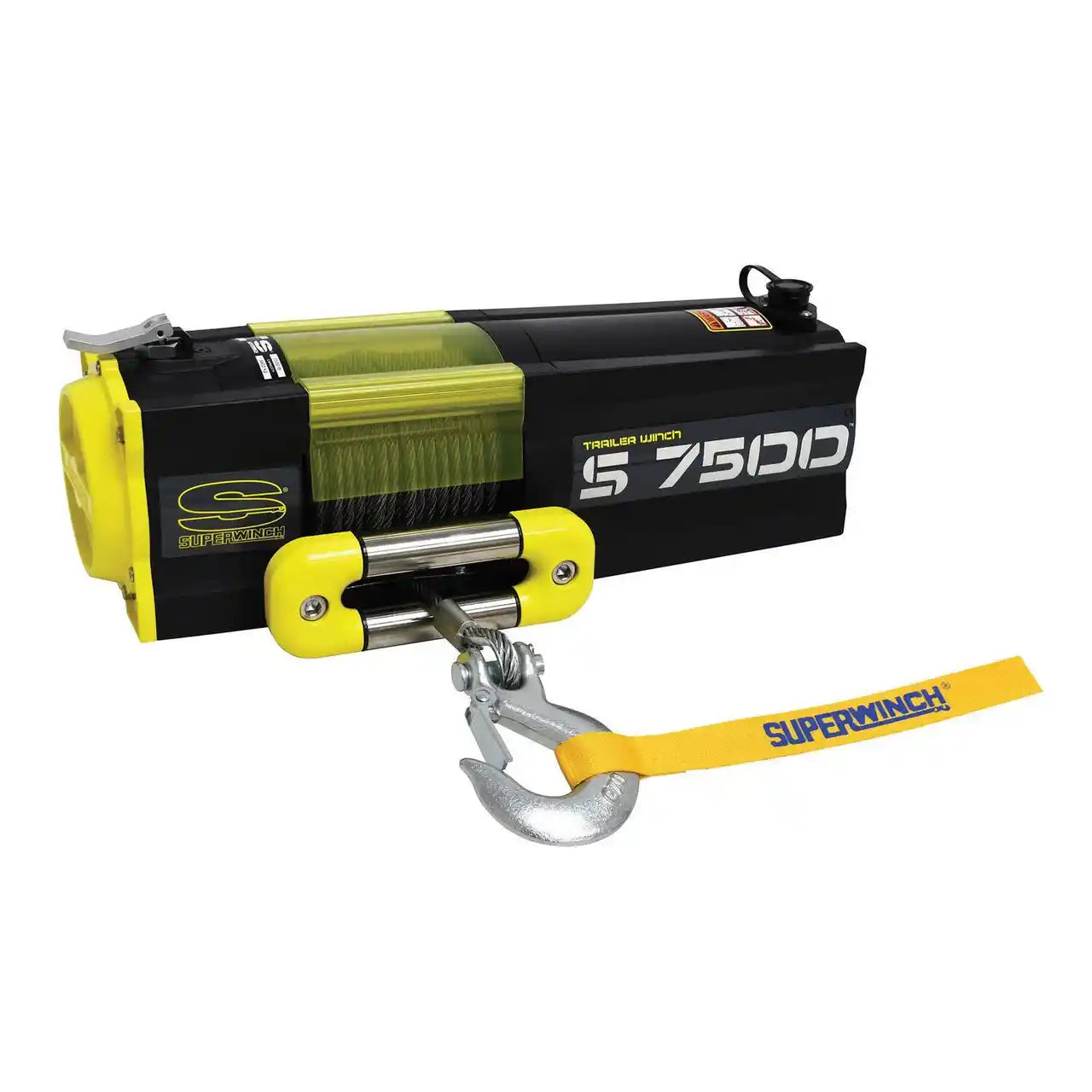

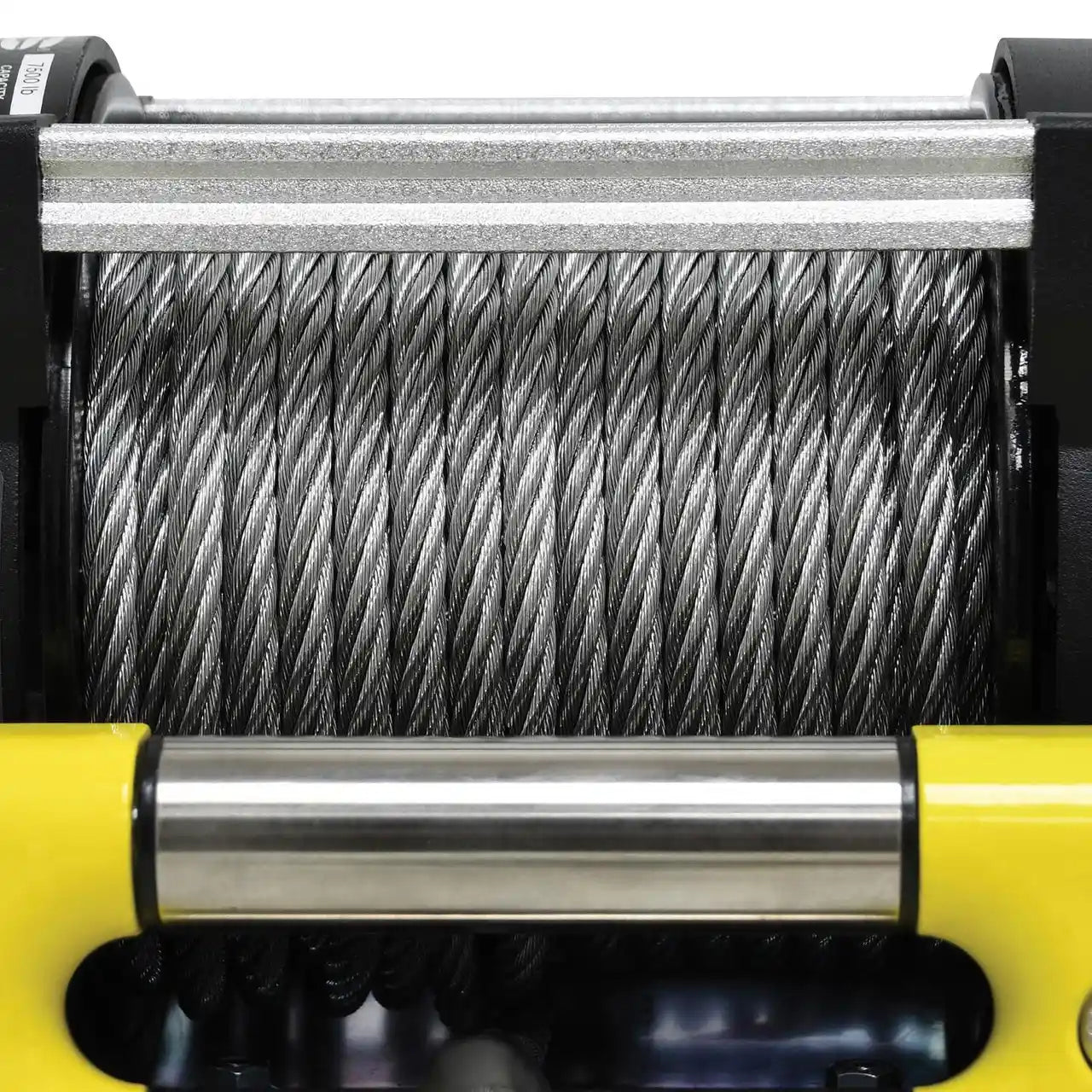

    Steel Wire Rope: 5/16 in. x 55 ft. for traditional strength and durability.

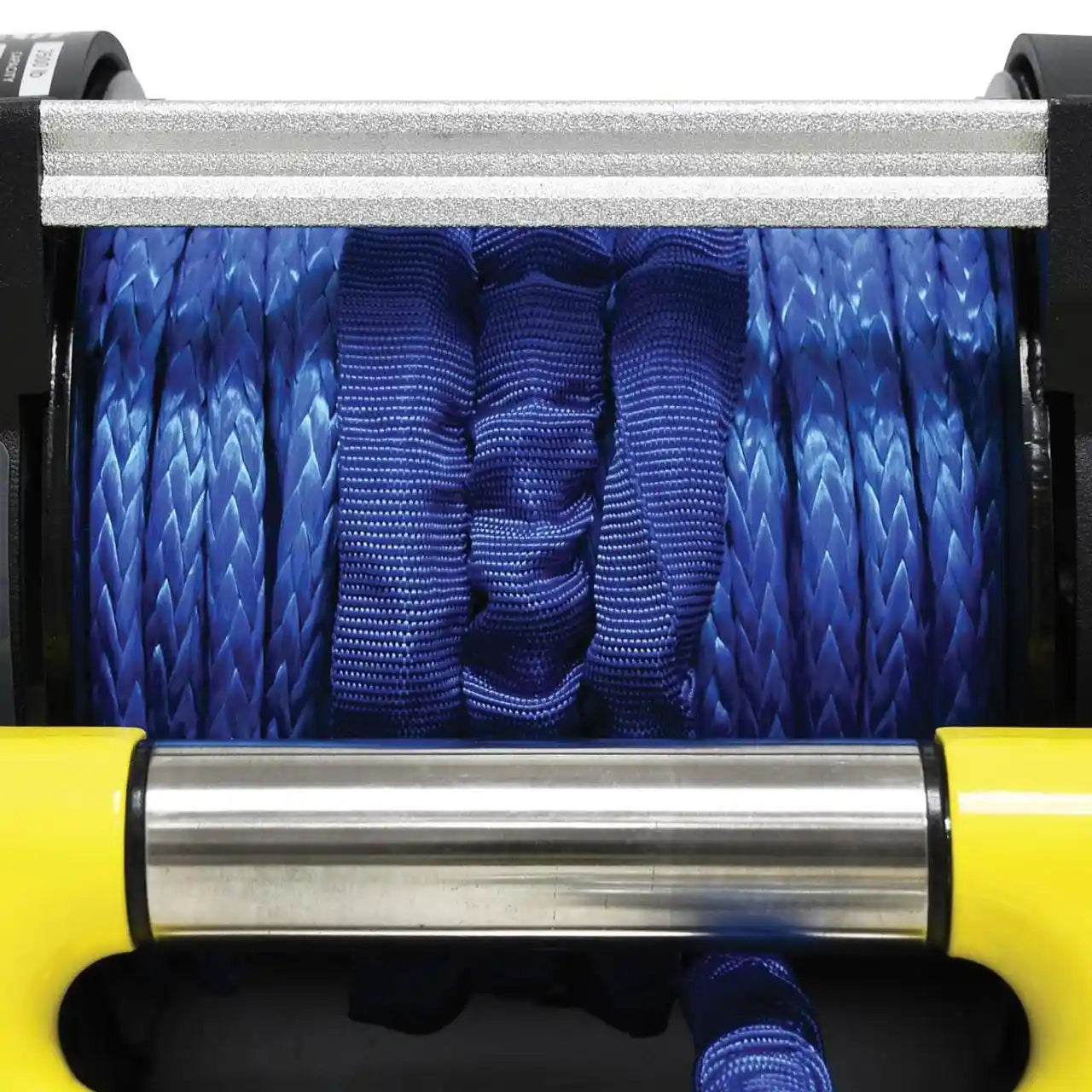

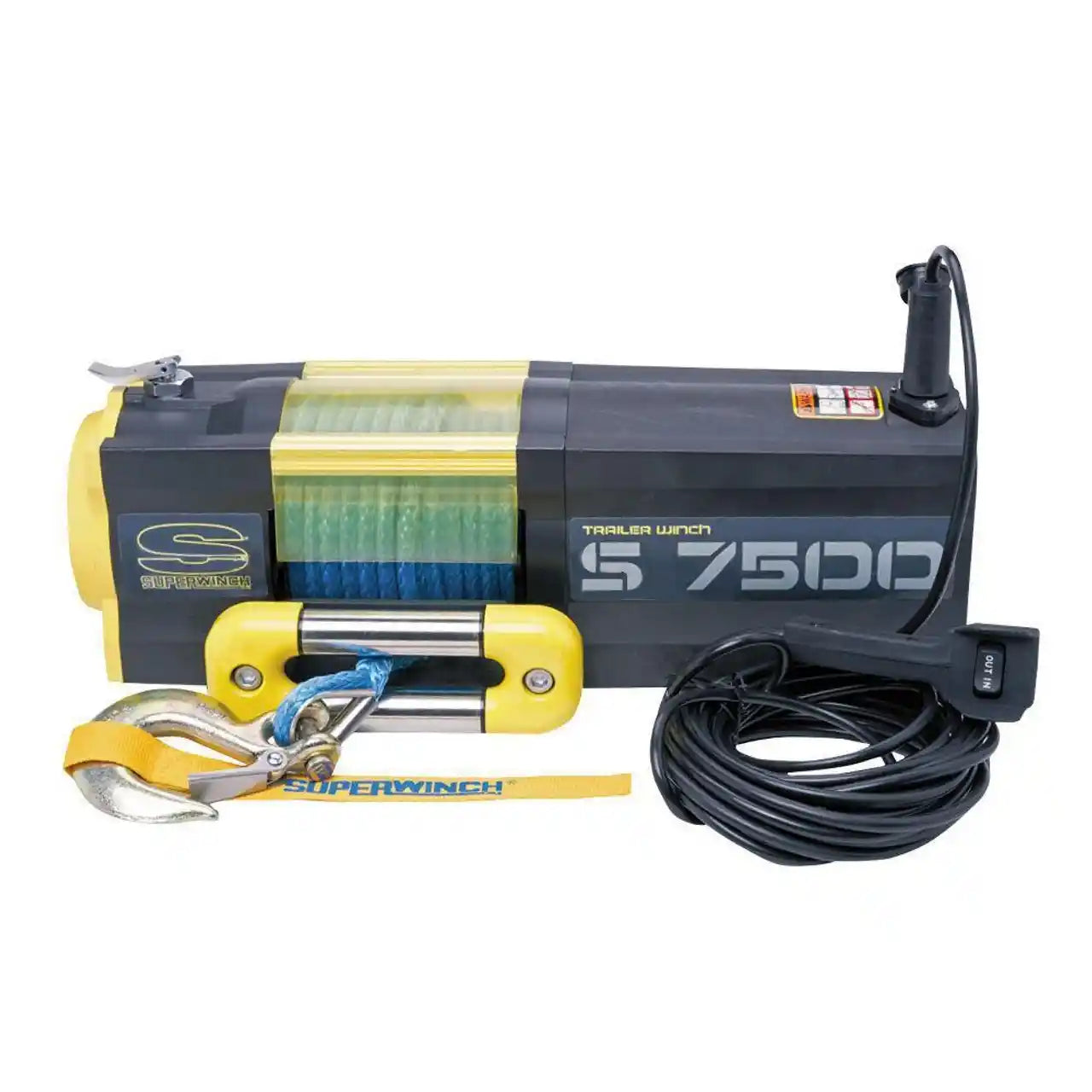

    Synthetic Rope: 5/16 in. x 55 ft. for lighter weight, enhanced safety, and high performance.
  • Efficient 3-Stage Planetary Gearing: A 249:1 gear ratio provides immense power and smooth operation.
  • Automatic Load Holding Brake: Ensures the load remains securely held when the winch is not actively pulling or releasing.
  • Steel Cut Gears: Offers superior strength, improved engagement, and maximum longevity for demanding use.
  • Sealed Solenoid (VS4 Submersible Vented): Provides ultimate protection against water, dirt, and dust for reliable functionality.

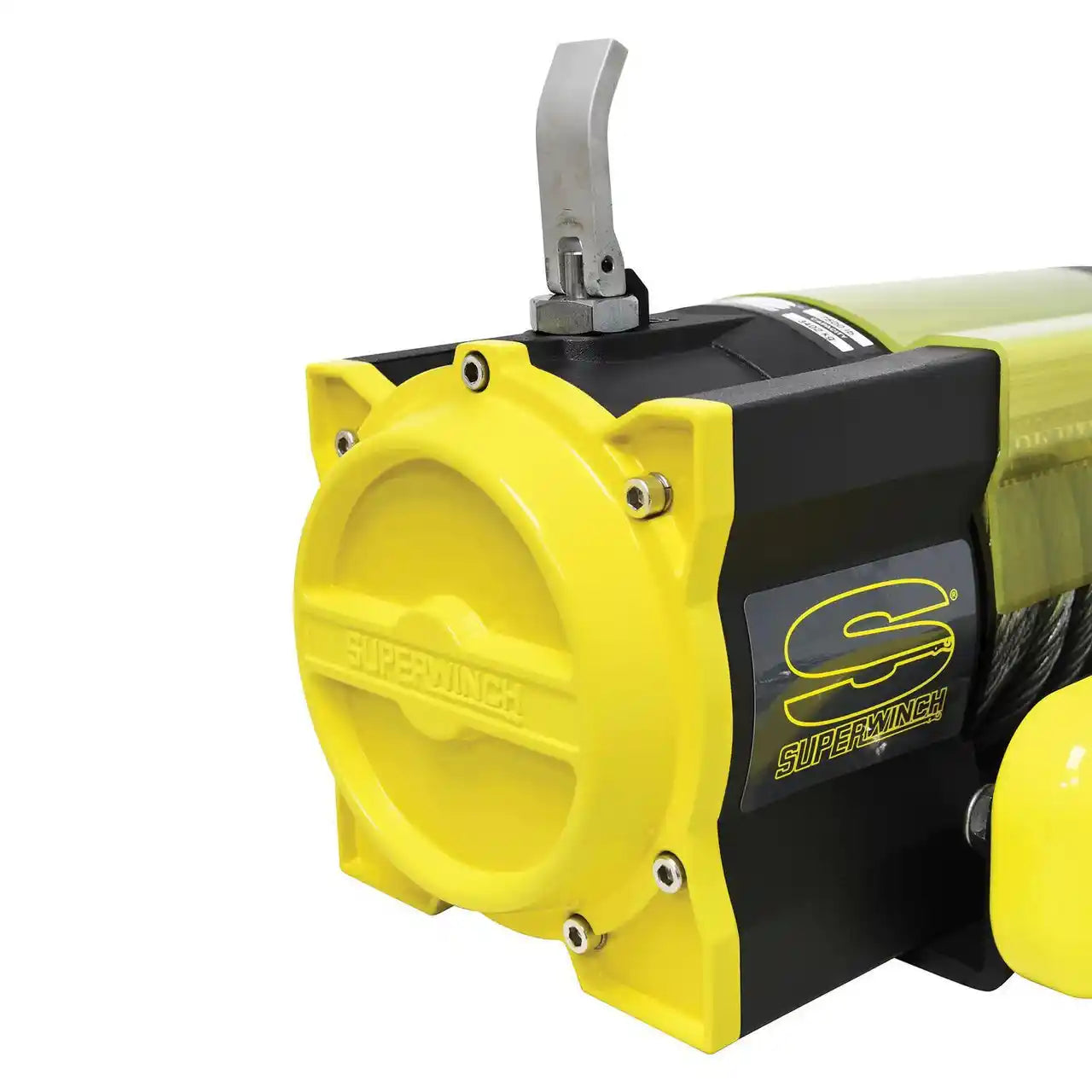

  • Lever Style Freespool (Kick-n-Flip): Enables fast and easy manual rope deployment, operable by hand or foot.
  • Innovative 2-Hole Drum: Prevents steel cable from detaching, increasing safety and reliability.
  • 30 ft. Handheld Wired Remote Control: Provides safe and convenient operation with a 12 ft. rubber sealed hand-held remote for optimal visibility.

What's In The Box

  • Superwinch S7500SR 12V DC Winch (with chosen rope type)
  • Rope (Steel Wire: 5/16 in. x 55 ft. or Synthetic: 5/16 in. x 55 ft.)
  • Fairlead (Stainless Steel 2-Way Roller for Wire or Strong Roller-Coaster Fairlead/Hawse Hybrid for Synthetic)
  • Heavy-Duty, Clevis Pinned Latched Winch Hook
  • 30 ft. Wired Remote Control (12 ft. Rubber Sealed Hand-held)
  • Safety Tinted Protective Cover
  • Instruction Manual

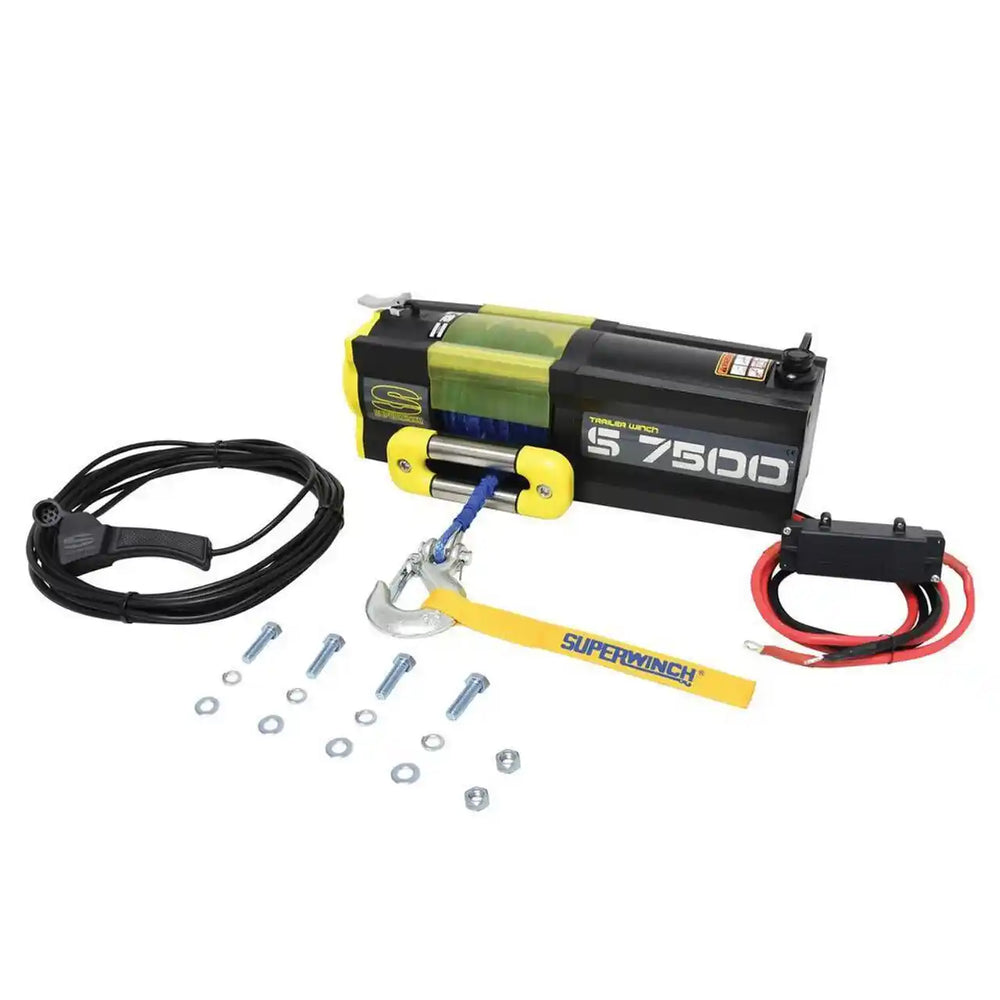

 Superwinch S7500 7500lb components and accessories

Technical Specifications

Rated Line Pull 7,500 lbs. (3,402 kg)
Motor 3.6 HP Permanent Magnet Motor, 12V DC
Remote Control 30 ft. Wire Remote (12 ft. Rubber Sealed Hand-held)
Rope Options Steel Wire: 5/16 in. x 55 ft. (7.94mm x 16.76m)
Synthetic: 5/16 in. x 55 ft. (7.94mm x 16.76m)
Gear System 3-stage planetary
Gear Ratio 249:1
Brake System Mechanical, Automatic Load Holding, Outside Drum
Clutch Lever style freespool (Kick-n-flip)
Fairlead Options For Wire Rope: Stainless Steel 2-Way Roller Fairlead
For Synthetic Rope: Strong roller-coaster fairlead/hawse hybrid
Solenoid VS4 (sealed submersible vented)
Winch Hook Heavy-Duty, Clevis Pinned Latched
Winch Dimensions (L x W x H) 22.00 in. x 13.00 in. x 9.00 in. (55.9cm x 33cm x 22.9cm)
Weight (Steel Rope Version) 56.00 LBS (25.4 kg)
Weight (Synthetic Rope Version) 40.00 LBS (18.1 kg)
Voltage 12V DC
Warranty 2 Year Limited Manufacturer
Winch Series S Series
Winch Model S 7500 Series
Color Yellow
Material Steel
Surface Finish Powder Coated
Line Speed (at 80 Amps Draw) 19 FPM (5.8 MPM)
EN Compliant No

Performance Data

Motor & Gear Performance
Motor Type 12V DC Permanent Magnet
Motor HP 3.6 HP
Line Speed (at 80 Amps Draw) 19 FPM (5.8 MPM)
Brake Type Mechanical, Automatic Load Holding, Outside Drum
Rope & Control
Clutch Type Lever Style Freespool (Kick-n-Flip)
Solenoid Type VS4 Sealed Submersible Vented
Remote Type Wired Hand-held
Fairlead Type (Steel Rope) Stainless Steel 2-Way Roller
Fairlead Type (Synthetic Rope) Strong Roller-Coaster Fairlead/Hawse Hybrid

Frequently Asked Questions

+ What makes the S7500SR ideal for heavy-duty recovery?

The Superwinch S7500SR is engineered with a powerful 7,500 lbs. capacity, a 3.6 HP permanent magnet motor with dynamic braking, robust all-steel 3-stage planetary gearing, and a sealed solenoid. These features combine to provide superior strength, control, and reliability for demanding off-road recovery and utility tasks.
+ What is the benefit of the "kick-n-flip" freespool lever and 2-hole drum?

The "kick-n-flip" freespool lever offers unparalleled convenience, allowing for rapid rope deployment using either your hand or foot. Coupled with the innovative 2-hole drum design, which specifically prevents steel cable from detaching, these features enhance both ease of use and operational safety during intense recovery operations.
+ How does the automatic load holding brake ensure safety?

The automatic load holding brake is a critical safety mechanism. It instantly engages to securely hold the load whenever the winch motor is not actively engaged in pulling or releasing. This prevents unintended movement or rollback of the load, ensuring stability and safety throughout your winching tasks.
+ What are the advantages of choosing steel cut gears in a winch?

Steel cut gears are paramount for heavy-duty applications due to their exceptional strength, precision, and longevity. They provide superior engagement, increased resistance to wear and tear, and more efficient power transfer, directly contributing to the winch's long-term durability and consistent high-performance under extreme conditions.
+ What is the warranty for the Superwinch S7500SR?

The Superwinch S7500SR is backed by a 2-year limited manufacturer's warranty, offering peace of mind and demonstrating confidence in its quality and robust construction.
