Key Features for Superior Trailer Performance

  • 5,500 lbs. Pulling Capacity: Effortlessly pull vehicles and heavy equipment onto your trailer with ample power.
  • 3.6 HP Permanent Magnet Motor: Provides robust and consistent pulling power with integrated dynamic braking for controlled operation.
  • Choice of Rope: Steel Wire or Synthetic:

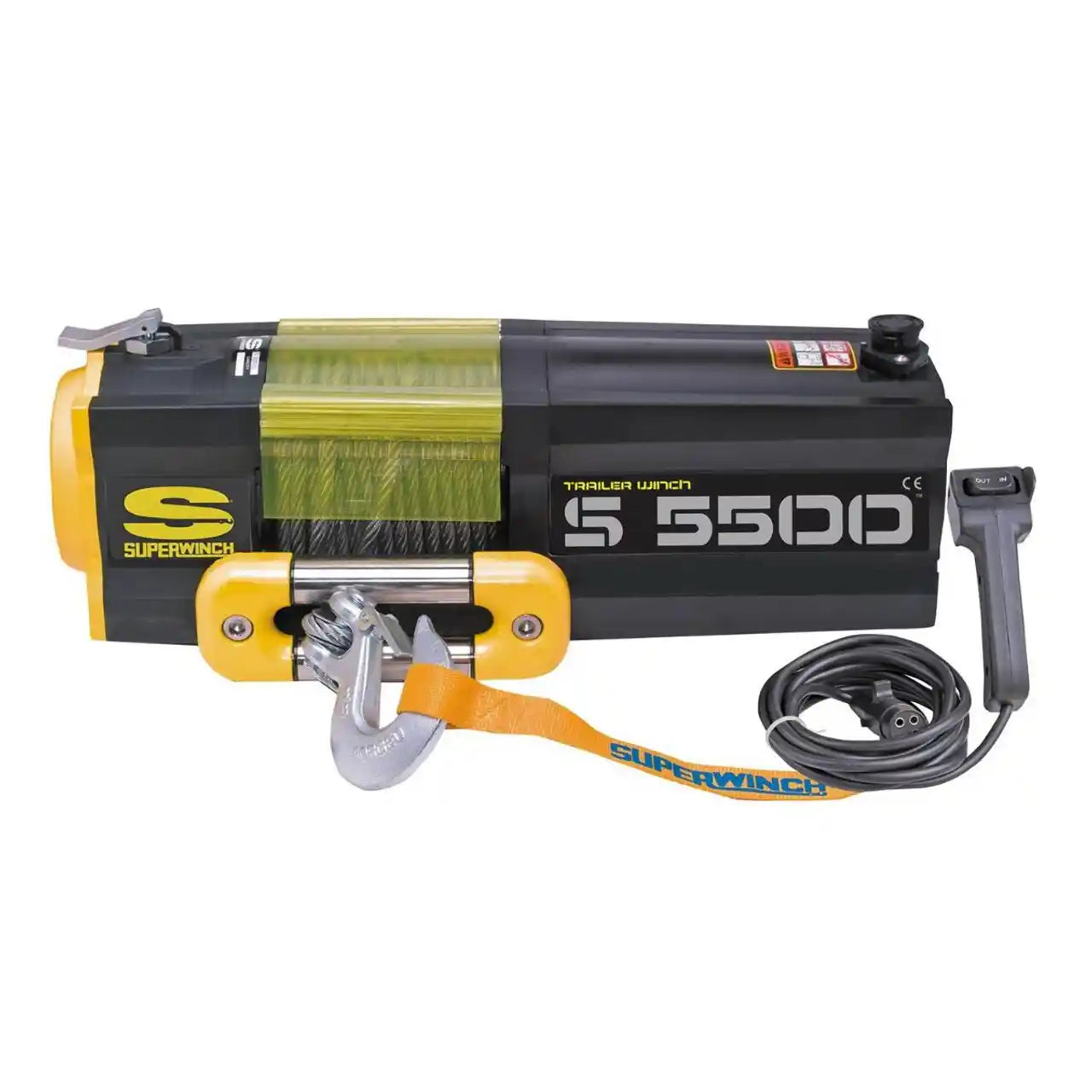

    Steel Wire Rope:9/32 in. x 60 ft. with a stainless steel 2-way roller fairlead for classic strength.

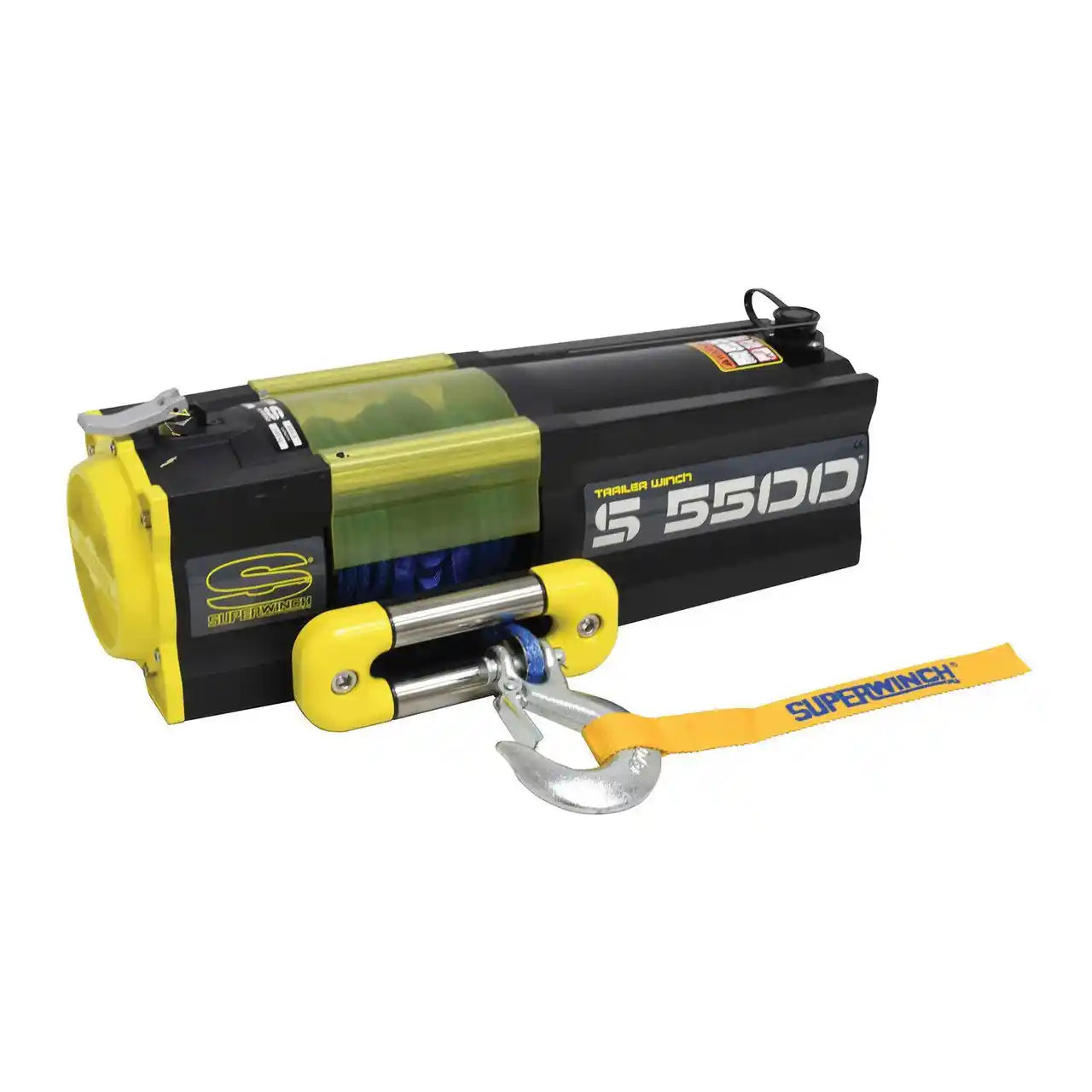

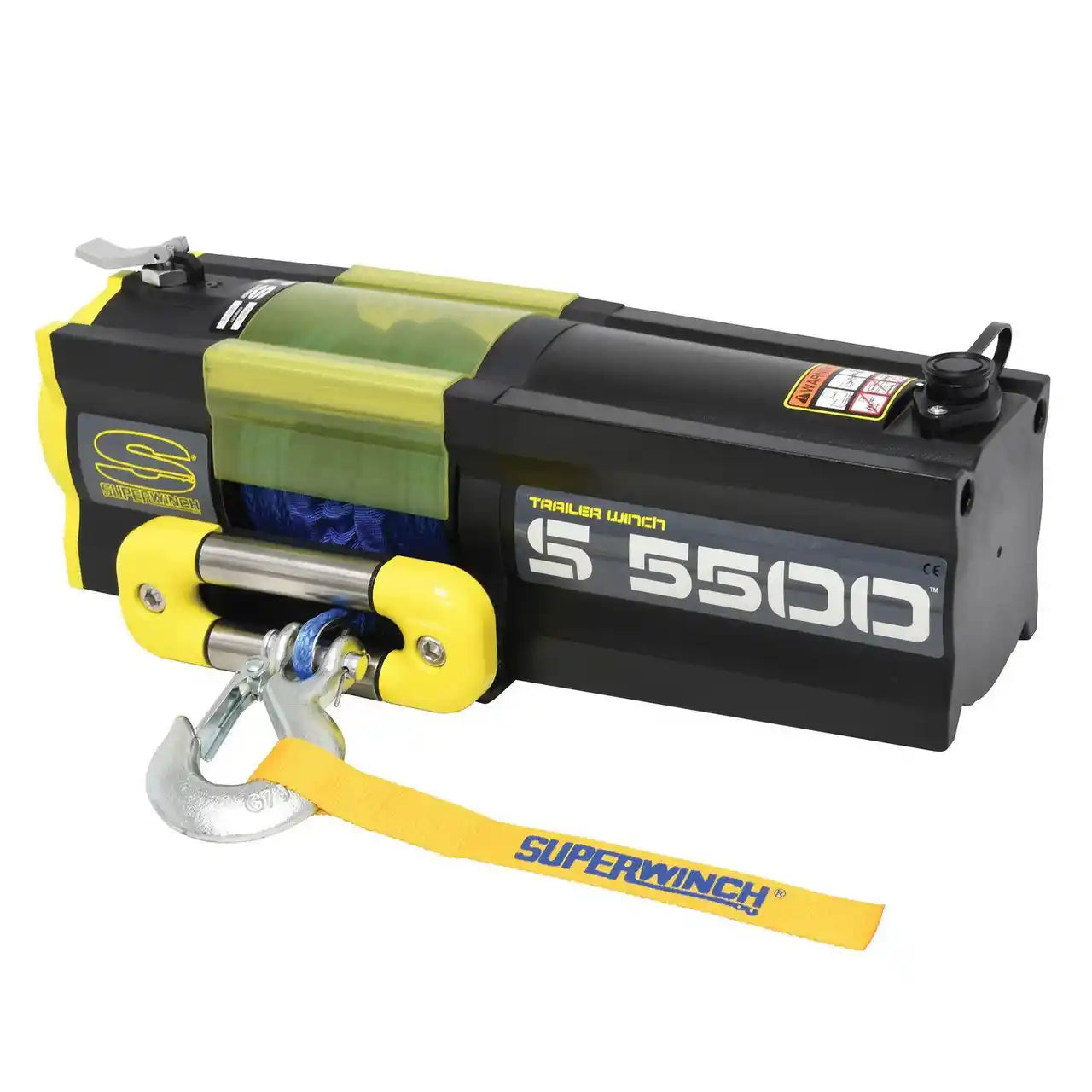

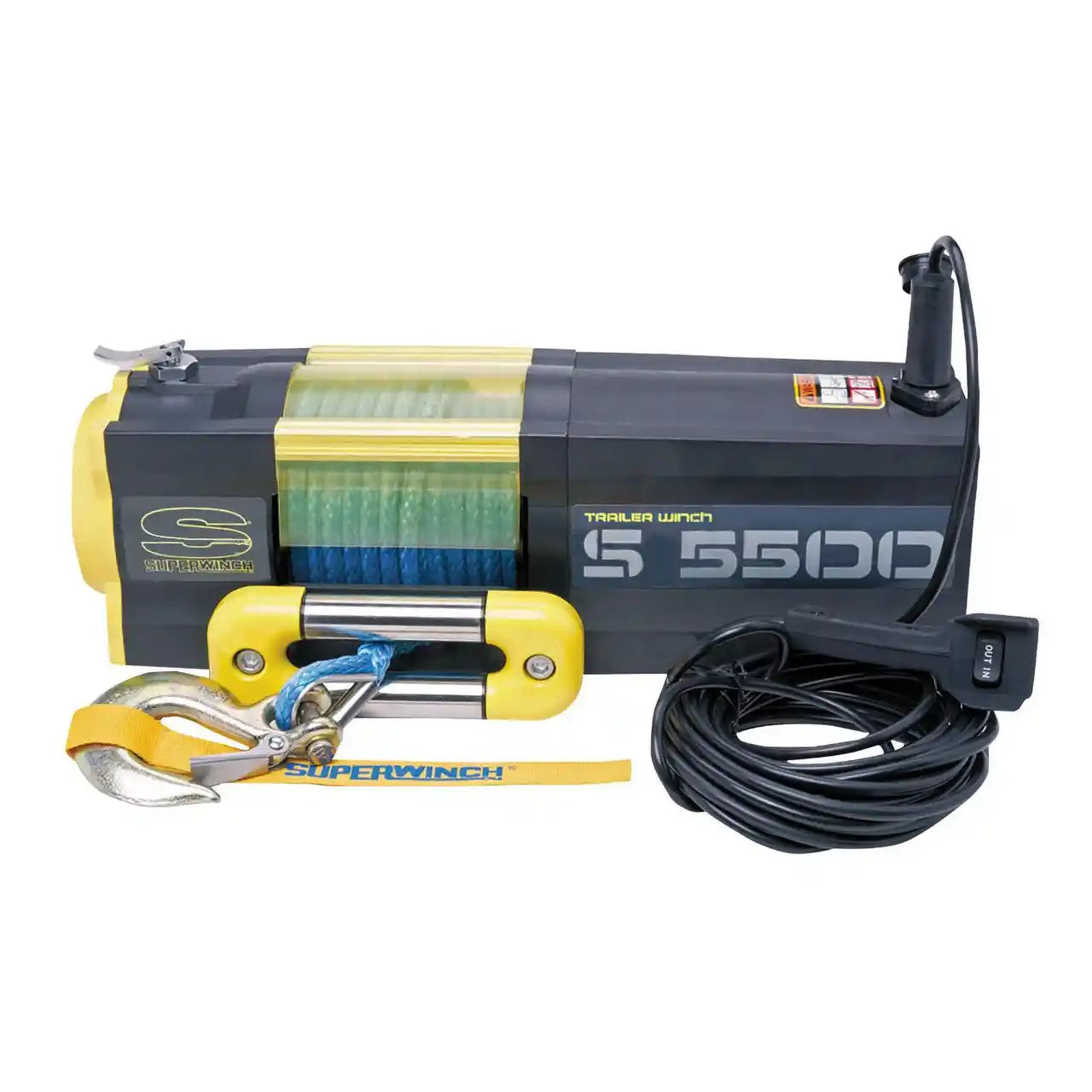

    Synthetic Rope: 1/4 in. x 60 ft. with a strong roller-coaster fairlead/hawse hybrid for lightweight, high-performance winching.
  • Efficient 3-Stage Planetary Gearing: A 159:1 gear ratio delivers smooth and powerful performance for reliable trailer loading.
  • Automatic Load Holding Brake: Ensures the load remains securely in place when the winch is not actively running, enhancing safety.
  • Steel Cut Gears: Provides superior gear engagement and extends the overall life and durability of the gearbox.
  • Sealed Solenoid (VS4 Submersible Vented): Offers excellent protection against water and contaminants, ensuring reliable operation in various conditions.
  • Lever Style Freespool (Kick-n-Flip): Allows for quick and easy manual deployment of the rope, operable by hand or foot for convenience.
  • 30 ft. Handheld Wired Remote Control: Offers precise control from a safe distance, improving visibility and safety during winching operations.

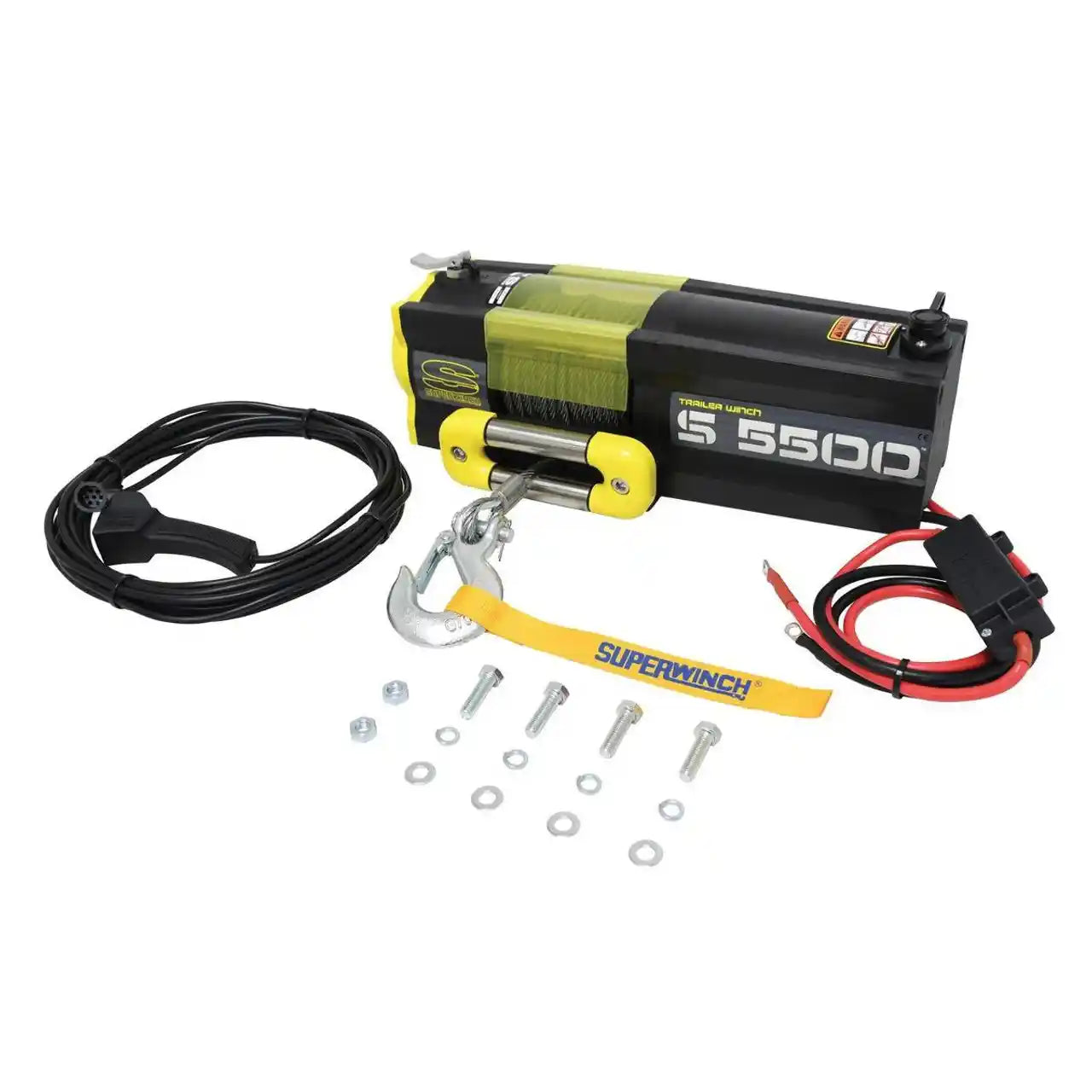

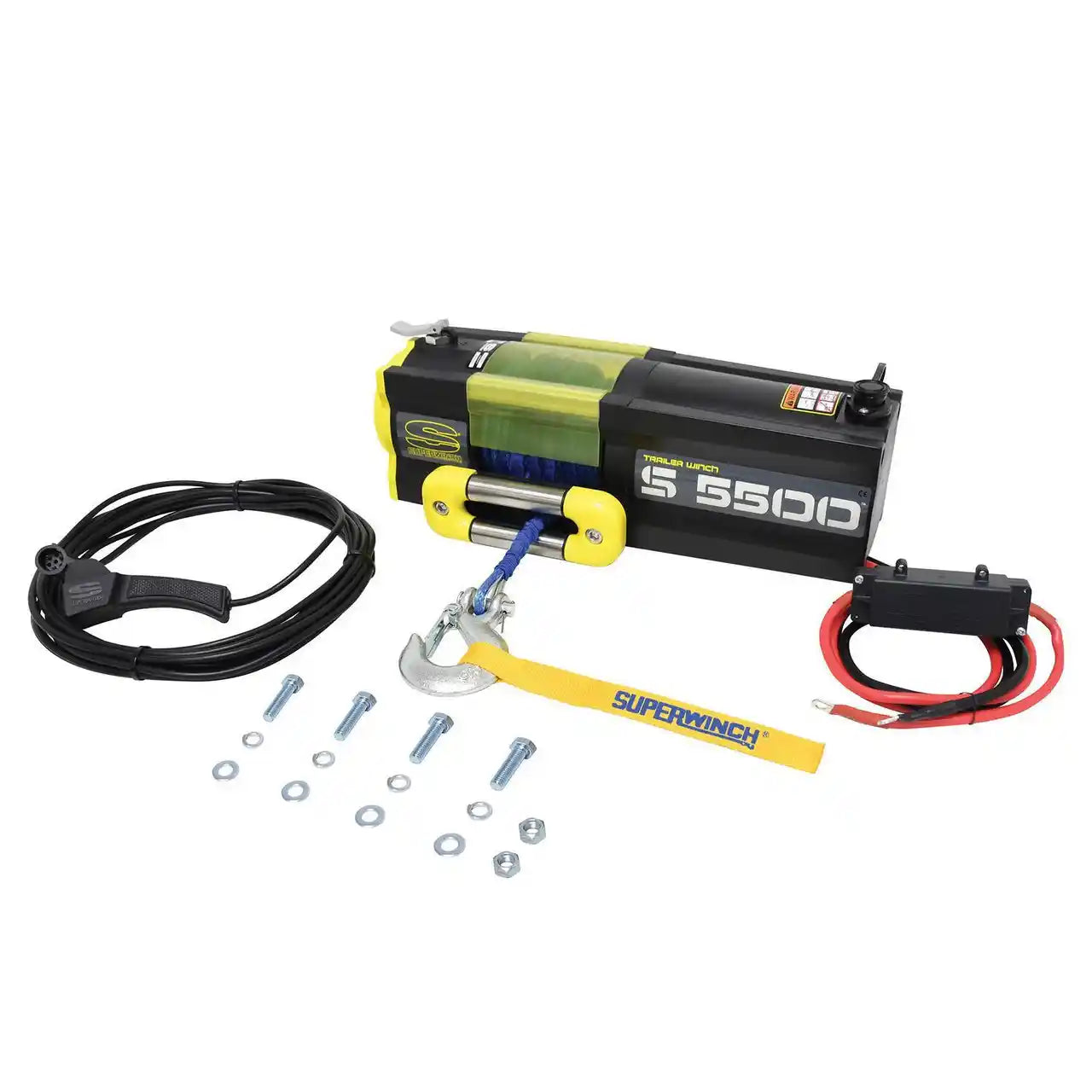

What's In The Box

  • Superwinch S5500 12V DC Winch (with chosen rope type)
  • Rope (Steel Wire: 9/32 in. x 60 ft. or Synthetic: 1/4 in. x 60 ft.)
  • Fairlead (Stainless Steel 2-Way Roller for Wire or Strong Roller-Coaster Fairlead/Hawse Hybrid for Synthetic)

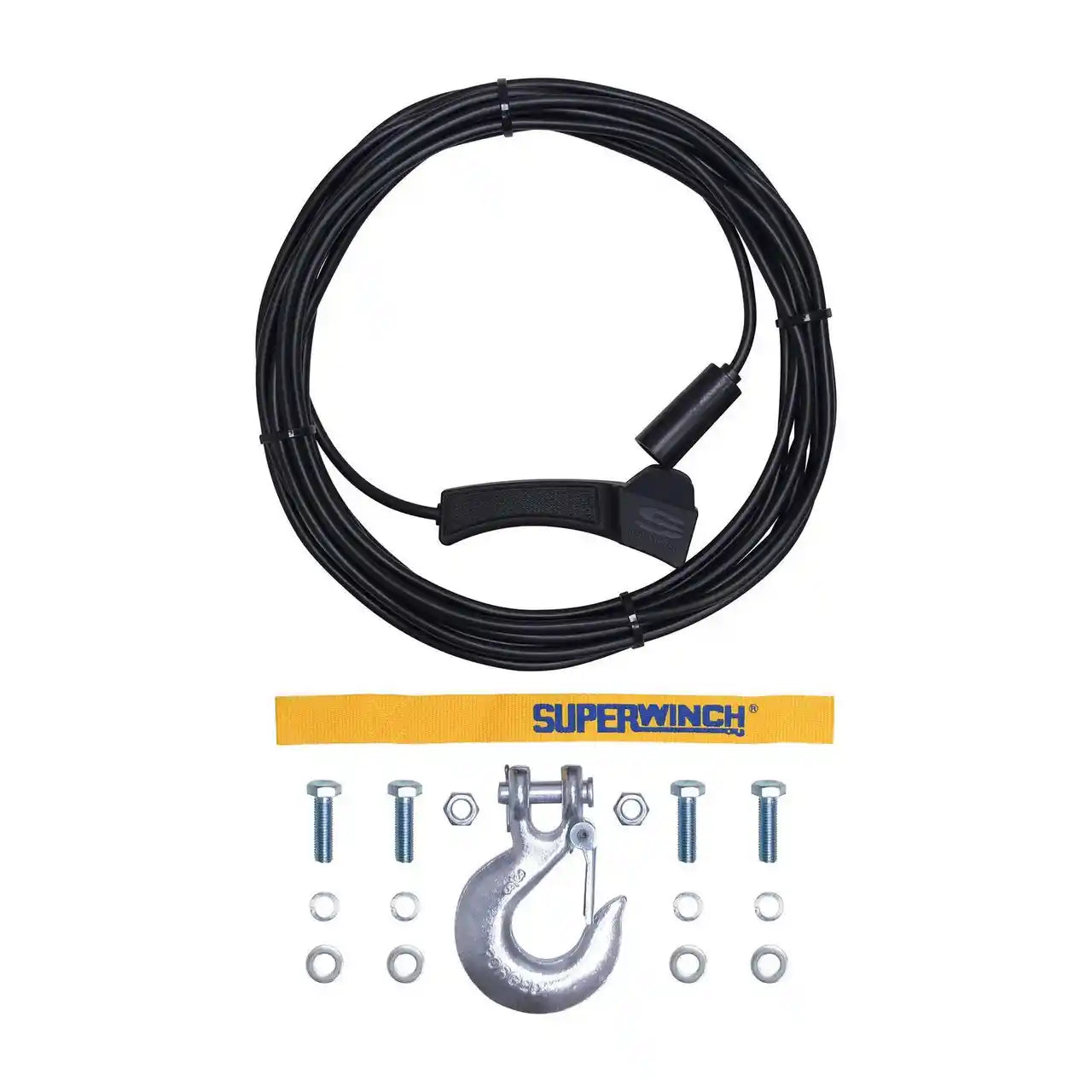

  • Heavy-Duty, Clevis Pinned Latched Winch Hook
  • 30 ft. Wired Remote Control (12 ft Rubber Sealed Hand-held as per specs)
  • Safety Tinted Protective Cover
  • Instruction Manual
 Superwinch S5500 5500lb winch details

Technical Specifications

Rated Line Pull 5,500 lbs. (2,495 kg)
Motor 3.6 HP Permanent Magnet Motor, 12V DC
Remote Control 30 ft. Wire Remote (12 ft. Rubber Sealed Hand-held as per specs)
Rope Options Steel Wire: 9/32 in. x 60 ft. (7.14mm x 18.3m)
Synthetic: 1/4 in. x 60 ft. (6.35mm x 18.3m)
Gear System 3-stage planetary
Gear Ratio 159:1 (153:1 for steel rope variant as per spec)
Brake System Mechanical, Automatic Load Holding, Outside Drum
Clutch Lever style freespool (Kick-n-flip)
Fairlead Options

For Wire Rope: Stainless Steel 2-Way Roller Fairlead
For Synthetic Rope: Strong roller-coaster fairlead/hawse hybrid
Solenoid VS4 (sealed submersible vented)
Winch Hook Heavy-Duty, Clevis Pinned Latched
Winch Dimensions (L x W x H) 22.00 in. x 13.00 in. x 9.00 in. (55.9cm x 33cm x 22.9cm)
Weight (Steel Rope Version) 56.00 LBS (25.4 kg)
Weight (Synthetic Rope Version) 40.00 LBS (18.1 kg)
Voltage 12V DC
Warranty 2 Year Limited Manufacturer
Winch Series S Series
Winch Model S 5500 Series

Performance Data

Motor & Gear Performance
Motor Type 12V DC Permanent Magnet
Motor HP 3.6 HP
Line Speed (at 80 Amps Draw) 19 FPM (5.8 MPM)
Brake Type Mechanical, Automatic Load Holding, Outside Drum
Rope & Control
Clutch Type Lever Style Freespool (Kick-n-Flip)
Solenoid Type VS4 Sealed Submersible Vented
Remote Type Wired Hand-held
Fairlead Type (Steel Rope) Stainless Steel 2-Way Roller
Fairlead Type (Synthetic Rope) Strong Roller-Coaster Fairlead/Hawse Hybrid

Frequently Asked Questions

+ Why is the S5500 ideal for trailer winching?

The Superwinch S5500 is specifically designed for trailer applications with its 5,500 lbs. capacity, compact design, and robust features like a permanent magnet motor with dynamic braking, making it perfect for safely and efficiently loading vehicles and equipment onto trailers.
+ What is the advantage of the "kick-n-flip" freespool lever?

The unique lever style freespool (kick-n-flip) allows for incredibly easy engagement and disengagement of the drum. You can operate it quickly and conveniently with either your hand or even your foot, which is particularly useful when wearing gloves or when needing hands-free operation to guide the rope.
+ How does the automatic load holding brake function?

The S5500 features an automatic load holding brake, which is a critical safety feature. It automatically engages to securely hold the load in place whenever the winch motor is not actively pulling or releasing, preventing unintentional rollback and ensuring stability during operation.
+ What are the benefits of steel cut gears?

Steel cut gears offer superior strength, precision, and longevity compared to other gear types. They ensure better engagement, greater resistance to wear and tear, and more efficient power transfer, contributing to the winch's overall durability and reliable performance.
+ What is the warranty for the Superwinch S5500?

The Superwinch S5500 comes with a 2-year limited manufacturer's warranty, providing assurance in the quality and craftsmanship of your winch.
