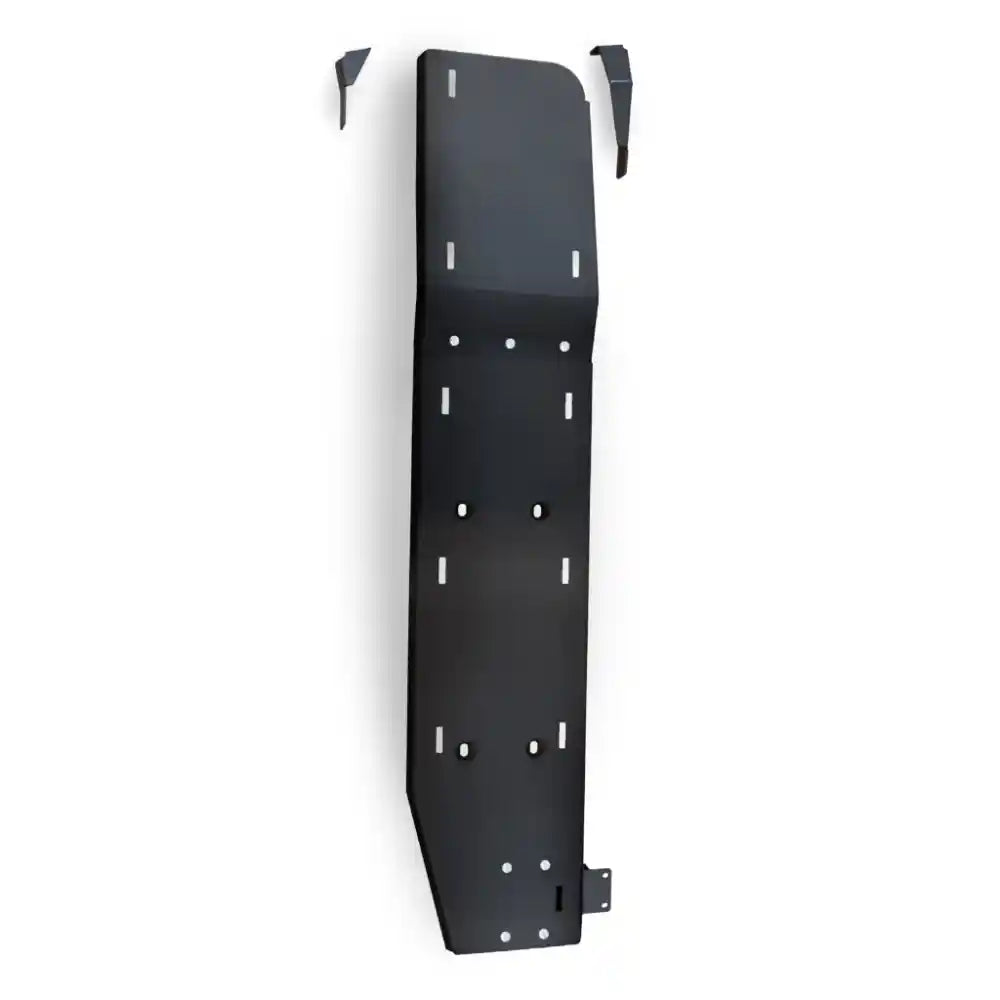

RCI Offroad Fuel Tank Skid Plate 2005+ Tacoma
Free Shipping. Ships in 1-3 Business Days
Price Match Guarantee
Safe/Secure Checkout
Questions? Chat or Call us: (409) 916-8280
Free Shipping. Ships in 1-3 Business Days
Price Match Guarantee
Safe/Secure Checkout
Questions? Chat or Call us: (409) 916-8280

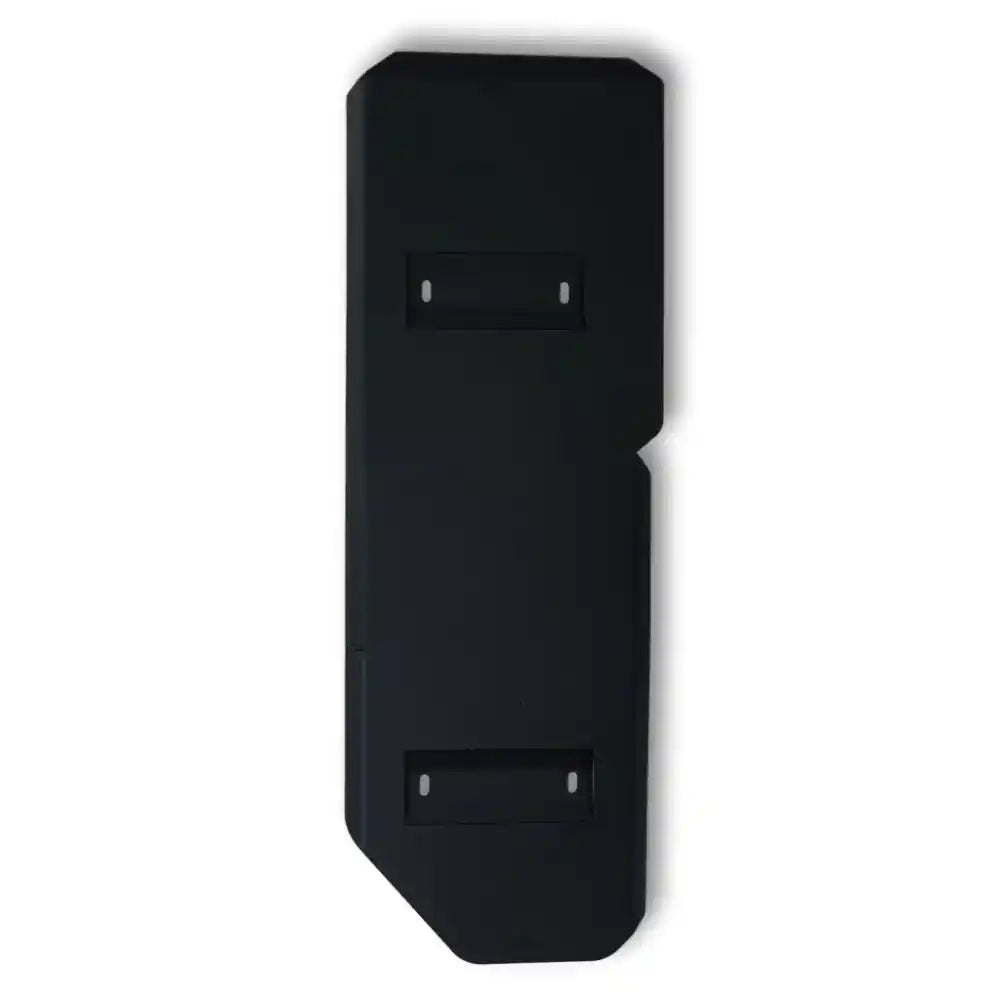

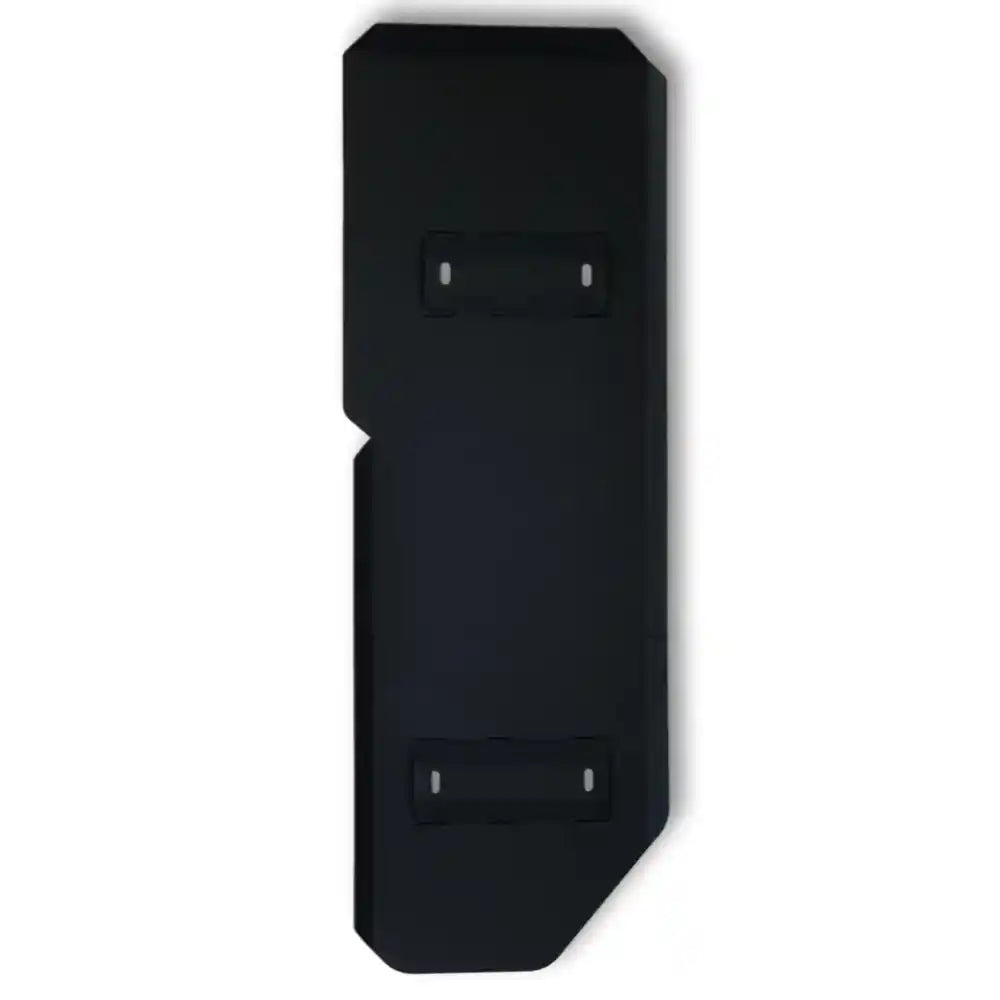

Choose between 3/16" steel for ultimate puncture resistance or 1/4" aluminum for a 50% weight reduction without sacrificing protection.
CNC laser-cut for a precision fit, this skid plate installs in minutes using factory mounting points with zero drilling required.
Integrated bolt protection rings shield your mounting hardware, preventing them from being sheared off when sliding over sharp rocks.
Proudly American-manufactured with a multi-stage black powder coat finish to ensure long-lasting durability and corrosion resistance.
American-Made Protection. Bolt-On Installation. Heavy-Duty Steel or Aluminum.
Maximum Underbody Defense for Your TacomaProtect the most vulnerable component of your 2005-Present Toyota Tacoma with the RCI Offroad Fuel Tank Skid Plate. Whether you are navigating technical rock crawls or traversing rough worksites, a single sharp obstacle can puncture your fuel tank, leaving you stranded with thousands of dollars in damages.

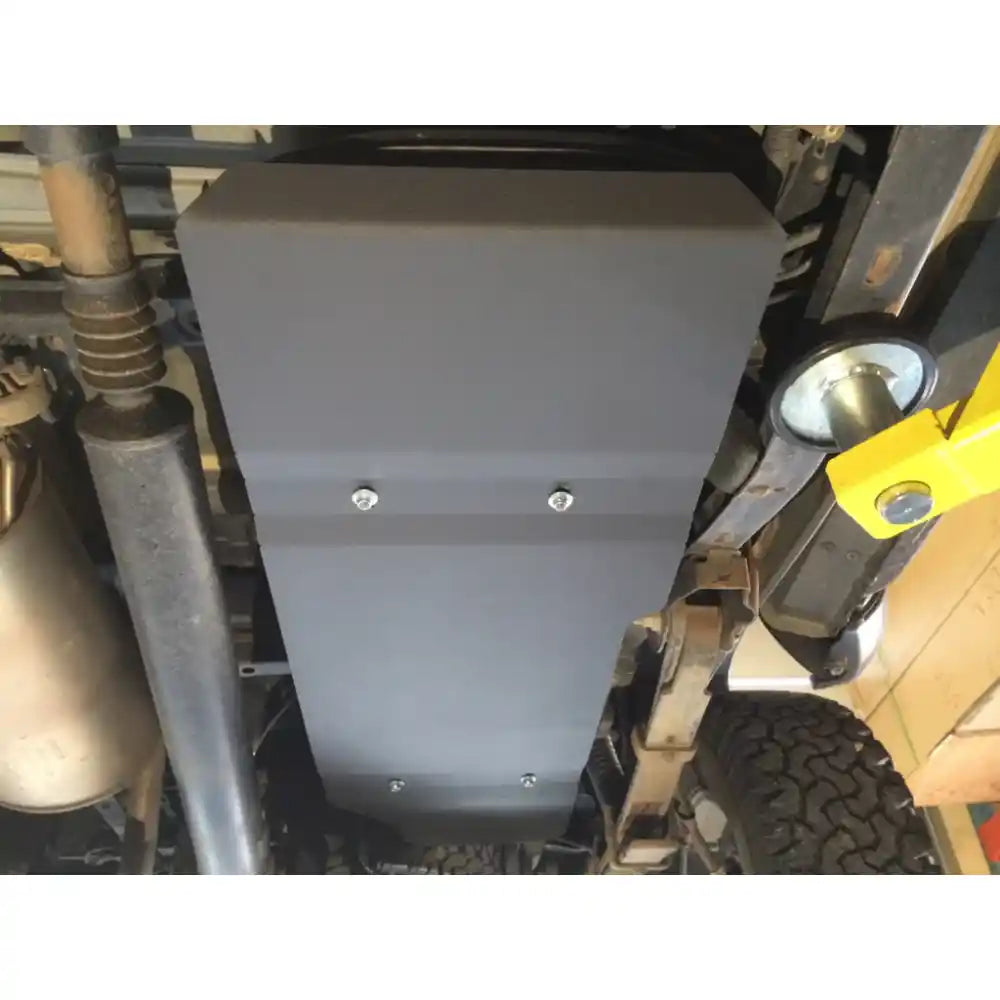

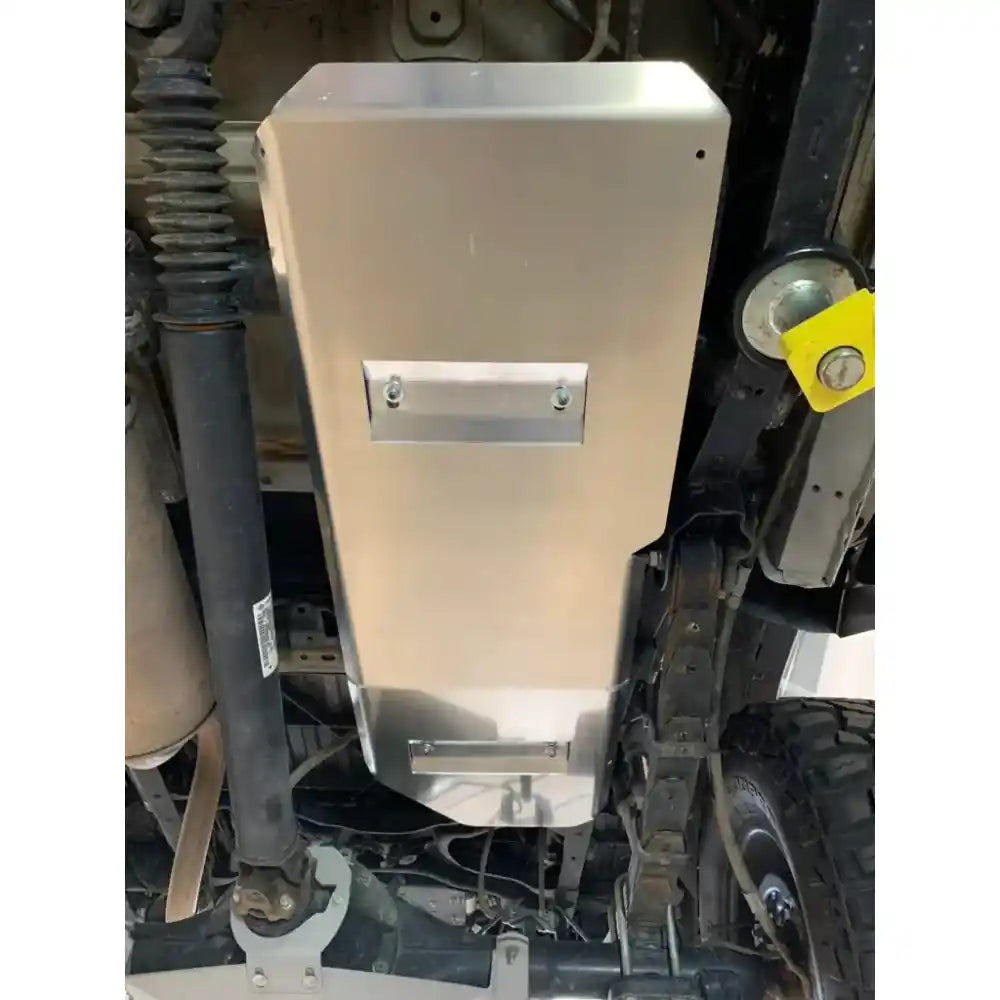

Precision-engineered and manufactured in the USA, this skid plate replaces or reinforces your factory protection with laser-cut, CNC-formed armor. Designed to provide a smooth, flat surface, it allows your truck to slide over obstacles that would otherwise catch and tear your fuel system.
The Problem & The Solution:The Pain: Factory plastic "guards" offer zero puncture resistance, and a replacement fuel tank can cost upwards of $2,000 plus labor.
The RCI Solution: We provide a 100% Bolt-On armor system made from 3/16" or 10-gauge steel that utilizes factory mounting locations for a bomb-proof fit.
Key Features: Heavy-Duty Fuel Tank Armor
No drilling or permanent vehicle modification required. Uses provided hardware and factory mounting points for a clean install.

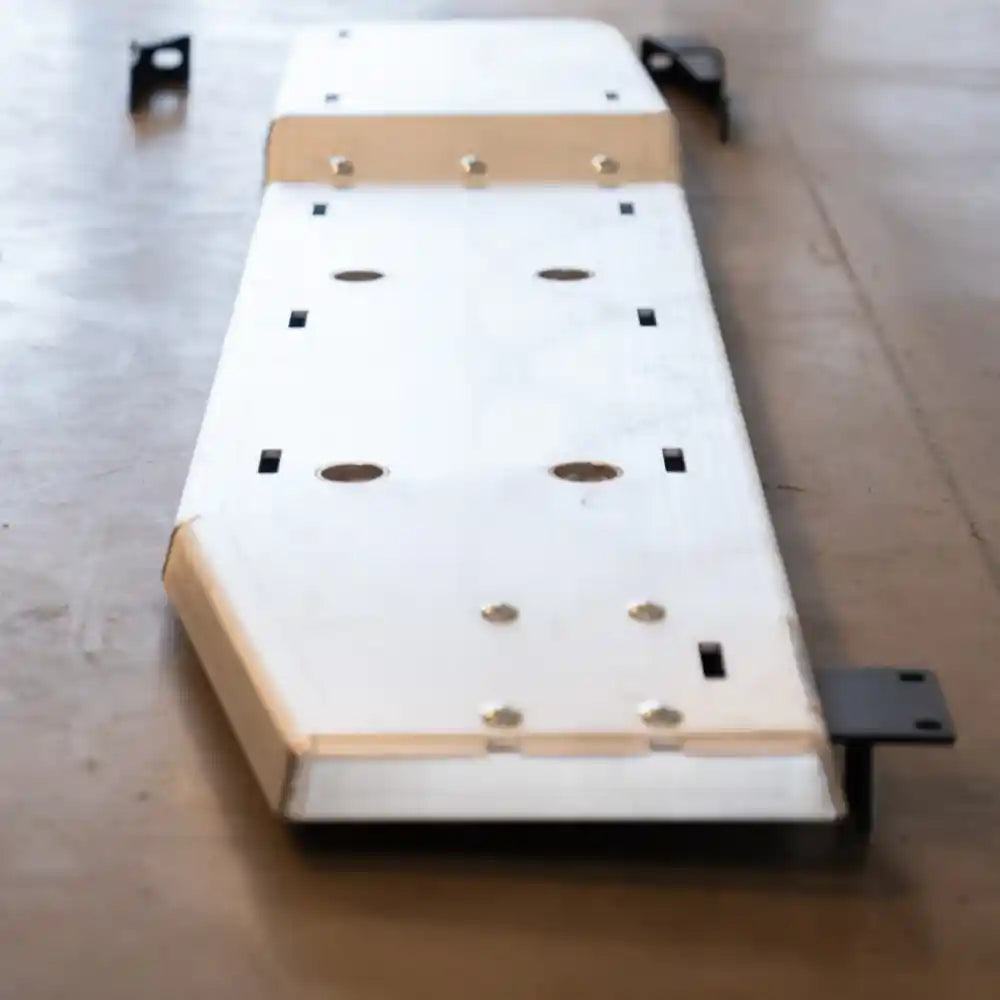

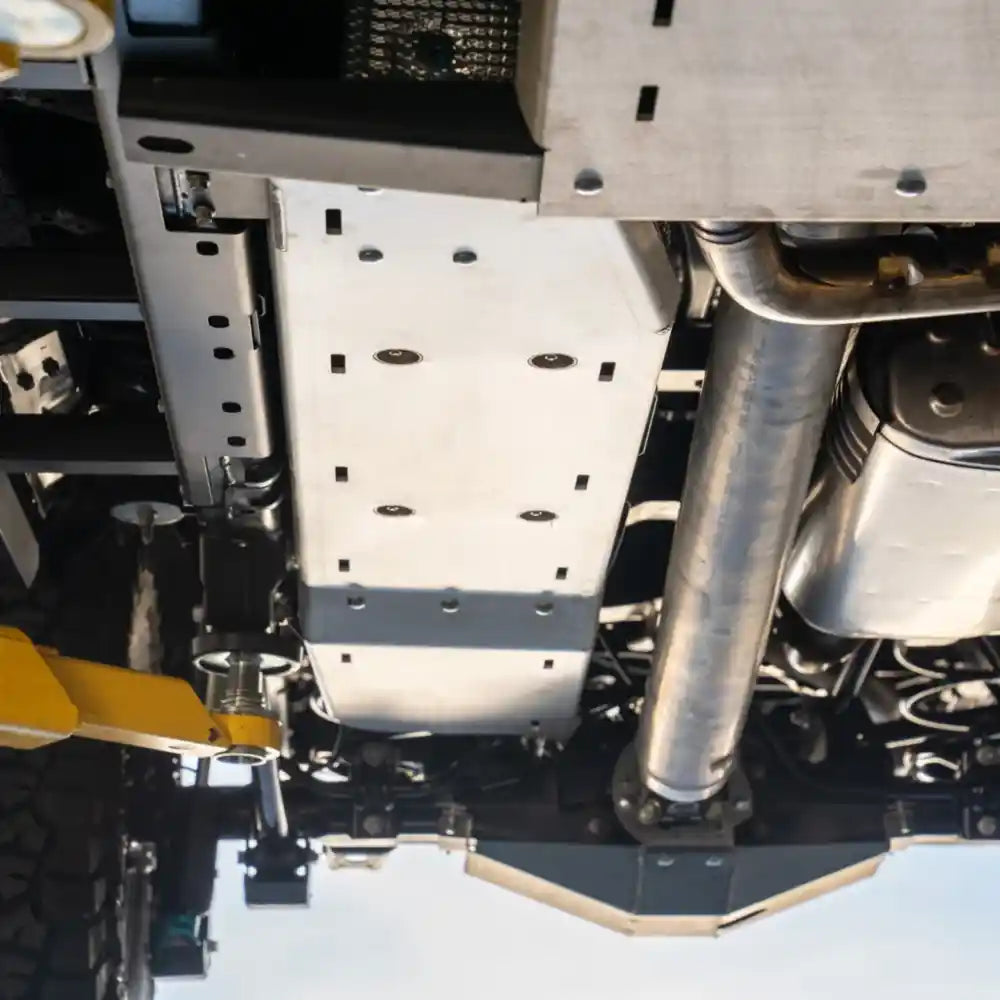

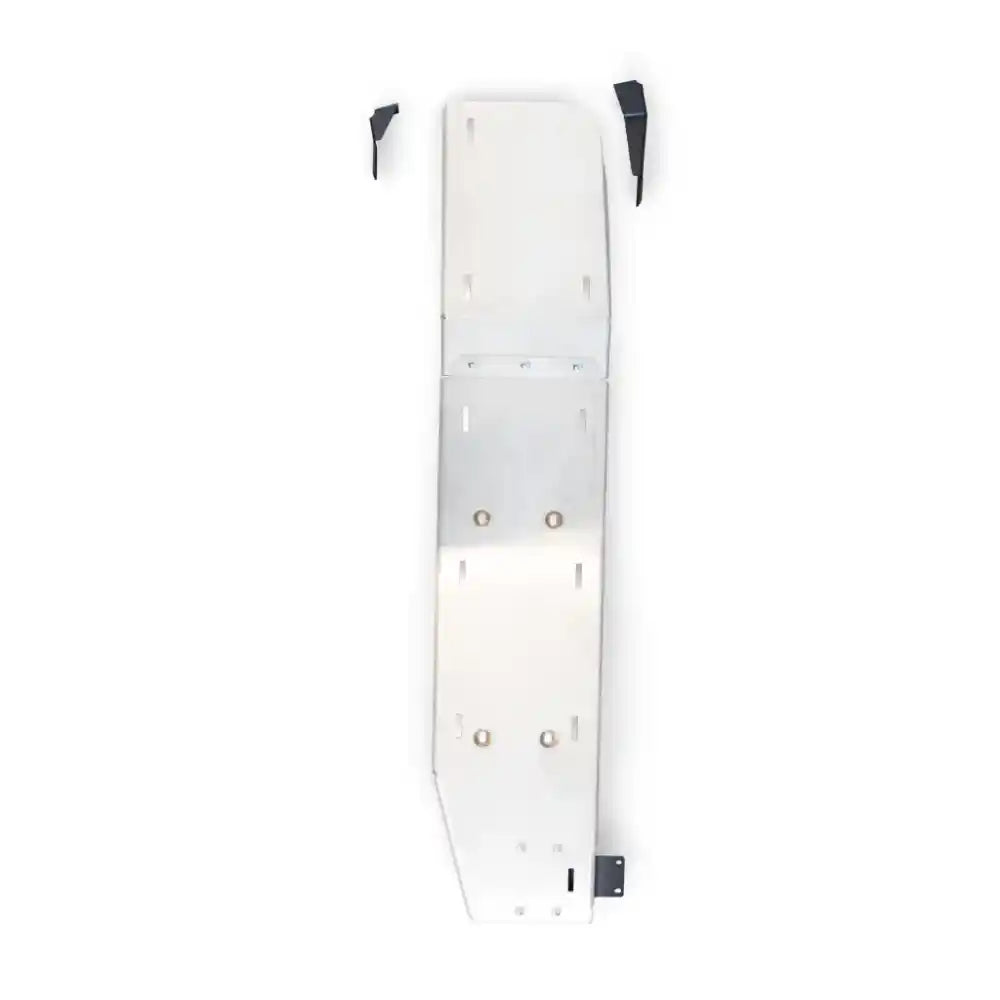

Choose 3/16" or 10-gauge steel for maximum strength, or 1/4" 5052 Aluminum for 50% weight reduction with excellent corrosion resistance.
Standard on 18-gallon versions, welded bolt protection rings prevent your mounting hardware from being sheared off on rocks.
Brake bent and CNC cut to match the specific contours of the 2005-2023 and the new 2024 Tacoma frames.
Features a smooth, flat surface design to ensure you slide over terrain rather than getting hung up.
Professional black powder coat finish provides long-lasting resistance against rust, salt, and road debris.
Built for the TrailRCI Offroad doesn't compromise on materials. Our steel plates offer the ultimate in puncture resistance, while our 1/4" aluminum options provide serious protection without the heavy weight penalty. Every plate is tested to withstand real-world off-road abuse.
35-62 lbs Weight (Steel) 1/4" Aluminum Thickness 100% Bolt-On USA Manufactured
"Installed this on my Gen 3 TRD Off-Road in about 20 minutes. Two weeks later, I came down hard on a rock in Moab—the skid plate took the hit with just a scratch, but my gas tank would have been toast without it. The fit is perfect and the powder coat is high quality."
- Mike S., Tacoma Owner*Repair costs are estimates based on dealer pricing and labor. Does not include lost time or environmental cleanup fees.*
| Feature | RCI Offroad Skid | OEM Plastic Guard |
|---|---|---|
| Puncture Resistance | ✓ High (Steel/Aluminum) | ✗ Minimal to None |
| Installation | ✓ Direct Bolt-On | ✓ Factory Fit |
| Bolt Protection | ✓ Welded Protection Rings | ✗ Exposed Bolts |
| Coverage | ✓ Full Tank & Support Straps | ✗ Partial Coverage Only |
| Origin | ✓ Made in USA | Imported/Mass Produced |
This skid plate system is designed to fit all Toyota Tacoma configurations from 2005 to the present. Please note the following requirements:
2005-2023 Tacoma: Fits Double Cab Short Bed and Access Cab with TRD Off-Road package. Long Bed models and non-Off-Road trims require the purchase of TRD Off-Road fuel tank straps (threaded studs). 2024+ Tacoma: Confirmed to fit '24 TRD Off-Road Longbed. Suspected to fit all 2024+ 18-gallon fuel tanks. Non-Off-Road trims require 2024-specific TRD straps.Identify Your Straps: If your truck already has the Toyota plastic fuel tank skid plate, you likely already have the correct threaded straps for a direct bolt-on experience.
CA Residents: ⚠️ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
If your Tacoma is a TRD Off-Road or TRD Pro, it usually comes with the necessary threaded straps. If you have an SR, SR5, or Limited without the plastic factory skid plate, you will need to purchase the TRD fuel tank straps to provide mounting points for the RCI skid.
Steel is best for rock crawling where you expect heavy, repeated impacts. Aluminum is ideal for overlanders concerned about weight and rust, as it is nearly 50% lighter and naturally corrosion-resistant.
The 2024+ version is confirmed for the 18-gallon fuel tank models. Fitment on i-FORCE MAX hybrid models may vary based on chassis configuration; please contact us if you have a hybrid to confirm compatibility.

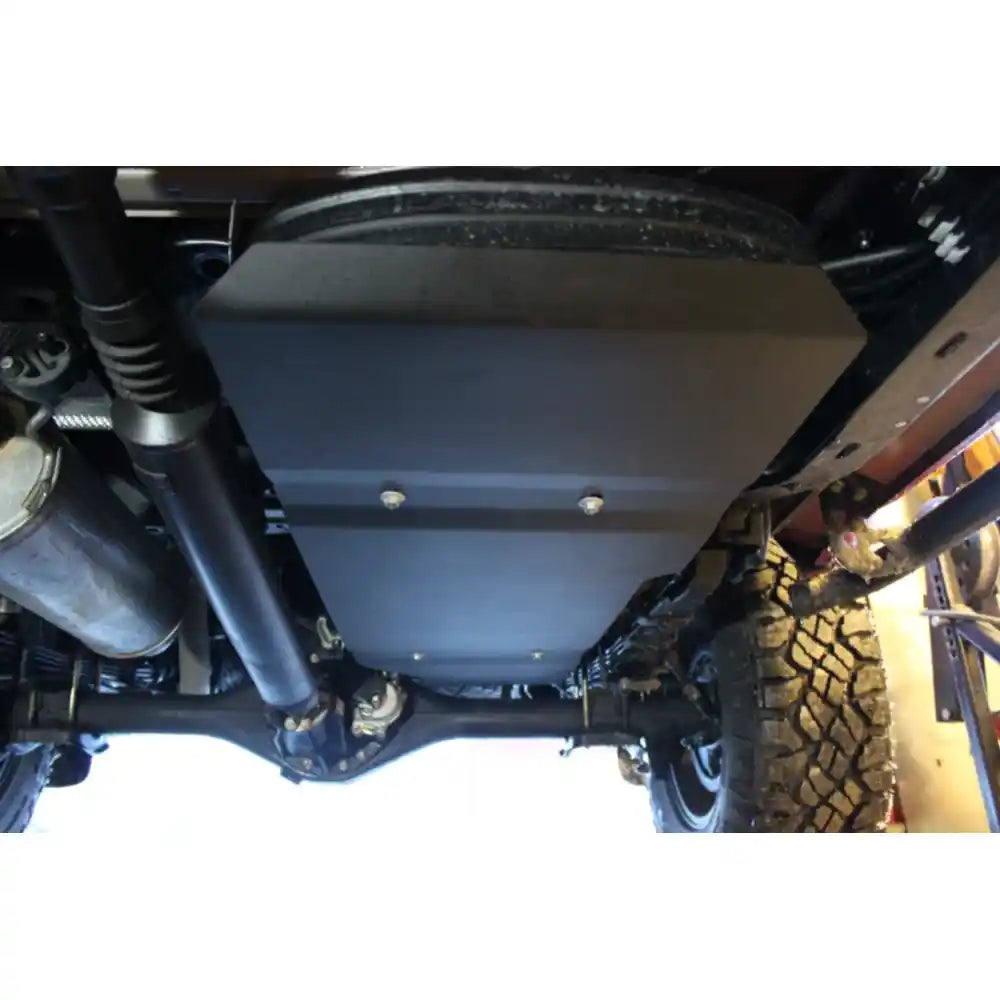

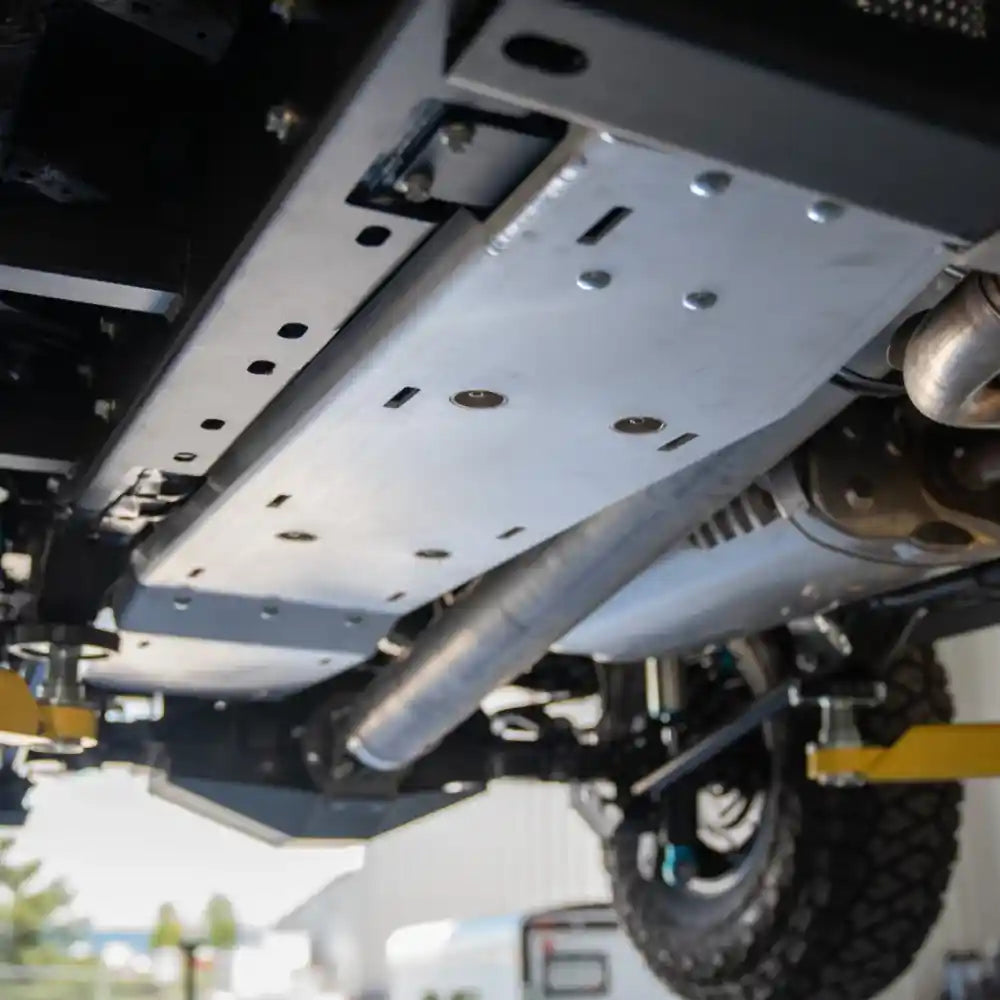

No. This is a 100% bolt-on product. It uses existing mounting locations on the vehicle's frame and fuel tank support straps.
Yes, it fits Double Cab Long Bed (DCLB) models, but they require the TRD Off-Road straps with threaded studs if not already equipped.
