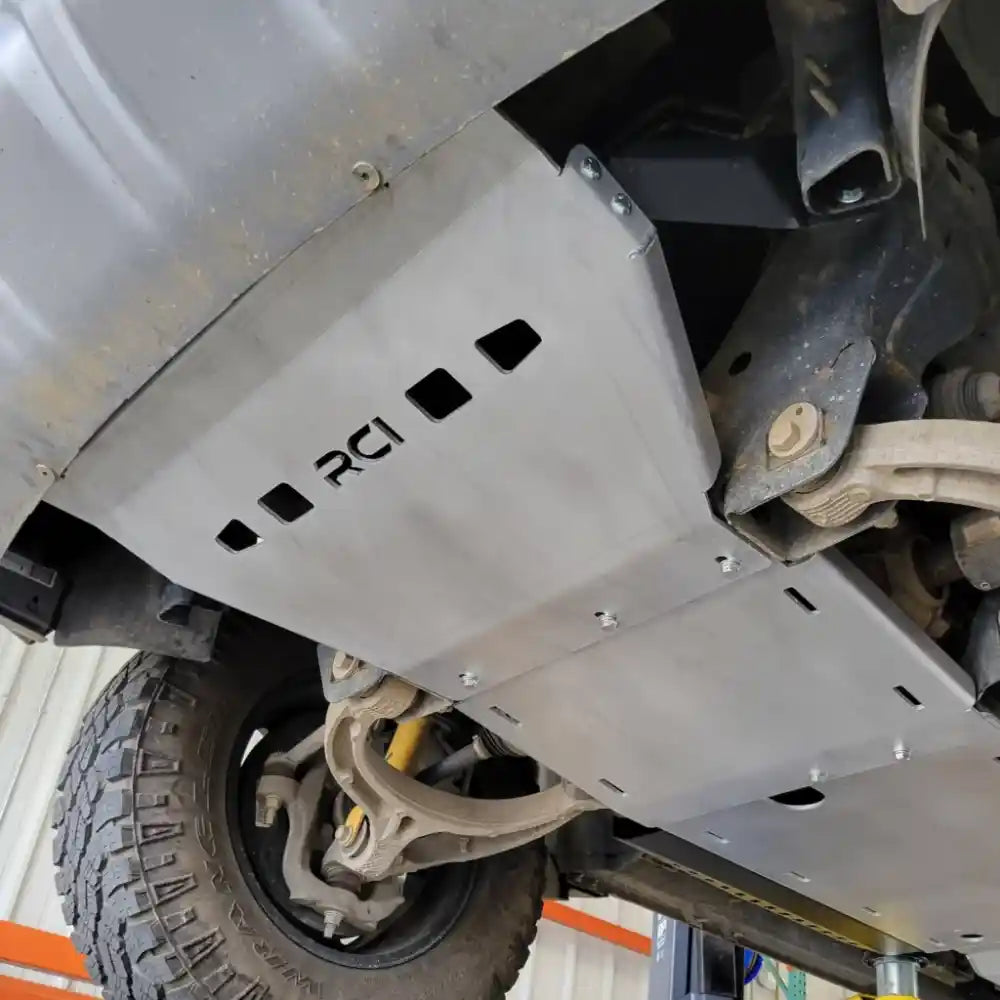

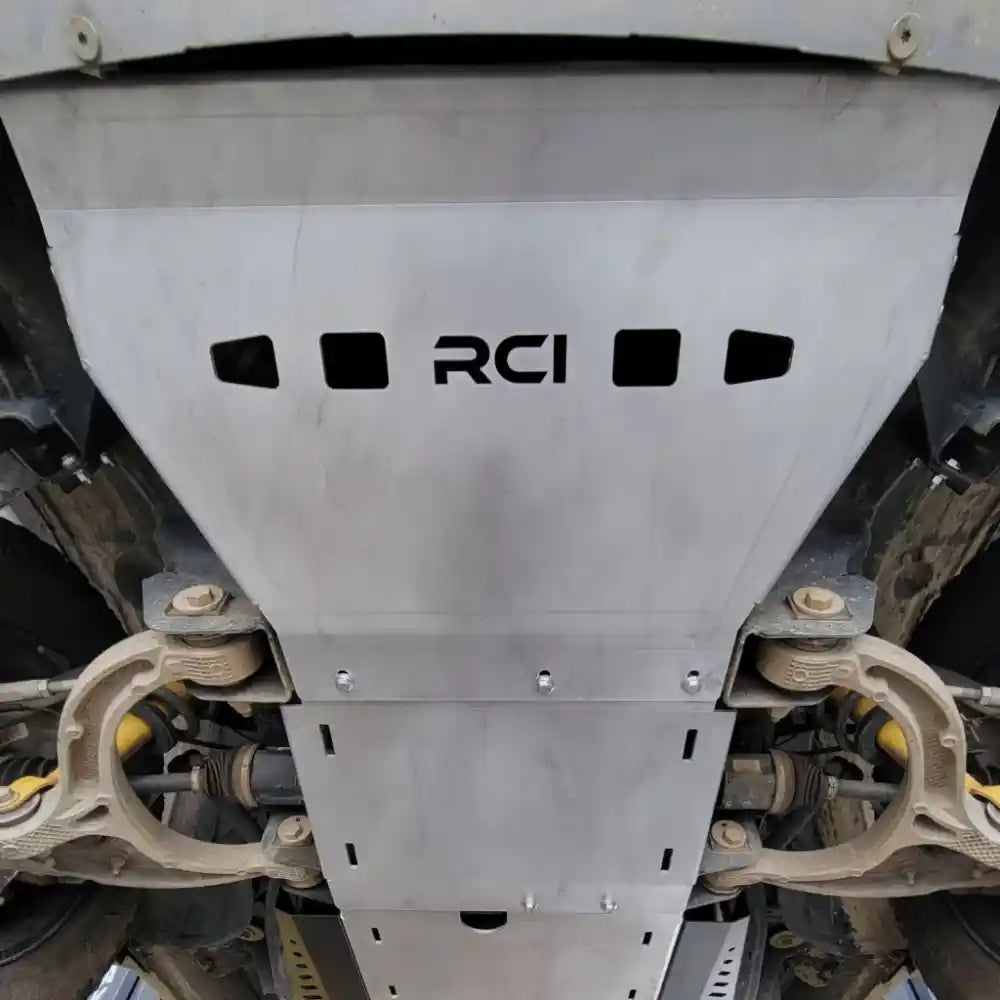

Shields high-cost areas including the electronic power steering rack, front differential, and engine oil pan from severe impacts.
Engineered for a 100% no-drill installation, utilizing seven factory mounting points for maximum rigidity and a perfect fit.
Precision-fit for the 2019+ chassis with confirmed fitment for 3.0L EcoDiesel, 5.7L Hemi V8, and 3.6L V6 engine configurations.
Crafted in the USA from heavy-duty 10-gauge steel or 1/4" 5052 aluminum to provide the ultimate strength-to-weight ratio.
Heavy-Duty Front-End Defense. EcoDiesel Compatible. 100% Bolt-On.
Armor Your Ram's Most Vulnerable ComponentsThe RCI Offroad Engine Skid Plate is the ultimate insurance policy for your 2019-Present Ram 1500. Whether you're navigating high-clearance trails or dealing with deep highway potholes, your truck's most expensive components—like the power steering unit and oil pan—sit dangerously exposed.
Engineered and Manufactured in the USA, this skid plate replaces fragile factory plastic with precision-cut 10-gauge steel or 1/4" aluminum. It is designed to take the hit so your drivetrain doesn't have to.
The Problem & The Solution:The Pain: The Ram 1500 front end houses a costly electric power steering rack and a vulnerable oil pan that factory "splash guards" simply cannot protect from impacts.

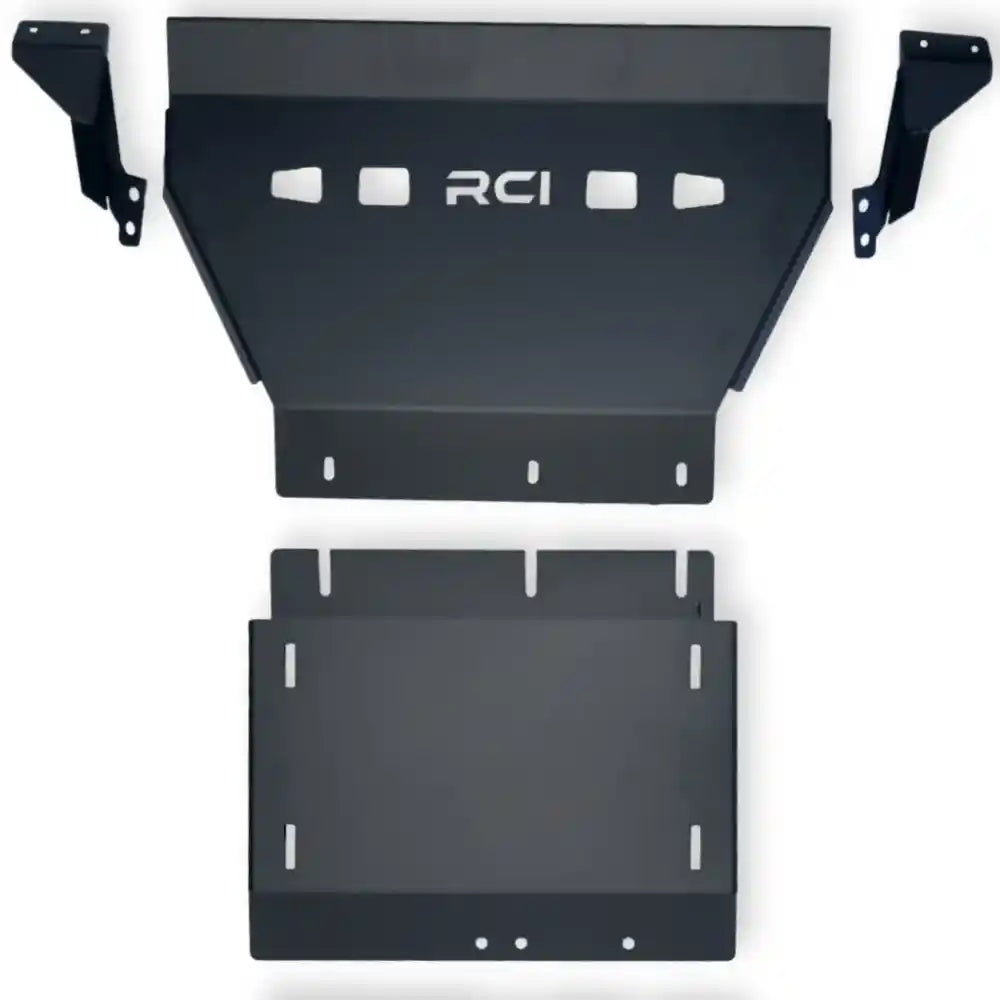

The RCI Solution: A rugged, 2-piece design with 7 mounting points for maximum rigidity and a smooth surface to slide over obstacles safely.
Key Features: Engine & Steering Protection
Shields the expensive power steering unit, front differential, engine oil pan, and front cross-member.
Confirmed fitment for the 3.0L EcoDiesel models, as well as the 5.7L Hemi and 3.6L V6 engines.
Utilizes seven distinct mounting points for extreme durability and to prevent rattling under heavy vibration.
Direct bolt-on addition to existing factory attachment points. No drilling or permanent modification required.
Designed in two sections for easier handling during installation and simple removal of subsections for maintenance.
Choose between black powder-coated steel or aluminum, or raw aluminum for a custom look and rust resistance.
Flat surface ensures you slide over obstacles rather than hooking onto the frame or steering rack.
Proudly precision-engineered and manufactured by RCI Metalworks in Colorado.
Built for the Toughest TrailsStandard factory guards are designed for aerodynamics, not impact. RCI skid plates are built with a focus on Real-World Offroading. Whether you choose the value-driven 10ga steel or the lightweight, corrosion-proof 1/4" aluminum, you are getting a product tested against the harshest terrain.
40 lbs Steel Weight 25 lbs Aluminum Weight 7 Mounting Points Bolt-On Ease of Install
"Living in the mountains, I've already high-centered my Ram twice. The factory plastic guard was shredded. I swapped it for the RCI 1/4" aluminum engine skid and it's night and day. It fits perfectly around the front diff and doesn't interfere with oil changes. Essential for anyone taking their 5th Gen off pavement."
- Jake M., Ram 1500 Owner Important Compatibility NoteCheck Your Trim: This skid plate is for the 2019+ "New Body Style" Ram 1500. It is NOT compatible with Ram 1500 "Classic" models or trucks equipped with 4-inch or larger drop-bracket lift kits.
*Repair costs are estimates. Does not include towing or downtime.
| Feature | RCI Engine Skid Plate | OEM Splash Guard |
|---|---|---|
| Material | ✓ Heavy Steel / 1/4" Aluminum | ✗ Plastic / Thin Stamped Steel |
| Mounting Strength | ✓ 7 Heavy-Duty Points | ✗ Plastic Clips / Light Bolts |
| Impact Resistance | ✓ High (Rock Rated) | ✗ Minimal (Road Debris Only) |
| Durability | ✓ Powder Coated / Rust Proof | Degrades over time |
| Engine Access | ✓ Oil Change Compatible | Requires total removal |
Designed specifically for the current generation Ram 1500 chassis curvature. Fits the following configurations:
5.7L Hemi V8 (All Trims) 3.0L EcoDiesel V6 3.6L Pentastar V6Note: Requires the removal of the lower plastic air dam for installation to access frame horn mounting points.
CA Residents: ⚠️ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
RCI skid plates are designed with convenience in mind. While the main engine plate is highly protective, it is designed to allow access to the oil filter and drain plug on most models without complete removal of the armor.
Yes! RCI has confirmed fitment with the 2019+ EcoDiesel Models. The skid plate provides excellent protection for the diesel engine's specific underbody layout.

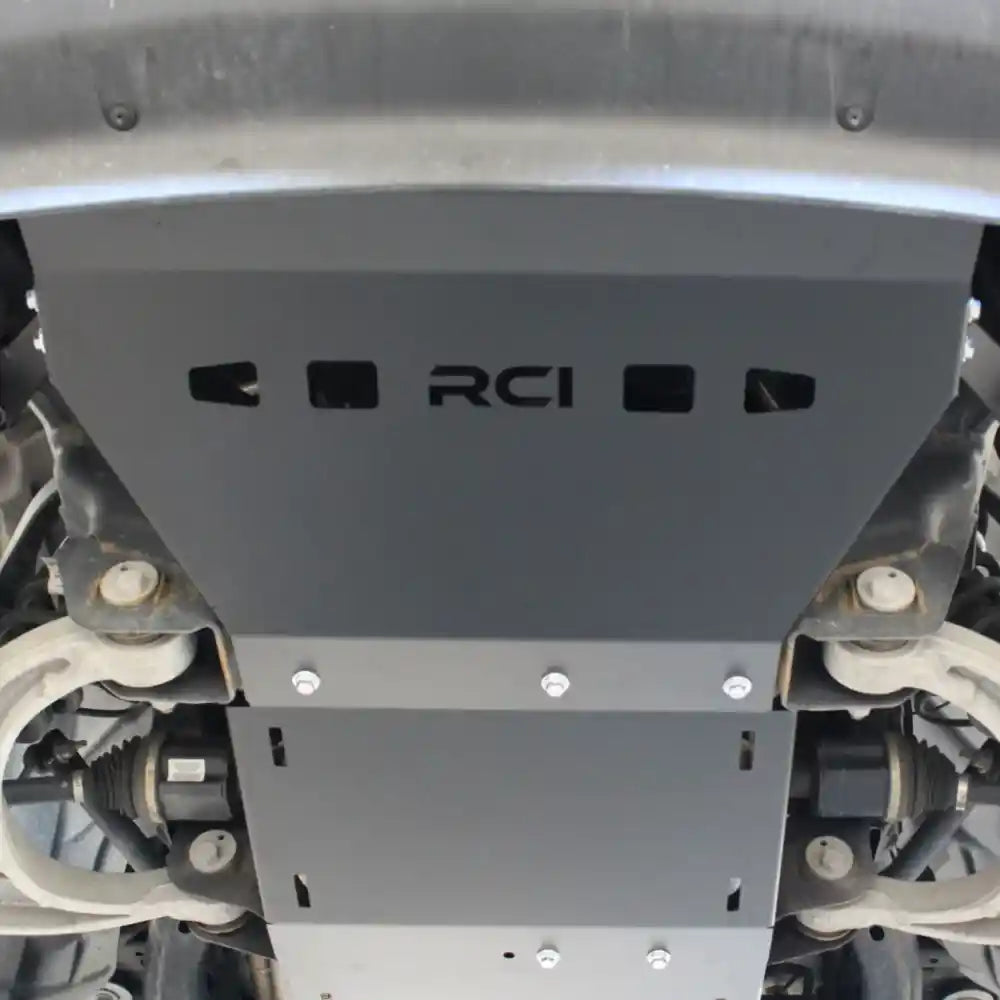

The front engine skid plate mounts directly to the frame horns behind the tow hooks for maximum strength. The factory plastic air dam occupies this space and must be removed to allow the skid plate to seat properly against the frame.
Steel (10ga): Offers the best value and extreme durability for rock sliding. Aluminum (1/4"): Provides a superior strength-to-weight ratio, is about 40% lighter, and is naturally corrosion-resistant, making it ideal for wet or salty environments.
This skid plate is compatible with leveling kits and small lifts. However, it is NOT compatible with 4" or larger drop-bracket lift kits, as these kits modify the front cross-member position.
