Overland Vehicle Systems SCAR 10S - 10,000 Lbs. Rated Synthetic Rope Winch

SKU 19099901
$499.99

  Free Shipping. Ships in 1-3 Business Days

  Price Match Guarantee

  Safe/Secure Checkout

  Questions? Chat or Call us: (409) 916-8280

Notify me when back in stock

Overland Vehicle Systems SCAR 10S - 10,000 Lbs. Rated Synthetic Rope Winch

Premium 10K Winch

The Overland Vehicle Systems S.C.A.R. 10,000lb Winch with Synthetic Rope is the perfect choice for your off-road vehicle recovery needs. This winch has been upgraded to deliver superior performance and power compared to other winches, ensuring you can get out of any adverse situation safely and quickly. It comes equipped with an extra strong Synthetic Rope that is designed to withstand all kinds of rough terrain and challenging conditions, so you never have to worry about being stuck in a bad situation again! Plus, this versatile winch is suitable for any type of recovery – whether it’s mud, sand, or snow – making it the ideal solution for any off-road adventure. So, if you’re looking for a winch that will provide reliable performance and power, look no further than the Overland Vehicle Systems S.C.A.R. 10K Winch with Synthetic Rope!

OVERLAND VEHICLE SYSTEMS SCAR 10S - 10,000 Lbs Features Images

Superior Functionality

The Overland Vehicle Systems S.C.A.R. 10,000lb Winch with Synthetic Rope is the ultimate winch for off-road vehicle recovery. Built to perform under extreme conditions, this Winch features a 6.5 Horsepower series wound motor that provides lightning fast line speed at 42 feet per minute and low DB output. The oversized engagement handle is made from 6061 aircraft grade aluminum and operates effortlessly due to its precision engineered ring gear and 3 stage planetary gear system. The braking system has a military spec cone built into the motor with an automatic engagement system when operating in forward or reverse pull, providing zero creep and heat even under high stress pulls. With rugged construction and reliable performance, the S.C.A.R Winch is optimal for repetitive pulls and ideal for the most extreme recovery situations you may encounter on your off-road adventures.


The Overland Vehicle Systems S.C.A.R. 10,000lb Winch with Synthetic Rope is the perfect choice for off-road vehicle recovery.

This winch comes with a 6.5 HP Series Wound motor, a 3-Stage Planetary Gear Systems with Ring Gear, and IP68 rated waterproofing.

The integrated wireless remote comes with an 11.5’ removable cable, lithium battery for easy operation.

Mounting this winch to your vehicle is simple thanks to its 10” x 4.5” standard fitment bolt pattern and includes heavy-duty hook and 85' cable for durability and reliability when pulling up to 10,000 lbs of weight.

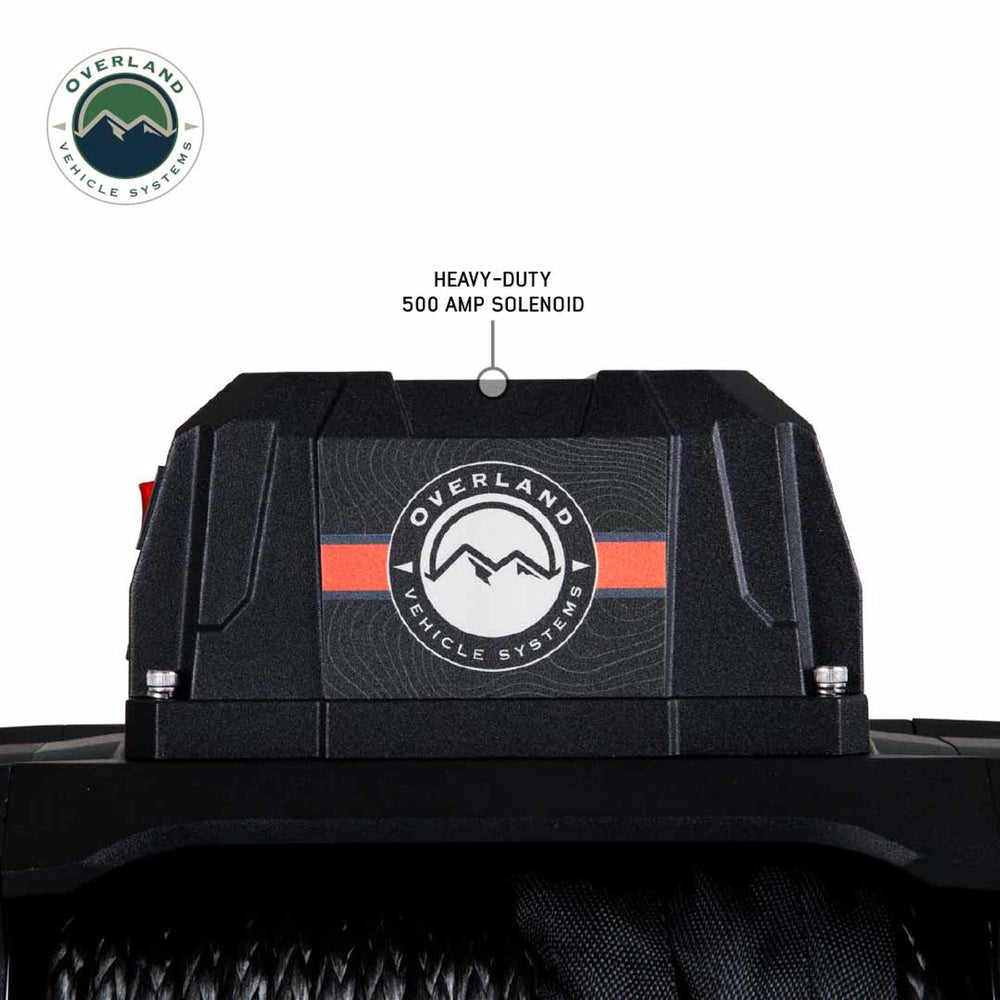

A 500A (Heavy-Duty) solenoid ensures good starting performance in all weather conditions - perfect for any off-roading adventure. To make operation easier, the Winch comes with an ergonomic clutch lever and a 12V power source that ensures smooth operation even when the engine is off.

  • Single Line Rated Pull: 10,000lb
  • Motor: 6.5hp Series Wound
  • Waterproof: IP68 Rated
  • Voltage: 12V
  • Control: Wireless Remote w. 11.5’ Lead with Built in Lithium Battery

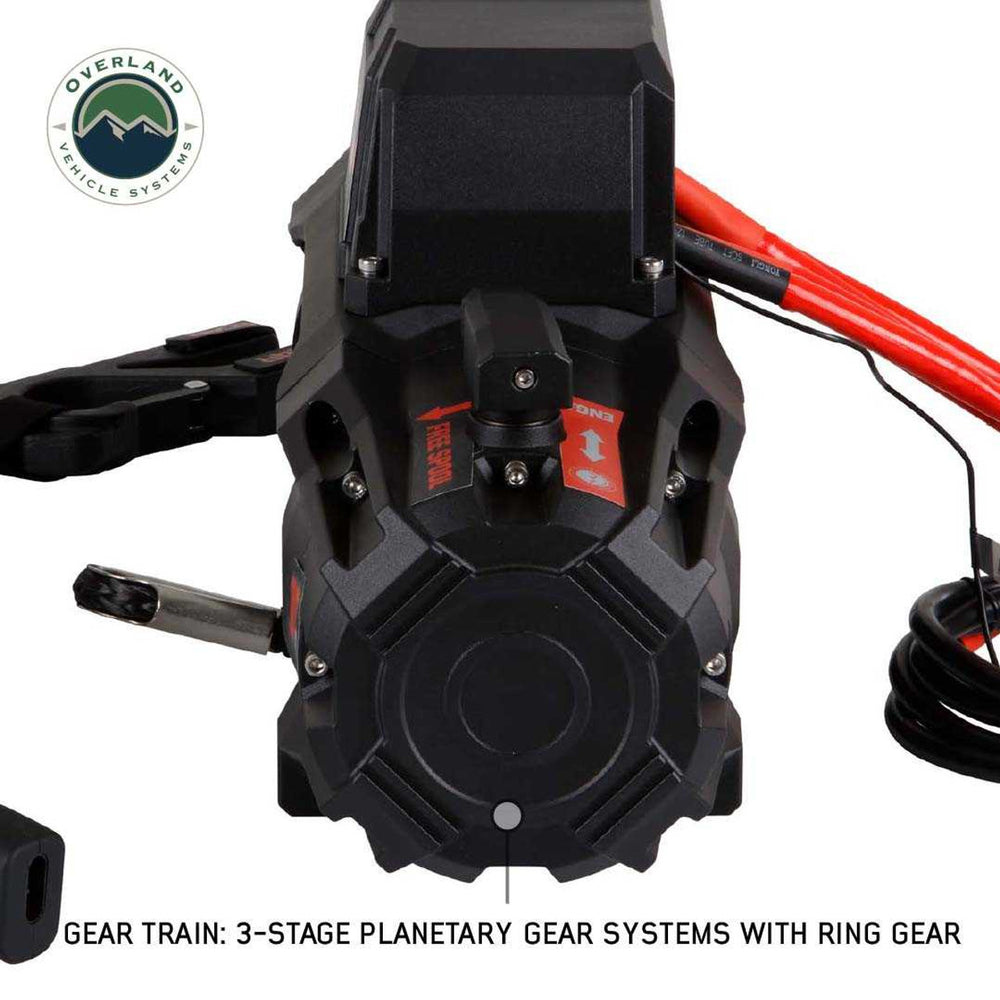

  • Gear Train: 3 Stage Planetary Gear Systems with Ring Gear
  • Gear Ratio: 181:1
  • DB Output: Low
  • Clutch: Rotating Ring Gear
  • Braking Action: Automatic Out-Of-Drum
  • Drum Size: 2.5” x 8.8”
  • Mounting Bolt Pattern: 10” x 4.5”
  • Overall Dimensions: 21.3” L x 6.3” W x 7.9” H
  • Line Speed: 42’ Per Minute
  • Synthetic Line: 3/8” x 85’

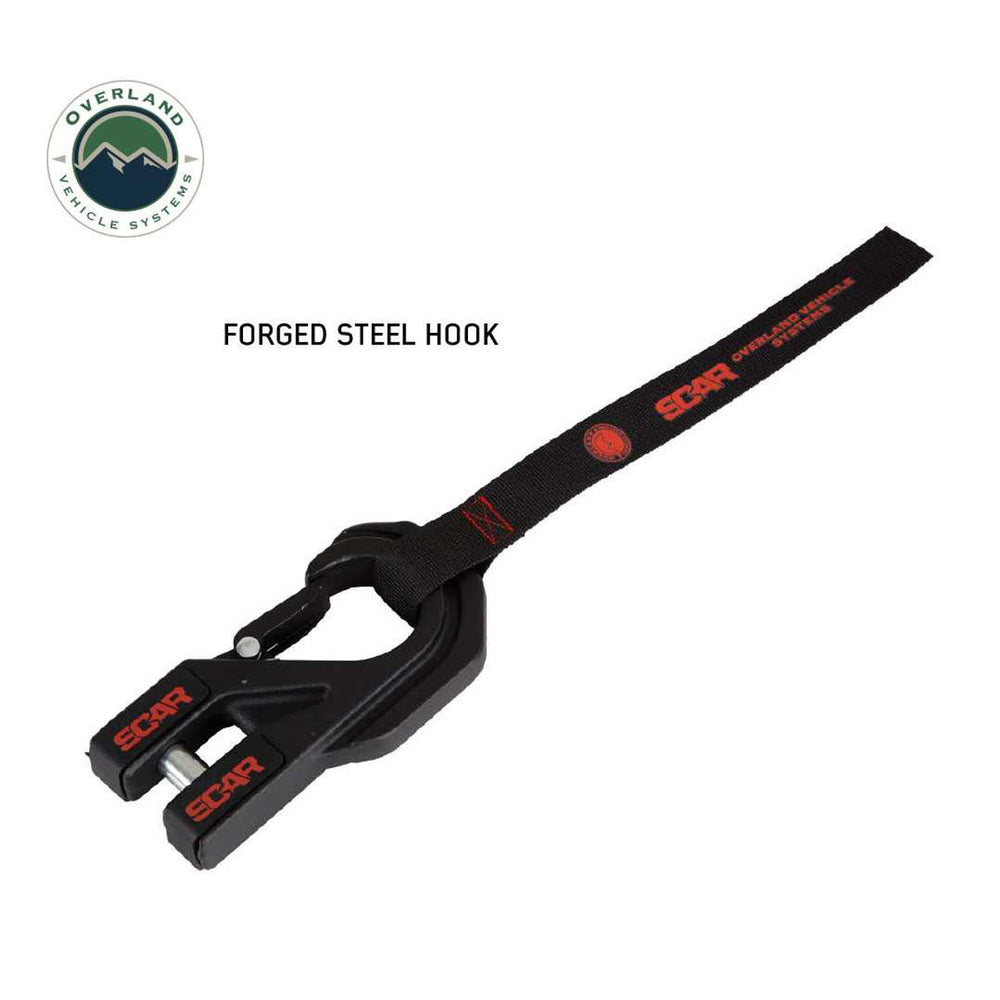

  • Hook: Heavy Duty with Clip
  • Fairlead: Aluminum Hawse Fairlead
  • Electric Cable: 70” x 25 mm2
  • Solenoid: 500A (Heavy – Duty)
  • Recommended Battery: 650CCA Minimum.
  • Weight: 64 lbs
  • Warranty: Limited Lifetime Warranty Mechanical, 5 Year Electrical
