Billet Aluminum Mounting. Roll Cage Strength. Safari Window Compatible.
Extreme Load Capability for the QuartermasterThe Leitner Designs ACS ROOF is the result of 10 years of engineering and hundreds of thousands of off-road miles of testing our legendary Active Cargo System (ACS). We took that DNA and created a world-class platform rack specifically for the INEOS Quartermaster.
Over-engineered in Corona, California, this rack features 6063 T6 aluminum extrusions and billet machined 6061 T6 aluminum brackets. It is designed to "Carry Your World" by bolting directly to the vehicle's roll cage points, creating a mounting system far stronger than the competition.
The Problem & The Solution:The Pain: Most racks rely on the factory rain gutters, which limit load capacity. Plus, high-profile racks often block Safari Windows and create wind noise.
The ACS Solution: We use Billet Bases that bolt to the internal roll cage, a Low Profile (2.0") design that respects your Safari Windows, and a fully modular T-track system.
Key Features: ACS ROOF for INEOS

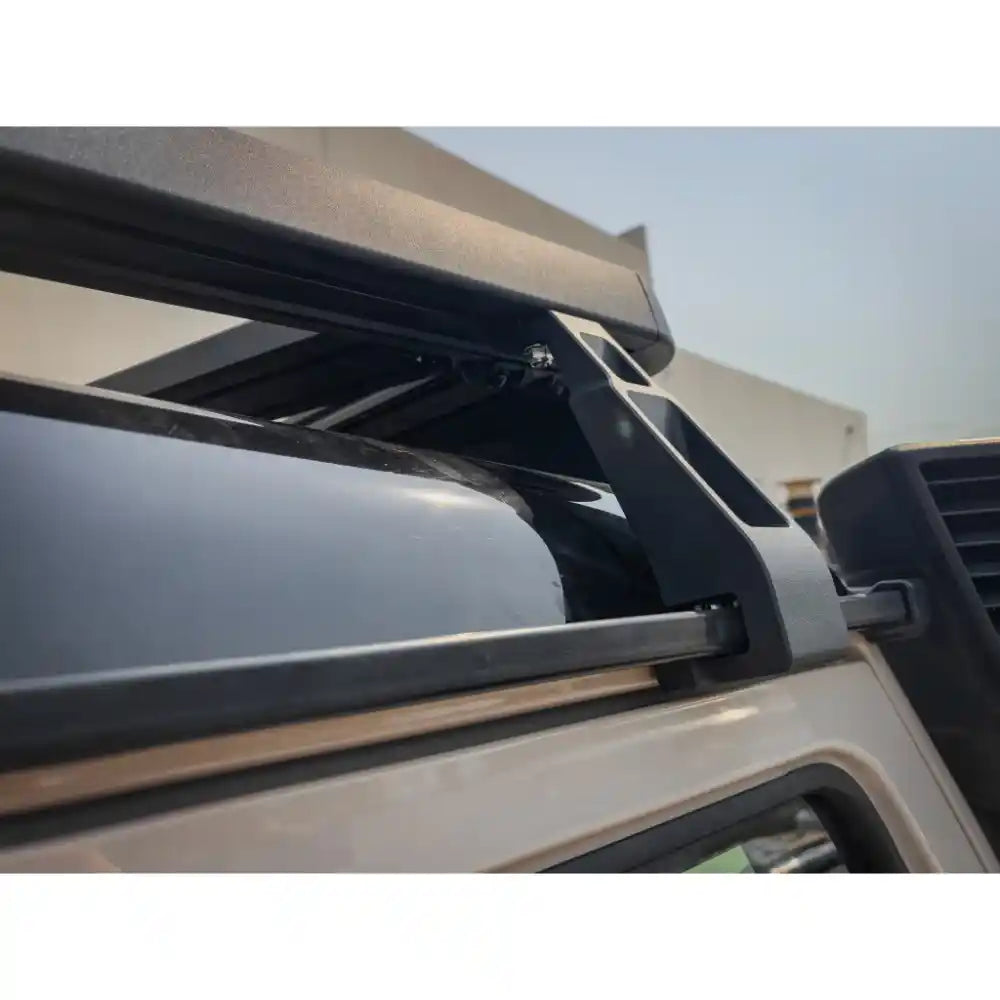

Machined from 6061 T6 aluminum, these bases bolt directly to the INEOS roll cage for ultimate strength, bypassing weak factory rain gutters.
Half Rack: Seamless integration with no interference.
Full Rack: Windows can still open for ventilation (cannot be removed).
Securely mount gear with adjustable load bars that slide into toothed channels. Position your bars exactly where your gear needs them.
Adds only 2.0 inches to the height of your Grenadier Quartermaster, maintaining garage clearance and reducing drag.
Compatible with the GearPOD ROOF. This side-opening storage box features internal locks and pre-marked spots for MAXTRAX and RotopaX.
Works with any Rhino-Rack, Thule, and Yakima accessory that uses standard T-track mounting hardware.
Additional load bars can be added to create a solid platform surface, ideal for photography, observation, or carrying smaller items.
Grade 10.9 black Zi-Ni coated fasteners with Loctite and a dual-stage powder coat finish ensure your rack survives the elements.
Engineered in the USAThe ACS ROOF is built with heavy-duty 1.5mm to 3.0mm multi-wall aluminum. It’s designed to handle the toughest trails without rattling apart, thanks to custom vibration-resistant fasteners.
Available in Two Configurations: Choose the Half Rack (3/4 Platform) for lighter needs or the Full Length Rack for maximum overland utility.
40-70 lbs Rack Weight 750 lbs Max Static (Full) 375 lbs Max On-Road (Full) 2.0" Added Height
"Most racks for the Grenadier just clamp to the gutters, but I didn't trust that for my RTT. The Leitner ACS bolts right into the chassis points. It's incredibly sturdy. I went with the Full Length version, and being able to still pop open my Safari windows for ventilation is a huge plus."
- David S., INEOS Quartermaster Owner Important: Tent Mounting NoticeLow Profile Design: The rack is strong enough for the heaviest tents, but the low-profile design (2.0") makes accessing tent mounting fasteners difficult.
Recommendation: If mounting a tent, we highly recommend our Load Bar Kit, specifically designed for hassle-free tent installation.
| Feature | Leitner ACS ROOF | Generic Gutter Racks |
|---|---|---|
| Mounting Point | ✓ Roll Cage (Billet Bases) | ✗ Rain Gutters (Weak) |
| Profile | ✓ 2.0" Low Profile | ✗ High / Bulky |
| Safari Windows | ✓ Compatible | ✗ Often Blocked |
| Noise Level | ✓ Wind Reducer Included | ✗ Loud / Whistling |
| Origin | ✓ Made in USA | Imported |
Designed specifically for the INEOS Grenadier Quartermaster.
Half Rack (3/4 Platform) - 500 lbs Static Capacity Full Length Rack - 750 lbs Static CapacityUpgrade Potential: Fully upgradable with an expanding range of Leitner accessories including the GearPOD Roof and Wire management solutions.
CA Residents: ⚠️ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

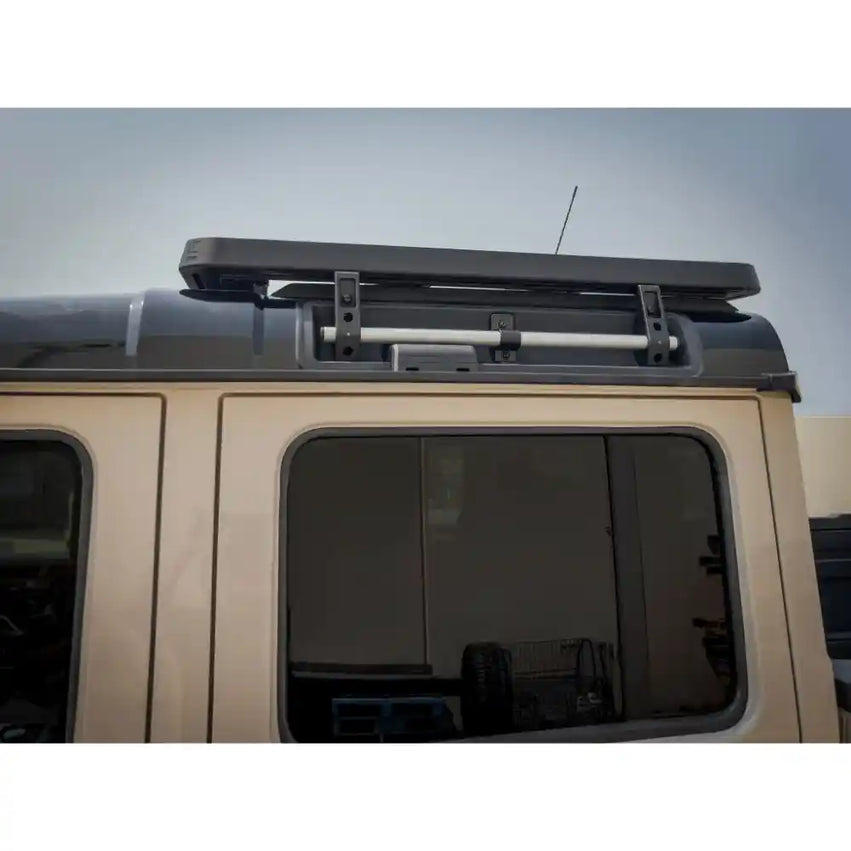

Half Rack: No interference; seamless integration.
Full Rack: You can still open the windows for ventilation, but the rack covers them, so the glass panels cannot be completely removed while the rack is installed.
Instead of clamping to the rain gutters (which can be a weak point for heavy dynamic loads), the ACS ROOF bolts directly to the INEOS roll cage using machined 6061 T6 aluminum bases. This provides ultimate strength and stability.
Yes, the rack is rated to support heavy tents (up to 750 lbs static on the Full Rack). However, due to the low-profile design, accessing tent bolts is very difficult. We strongly recommend purchasing our Load Bar Kit for hassle-free tent mounting.

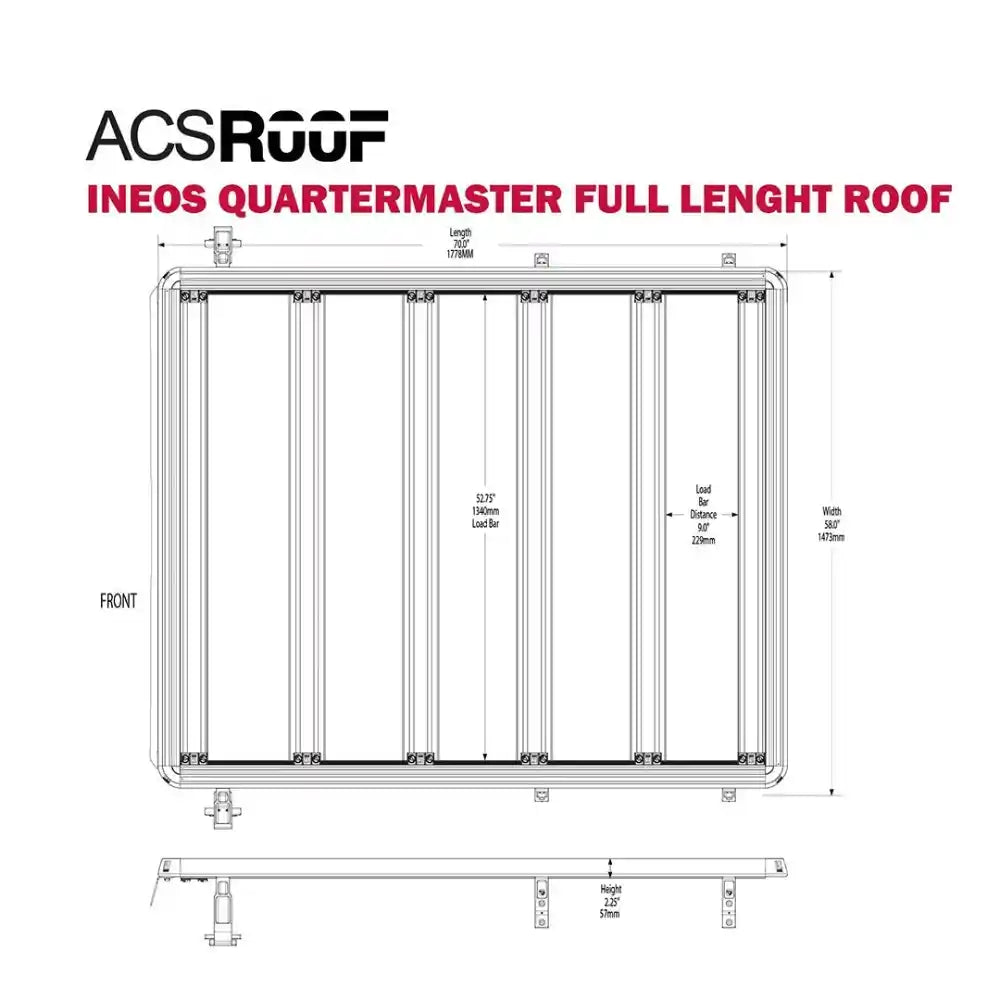

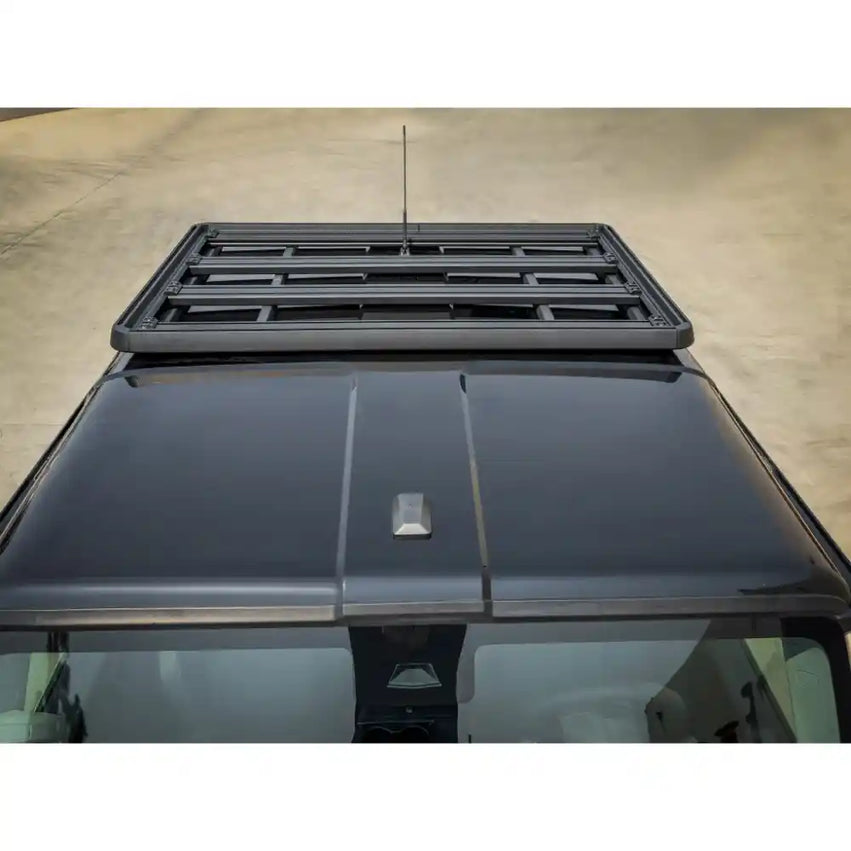

Full Rack: Covers the full roof, weighs 70 lbs, higher capacity (750 lbs static), covers Safari windows.

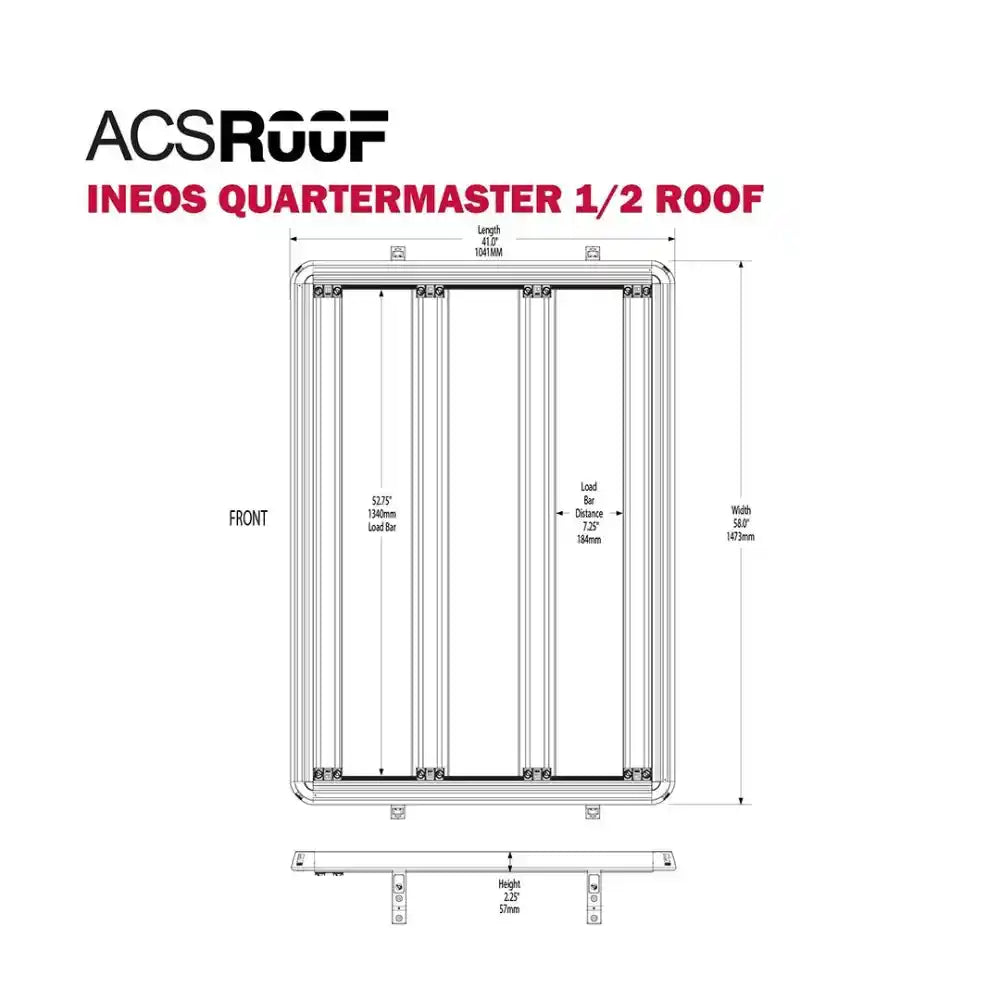

Half Rack: Covers 3/4 of the roof, weighs 40 lbs, lighter capacity (500 lbs static), zero interference with Safari windows.
No. The ACS ROOF uses a bolt-on assembly that connects to existing points on the INEOS Quartermaster roll cage.
