Complete Underbody Armor. No-Drill Installation. Made in the USA.
Complete Drivetrain Protection, One PackageThe Juggernaut Tacoma Full Skid Plate Package bundles all three of Juggernaut's 4th Gen Tacoma skid plates — engine, transmission, and transfer case — into one complete underbody armor kit, all built from 1/4" aluminum.

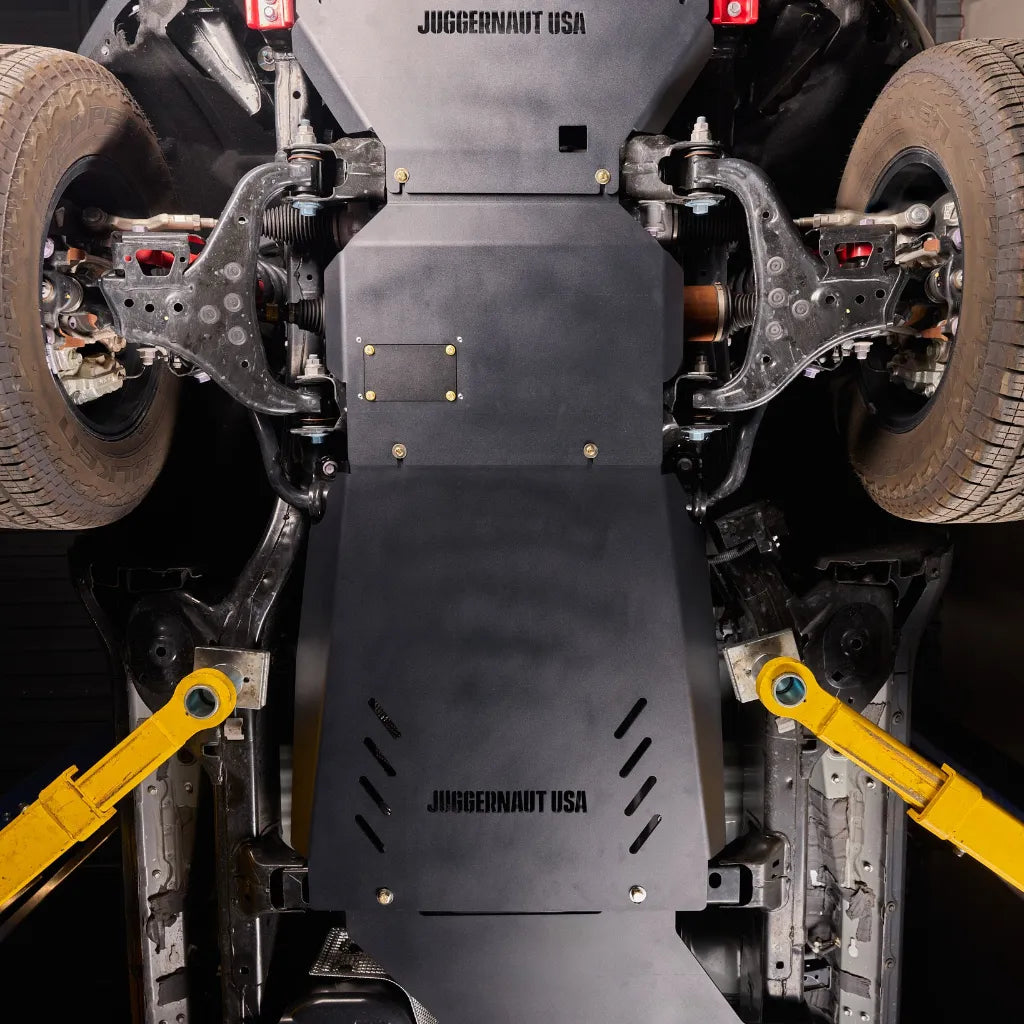

Together the three plates protect your oil pan, front differential, electric power steering rack, transmission pan, electronic sway bar disconnect module, and transfer case from road debris, trail obstacles, theft, and impact damage. Aluminum has a much better corrosion resistance than steel, so rust isn't a concern — and for additional protection, every plate is powder coated black as well.
Why Choose Juggernaut Protection?The Pain: A stock 4th Gen Tacoma leaves its entire underbody drivetrain — oil pan, diff, steering rack, transmission, sway bar module, and transfer case — exposed to rocks, ruts, and trail debris, and buying protection one part at a time gets expensive fast.
The Juggernaut Solution: One bundled package of 1/4" aluminum shields that bolt to your factory frame mounting points — no drilling, no cutting — covering your whole drivetrain in a single order at a lower price than buying each plate separately.
Key Features: Full Skid Plate Package

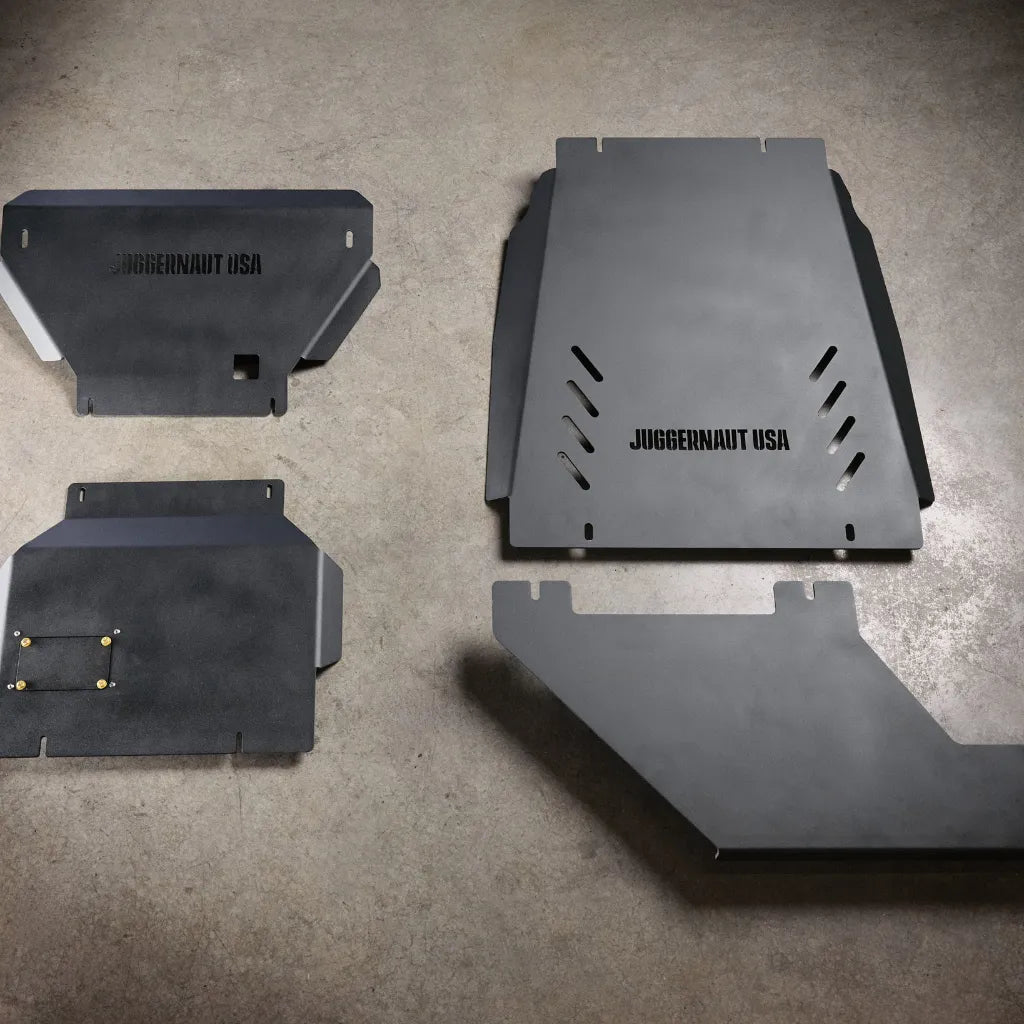

Engine, transmission, and transfer case skid plates in one bundled kit.
Every plate bolts to your Tacoma's existing frame mounting points. No holes, no cutting.

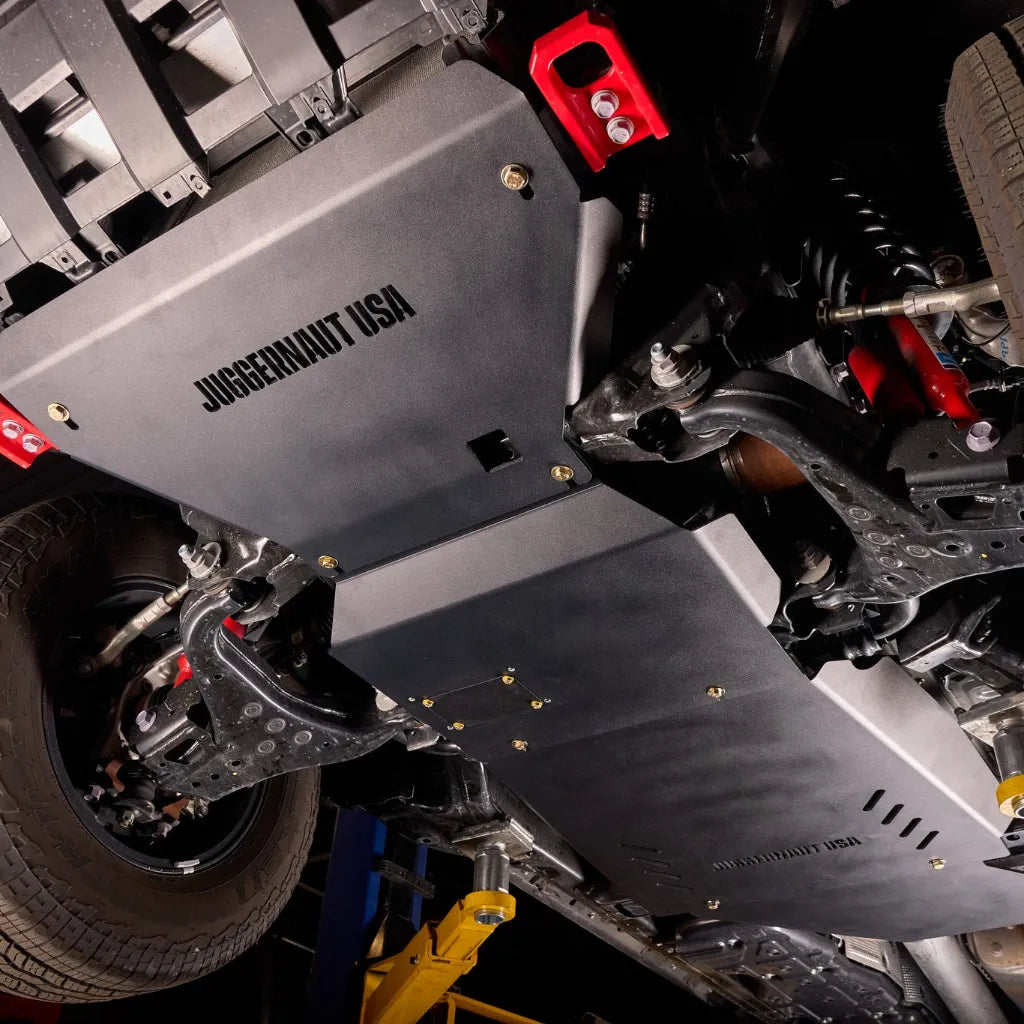

Full quarter-inch aluminum construction reinforced with 3/16" steel mounting brackets on the front plate.
Aluminum resists corrosion far better than steel, so you never have to worry about rust underneath your truck.
Black powder coat on every plate adds an extra layer of protection against corrosion and trail wear.

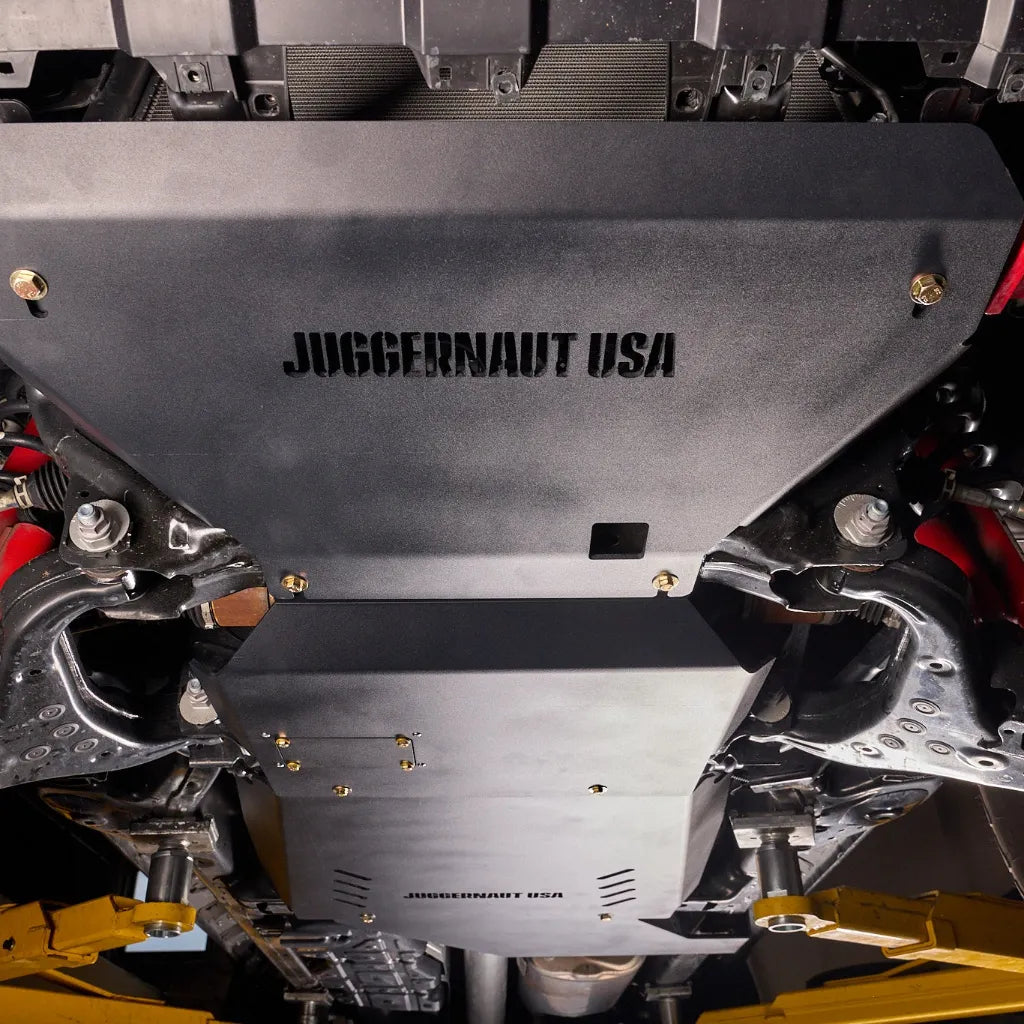

The engine skid includes oil drain holes so you can do routine oil changes without removing any plates.
Grade 8 steel hardware for all three plates ships in the box — no trip to the hardware store.
Designed and manufactured domestically in Colorado from US-sourced aluminum.
Built for the TNGA-F PlatformAll three plates in this package are machined from heavy-duty 1/4" 5052 aluminum and finished in a durable black powder coat, sharing their TNGA-F platform mounting points with the 6th Gen 4Runner.
1/4" Aluminum Thickness 3 Plates Included 70 lbs Total Package Weight Bolt-On Installation
Important Fitment Note
Select the Correct Engine Option: Choose I-Force Max Hybrid or Non-Hybrid I4 Turbo above — the engine skid fits either, but the transmission and transfer case plates use slightly different geometry to match each engine's driveline layout. The transfer case skid plate requires 4x4; on a 2WD Tacoma, install just the engine and transmission plates from this kit.
*Based on this store's current individual prices for the Juggernaut Tacoma Engine, Transmission, and Transfer Case Skid Plates.
| What Matters Underbody | Our 1/4" 5052 Aluminum | Typical Steel |
|---|---|---|
| Weight | ✓ Lighter — easier on payload | ✗ Heavier |
| Corrosion | ✓ Won't rust | ✗ Rusts where the coating chips |
| Installation | ✓ 100% Bolt-On (No Drill) | ✗ Often Requires Drilling |
| Hardware | ✓ Included | Often Sold Separately |
| Origin | ✓ Made in USA (Colorado) | Imported |
Designed specifically for the 4th Gen Toyota Tacoma's TNGA-F platform. Fits the following:
2024-current Tacoma — all cabs, all beds, 4x4 & 4x2, i-FORCE MAX Hybrid & Non-Hybrid i-FORCE Turbo (transfer case plate requires 4x4)Shares its TNGA-F platform mounting points with the 6th Gen 4Runner. Not compatible with a 4"+ suspension lift — aftermarket lower control-arm drop crossmembers will interfere with the front bracket.
CA Residents: ⚠️ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
The engine skid plate, transmission skid plate, and transfer case skid plate — Juggernaut's full lineup of individual Tacoma skid plates, bundled at a lower combined price.
Yes, but the transfer case plate won't be usable since 2WD Tacomas don't have a transfer case. 2WD owners are better served buying the engine and transmission skid plates individually rather than this package.
Select the i-FORCE MAX hybrid or non-hybrid i-FORCE turbo option above to match your Tacoma's engine. The engine skid fits either, but the transmission and transfer case plates have engine-specific mounting geometry.
Not with a 4"+ suspension lift — aftermarket lower control-arm drop crossmembers interfere with the front mounting bracket.
No. All three plates bolt to your Tacoma's existing factory frame mounting points — no drilling or cutting required. Installing the full package typically takes a few hours with basic hand tools; see the installation guide below for the full step-by-step order.
No — under the Magnuson-Moss Warranty Act, bolt-on aftermarket parts can't void your factory warranty on their own.
