Transmission & Catalytic Converter Protection. Bolt-On Installation. Made in the USA.
Your Transmission and Catalytic Converters Hang Low and UnguardedThis plate shields the transmission and catalytic converters on the 3rd Gen GMC Canyon, where they sit exposed below the frame rails on exactly the trails the AT4 was built for. A cracked transmission pan ends your trip on the spot, and a stolen cat is a four-figure repair — this plate is a physical deterrent that makes your converters a hard target instead of an easy grab.
Aluminum can't rust the way steel plates do — every scratch on steel armor is where corrosion starts, especially with road salt. Ours is 1/4" 5052 aluminum, powder-coated black, CNC plasma-cut and press-brake formed in our Wheat Ridge, Colorado shop.
Why Choose Juggernaut Protection?The Pain: One rock ledge or one thief with a sawzall is all it takes — the transmission pan and catalytic converters hang exposed below the frame rails.
The Juggernaut Solution: A single plate that protects both — impact protection underneath and a solid deterrent between a sawzall and your converters.
Key Features: Canyon Transmission Skid Plate & Cat Shield
Shields the transmission pan and catalytic converters in one plate.
Lighter than steel and immune to the rust that eats away at steel armor over time.
Service without pulling the plate.
A durable black finish adds abrasion resistance on top of aluminum's natural corrosion resistance.
Bolt-on installation using factory mounting points — no holes, no modifications.
Fits alongside the factory off-road package engine skid plates.
Everything you need ships in the box — no trip to the hardware store.
Designed, cut, and finished in Colorado. Backed by a lifetime warranty.
Built for the 3rd Gen GMC CanyonEngineered specifically for the 2023-current GMC Canyon, including the Canyon AT4, matching the factory underbody geometry and mounting points.
1/4" 5052 Aluminum Thickness 30 lb Shipping Weight Black Powder Coat Finish Lifetime Warranty
Fitment: GMC Canyon 2023-current
Fits the following:
2023-current GMC Canyon and GMC Canyon AT4Does not fit the GMC Canyon AT4X with underbody cameras. Will not fit vehicles with a 4"+ lift — aftermarket drop brackets and crossmembers interfere with factory mounting points.
*Repair and replacement costs are general estimates and vary by shop, region, and vehicle condition.
| What Matters Underbody | Our 1/4" 5052-H32 Aluminum | Typical 3/16" Steel |
|---|---|---|
| Resistance to Bending | ✓ Higher — bend resistance rises with the square of thickness | ✗ Baseline |
| Weight | ✓ About half — easier on payload | ✗ Heavier |
| Corrosion | ✓ Won't rust | ✗ Rusts where the coating chips |
| Surface Hardness (drag over rock) | Softer — can gouge on granite | ✓ Harder — steel's real edge |
| Hardware | ✓ Included | Often Sold Separately |
| Origin | ✓ Made in USA (Colorado) | Imported |
CA Residents: ⚠️ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
The transmission pan and catalytic converters — two of the most expensive and most targeted parts under the truck.
No — this plate does not fit the AT4X with underbody cameras, since the camera housing interferes with the plate.

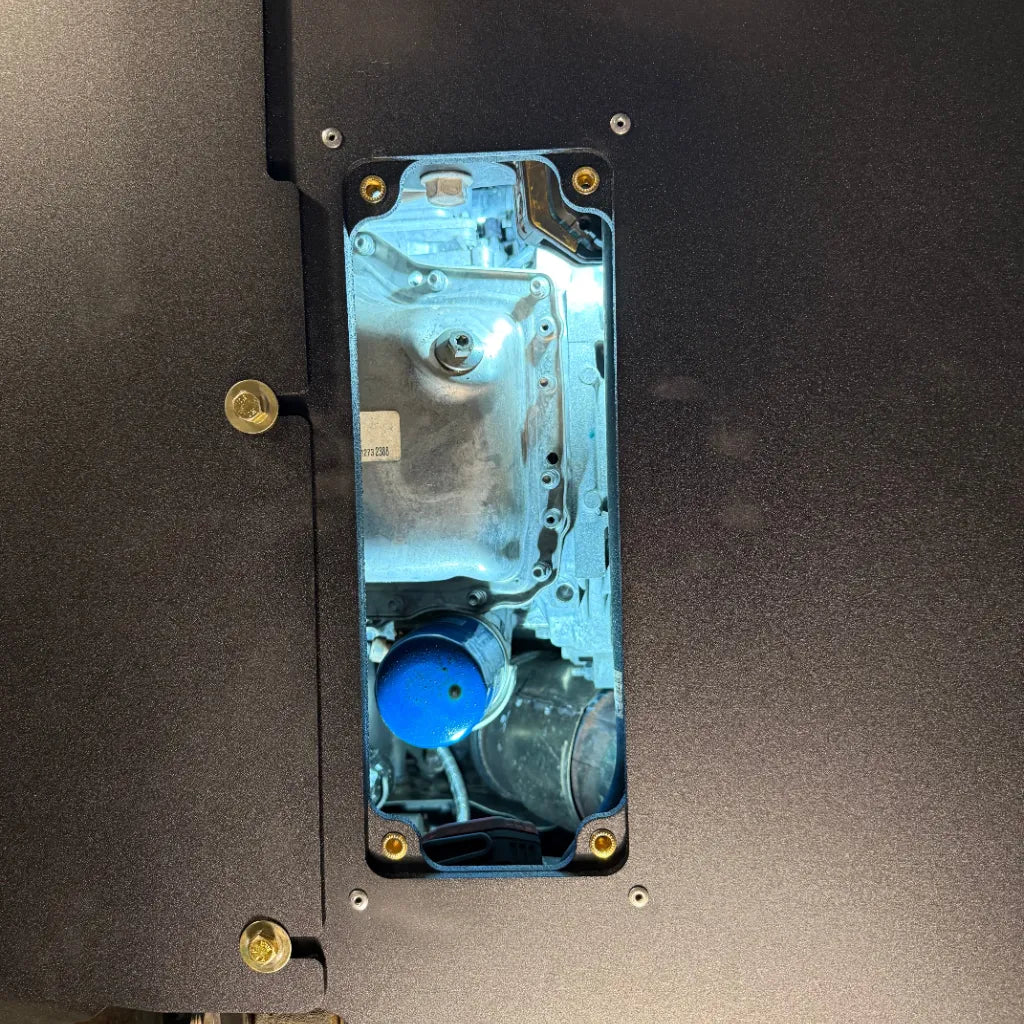

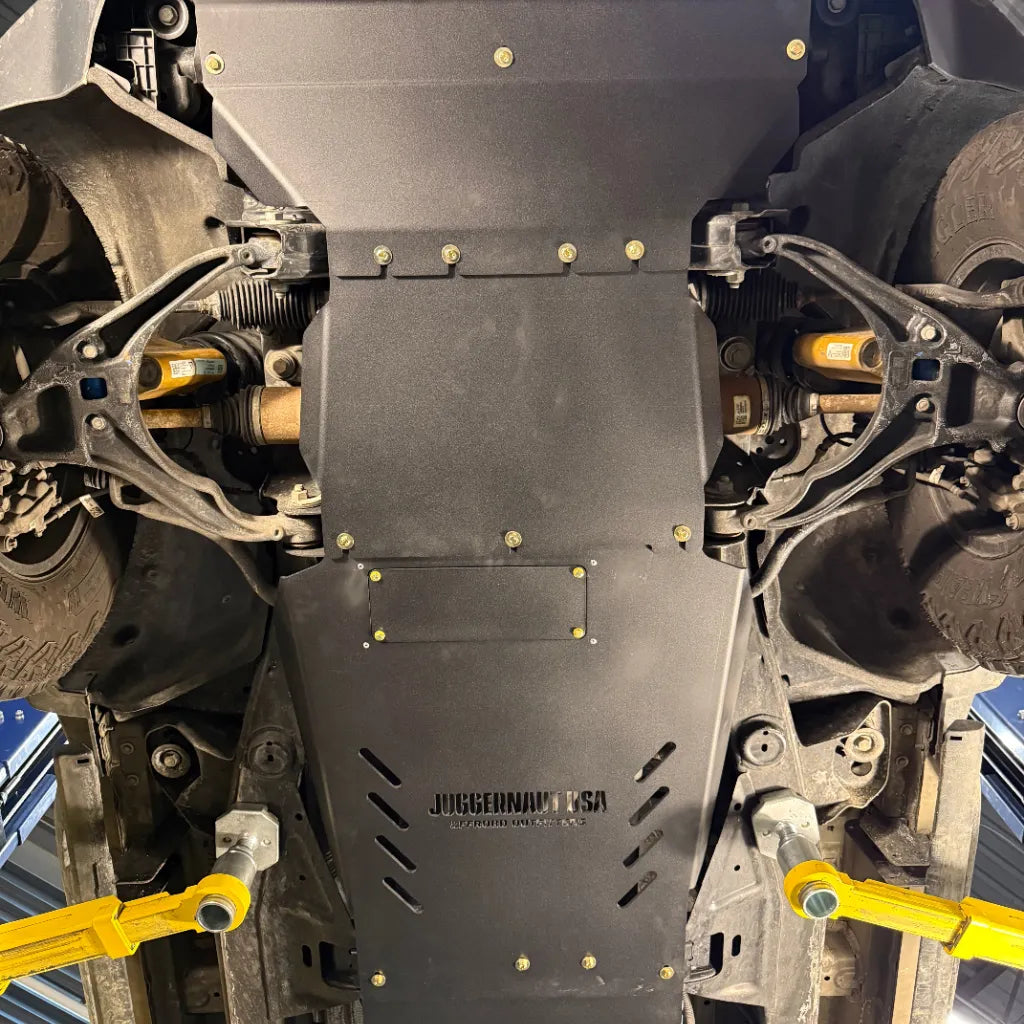

Yes — a removable oil drain access panel lines up with the drain plug, so oil changes don't require dropping the plate.
Yes — it's designed to fit alongside the factory off-road package's engine skid plates.
No. The plate bolts to your Canyon's existing factory mounting points — no drilling or cutting required.
No — under the Magnuson-Moss Warranty Act, bolt-on aftermarket parts can't void your factory warranty on their own.
