1/4" CNC-Cut Aluminum. No-Drill Bolt-On. 100% Made in Colorado, USA.

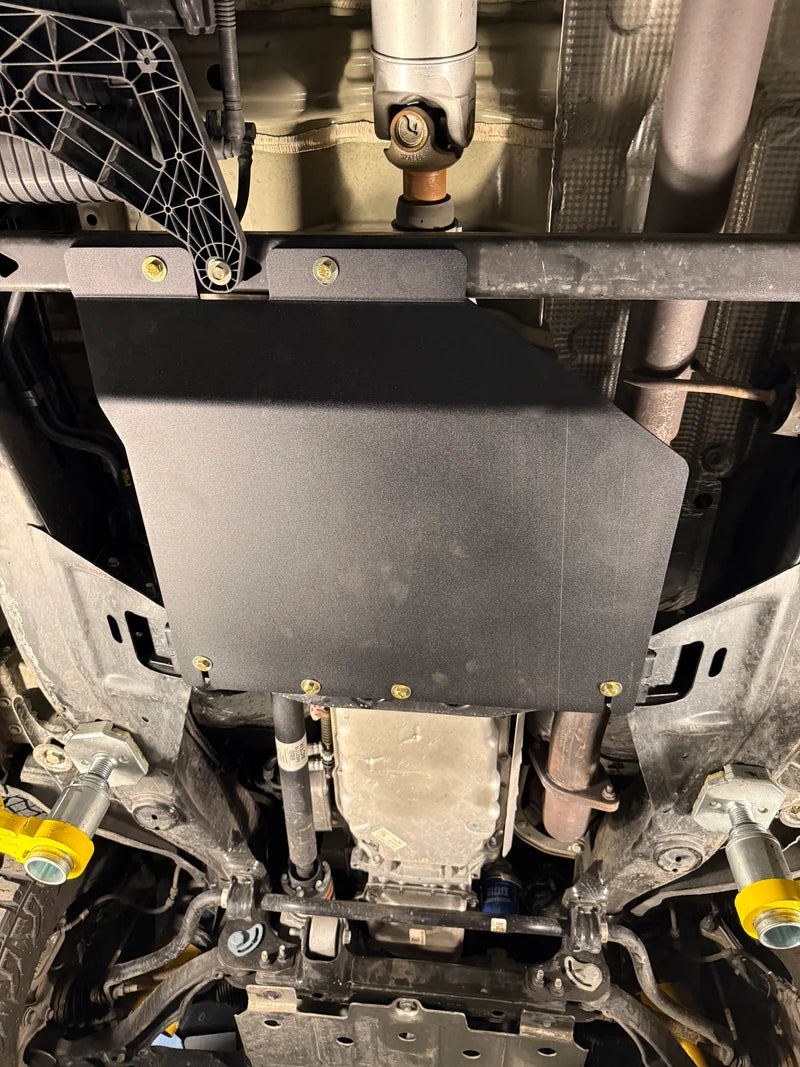

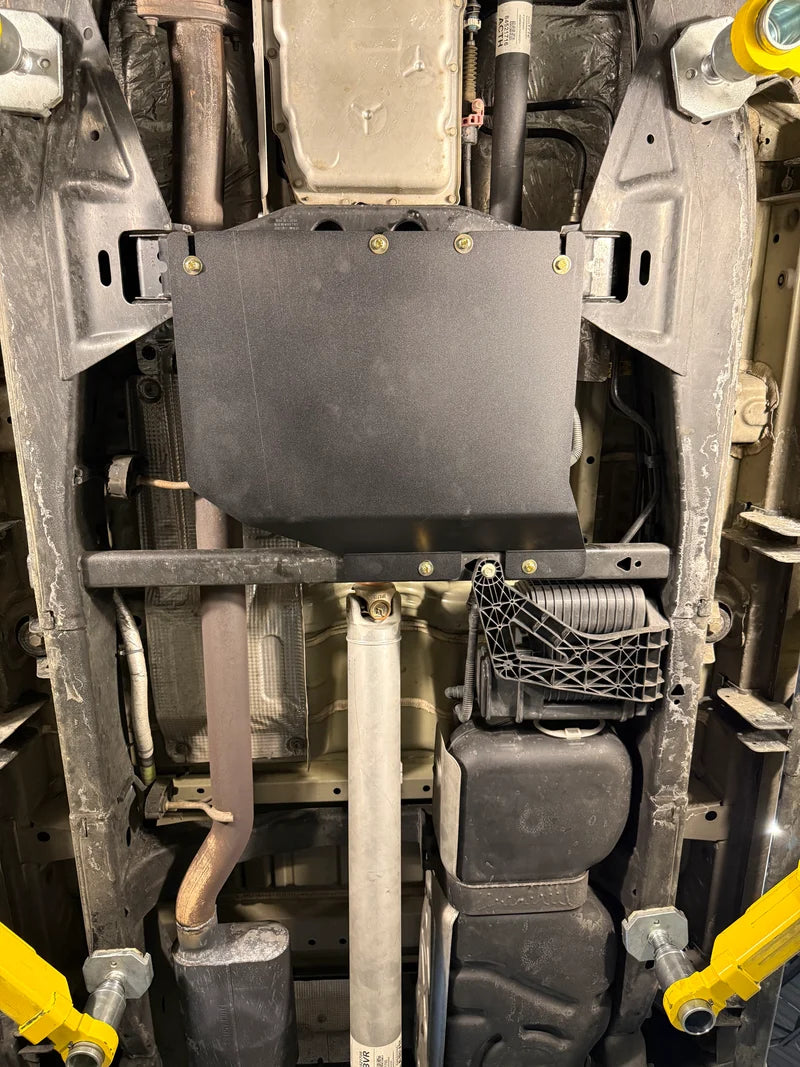

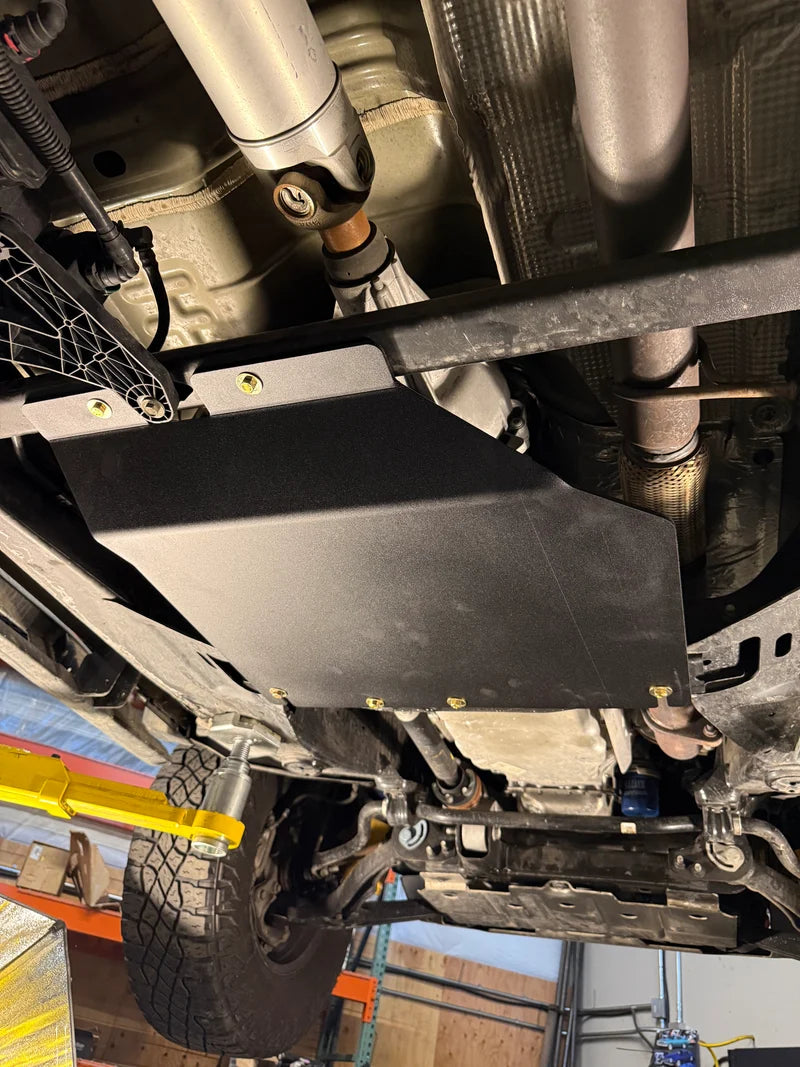

Armor Built for the Modern TrailThe 2023+ Chevy Colorado is a midsize trail beast, but its transfer case sits low and exposed. One bad line over a jagged rock can turn a weekend trip into an expensive recovery. The Juggernaut USA Transfer Case Skid Plate is engineered to take the hit so your drivetrain doesn't.
Precision CNC plasma-cut and press-brake formed in our Wheat Ridge, Colorado shop, this 1/4-inch 5052-H32 aluminum plate provides superior protection without the weight penalty of traditional steel armor.
Why Juggernaut Armor?The Pain: The factory transfer case is vulnerable. Steel plates are heavy, and every scratch becomes a breeding ground for rust—especially in salt-heavy winters.
The Juggernaut Solution: We use 1/4" Aluminum which is 50% lighter than steel, offers higher bend resistance than 3/16" steel, and will never rust. Plus, our 100% bolt-on design means no drilling or modifications are required.
Key Features: Heavy Duty Drivetrain Protection
No drilling, cutting, or welding. Installs in 1-2 hours using basic hand tools and factory mounting points.
Thickness does the work. Aluminum provides a higher resistance to permanent bending than thinner steel plates.
Unlike steel, aluminum won't corrode. If you scratch the powder coat on a rock, your armor stays structurally sound.
At only 15.0 lbs, this skid plate protects your vitals without eating up your Colorado's payload capacity.
We don't skimp on the details. Every kit includes high-strength Grade 8 steel hardware for maximum shear resistance.
Every plate comes powder-coated black for a clean look and added protection against trail debris.
Designed, cut, and finished in the USA. We test our gear on the same Rocky Mountain trails you drive.
We stand behind our craftsmanship. This product is backed by a Juggernaut USA Lifetime Warranty.
The Science of StrengthWhy 1/4" aluminum? Resistance to permanent bending scales with the square of plate thickness. This means our 1/4" 5052-H32 aluminum takes a bigger hit before staying bent than the 3/16" steel most competitors use—at about half the weight.
1/4 Inch Thickness 15.0 lbs Lightweight Grade 8 Fasteners USA Origin
"The peace of mind this skid plate gives is worth every penny. The install was exactly as described—true bolt-on using existing holes. I live in the rust belt, so going with 1/4" aluminum over steel was a no-brainer. It's solid, lightweight, and looks great under my ZR2."
- Mike S., Colorado Owner Lift Compatibility & Shipping⚠️ Lift Warning: This skid plate will NOT fit vehicles with a 4" or larger lift. Aftermarket drop brackets and crossmembers interfere with factory mounting points.
🚚 Fast Shipping: Free shipping to the lower 48. Orders typically ship the next business day.
| Feature | Juggernaut 1/4" Aluminum | Typical 3/16" Steel |
|---|---|---|
| Bend Resistance | ✓ Higher (Scales with thickness) | ✗ Baseline |
| Weight | ✓ ~15 lbs (Easier on payload) | ✗ ~30+ lbs (Heavier) |
| Corrosion | ✓ Won't Rust | ✗ Rusts where coating chips |
| Installation | ✓ 100% Bolt-On | Varies |
| Warranty | ✓ Lifetime Warranty | Varies |
Specifically designed to follow the underbody contour of the 3rd Gen Colorado. Fits the following models:
2023–2026 Chevrolet Colorado 4x4 (2.7L Turbo) 2023–2026 Chevrolet Colorado ZR2 (2.7L Turbo)Not sure? Text your year + trim to (970) 341-4221 and we’ll confirm fitment before you buy.
In the Denver Area? Our expert technicians can install this for you at our Wheat Ridge shop. Call (970) 341-4221 to schedule. Includes a Lifetime Warranty on labor!
No. All Juggernaut USA skid plates are engineered for a true bolt-on installation. It utilizes factory mounting points so you don't have to worry about permanent modifications.
Our 1/4" aluminum is significantly lighter than steel, which saves your payload. Because bend resistance rises with the square of thickness, this plate takes a bigger hit than standard 3/16" steel before it stays bent. Most importantly, it never rusts.
Yes, this plate is specifically designed to fit the 2023–2026 Chevy Colorado ZR2 as well as other 4x4 Colorado models. It is the same plate used for the GMC Canyon listing.
Absolutely. Most owners complete the installation in 1-2 hours with basic hand tools. Grade 8 steel hardware is included with every kit.
