Lifetime Warranty. No-Drill Bolt-On Installation. Made in Colorado, USA.

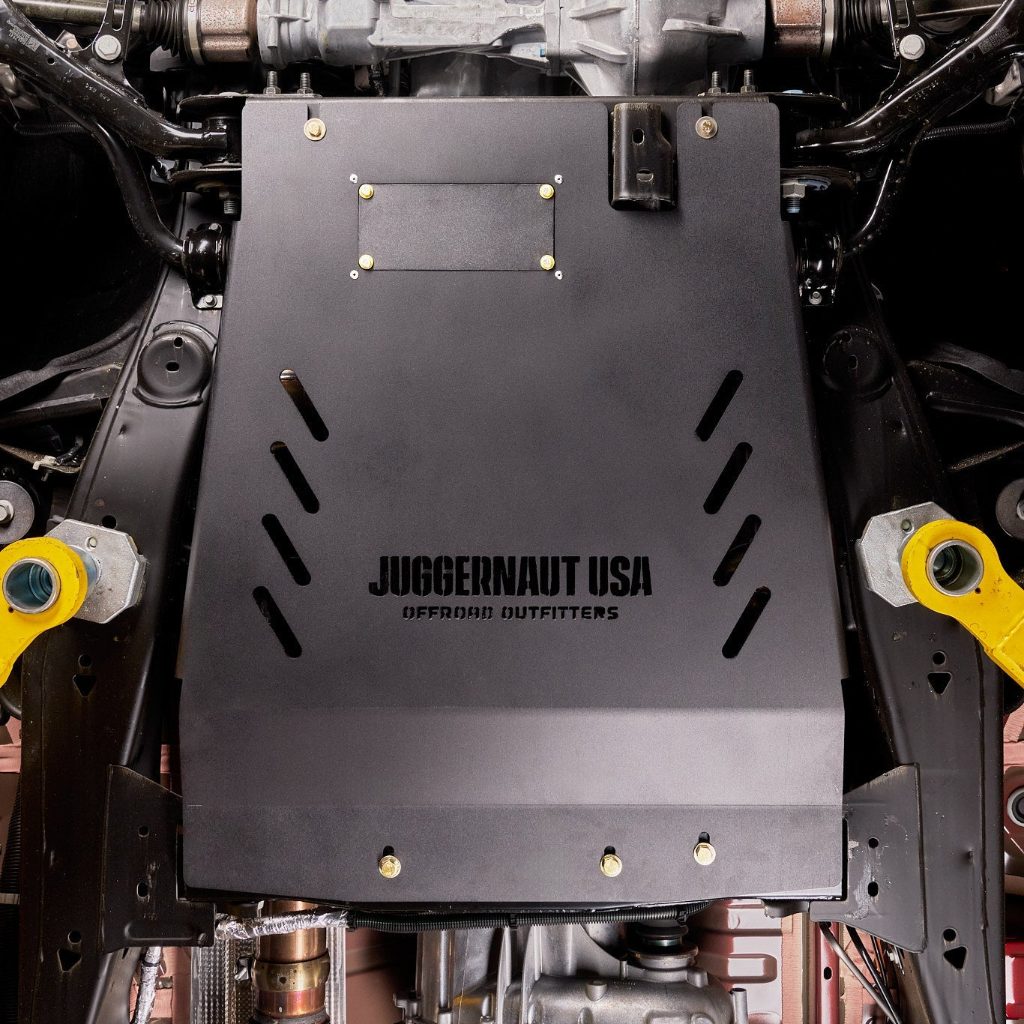

Shields Your Transmission and Your Catalytic ConvertersThe Juggernaut USA Transmission Skid Plate & Cat Shield covers the two most exposed, most expensive parts hanging under your 2019-2026 Silverado 1500: the transmission pan and the catalytic converters. Both sit low, both are nearly bare from the factory, and both are prime targets on the trail and in the parking lot.
Every plate is designed, CNC plasma-cut, and press-brake formed in-house at our Wheat Ridge, Colorado shop from 1/4" 5052-H32 aluminum, then finished in a durable black powder coat. Aluminum doesn't rust the way steel does, so a scratch from a rock strike stays a scratch instead of turning into a corrosion point.
Why Choose Juggernaut Protection?The Pain: A stock Silverado leaves its transmission pan and catalytic converters hanging low and unprotected. One rock strike on the pan can mean a tow and a transmission rebuild, and exposed converters can be cut out from underneath in minutes.
The Juggernaut Solution: A full 1/4" aluminum shield that bolts to your factory mounting points — no drilling, no cutting — and adds a physical barrier against both trail damage and catalytic converter theft.
Key Features: Transmission Skid Plate & Cat Shield
Bolts on using your Silverado's factory mounting points. No holes, no cutting, no modifications to your truck.
A single plate shields both the transmission pan and the catalytic converters, so you're not stacking multiple products to get full coverage.

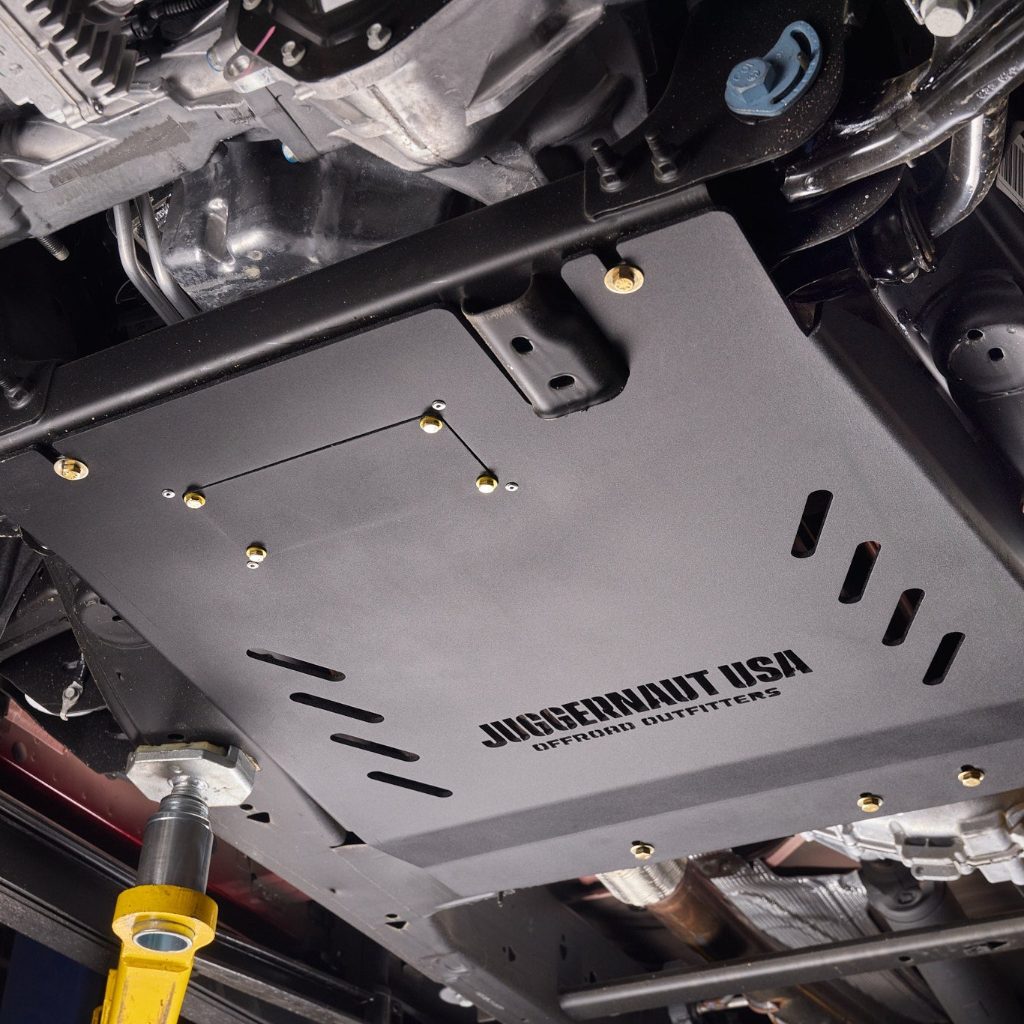

A dedicated access cutout means routine oil changes don't require pulling the whole skid plate.
Full quarter-inch aircraft-grade aluminum plate — lighter than steel armor and it won't rust, even with a scratch through the coating.
A tough black powder coat resists abrasion from rocks, gravel, and road debris.
Every bolt and bracket needed for installation ships in the box — no trip to the hardware store.
Designed, cut, and finished start-to-finish in our Wheat Ridge, Colorado shop from US-sourced aluminum.
Covered against manufacturing defects in materials and workmanship for as long as you own it.
Over-Engineered in ColoradoWe don't cut corners. The transmission skid plate is cut from full 1/4" 5052-H32 aluminum and secured with Grade 8 steel hardware, all included in the box. Every plate ships ready to bolt directly to your Silverado's factory mounting points.
30 lbs Plate Weight 1/4" Aluminum Thickness 5052-H32 Aluminum Grade Lifetime Warranty
Important Fitment Note
Check Your Lift Height: This plate is compatible with lift and leveling kits under 4". Kits 4" or taller require aftermarket subframe drop brackets that interfere with the factory mounting points this skid plate uses.
*Repair and replacement costs are general estimates and vary by shop, region, and vehicle condition.
| Feature | Juggernaut USA | Generic Skid Plates |
|---|---|---|
| Installation | ✓ 100% Bolt-On (No Drill) | ✗ Often Requires Drilling |
| Oil Changes | ✓ Removable Access Panel | ✗ Full Removal Needed |
| Material | ✓ 1/4" 5052 Aluminum, Rust-Proof | ✗ Often Steel, Can Rust |
| Hardware | ✓ Grade 8, All Included | Often Sold Separately |
| Warranty | ✓ Lifetime Warranty | Limited Warranty |
| Origin | ✓ Made in USA (Colorado) | Imported |
Designed specifically for the Silverado 1500's factory mounting points. Fits the following:
2019-current Chevrolet Silverado 1500 — 4x2 2019-current Chevrolet Silverado 1500 — 4x4 All cabs, all beds, all engine options — including Trail BossNote: This is the same plate used on our GMC Sierra 1500 listing, since the Silverado and Sierra 1500 share the same underbody mounting points.
Yes — this plate fits all 2019-2026 Silverado 1500 models, including the Trail Boss.
Yes — this skid plate fits the Silverado 1500 regardless of engine option.
It's compatible with lift and leveling kits under 4". Kits 4" and taller require aftermarket subframe drop brackets that interfere with the factory mounting points this plate bolts to.
Full 1/4" 5052-H32 aluminum, powder-coated black, with steel mounting brackets where needed. Every plate is made in-house in Wheat Ridge, Colorado from US-sourced aluminum.
No. A built-in, removable oil-drain access panel lets you handle routine oil changes without taking the whole skid plate off.
No. Under the Magnuson-Moss Warranty Act, adding an aftermarket accessory like a skid plate does not by itself void your vehicle's factory warranty.
