Bolt-On Underbody Armor. No-Drill Installation. Made in the USA.

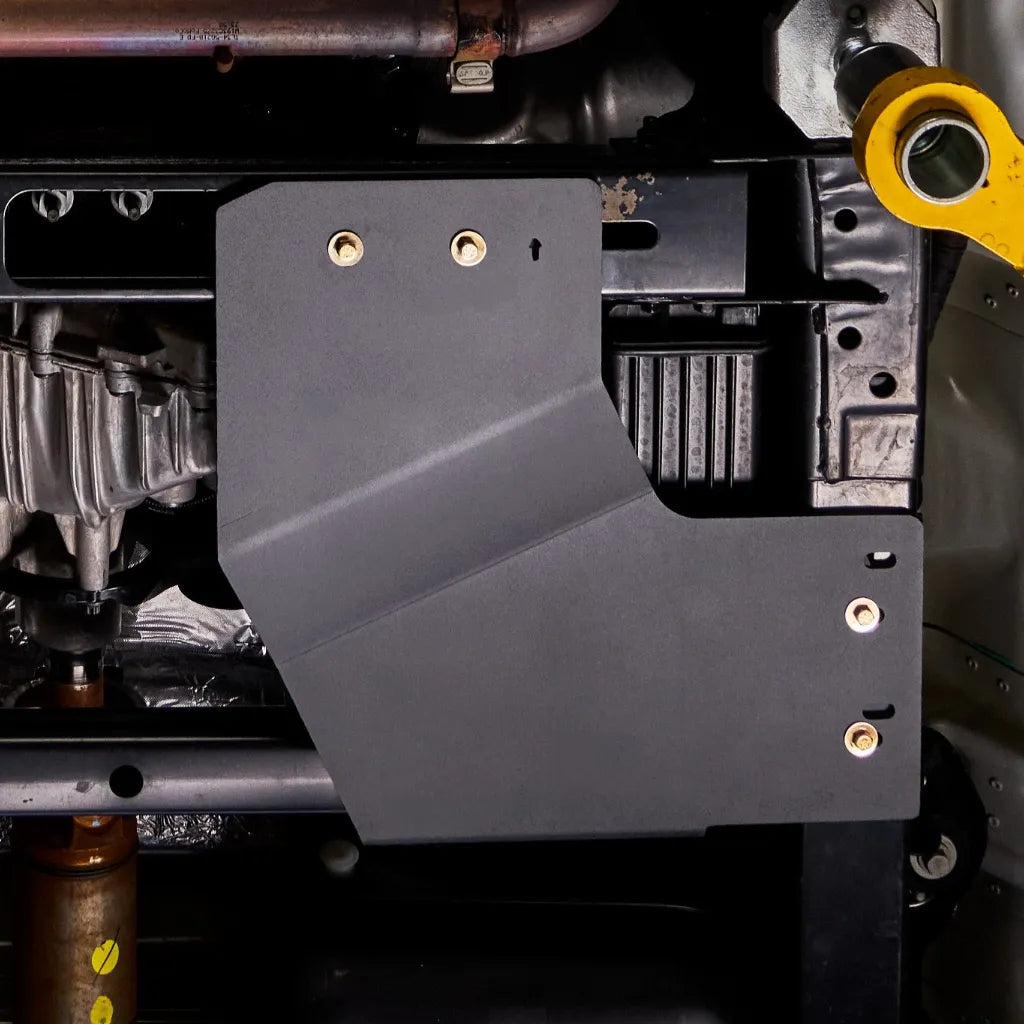

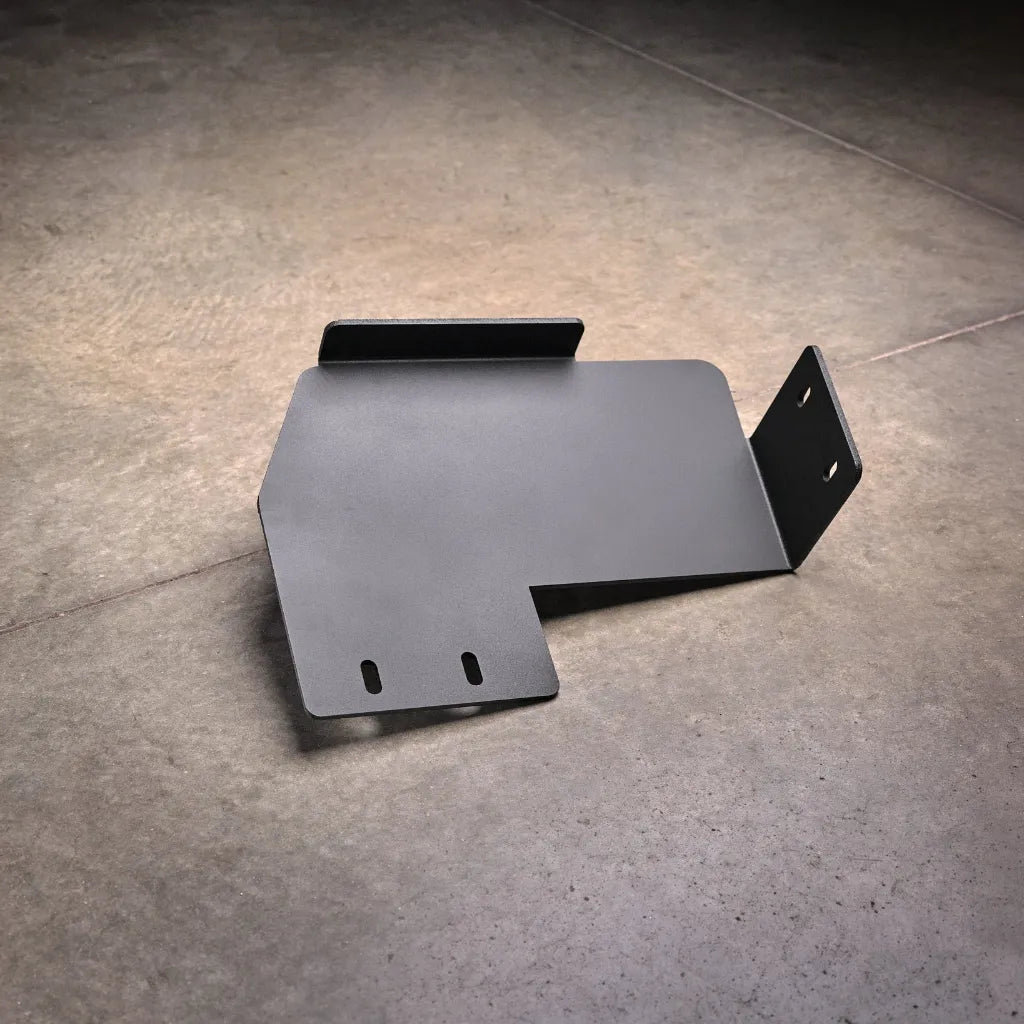

Protect Your Transfer CaseThe Juggernaut Transfer Case Skid Plate shields your 4x4 F-150's transfer case from rocks, ruts, and trail obstacles. Built from 1/4" aluminum and finished in a durable black powder coat, it bolts to the transmission crossmember and driver's side frame rail using your truck's existing mounting points.
Positioned just ahead of the gas tank, this plate closes the gap left by the engine and transmission skid plates, giving your F-150's drivetrain continuous underbody coverage from front bumper to transfer case.
Why Choose Juggernaut Protection?The Pain: A stock 4x4 F-150's transfer case sits low and unprotected, one bad rut or rock strike away from an expensive repair.
The Juggernaut Solution: A 1/4" aluminum shield that bolts to your existing frame mounting points — no drilling, no cutting — closing the gap in your underbody armor right where it matters most.
Key Features: Transfer Case Skid Plate
Bolts to your F-150's existing frame mounting points. No holes, no cutting.
Full quarter-inch aluminum plate for serious protection without the extra weight of steel.
Available in both standard and PowerBoost Hybrid versions to match your driveline.
Aluminum resists corrosion far better than steel, so rust underneath your truck isn't a concern.
Black powder coat adds an extra layer of protection against corrosion and trail wear.
Grade 8 steel hardware ships in the box — no trip to the hardware store.
Designed and manufactured domestically from US-sourced aluminum.
Combine with Juggernaut's F-150 engine and transmission skid plates for full underbody coverage.
Built for 4x4 F-150sEngineered specifically for 4x4 2015-current Ford F-150 models, with a dedicated fitment for PowerBoost Hybrid trucks.
1/4" Aluminum Thickness 2 Fitment Options Black Powder Coat Finish Bolt-On Installation
Important Fitment Note
4x4 Only: This plate is only offered for 4x4 F-150s — 2WD trucks don't have a transfer case, so there's nothing to protect at this location on those trims. Select "Yes" above if your F-150 is a PowerBoost Hybrid, or "No" for all other 4x4 engines.
Fitment: Ford F-150Designed specifically for the 13th and 14th Gen Ford F-150. Fits the following:
2015-current F-150 — 4x4 only, standard & PowerBoost HybridNot compatible with a 4"+ suspension lift — aftermarket lower control-arm drop crossmembers will interfere with the front mounting bracket.
CA Residents: ⚠️ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
No — this plate is 4x4 only. 2WD F-150s don't have a transfer case, so there's nothing at this location to protect.
Select "Yes" above if your F-150 is a PowerBoost Hybrid; select "No" for every other 4x4 engine option.
If you want complete underbody coverage, yes — this plate closes the gap left between the transmission skid plate and the rest of the drivetrain.
Not with a 4"+ suspension lift — aftermarket lower control-arm drop crossmembers interfere with the front mounting bracket.
No. The plate bolts to your F-150's existing factory frame mounting points — no drilling or cutting required. See the installation guide below for the full step-by-step order.
No — under the Magnuson-Moss Warranty Act, bolt-on aftermarket parts can't void your factory warranty on their own.
