6mm Laser-Cut Aluminum. Direct Bolt-On. Ultimate Drivetrain Protection.

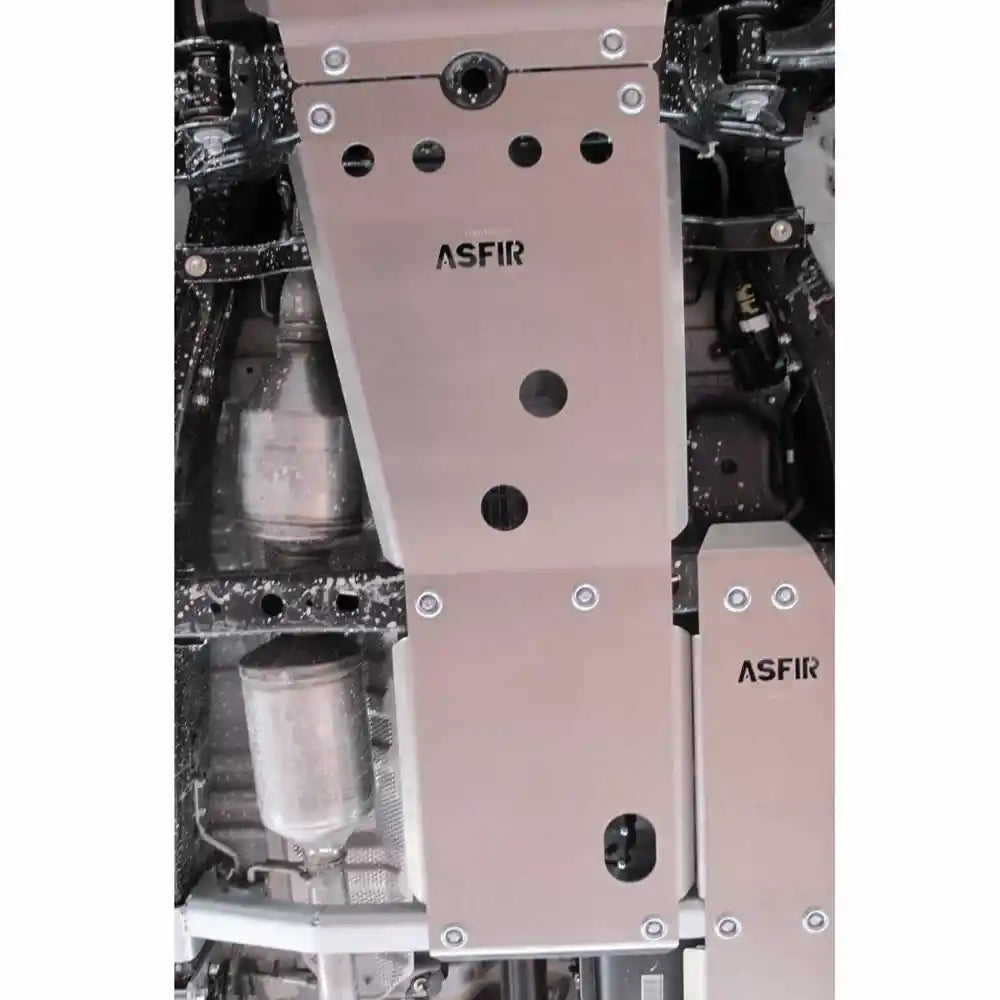

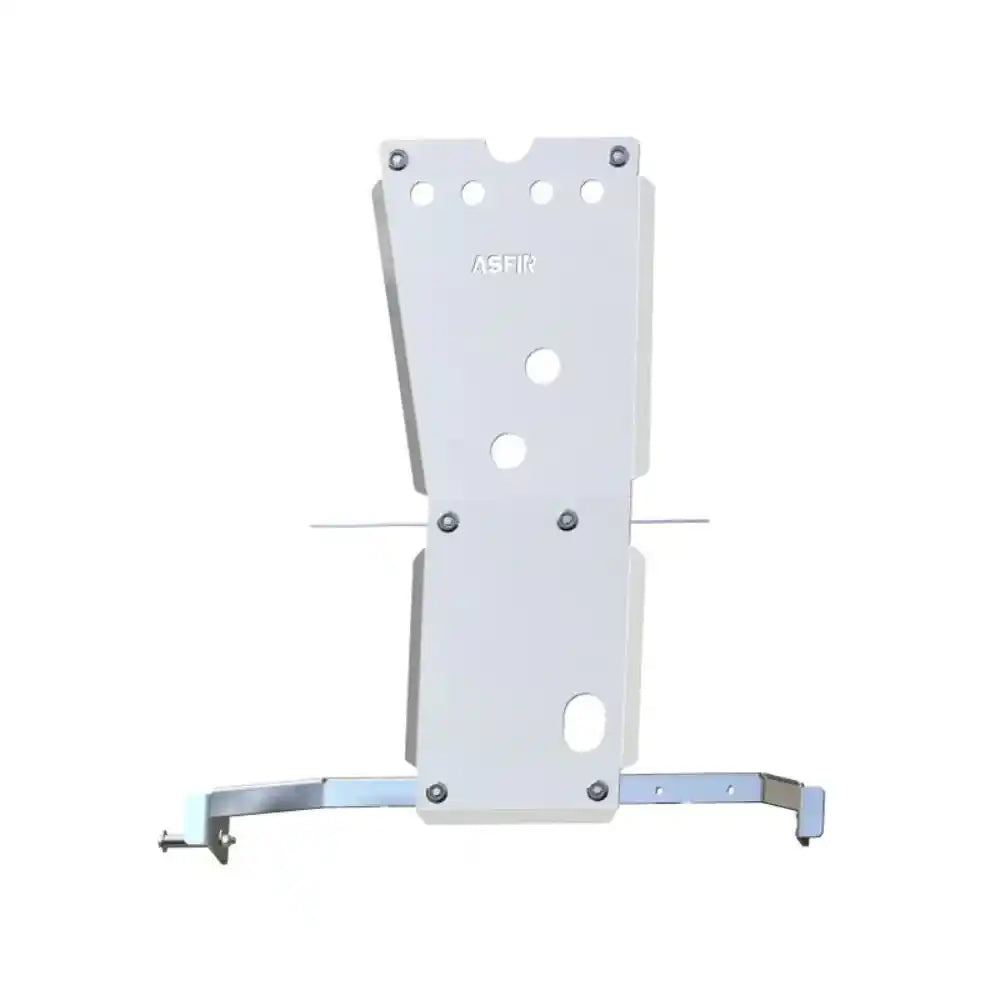

Armor Your Drivetrain Against the Toughest TrailsThe Asfir 4x4 Transmission & Transfer Case Skid Plate is engineered for the Toyota Hilux owner who pushes their vehicle to the limit. Your transmission and transfer case are among the most expensive and vulnerable components underneath your truck. Factory guards are often thin and prone to bending, leaving your drivetrain exposed to jagged rocks and stumps.
Constructed from 1/4" (6mm) high-quality aluminum, this plate provides heavy-duty shielding without the massive weight penalty of steel. Asfir armor is the industry standard for durability, ensuring your Hilux returns from the trail in one piece.
The Problem & The Solution:The Pain: A single rock strike to the transfer case can end your adventure and cost thousands in repairs.
The Asfir Solution: We use Reinforced 6mm Aluminum and a 100% Bolt-On design to offer maximum impact resistance while maintaining essential ground clearance.
Key Features: Drivetrain Protection System
Premium laser-cut aluminum offers the strength required for rock crawling while being significantly lighter than traditional steel armor.
Specifically designed to cover both the transmission and the transfer case, two of the most critical and costly parts of your 4x4.
Utilizes factory mounting points. No drilling or permanent vehicle modification is required for installation.
Integrated stiffening ribs provide extra structural rigidity, preventing the plate from deforming during heavy underbody hits.
Precision-cut ventilation holes ensure your transmission and transfer case maintain proper operating temperatures under load.
Integrated drainage outlets allow mud, water, and trail debris to escape, preventing corrosive buildup against the chassis.
Hardware kit includes zinc-coated steel mounting brackets for long-lasting protection against salt, mud, and moisture.
At only 33 lbs, this armor adds negligible weight to your Hilux, protecting your MPG and suspension life.
Engineered for the Diesel HiluxPrecision-fit for the 2.4L and 2.8L turbo diesel Hilux models, this plate is laser-cut to follow the exact contours of the Toyota chassis. By using multi-wall 6mm aluminum, Asfir creates a rigid shield that slides over obstacles rather than catching on them.
33 lbs Lightweight 6.0 mm Plate Thickness Diesel Engine Fitment Automatic/Manual Gear Compatibility
"The peace of mind this plate gives me while touring is incredible. I've bottomed out twice on rocky tracks in the Outback, and this plate took the hits without flinching. The fitment was perfect on my 2.8L Hilux and it didn't rattle once during a 500km corrugated road stretch."
- Mark S., Hilux Owner & Explorer Compatibility & Fitment NoteUrea Protector Notice: Please note that the original factory urea protector cannot be installed alongside this skid plate. For complete underbody coverage, we recommend ASFIR’s compatible Urea Skid Plate (SKU: 533274).
*Repair costs are estimates based on average dealer service rates. Does not include lost vacation time.
| Feature | Asfir Aluminum Plate | Generic/Thin Guards |
|---|---|---|
| Thickness | ✓ 6.0 mm (Heavy Duty) | ✗ 2.0 - 3.0 mm (Flimsy) |
| Weight | ✓ Lightweight Aluminum | ✗ Heavy Steel or Weak Plastic |
| Installation | ✓ No-Drill Bolt-On | Often Requires Drilling |
| Hardware | ✓ Zinc-Coated Steel | Low-Grade Hardware |
| Drivetrain Temp | ✓ Vented for Cooling | ✗ Traps Heat |
Specifically engineered for the 8th Generation Toyota Hilux chassis. Verified fitment for:
2016 - 2024 Toyota Hilux 4x4 2.4L & 2.8L Turbo Diesel Engines Automatic & Manual TransmissionsExpert Note: This plate is designed to provide maximum ground clearance. It hugs the chassis tight to ensure your departure and breakover angles are preserved.
CA Residents: ⚠️ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
No. The Asfir Hilux Transmission Skid Plate is designed as a 100% bolt-on system that utilizes your vehicle's existing factory mounting points. No permanent modifications are required.
Absolutely not. The plate features laser-cut ventilation apertures that allow for constant airflow around the transmission and transfer case, keeping them within safe operating temperatures even during slow-speed rock crawling.
No, the original urea protector must be removed to install this plate. We recommend adding the ASFIR Urea Skid Plate (SKU: 533274) for a seamless and fully protected underbody.
The plate is designed with drainage outlets that allow most mud and small stones to wash out during a normal vehicle wash. For deep cleaning after heavy mudding, simply hose out the vents from the side.
Yes. 6mm (1/4") aluminum is the gold standard for high-end off-road armor. It provides superior rigidity and energy absorption compared to plastic or thinner steel, while being much more resistant to corrosion.
