Full Drivetrain Armor. 6mm Laser-Cut Aluminum. 100% No-Drill Installation.

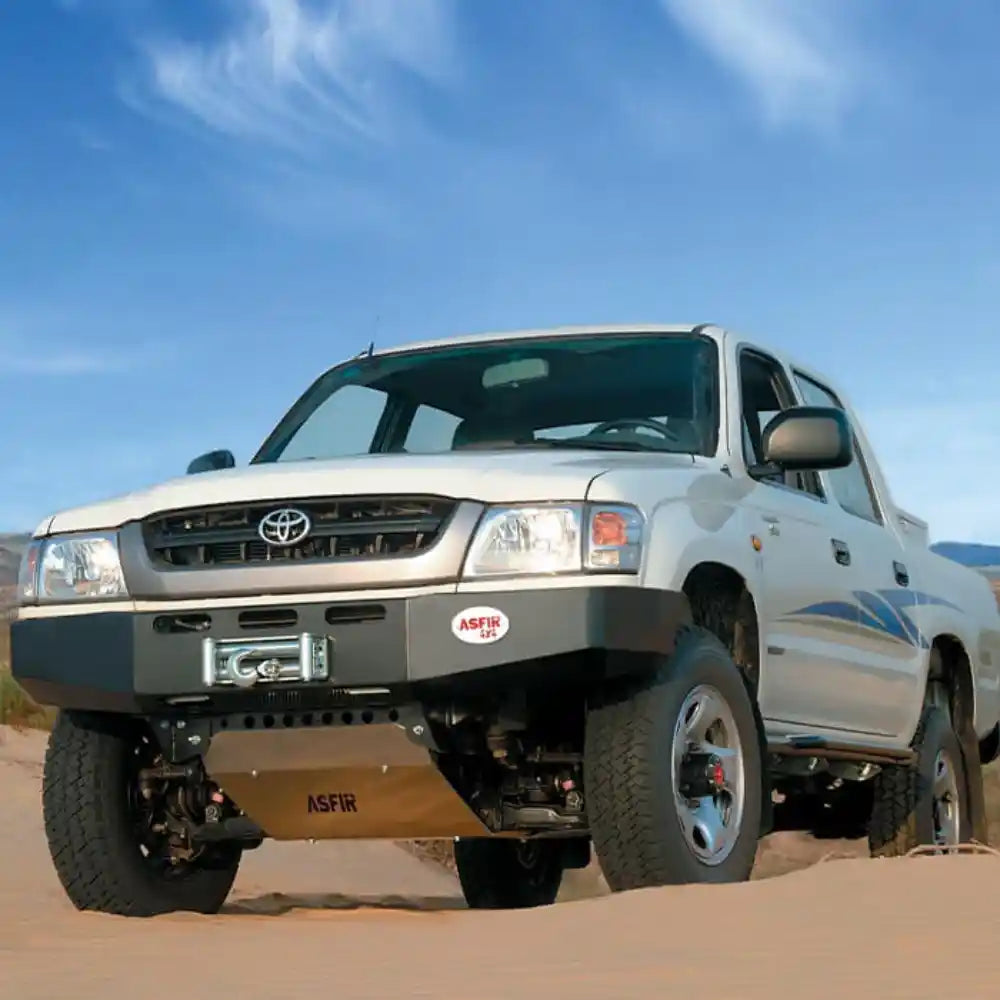

Total Underbody Command for the Toyota HiluxThe Asfir 4x4 Engine, Transmission & Transfer Case Skid Plate is the ultimate defensive shield for your Toyota Hilux. While most underbody guards focus only on the front, this comprehensive kit covers the entire drivetrain "vital zone." From the engine oil pan to the sensitive transfer case, your truck is fully armored against jagged rocks, deep ruts, and hidden trail obstacles.
Precision-engineered and manufactured in Israel, this skid plate is crafted from 1/4" (6 mm) high-grade aluminum. It provides the heavy-duty protection of steel at nearly half the weight, ensuring your Hilux maintains its legendary performance and fuel efficiency while becoming virtually bulletproof underneath.
The Problem & The Solution:The Pain: A single rock strike to the transfer case in a remote location doesn't just mean an expensive repair—it means being stranded.
The Asfir Solution: We offer a Full-Length 6mm Shield that uses a 100% Bolt-On design, protecting every critical mechanical component without requiring permanent vehicle modifications.
Key Features: Complete Drivetrain Armor
One seamless system to protect your engine oil pan, transmission case, and transfer case from high-impact damage.

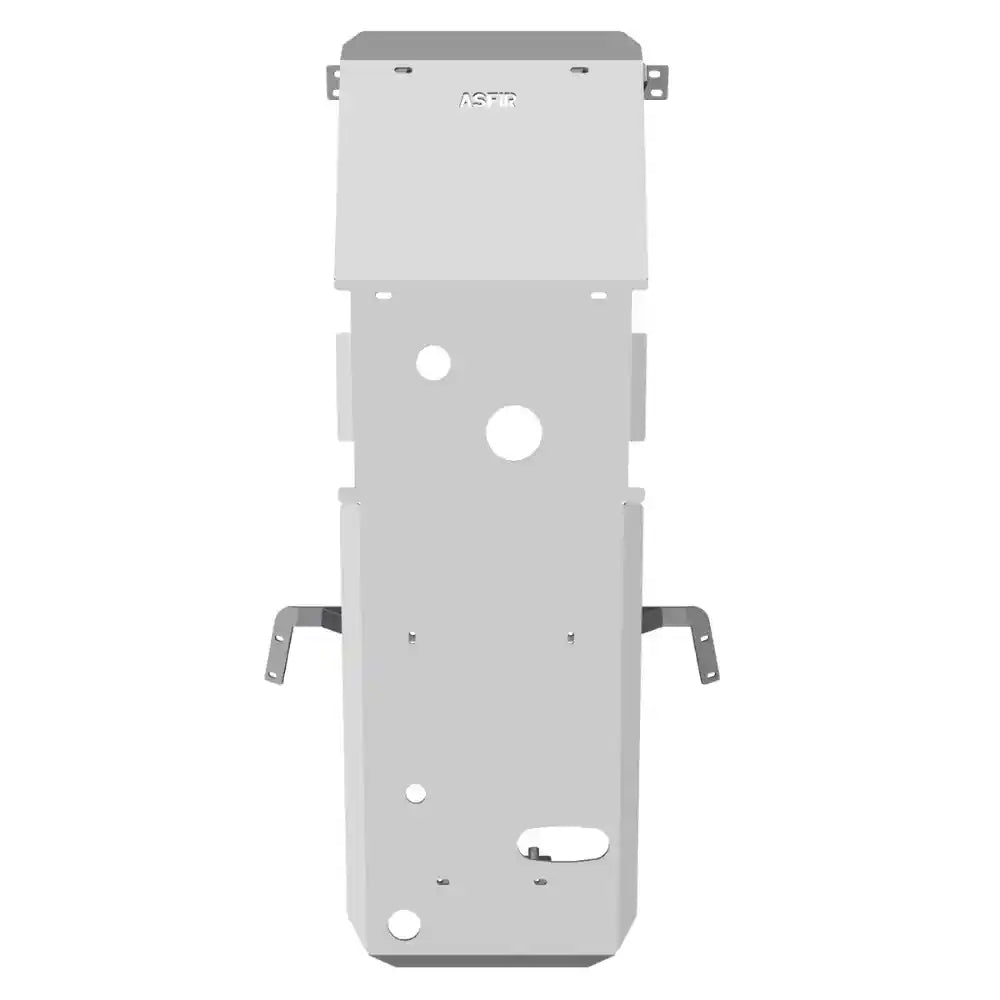

1/4-inch laser-cut aluminum plate provides incredible strength-to-weight ratio, resisting gouging and bending.
Designed for a 100% bolt-on assembly using factory mounting points. No holes in your chassis means no rust or resale loss.
Reinforced with pressed ribs that significantly increase the plate's rigidity against heavy vertical impacts.
Strategically placed ventilation slots allow for constant airflow to keep your drivetrain operating at safe temperatures.
Integrated drainage outlets allow mud, sand, and water to escape, preventing debris buildup and potential corrosion.
Includes heavy-duty steel mounting brackets with a zinc coating to ensure a secure, vibration-free fit for the life of the vehicle.
The slim-profile design hugs the Hilux's chassis, protecting components without reducing your breakover angle.
Israeli Engineering: Field-Tested & ProvenAsfir 4x4 doesn't build "mall crawler" accessories. This full underbody system is engineered to survive the harshest environments. The 51 lb (23 kg) total system weight is a testament to the efficiency of 6mm aluminum—providing armor that would weigh over 100 lbs in steel.
51 lbs Lightweight Armor 6.0 mm Aluminum Alloy Bolt-On Install Method Drivetrain Full Coverage"Finding good armor for the older Hilux models is getting harder. I installed the full Asfir engine and trans kit on my '99 Diesel and it fits like a glove. The aluminum is incredibly thick and has already saved my transfer case from a nasty rock strike in the mountains. Highly recommended if you actually take your Hilux off-road."
- Jakob W., Hilux Owner & Overlander*Estimated costs for parts and labor. Does not include towing or recovery fees.
| Feature | Asfir Full Shield | Generic/Thin Steel |
|---|---|---|
| Protection Area | ✓ Engine, Trans, Transfer Case | ✗ Engine Only |
| Installation | ✓ 100% Bolt-On (No Drill) | ✗ Often Requires Drilling |
| Weight (Approx) | ✓ 51 lbs (Lightweight) | ✗ 110+ lbs (Heavy) |
| Venting | ✓ Precision Cooling Slots | Basic or None |
| Rust Resistance | ✓ Natural Aluminum / Zinc Brackets | ✗ Prone to Oxidation |
Specifically designed for the 6th Generation Hilux chassis. Verified fitment for:
1998 - 2001 Toyota Hilux 4x4 Diesel Engines Manual Transmission OnlyComplete the Set: This plate is part of ASFIR’s modular underbody protection system. It integrates perfectly with Asfir's front bumper guards and fuel tank shields.
CA Residents: ⚠️ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
While steel is strong, it is prone to rust and adds massive weight. Asfir uses 6mm aluminum, which provides sufficient impact protection for heavy off-roading while remaining rust-proof and significantly lighter, helping your suspension last longer.
Yes. Because this is a 100% bolt-on system that uses factory holes, most Hilux owners can install it with standard tools and a floor jack. No drilling or welding is required.
The skid plate is designed with maintenance in mind. While it covers the drivetrain for maximum protection, it is easily removable with simple bolts when major service is required, ensuring mechanics can access all components quickly.
This specific SKU is verified for Manual Transmission Hilux models (1998-2001). Check your gear type before ordering, as automatic models may have different transmission cooler lines and pan layouts.
Yes. Unlike many "front plates" that only shield the engine, this Asfir system extends back to cover the transmission and the transfer case, giving you full underbody peace of mind.
