6mm Laser-Cut Aluminum. 100% Bolt-On Installation. SWB & LWB Compatible.

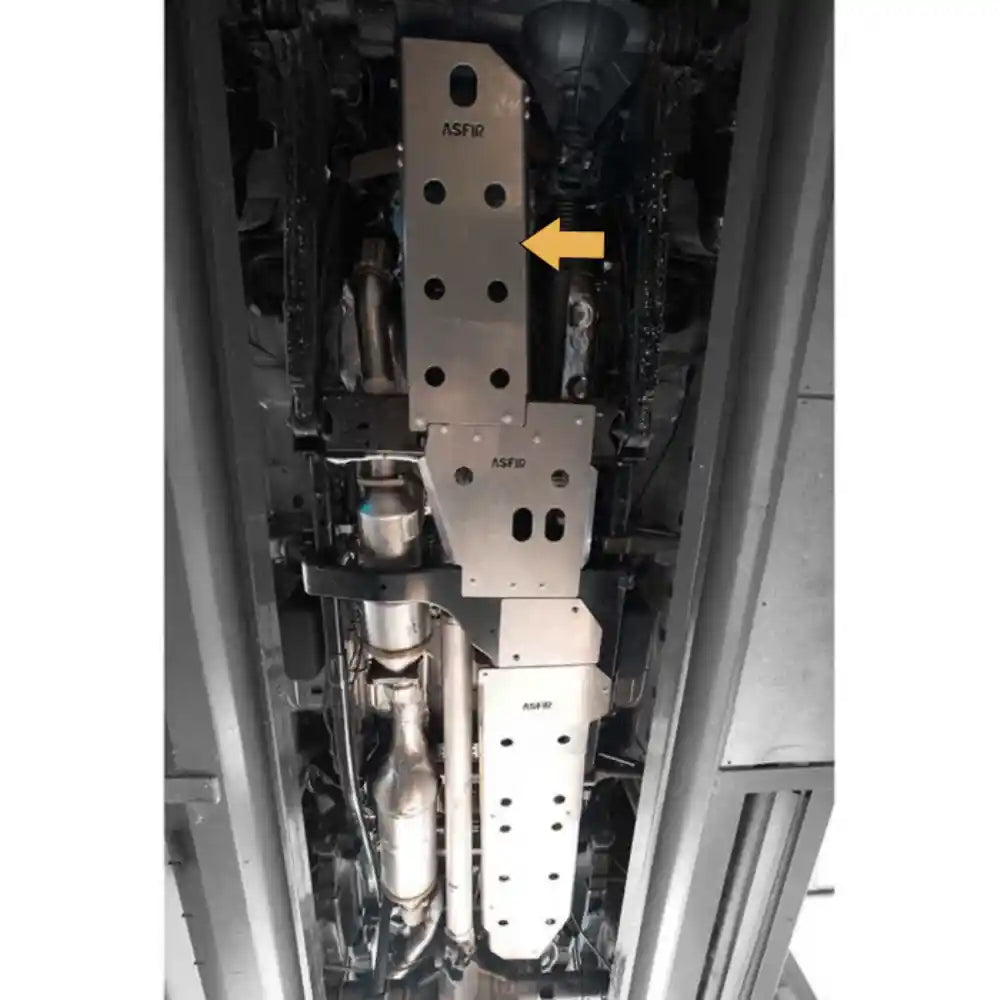

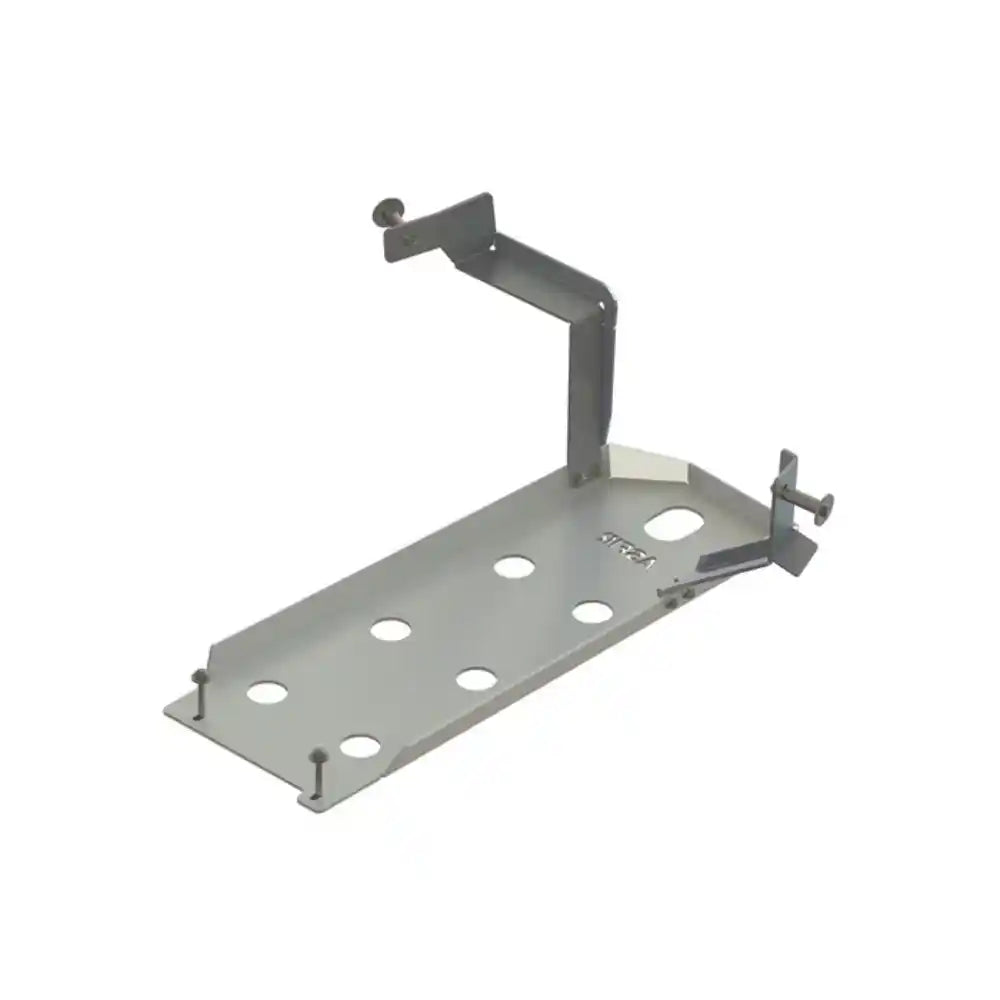

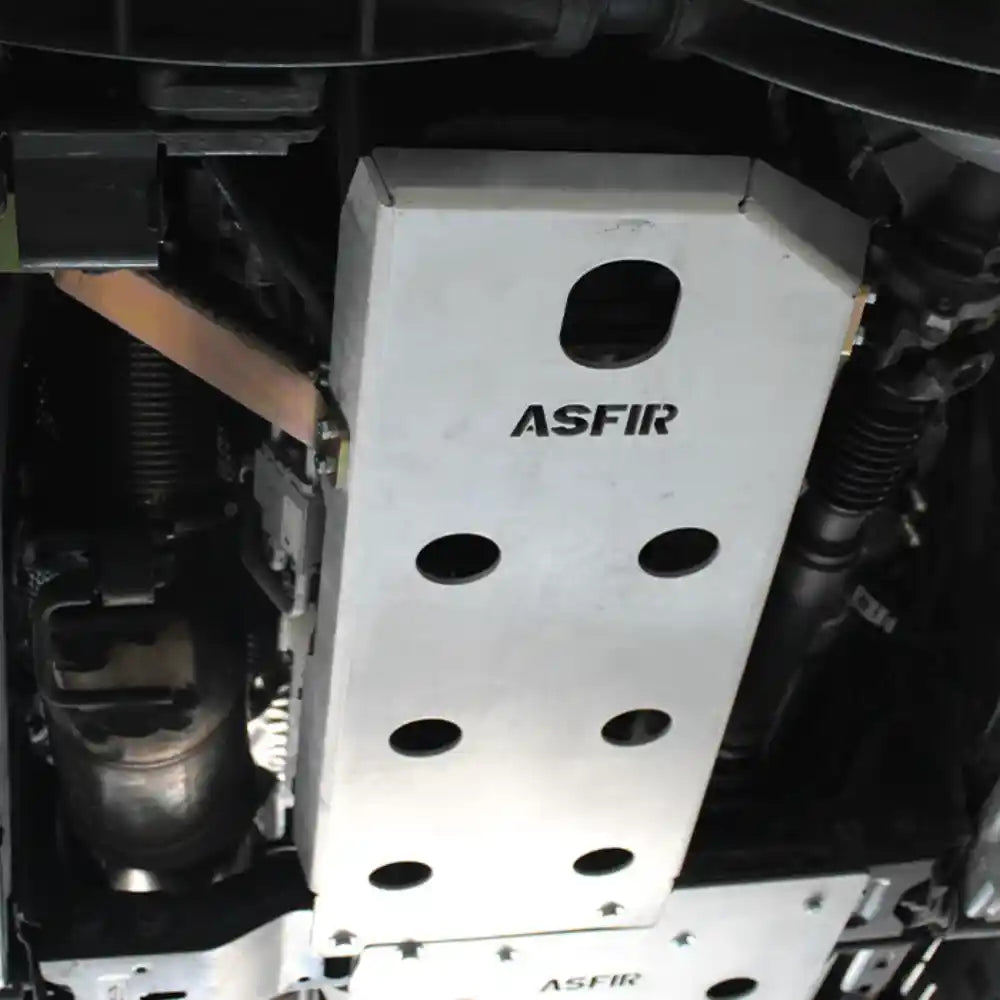

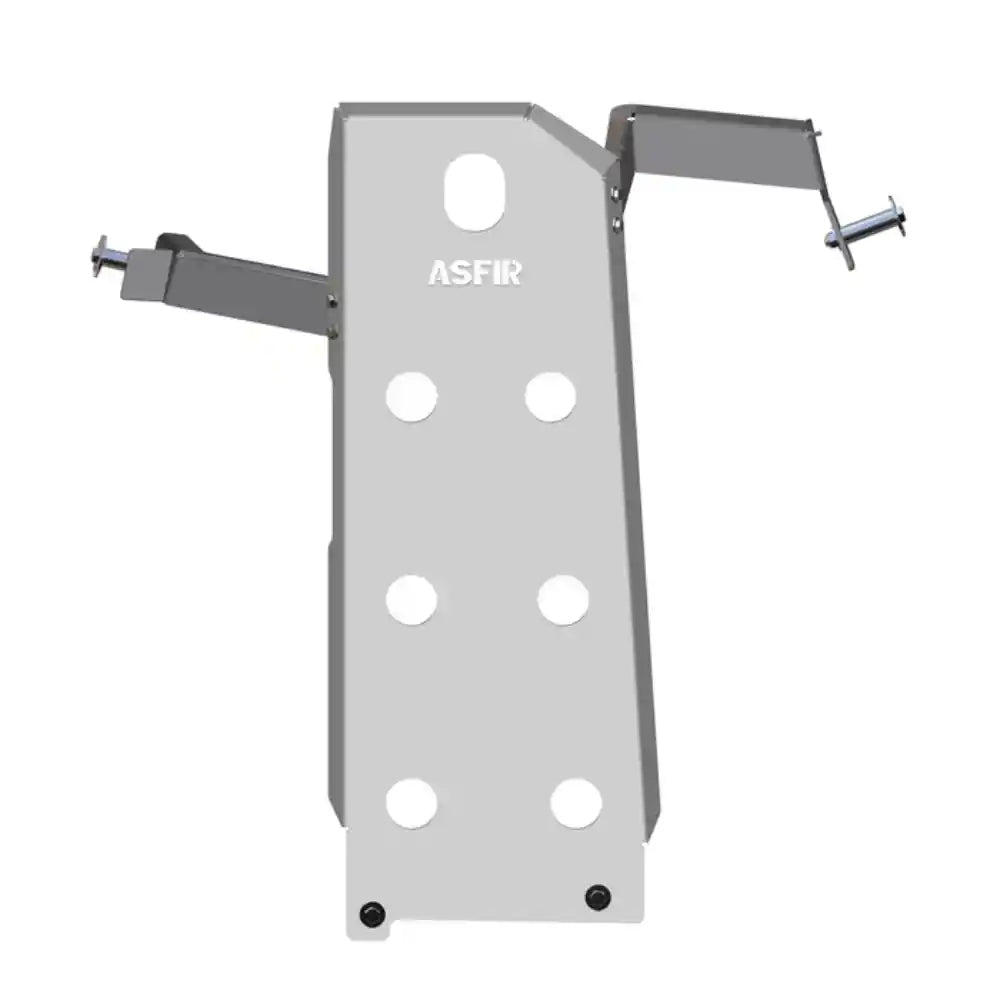

Engineered for Real Off-Road ProtectionThe RAM 3500/2500 Transmission & Engine Skid Plate is crafted from high-quality, laser-cut 1/4" (6 mm) aluminum, delivering exceptional protection with minimal added weight. Compatible with both Short Wheelbase (SWB) and Long Wheelbase (LWB) models, this plate is designed to shield the engine and transmission during off-road or heavy-duty use.
Recommended as Part of a Complete System:This skid plate is recommended as part of ASFIR's complete underbody protection kit, protecting you wherever the trail takes you.
Key Features
Fully bolt-on installation that mounts directly to the chassis using corrosion-resistant zinc-coated steel brackets. No cutting or drilling required, and all mounting hardware is included.
Built from durable 1/4" (6 mm) aluminum for an excellent strength-to-weight ratio, shielding the transmission and engine from rocks, debris, and rough terrain.
Designed to preserve ground clearance with a precise, vehicle-specific fit for both SWB and LWB RAM models.
Reinforced with stiffening ribs in high-stress zones to withstand impact in harsh off-road environments.
Includes ventilation slots to reduce heat buildup and drain holes for easy removal of trail debris.
Zinc-coated steel mounting brackets provide lasting corrosion resistance in wet or salty environments.
Built for SWB & LWB RAM Diesel TrucksThis skid plate is engineered to fit both Short Wheelbase and Long Wheelbase RAM 2500/3500 diesel models, shielding the engine and transmission without compromising ground clearance.
24 lb Total Weight 6mm Aluminum Thickness SWB & LWB Wheelbase Fit Israel Made In
Field Proven
Bolt-on Installation
Fitment: RAM 2500 / 3500 Diesel
Precision fitment for the following RAM 2500 and 3500 diesel configurations:
| Year | Make | Model | Fuel Type | Engine Liter | Gear Type |
|---|---|---|---|---|---|
| 2019 - 2026 | Ram | 2500 | DIESEL | 6.7L | Automatic |
| 2014 - 2026 | Ram | 3500 | DIESEL | 6.7L | Automatic |
CA Residents: ⚠️ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
No. This is a 100% bolt-on installation. It mounts directly to the chassis using the included zinc-coated steel brackets, with no cutting or drilling required.
Yes. This skid plate is engineered to fit both Short Wheelbase (SWB) and Long Wheelbase (LWB) RAM 2500/3500 diesel models. See the fitment table above for exact year and configuration coverage.
The plate is designed with a vehicle-specific fit to protect the engine and transmission while preserving ground clearance, so it shields the drivetrain without noticeably affecting your truck's stance.
No. The plate includes ventilation slots and drain holes designed to reduce heat buildup and allow mud, water, and debris to drain away easily.
The plate weighs 24 lb (11 kg), built from laser-cut 1/4" (6mm) aluminum for an excellent strength-to-weight ratio.
Yes. The kit includes zinc-coated steel brackets and all mounting hardware needed for a complete bolt-on installation.
