ASFIR 4X4 2014-2020 Ram 3500 Full Skid Plate Kit (5 Pcs) | SWB | Double Cab | 31 Gal.
Price Match Guarantee
Safe/Secure Checkout
Questions? Chat or Call us: (409) 916-8280
Price Match Guarantee
Safe/Secure Checkout
Questions? Chat or Call us: (409) 916-8280
Delivers heavy-duty underbody shielding while being 40% lighter than equivalent steel armor systems—ideal for RAM 3500 payload management.
Precision-engineered to bolt directly to factory mounting points for a secure, zero-modification off-road setup that preserves vehicle value.

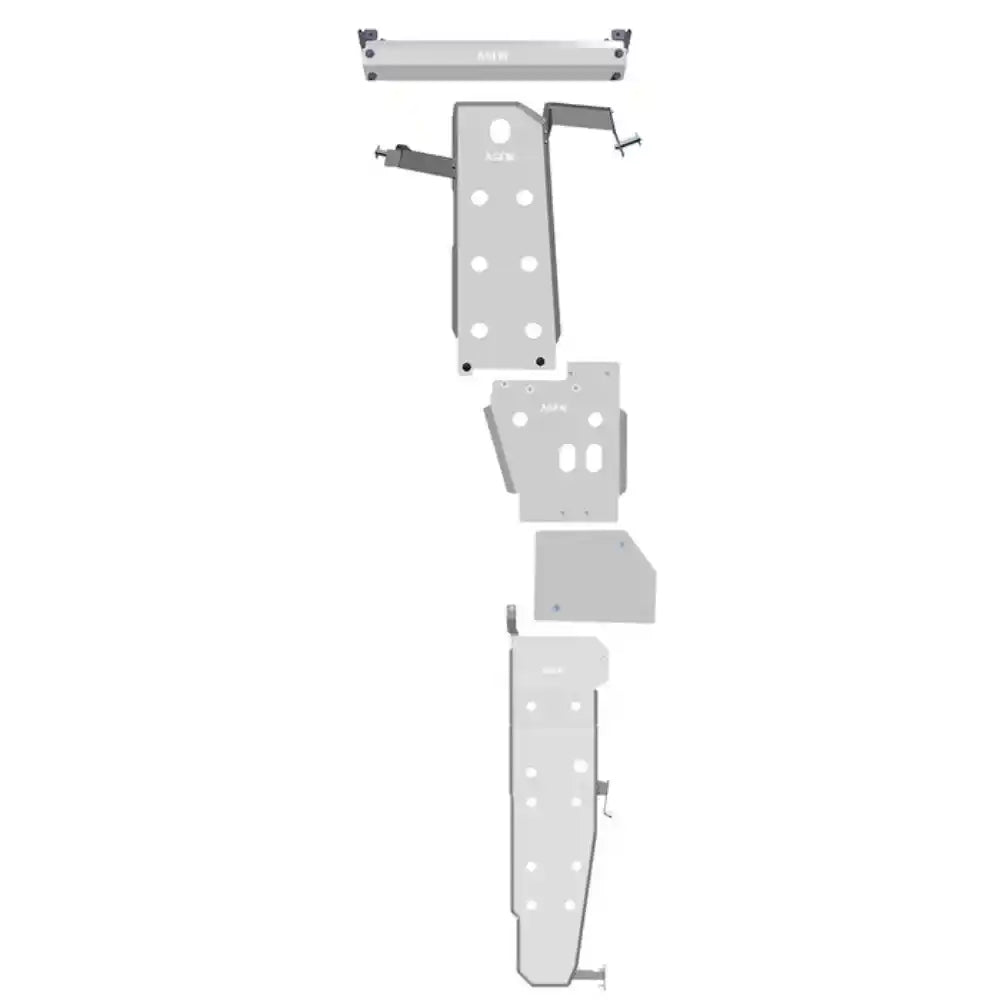

A comprehensive 5-piece system protecting the intercooler, engine, transmission, transfer case, fuel tank, and DEF system from high impacts.
Marine-grade aluminum and zinc-coated steel brackets ensure your underbody defense stays structural and clean for years.
Complete Underbody Fortress. 6mm Aerospace Aluminum. No-Drill Installation.
The Ultimate 5-Piece Shield for the RAM 3500The ASFIR 4X4 Full Skid Plate Kit is the most comprehensive underbody protection system available for the 2014-2020 RAM 3500 SWB Double Cab. While the 6.7L Cummins Diesel is a powerhouse, its vital components—the engine, transmission, transfer case, fuel tank, and sensitive Urea (DEF) tank—sit dangerously exposed to trail debris and high-centering hazards.
This 5-piece kit is crafted from 1/4" (6 mm) laser-cut aluminum. It provides industrial-strength impact resistance without the massive weight penalty of steel, ensuring your Heavy Duty rig stays agile while protecting thousands of dollars in mechanical hardware.
The Problem & The Solution:The Pain: The RAM 3500 has a massive wheelbase. High-centering on a rock can easily crack a transmission housing or puncture the plastic DEF tank, triggering "Limp Mode" deep in the backcountry.

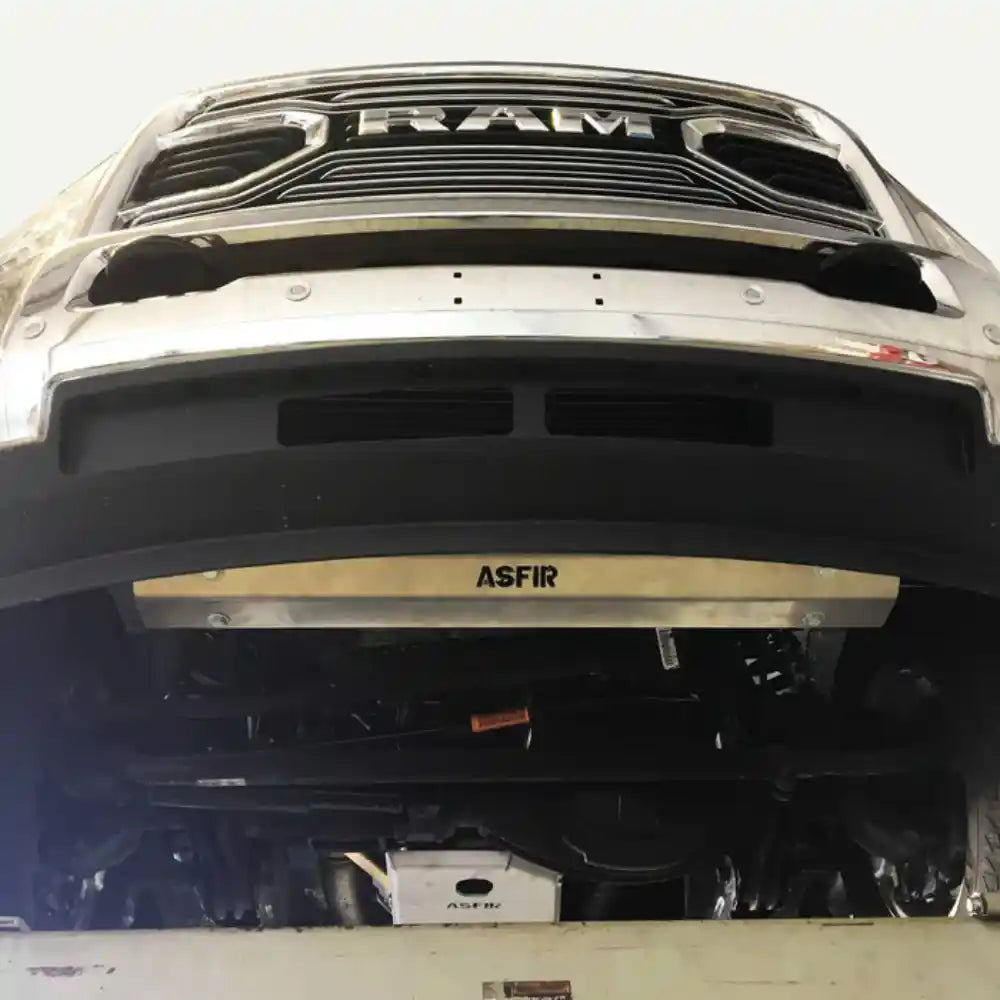

The ASFIR Solution: A full-length "belly" shield that allows your truck to slide over obstacles, distributing impact force across the frame with Zero Drilling required.
Key Features: The Total Protection System
Utilizes existing factory mounting points on the RAM 3500 frame. No drilling, cutting, or welding is required to secure your armor.
Laser-cut 1/4" aluminum provides superior strength with significantly less weight than steel, preserving your payload and front-end balance.

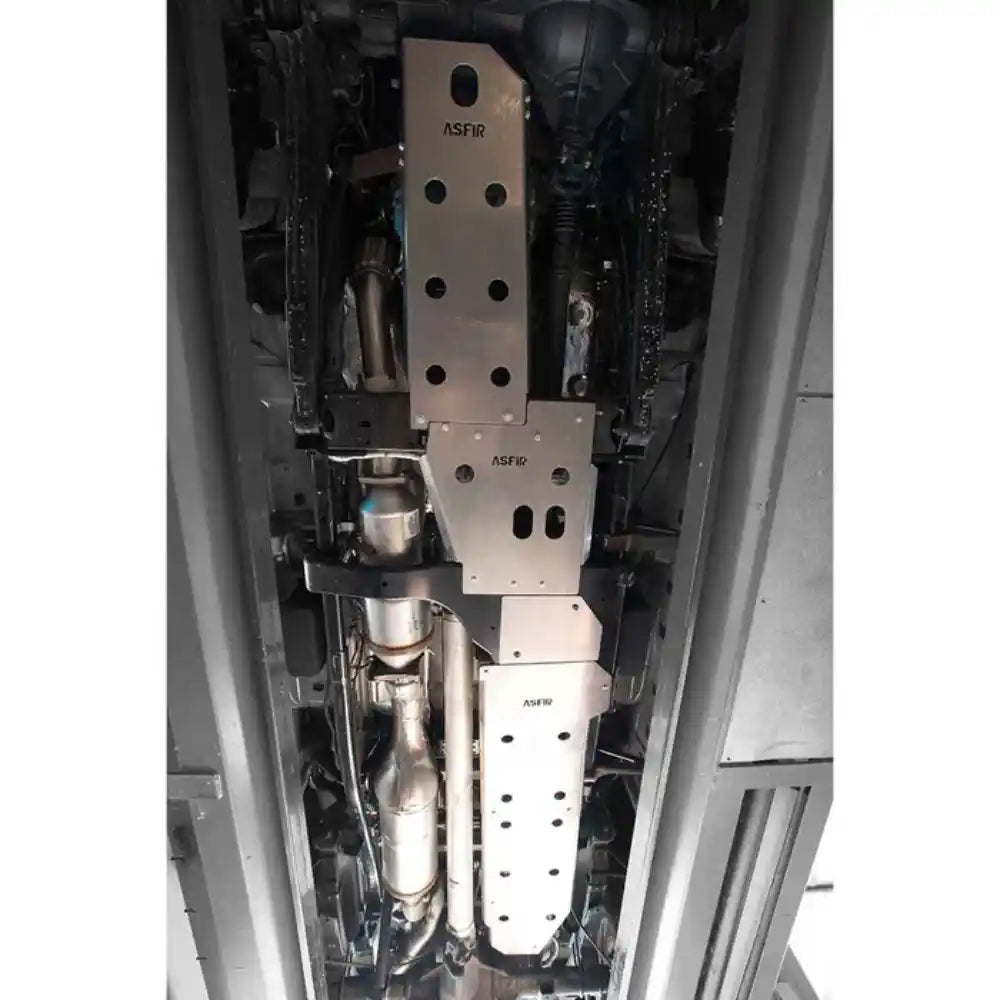

Comprehensive defense for the Intercooler, Engine/Transmission, Transfer Case, Urea (DEF) Tank, and the 31-Gal Fuel Tank.
Precision-cut ventilation slots ensure consistent airflow to the transmission and radiator, preventing heat soak during heavy towing.
Tested in the World's Harshest TerrainWe don't cut corners. Every ASFIR plate is reinforced with structural ribs in high-stress zones. By using zinc-coated steel brackets for the main supports, we ensure the hardware remains corrosion-free and the armor stays secure even in high-vibration off-road conditions.
121 lbs Total Kit Weight 6mm Thickness 31 Gal Tank Specific SWB Double Cab Fit
"Finding a kit that covers everything on the RAM 3500 is rare. The Urea tank protection is a must—I've seen too many people stranded by a cracked DEF tank. This kit fit my SWB Double Cab perfectly. It's rock solid and the aluminum is high-quality, not the soft stuff you find elsewhere. Install was straightforward and non-invasive."
- Derek S., RAM 3500 HD Enthusiast*Repair costs are estimates for RAM HD dealer pricing. Does not include towing or work downtime.
| Feature | ASFIR 5-Pc Full Kit | Generic Skid Plates |
|---|---|---|
| Installation | ✓ 100% Bolt-On (No Drill) | ✗ Often Requires Drilling |
| Material | ✓ 6mm Aerospace Aluminum | ✗ Thin 3-4mm Steel |
| Coverage | ✓ Total "Fatal 5" Protection | ✗ Partial Coverage Only |
| Weight Efficiency | ✓ Lightweight (Aluminum) | ✗ Heavy (Steel) |
| Origin | ✓ Made in Israel | Mass Imported |
Precision-engineered specifically for the following heavy-duty configuration:
Years: 2014 - 2020 Engine: 6.7L Turbo Diesel Only Double Cab / Short Wheelbase (SWB) 31-Gallon Fuel Tank OnlyConfiguration Check: This kit is specifically for SWB Double Cab models. If you have a Crew Cab or a 50-gallon tank, please check our alternate listings for correct fitment.
CA Residents: ⚠️ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
This specific full kit is tested for the 2014-2020 chassis. While many components on newer models are similar, we recommend checking individual SKU fitment for the latest 5th gen RAM models.
No. This kit is specifically for models with rear coil springs. Vehicles with factory rear air suspension have different mounting requirements near the fuel and DEF tank area.
ASFIR designs their plates with drainage and service apertures. Most routine maintenance can be done with the armor in place. However, the bolt-on design allows for quick removal if full access is required.
Yes. 6mm (1/4") aluminum is the gold standard for high-end off-road armor. It absorbs impact energy better than steel and provides equivalent protection for 99% of off-road scenarios while saving over 100 lbs of weight.
Yes. Every kit includes zinc-coated steel brackets, high-tensile bolts, and all necessary mounting hardware for a 100% bolt-on installation.
