Crafted from 1/4" aluminum, this 72 lb kit provides heavy-duty defense without compromising the nimble performance of your 2-door Jeep.
Engineered for a precise, hassle-free installation using existing factory mounting points for a perfect fit on all 2-door JL models.
End-to-end shielding for your engine, transmission, transfer case, fuel tank, and Dana 44 diffs, reinforced for maximum impact resistance.
Built-in drainage holes and ventilation slots manage heat and debris, while the marine-grade aluminum ensures a permanently rust-free finish.
Agile Protection for the SWB Chassis. 1/4" Aluminum Armor. 100% Bolt-On.

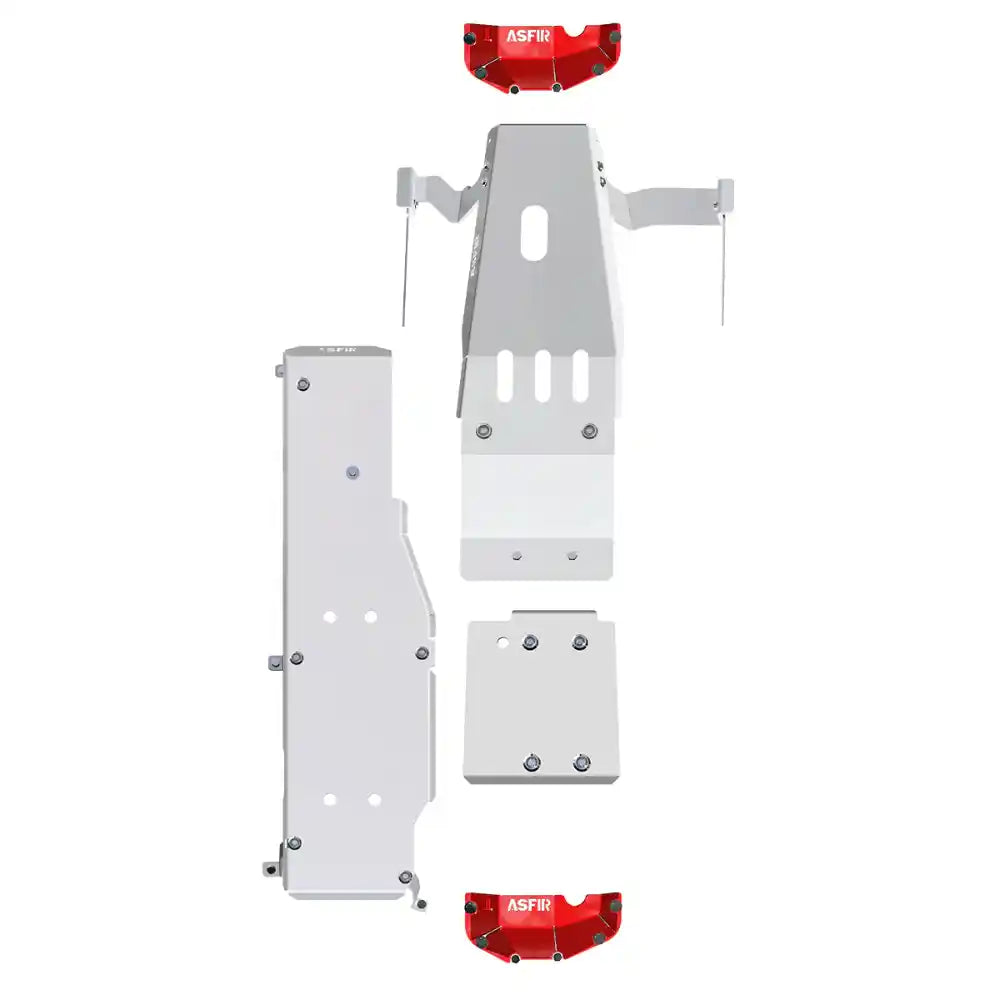

End-to-End Defense for the 2-Door WranglerThe Asfir 4x4 5-Piece Skid Plate Kit is precision-engineered for the unique chassis of the 2-door (SWB) Jeep Wrangler JL with the 3.6L Pentastar engine. Covering models from 2018 through 2025, this kit provides a complete shield for the drivetrain and fuel system without the massive weight penalty of traditional steel armor.
Crafted with precision from 1/4" (6mm) laser-cut aluminum, this kit is specifically designed for the Short Wheel Base platform. It accounts for the tighter component spacing of the 2-door JL, ensuring maximum ground clearance while providing heavy-duty resistance against rock strikes and trail hazards.
The Problem & The Solution:The Pain: The 2-door's shorter wheelbase makes it an off-road beast, but it also exposes the center of the chassis to high-centering on rocks. One bad hit to the aluminum oil pan or transfer case can result in a $5,000+ repair bill.
The Asfir Solution: A comprehensive 5-piece system that turns your underbody into a smooth sliding surface, reinforced with stiffening ribs to absorb massive impacts.

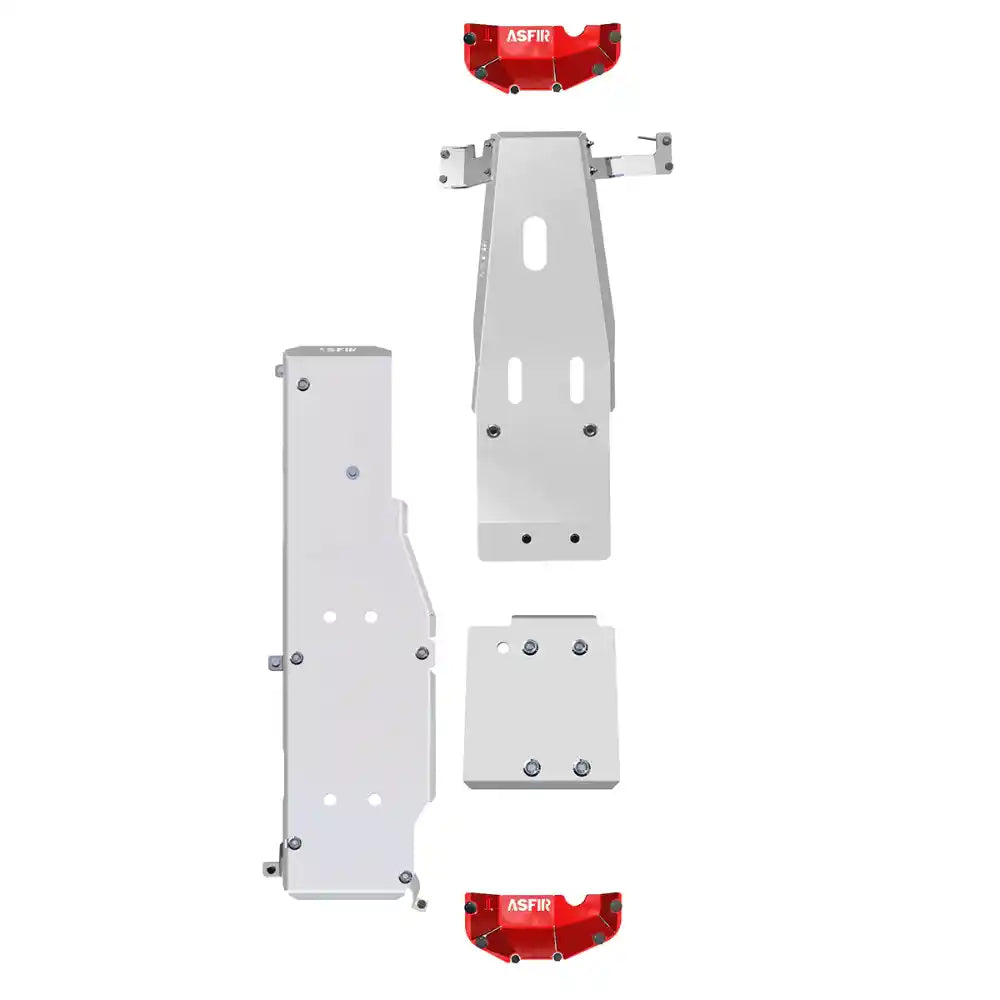

Key Features: Precision SWB Protection
Tailored specifically for the 2-door Short Wheel Base chassis. The fuel tank skid (547472) is precision-cut for the SWB dimensions.
Uses 6mm marine-grade aluminum, offering the strength of steel at nearly half the weight, preserving your 2-door's agility.
100% bolt-on installation. Uses existing factory holes, ensuring no permanent modifications to your Wrangler's frame.
Precision-cut ventilation slots and drain holes allow for critical drivetrain cooling and easy removal of mud and water.
Includes heavy-duty zinc-coated steel brackets that provide a secure, corrosion-resistant mounting point directly to the chassis.
The plates are engineered with internal reinforcing ribs to maximize impact resistance without increasing plate thickness.
Full axle housing protection included for both front and rear differentials, a must-have for rocky terrain.
Unlike steel, aluminum will not rust when scratched on the trail, ensuring your protection looks good for years.
Lightweight Strength for the SWBMaintaining a low center of gravity is crucial for the 2-door Wrangler's stability. By utilizing 1/4" aluminum, Asfir delivers a complete 5-piece kit that weighs only 72 lbs. This allows you to protect your 3.6L gasoline or Mild Hybrid (eTorque) drivetrain without significantly impacting your suspension performance or braking.
72 lbs Total System Weight 1/4" (6mm) Aluminum Thickness 5-Piece Full Underbody Kit 2-Door Exclusive SWB Fit
"Finding a full kit that fits the 2-door JL properly is harder than you'd think. The Asfir plates are perfect. The fuel tank skid fits the shorter chassis exactly, and the 1/4 inch aluminum has taken several hard hits on the differential and engine plate without deforming. Best investment for a Rubicon."
- Jake T., 2021 Wrangler JL Rubicon 2-Door Important Note: Manual Transmission ModelsCheck Your Crossmember: For Jeep Wrangler JL 3.6L Manual vehicles, please ensure your vehicle includes the Crossmember required for proper skid plate installation. Refer to the images below for visual reference.
*Repair costs are estimates. Does not include towing or trail recovery fees.
| Feature | Asfir SWB 5-Piece Kit | Universal JL Skids |
|---|---|---|
| SWB Fitment | ✓ Guaranteed 2-Door Clearance | ✗ Often Oversized / Overhangs |
| System Weight | ✓ 72 lbs (Lightweight) | ✗ 150 lbs+ (Heavy) |
| Axle Protection | ✓ Front & Rear Dana 44 Skids | ✗ Usually Sold Separately |
| Rust Resistance | ✓ Marine Aluminum + Zinc Brackets | Powder Coated Steel Only |
| Origin | ✓ Made in Israel | Imported |
Precision fitment for the 2-door Short Wheel Base (SWB) chassis with the 3.6L engine:
2018–2025 Jeep Wrangler JL (2-Door) Engine: 3.6L Gas / Mild Hybrid (MHEV)Configuration: Fits Sport, Sahara, and Rubicon models. Compatible with both Automatic and Manual gearboxes (Manual requires factory crossmember).
No. This specific 5-piece kit contains a fuel tank skid plate (547472) designed only for the Short Wheel Base (SWB) 2-door chassis. The 4-door models require the LWB (Long Wheel Base) kit, which we carry separately.

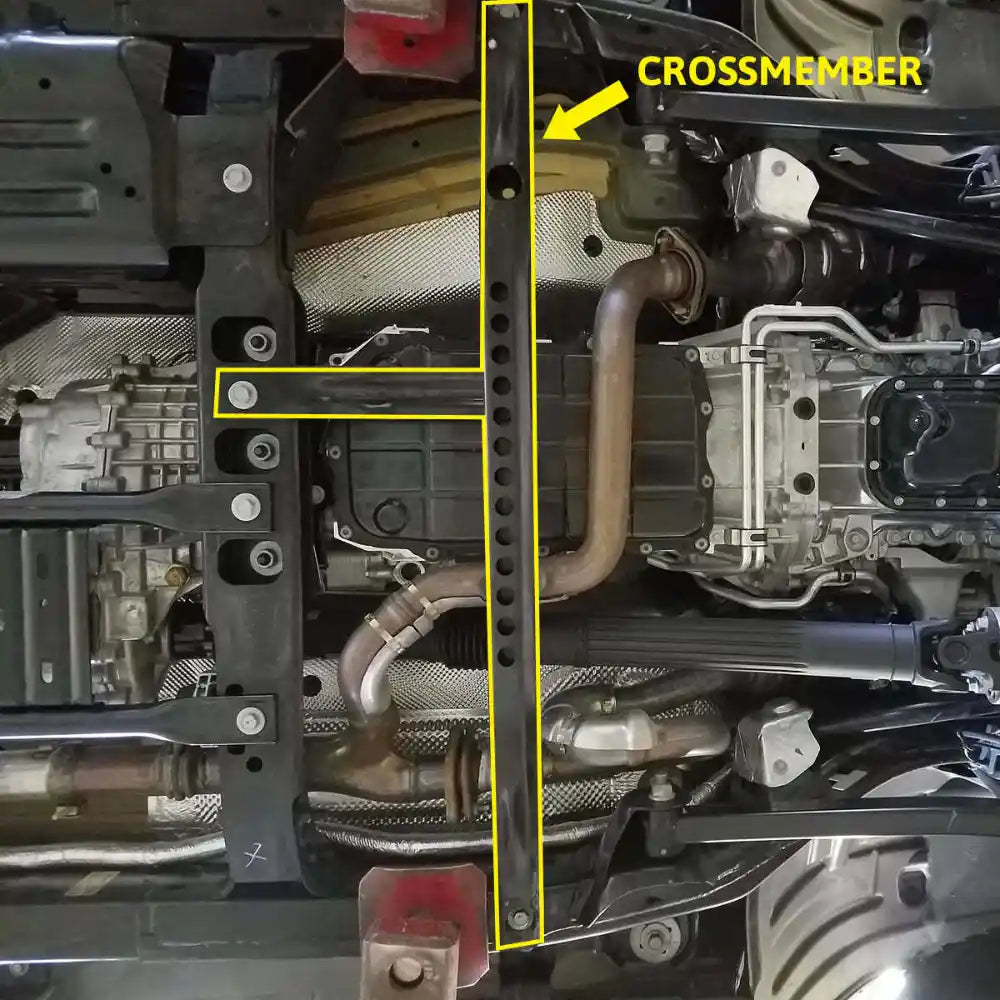

Most manual models from 2018-2025 require a factory crossmember for the engine skid to bolt onto. Look under your Jeep behind the engine; if there is a steel beam spanning the frame rails, you are set. Please refer to our comparison images in the description above for a visual confirmation.
The 2-door JL is prized for its power-to-weight ratio and nimbleness. Adding 200 lbs of steel skids can cause your suspension to sag and diminish trail performance. 1/4" aluminum provides heavy-duty protection for just 72 lbs, plus it will never rust even in salty or humid conditions.
Yes. Asfir includes access ports and drain holes in the engine skid plate design, allowing you to reach the oil filter and drain plug for standard maintenance without having to drop the heavy armor.
Yes. This 5-piece kit is fully compatible with both the standard 3.6L gasoline engine and the 3.6L Mild Hybrid (MHEV) eTorque engine configurations from 2018–2025.
