Asfir 4x4 Ford Bronco Skid Plate Kit (3 Pcs) For Models With Sway Bar Disconnect | 2021+

SKU 599655B-5A
Save $38.00
Original Price $807.00
Current Price $769.00

  Price Match Guarantee

  Safe/Secure Checkout

  Questions? Chat or Call us: (409) 916-8280

Notify me when back in stock

⚖️

Lightweight Armor

Constructed from 1/4" (6mm) aluminum, providing heavy-duty impact protection at only 28 lbs without sacrificing vehicle agility.

🛠️

Easy Bolt-On Fit

100% bolt-on installation with no cutting, drilling, or welding required, utilizing factory mounting points for a seamless fit.

📐

Sway Bar Optimized

Precision-engineered specifically for Bronco models with hydraulic sway bar disconnects, ensuring full clearance and total protection.

🛡️

Reinforced Durability

Features integrated stiffening ribs for maximum impact resistance and dedicated apertures for mud and water drainage.

Description

Ford Bronco Skid Plate Kit (3 Pcs) For Models With Sway Bar Disconnect (2021+)

Heavy-Duty 1/4" Aluminum Armor. 100% Bolt-On. Complete Underbody Coverage.

Bulletproof Your Bronco's Belly

The Ford Bronco is a beast on the trail, but its most expensive components—the transmission and transfer case—sit dangerously exposed to jagged rocks and stumps. This 3-piece skid plate kit provides the elite-level protection required for technical rock crawling and high-speed desert runs.

Precision-engineered for models with a sway bar disconnect, this kit uses laser-cut 1/4" (6mm) aluminum to deliver maximum impact resistance without the massive weight penalty of traditional steel plates. Proudly manufactured to handle the world's toughest terrain.

Why ASFIR Protection:

The Pain: Factory "protection" is often thin, stamped metal that folds under pressure, leading to thousands in repair costs.
The Solution: Our 3-piece system features reinforced stiffening ribs and 1/4" thick aluminum that slides over obstacles rather than catching on them.

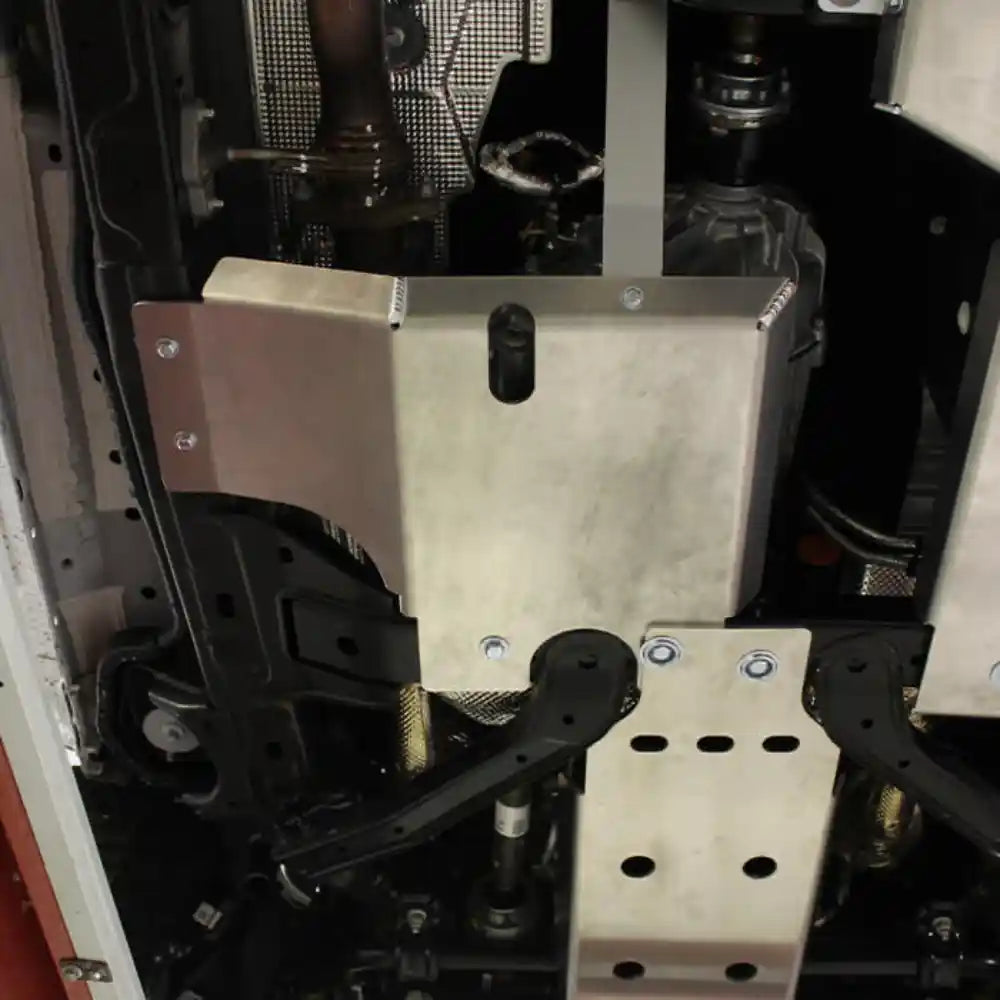

Installed Underbody View - Ford Bronco 3-Piece Kit by Asfir 4x4
Key Features: Heavy-Duty Bronco Armor

Sway Bar Compatibility

Specifically engineered to clear the factory sway bar disconnect mechanism on Badlands and Heritage Limited models.

1/4" (6mm) Aluminum

Marine-grade aluminum offers a superior strength-to-weight ratio, ensuring your Bronco stays nimble but protected.

Bolt-On Installation

No drilling, cutting, or welding required. Uses existing factory mounting points for a stress-free garage install.

Reinforced Stiffening Ribs

Strategic structural ribbing prevents the plates from bowing or warping under the weight of the vehicle during high impacts.

Zinc-Coated Brackets

Corrosion-resistant steel mounting brackets ensure the kit stays securely attached regardless of salt, mud, or moisture.

Service-Friendly Design

Integrated drainage holes and ventilation slots allow for easy cleaning of mud and debris after a day on the trail.

Crossmember Armor

Includes 1/8" (3.17mm) steel covers for the crossmember arms, protecting the critical frame links of your Bronco.

Lightweight Security

At only 28 lbs, this full kit provides total protection without sagging your suspension or killing your fuel economy.

Precision Engineering Meets Off-Road Durability

Each plate is precision laser-cut for a vehicle-specific fit that hugs the chassis. This maximizes ground clearance while ensuring there are no gaps for rocks to catch. The hybrid construction of thick aluminum for main impact areas and steel for frame protection offers the best of both worlds.

28 lb Total Weight 6 mm Aluminum Plate 3.17 mm Steel Arms 100% Bolt-On

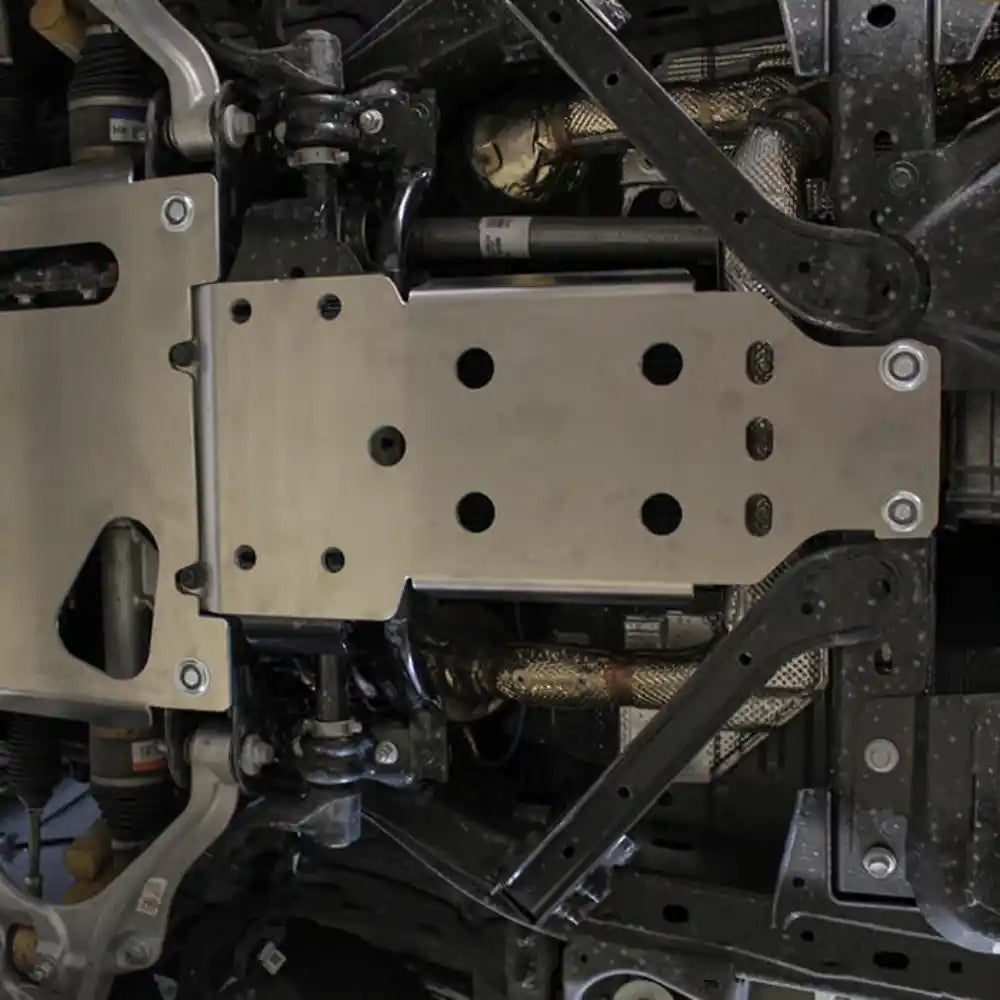

Transmission and Transfer Case Coverage - Asfir 4x4 for Ford Bronco

Real Bronco Owner Feedback ★★★★★

"After seeing a buddy crack his transmission case on a hidden rock in Moab, I ordered this kit for my Badlands. The install took about an hour in my driveway with basic tools. The aluminum is incredibly thick, and I love that it doesn't interfere with the sway bar disconnect. It's peace of mind you can't put a price on."

- Jake M., Bronco Badlands Owner

Investment vs. Repair Cost Reality Check

$5,000+ Transmission Case Damage $2,500+ Transfer Case Replacement $1,800+ Sway Bar Disconnect Repair One-Time Skid Plate Protection

*Repair estimates include parts, labor, and towing from the trail.

Why Choose Our Skid Plate Kit?

Feature Our 3-Piece Kit Factory/Competitor Plates
Thickness ✓ 6mm Aluminum (1/4") ✗ 2-3mm Stamped Steel
Coverage ✓ Trans, T-Case & Arms ✗ Partial Coverage Only
Install Method ✓ 100% No-Drill Bolt-On Often requires drilling
Weight ✓ Lightweight 28 lbs Heavier Steel Alternatives
Maintenance ✓ Drain Holes Included Requires removal for cleaning
Fitment & Compatibility (2021+)

This kit is specifically designed for Ford Bronco models equipped with the Hydraulic Sway Bar Disconnect. It replaces the original factory skid plate.

Fits Following Models:
Badlands, First Edition, Heritage Limited Edition.
NOT Compatible With:
Base, Big Bend, Black Diamond, Outer Banks, Wildtrak, Everglades, Heritage Edition.

OEM Integration: The transmission skid plate in this kit (599661) is designed to fit seamlessly with the OEM front skid plate if you choose not to upgrade the front section.

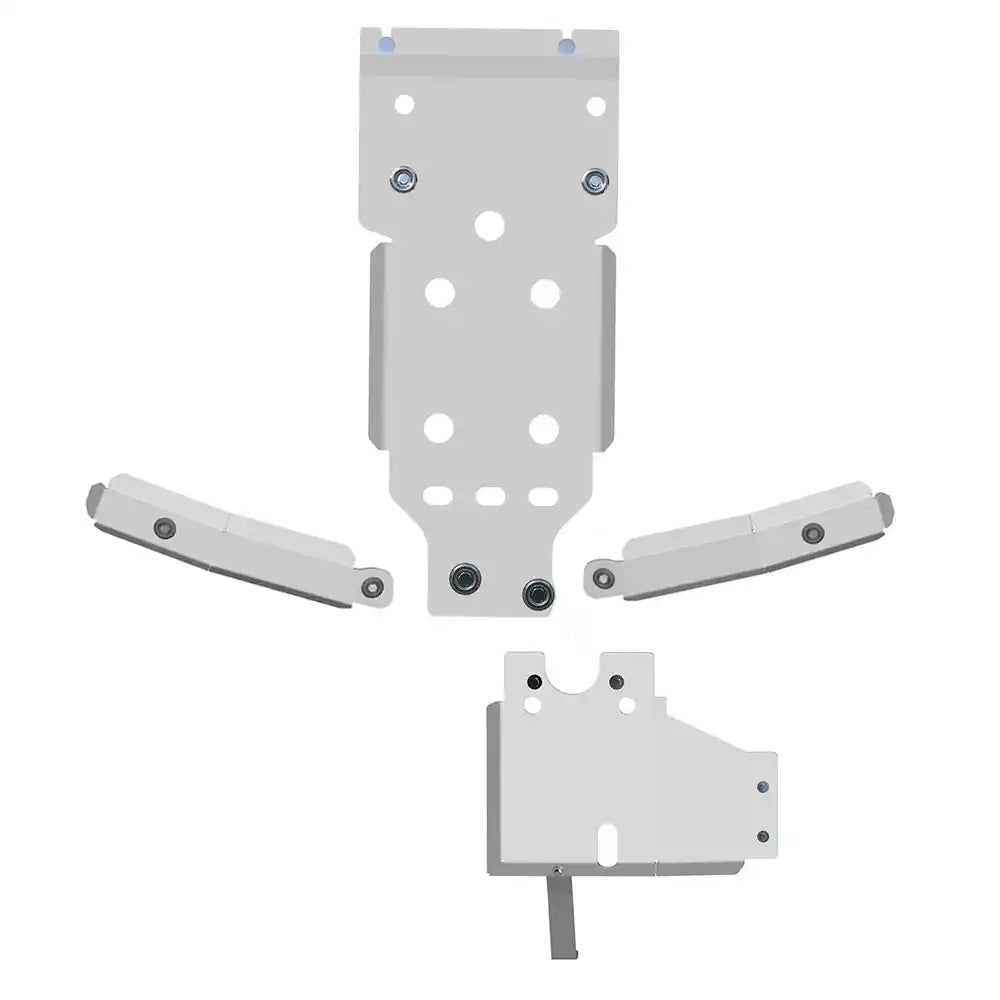

Ford Bronco Asfir 4x4 Skid Plate Kit - Components Layout

Complete 3-Piece Protection System

Transmission Skid Plate
1/4" Aluminum (Ref: 599661)
Transfer Case Skid Plate
1/4" Aluminum (Ref: 599665)
Crossmember Arms Covers
1/8" Steel Pair (Ref: 599662)
Full Mounting Hardware
Zinc-Coated Brackets & Fasteners

Installation & Information Videos

CA Residents: ⚠️ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Frequently Asked Questions

+ Does this kit fit the Bronco Wildtrak?

No. This specific kit is designed for models with a factory sway bar disconnect (Badlands, First Edition, Heritage Limited). The Wildtrak uses a different configuration that is not compatible with this 3-piece set.

+ Do I need to drill any holes in my Bronco's frame?

Absolutely not. This is a 100% bolt-on kit. It utilizes the factory mounting points already present on your Bronco's chassis, ensuring a clean install that won't void your warranty.

+ Will this aluminum skid plate rust or corrode?

The main plates are made of high-quality 6mm aluminum, which naturally resists rust. The mounting brackets are zinc-coated steel to provide maximum corrosion resistance against road salt and moisture.

+ Can I still perform oil changes with these plates installed?

The plates feature strategic ventilation and drainage slots. While the transmission and transfer case plates cover the underbody, they are designed to allow for standard fluid maintenance. If necessary, the bolt-on nature makes them much easier to remove and reinstall than factory splash guards.

+ Why does this kit include steel for the crossmember arms?

The crossmember arms are high-stress frame components. We use 1/8" (3.17mm) reinforced steel for these covers because they require more rigidity in a smaller footprint than aluminum can provide, ensuring your frame remains protected from direct rock strikes.
