Bed Rack Payload: How Much Does It Actually Eat Into Your Capacity?
A bed rack's spec sheet will proudly tell you it holds 750 lbs static or 400 lbs dynamic. What it won't tell you is whether your truck can actually afford to carry that much in the first place. Payload isn't the rack's number — it's your truck's number, and it's already being spent before the rack ever goes on. This guide walks through exactly how much of that budget a bed rack realistically consumes, where the rest of it quietly disappears, and how to check whether you're still inside the line.
Key Highlights
- A bed rack itself typically uses only 5-9% of a mid-size truck's payload — the real risk is stacking it on top of accessories already installed.
- Payload, GVWR, and GAWR are three different numbers, and the rear axle rating (GAWR) can become the real ceiling before total payload does.
- Forum reports consistently show owners thousands of pounds over payload without any single accessory feeling extreme on its own.
- Your truck's real payload number is on the driver's door jamb sticker, not a spec sheet or trim brochure.
- A lighter low-profile rack can meaningfully reclaim payload margin compared to a heavier full-height steel rack.

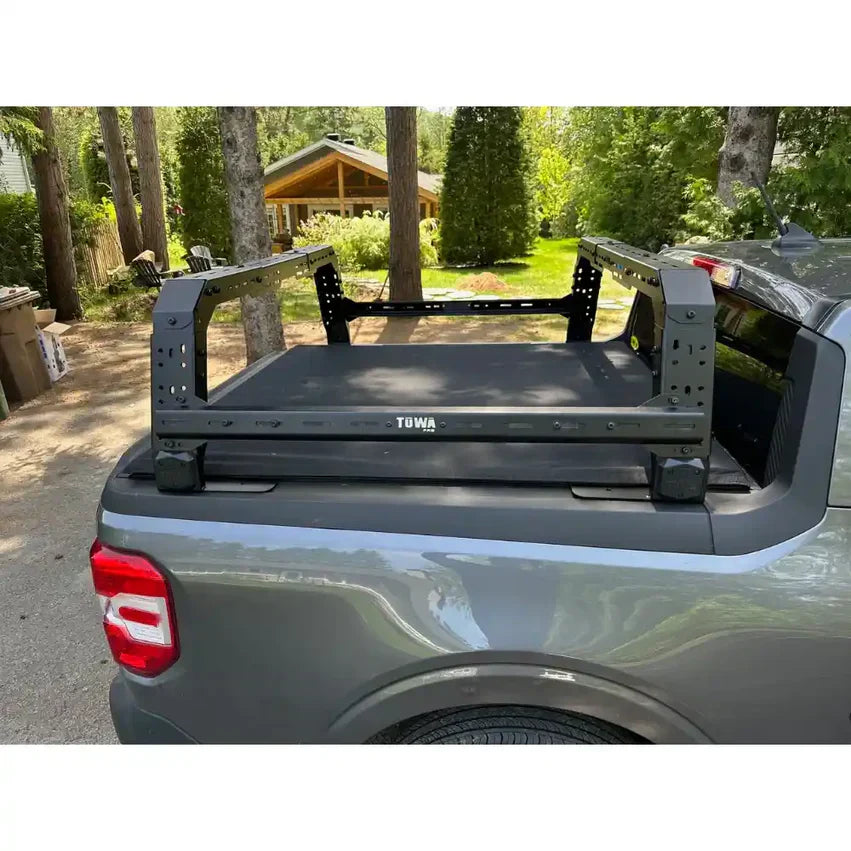

A full height bed rack like this one adds more weight and a longer lever arm than a low-profile rack — both matter when you're budgeting payload.
Quick Answer
Short answer: the bed rack itself usually eats only 40-100 lbs of payload, a small slice of a typical 1,400-1,700 lb mid-size truck payload. The real problem is that the rack is rarely the only thing added. By the time you stack a steel bumper, a tire carrier, a rooftop tent, passengers, and gear on top of the rack, owners commonly find themselves thousands of pounds over their door-sticker payload number without any single item feeling like the cause.
What "Payload" Actually Means (and What It Doesn't)
Payload is the maximum combined weight of everything added to your truck beyond its factory curb weight — passengers, cargo, fluids, and every accessory bolted on afterward. It's printed on the tire and loading information sticker inside the driver's door jamb, and it's specific to your exact truck, not the trim level in a brochure. Two trucks of the same model year and cab configuration can have meaningfully different payload numbers depending on options, suspension, and axle ratios.
This is different from GVWR (Gross Vehicle Weight Rating), which is the truck's curb weight plus its payload combined — the absolute maximum the whole vehicle is allowed to weigh. It's also different from towing capacity, which is how much weight a trailer can carry while the trailer's own axles support most of that load, not the truck's payload directly. Tongue weight links the two: a trailer that's pulling down hard on the hitch is effectively borrowing from your payload, not your towing capacity.
Always pull your payload number from your own door sticker, not a spec sheet. Trim packages, cab size, bed length, and optional equipment all shift the number, sometimes by several hundred pounds within the same model year.
The Second Ceiling Nobody Checks: GAWR
Almost every guide on this topic stops at GVWR and payload. There's a second number that matters just as much for a bed rack specifically: GAWR, or Gross Axle Weight Rating. Your truck has a front and rear GAWR, and they don't have to be split evenly — many trucks have noticeably less rear-axle margin than their total payload number implies.
A bed rack, an RTT, and bed cargo all sit almost entirely over the rear axle. That means it's possible to be well within your total payload number on paper while still pushing the rear GAWR past its limit, because nearly everything you've added is concentrated over the back wheels rather than spread across the truck. If you only check total payload and ignore GAWR, you can end up rear-heavy in a way the payload sticker alone won't warn you about.
Both GAWR figures are also printed on the same door jamb sticker as your payload number, usually listed as front and rear axle weight ratings. If your build is rear-heavy — rack, RTT, recovery gear, full water tank — checking rear GAWR against your estimated rear-axle load is worth doing in addition to the total payload check.
Building the Real Payload Budget
The forum pattern is consistent: nobody gets overloaded by one accessory. They get there by stacking several that each felt reasonable on their own. Here's what that stacking typically looks like on a mid-size truck with a 1,500 lb payload sticker:
| Item | Typical Weight | Running Total Used |
|---|---|---|
| Starting payload sticker | — | 1,500 lbs available |
| Aftermarket steel front bumper | 120 lbs | 1,380 lbs available |
| Rear bumper with tire carrier | 180 lbs | 1,200 lbs available |
| Bed rack (full height, steel) | 90 lbs | 1,110 lbs available |
| Rooftop tent | 150 lbs | 960 lbs available |
| Driver + one passenger | 350 lbs | 610 lbs available |
| Gear, water, recovery kit, fuel | ~600 lbs typical | ~10 lbs available |
Notice the rack itself only cost 90 lbs in that build — a fraction of the total. What actually closed the gap was everything else stacked on top of it. This is the part most rack manufacturers never mention, because their spec sheet only has to account for their own product, not your whole truck.
Height options like this 12" vs 18" bed rack change both weight and leverage — taller isn't just a styling choice, it's a payload and GAWR variable.
Where the Rack Itself Fits In
The rack's own static and dynamic load rating is still worth knowing — it tells you what the rack can structurally hold without bending or fatiguing. But it's a secondary check, not the primary one. A rack rated for 750 lbs static can hold that weight just fine and your truck can still be over its payload limit at the same time, because the rack's rating only describes the rack, not your truck's GVWR or GAWR.
Think of it in this order: first confirm your truck's payload and GAWR have room for everything you're adding (rack included), then confirm the rack's own static/dynamic rating can structurally support what you intend to put on it. Skipping straight to the second check is how people end up structurally fine but legally and mechanically over their truck's limits.
A low-profile rack like this one typically weighs less and sits closer to the bed rail than a full-height design, leaving more payload margin for cargo and accessories.
Payload Budget Calculator
Enter your truck's actual door-sticker payload number along with rough weights for what you're adding. The calculator runs the same stacking math as the table above against your numbers.
Payload Budget Calculator
Signs You're Already Over (Even If It Doesn't Feel Like It)
Rear sag at rest
Noticeable squat at the back of the truck even parked on level ground, especially compared to how it sat before accessories were added.
Headlights aimed high
A rear-heavy truck tilts the front end up slightly, which raises where your headlights point — a subtle but common symptom.
Longer, softer braking
Extra weight over the rear axle changes brake bias and stopping distance, particularly noticeable on downhill grades.
Rack flex over rough roads
A rack that feels solid parked but flexes or rattles over washboard sections can be carrying more dynamic load than its rating or your suspension comfortably handles.
Any one of these is worth a real weigh-in rather than a guess. A loaded trip to a CAT scale (truck fully loaded as you'd actually drive it) gives you an exact number to compare against your door sticker, and it's the only way to know for certain rather than estimate from component specs.
Worth remembering: these symptoms can show up at the rear axle specifically before your total payload number looks exceeded — which is exactly the GAWR gap covered above.
How to Claw Back Payload Margin
If your budget is tight, a few changes meaningfully move the number without giving up the build:
Go low-profile
A low-profile rack weighs less than a full-height design and sits closer to the bed rail, reducing both weight and leverage on the rear axle. See our low profile vs. full height guide for the tradeoffs.
Choose aluminum over steel
Material choice can meaningfully change rack weight at a similar size and rating. Compare the tradeoffs in our steel vs. aluminum bed rack guide.
Right-size the RTT
A smaller or soft-shell tent can save 50-100+ lbs versus a large hardshell, directly freeing up payload margin.
Audit unused accessories
Factory tow packages, unused tire carriers, or duplicate recovery gear add curb weight that quietly eats payload before your build even starts.
Frequently Asked Questions
Does a bed rack count against payload or towing capacity?
Payload. A bed rack and anything mounted to it adds weight directly to the truck, which counts against payload, not towing capacity. Towing capacity only applies to weight a trailer's own axles are supporting.
How do I find my truck's real payload number?
Check the tire and loading information sticker inside the driver's door jamb. It lists the combined weight of occupants and cargo your specific truck can carry — this is more accurate than any spec sheet or trim brochure figure.
What's the difference between GVWR and GAWR?
GVWR is the maximum total weight of the whole vehicle (curb weight plus payload). GAWR is the maximum weight allowed on a specific axle, front or rear. A bed rack build can be within GVWR while still exceeding rear GAWR, since the rack and its cargo sit almost entirely over the rear axle.
Can a lighter rack meaningfully improve my payload margin?
Yes, though it's usually a smaller factor than RTT weight, passengers, or gear. Switching from a heavier full-height steel rack to a lighter low-profile or aluminum rack can reclaim tens of pounds, which matters most when your budget is already close to the line.
Is it dangerous to be slightly over payload?
It increases stopping distance, alters handling, and adds stress to suspension and tires, with the risk scaling up the further over the limit you are. A small margin over a conservative estimate is a different risk level than being verified hundreds of pounds over on a scale.
Do RTTs count differently than cargo?
No — a rooftop tent counts against payload the same as any other cargo weight. It's often a larger single contributor than the rack itself, and its height above the bed also affects dynamic load and center of gravity.
Verdict
Before you mount a rack or add another accessory:
- Check your truck's actual payload number on the door jamb sticker — not a spec sheet.
- Check rear GAWR too, especially if your build is rack- and RTT-heavy over the back axle.
- Run the full stack — bumpers, tire carrier, rack, RTT, passengers, gear — through the calculator above before assuming you have room.
- Treat the rack's own static/dynamic rating as a secondary structural check, not your payload limit.
Already comparing rack styles for your build? See how height affects this same budget in our low profile vs. full height bed rack guide, or browse lighter options directly in our bed rack collection. For the full decision framework — material, mounting, tonneau fit, and load capacity all together — see our complete bed rack buying guide.
